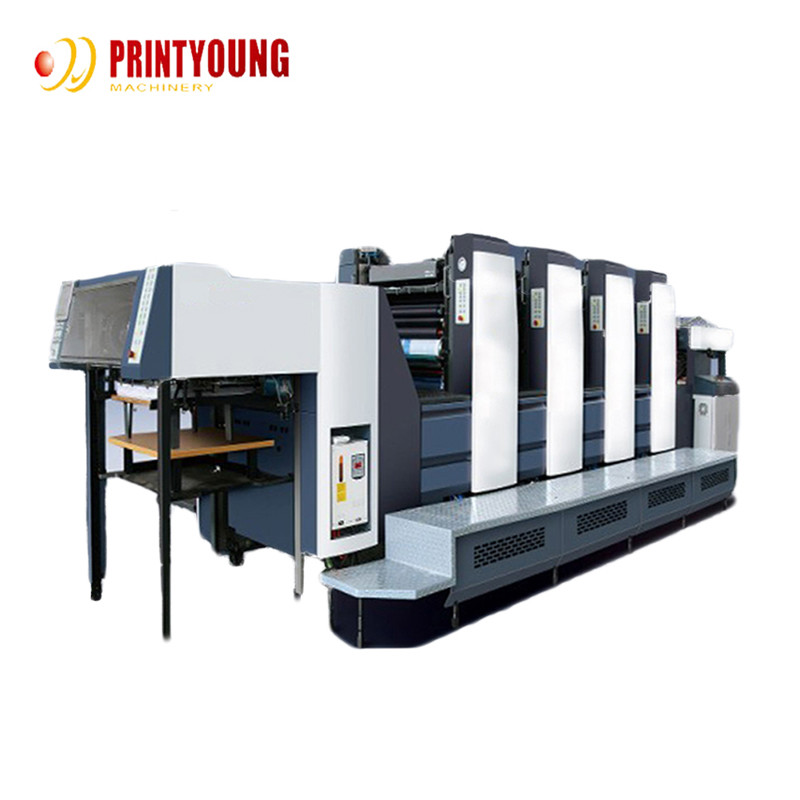

2000sph Multicolor Offset Printing Machine For 540X740mm Sheet

Basic Information
Place of Origin: China
Certification: CE
Model Number: Pry-JD4740
Minimum Order Quantity: 1 Set/Sets
Packaging Details: wooden case
Delivery Time: 60days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 25sets/month
Machine Speed: 12000s.p.h Maximum Sheet Size: 540 X 740mm
Minimum Sheet Size: 273 X 393 Mm Sheet Thickness: 0.06-0.6mm
Maximum Image Area: 528 X 730mm Plate Size: 677 X 755 X 0.3mm
Maximum Feeder Pile Height: 940mm Machine Overall Dimensions: 7380X2550X1950mm
High Light:

2000sph Multicolor Offset Printing Machine


540X740mm Sheet Offset Printing Machine


0.6mm Sheet Offset Printing Machine

Pry-JD4740 new generation 12000s.p.h multi-color offset printing machine

Product introduction

According to the development of the printing market, a new generation of multi-color offset printing machine built by a number of national patent technologies is adopted, which adopts automatic pneumatic clamping system, automatic three-axis adjustment system controlled by DC permanent magnet, and precise automatic pressure regulating system. With the bus electronic control system of Mitsubishi CC-LINK communication method, it perfectly displays the characteristics of smart, intelligent and high efficiency of the heavy-duty printing machine. The stainless steel spray embossing and plate cylinder greatly extend the life of the machine. CIP4 can be used to form a digital work flow with prepress CTP and post-press, and to preset the ink color, which greatly reduces the printing factories ' experience for printing technicians. Under certain conditions, the operating conditions and various parameter changes of the printing press can be monitored and controlled by INTERNET, and the popular UV printing, glazing and other printing processes as well as the automatic blanket washing and the ink roller can be conveniently installed. Increased scalability of product features

Desigh Feature

1.The semi APC (Automatic Plate Changer) shortens the make-ready time
2.To preset paper thickness when printing different kinds of paper. To adjust printing pressure in every unit automatically, quickly and synchronously.
3.With non-stop feeder, piles are changed at production speed.It saves a great deal of time when running thick paper and long version work offline.
4.It is equipped with CC-LINK technological bus module fromMitsubishi.
5.Double-diameter impression cylinder and transfer drum can reduce the times of sheet take-over between print units.
6.The plate cylinder can be adjusted in the circumferential direction, lateral direction and diagonal direction.
7.There are five rollers on the plate cylinder. There is an intermediate roller in alcoholic damping system, which can eliminate the "ghost" image, achieve the quick ink-water balance and reducepaper consumption
8.There are 23 zones in split (staggered) ductor.

Technical parameters:

Model jd4740
Machine speed 12000s.p.h
Maximum sheet size 540 X 740mm
Minimum sheet size 273 X 393 mm
Sheet thickness 0.06-0.6mm
Maximum image area 528 X 730mm
Plate size 677 X 755 X 0.3mm
Blanket size 740 X 760 X1.9mm
Maximum feeder pile height 940mm
Maximum delivery pile height 780mm
Machine overall dimensions 7380X2550X1950mm
Total power of motors 23kw
Gross weight 19700kg


Printing Units:1. Both of frame and base are integral casting.2.High frequency quenching of gears guarantee transmission accuracy.3. Helical gears, high overlap coefficient and low noise.2000sph Multicolor Offset Printing Machine For 540X740mm Sheet 0

Blanket automatic cleaning:1.The press memory or job memory card (disk) can save the current job. 2.Changes and settings made to the current job are transferred to the press.3.While in printing mode, you can enter the presetting values for next job into the press memory or stored to a disk.4.CIP3/CIP4                                     2000sph Multicolor Offset Printing Machine For 540X740mm Sheet 1


Pneumatic Clamp Bar,Change Plate Without Tools:1.Tension of clamp bar is controlled by imported hoses and disc springs, so that it is more flexible for operation.2.Corners of cylinders are controlled by high precision encoder. Plates will be installed and dismounted by program automatically. Thus it can meet the long version and short version edition of the printing business needs.The tail of clamp bar is separated, so that it can help paper more smooth. protocol       2000sph Multicolor Offset Printing Machine For 540X740mm Sheet 2

Structure diagram:

2000sph Multicolor Offset Printing Machine For 540X740mm Sheet 32000sph Multicolor Offset Printing Machine For 540X740mm Sheet 4
