8000pcs/H Offset Printing Machine Dampening Static Elimination

Basic Information
Place of Origin: China
Certification: CE
Model Number: PRY-NP47
Minimum Order Quantity: 1 Set/Sets
Packaging Details: wooden case
Delivery Time: 30days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30sets/month
Max. Printing Area: 454 X 345mm Max. Paper: 470 X 365mm
PS Plate: 470 X 380 X 0.15mm Rubber Blanket: 470 X 420mm
Paper Weight: 28-255g/m2 Size: 1730 X 880 X 1250mm
Weight: 660kg Speed: 1000-8000pcs/h
High Light:

8000pcs/H Offset Printing Mahcine


Multicolor Dampening Offset Printing Machine


CE Static Elimination Offset Printing Machine

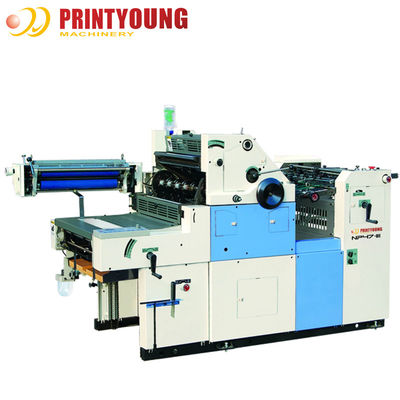

PRY-NP47 1000-8000pcs/h small single color offset printing mahcine


Printing range: Multi-color printing with excellent dampening & ink system and guide register.
Control system: With preset counter, double-sheet ,multi-sheet detector and auto-removal function without stopping running, auto-raising & lowering sheets device, auto-lowering for delivery table, auto-inking & hand inking, central lubricating, inching & all kinds of security devices, powder sprayer, timing of powder & printing, static elimination, stop running for leaning sheets ( option).

With converter speed adjustment, inching of head & tail margin, quick plate clamp, leaning paper stop, static elimination. It is a ideal machine type for small business


Technical Parameter:

model 47 56 62
Max. printing area 454 X 345mm 550 X 375mm 620 X 430mm
Max. paper 470 X 365mm 560 X 400mm 620 X 450mm (cross feed)
PS plate 470 X 380 X 0.15mm 560 X 420 X 0.15mm 620 X 485 X 0.15mm
Rubber blanket 470 X 420mm 560 X 440mm 605 X 430mm
Paper weight 28-255g/m2 28-255g/m2 45-250g/m2
Feed sheet Suction/cross feed Suction/cross feed Suction/cross feed
Dampening Mollenton Mollenton Mollenton
Ink roller 14pcs(3 forme rollers) 14pcs (3 forme rollers) 16pcs (3pcs forme ink roller)
Dampening roller 5pcs (2 forme rollers) 5pcs (2 forme rollers) 5pcs ( 2pcs forme dampening roller)
Register device Wheel side pull lay Wheel side pull lay Wheel side pull lay
Speed 1000-8000pcs/h 1000-8000pcs/h 1000-8000pcs/h
Main motor 0.75kw 1.1kw 1.5kw
Air pump motor 0.55kw 0.55kw 0.75kw
Power 220v/50hz 220v/50hz 220v/50hz
Size 1730 X 880 X 1250mm 1730 X 980 X 1250mm 1960 X 1050 X 1360mm
weight 660kg 800kg 920kg
