ZKT-890 Window Patching Machine

Features

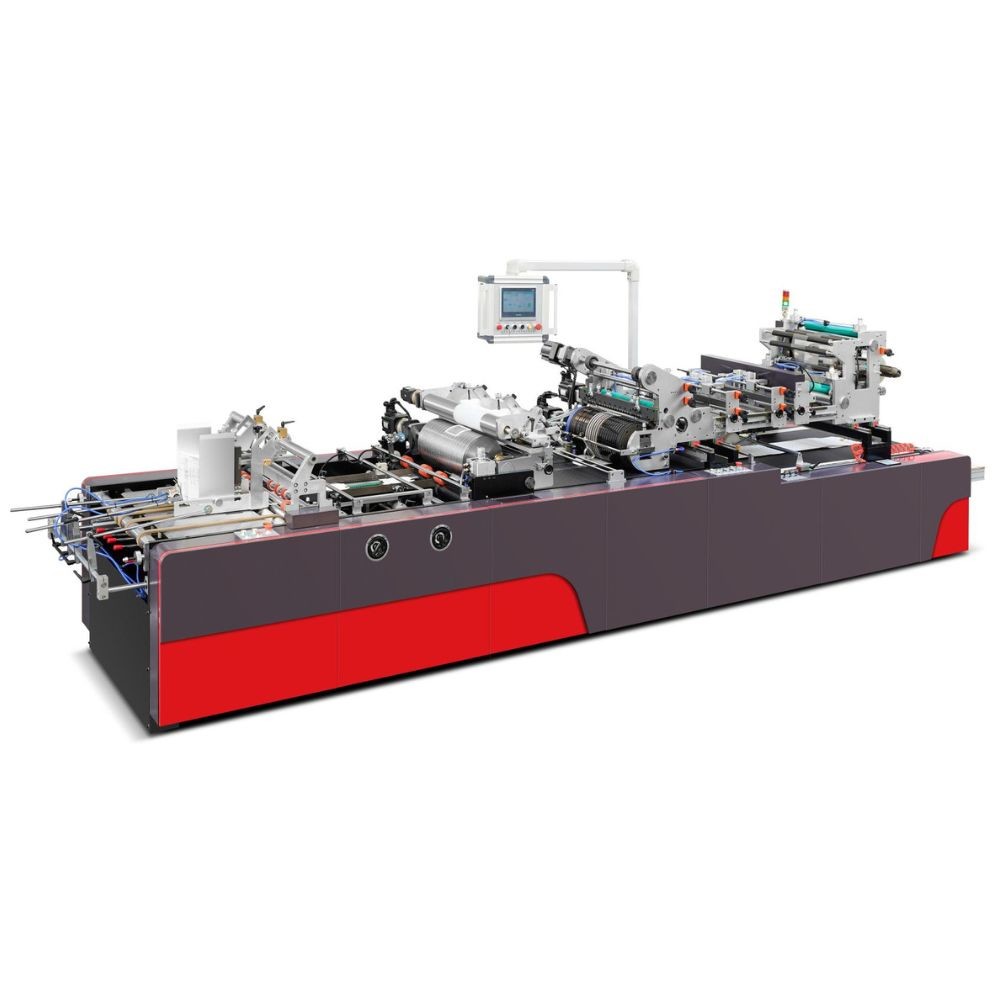

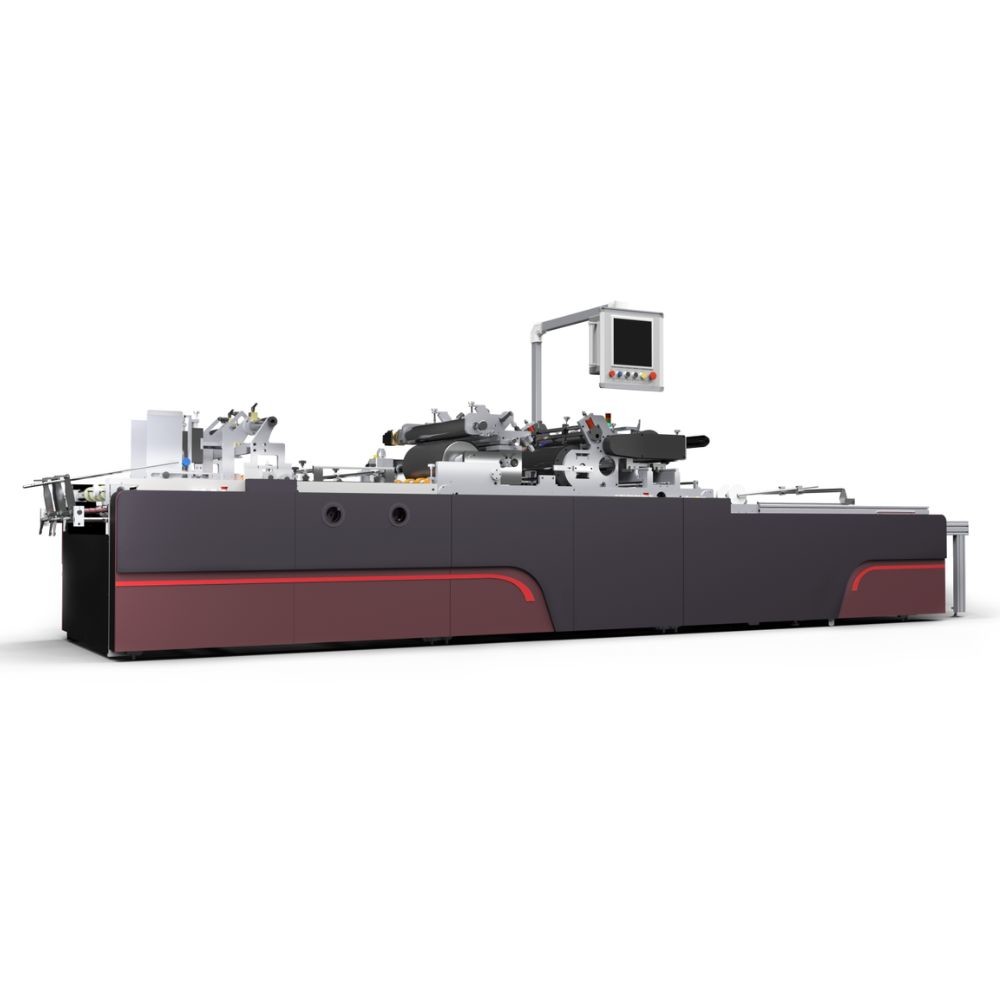

ZKT-890 window patching machine could been used for normal pasting.It equipped with 9 groups of servo motors in paper feeder part,chain rail pusher part,the suction belt part, gluing roller part,film suction drum part,the cutting knife part and film feeding part.Touch screen computer controls the machine,and has the magic eye tracking compensation system,equal to every movement has the servo to tracking,This is a complete motion control system,error compensation system,high precision!Intelligent operation,convenient staff training.

Technical Parameters

ZKT Series Window Patching Machine
Model	ZKT-890	ZKT-1200
Paper Length	120 - 780 mm	120 - 780 mm
Paper Width	140 - 800 mm	140 - 1200 mm
Film Length	60 - 400 mm	60 - 400 mm
Film Width	40 - 450 mm	40 - 500 mm
Paper Caliper	paper box & cardboard box 250-1000 g/m2, corrugated/flute up to 3 mm	paper box & cardboard box 250-1000 g/m2, corrugated/flute up to 3 mm
Film Thickness	0.05 - 0.25 mm,OPP,PVC,PET,PE etc	0.05 - 0.25 mm,OPP,PVC,PET,PE etc
Speed	4000-20000 pcs/h	4000-20000 pcs/h
Pump Power	4.5 kw	4.5 kw
Machine Power	17 kw	17 kw
Machine Weight	2300 kg	3000 kg
External Dimension	620016501950 mm	620021501950 mm

Configuration

Servo System

The whole machine adopts intelligent motion control system (a total of 9 sets of servo systems) and man-machine interface.The

close cooperation between the servo and the photoelectric sensor enables the deviation of the product to be effectively monitored and corrected at each parts,and finally make the high quality products that customers need.

The Paper Feeding Part

The paper feeding part adopts servo photoelectric to feeding paper,input the length and speed on the touch screen,so that make the paper feeding is fast and accurate. Suitable for cardboard and corrugated paper with laminating,reverse UV,nano UV,oil and

water varnishing.In addition,the punching part is reserved,which is suitable for paper output smoothly of thin paper and slightly warped paper.

The Pin Paper Feeding Part

The pin paper feeding part adopts servo control,which can be operated directly on the touch screen,it can change the angle to

adjust the connection speed between the paper and the pin,so that make different papers can be fed more stably and smoothly.

The Gluing Part

The gluing part is composed of servo motor, cylinder,photoelectric,solenoid valve,304 stainless steel roller,glue separating guide plate,side limiter and gluing roller,which can be easily pulled out for setting and cleaning conveniently.Adjustable glue separating guide plate to control the glue range and outflow volume.After stopping machine,the cylinder can lift the gluing roller and drive it with another independent servo motor to avoid the glue from solidifying.The gluing roller can freely adjust its position axially and radially without stop the machine.Once meet with double sheets or empty sheet in the gluing part,the gluing part have the function of lifting glue, which prevents the glue from contacting the suction belt effectively.

The Film Feeding Part

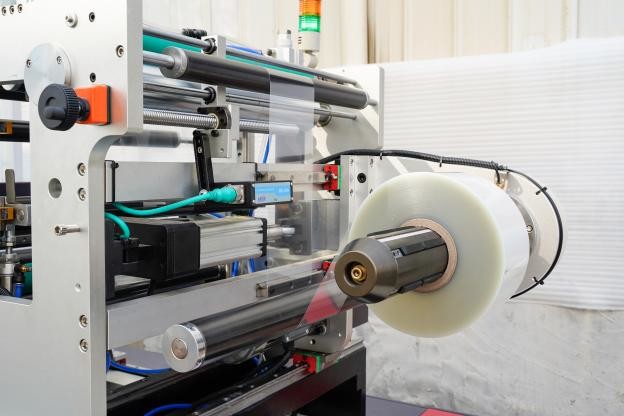

The film feeding part uses an air expansion shaft to load the film,and automatically corrects the deviation to keep the film feeding in a straight line.The tension control function makes the servo film feeding more stable,eliminating stretching and reducing inertia.At the same time,it is also equipped with the function of printed film side tracking and stop due to lack of film.

The Collecting Part

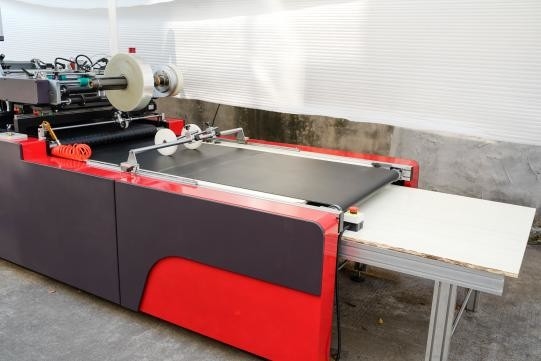

The collecting part has the counting function, which can be counted in batches,and has automatic machine stop function when has

paper jam.

Applications

Q1.Are you a manufacturer or a trading company?

A:Our shanghai office is mainly doing export.We have our own factory in Wenzhou,Zhejiang Province.

Q2.What is the machine warranty?

A:One year.After the warranty,we still provide technical support to buyer at low cost.

Q3.What is the production time while placing order?

A:Normally about 10-20 days.

Q4.What is the delivery time?

A:15-30days after deposit.

Q5.Can your company handle shipping for customers?

A:Yes,just give us destination sea port or container yard.

Q6.Does the packing strong?

A:Yes.Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions.A full set of maintenance and operation manuals is included.

Q7.How about the machine installation and training?

A:1)We provide training in our factory for free;

2)We can send technicians (engineers) to your factory for installation and training.

You shall pay the round trip air fare and accommodations,plus each technician charges USD100/per day.

Q8.Do you have machines in stock?

A:For standard model,we have a large quantity in stock.For special model,we need 20-30 days to produce it for you.

Q9.How can you assure the machines’ quality?

A:Each machine will be test running at least 24 hours before delivery to assure the quality.

And during the warranty,we will give spare parts for free if machine has any problem.

Q10.Do you inspect machines or test running before packing?

A:Of course we do.We have QC department to debug the machine before packing.

If you want to use specific material to do the test running,you need to pay for the cost of the material.

Q11.What’s the payment term?

A:T/T 30% in advance,the balance shall be paid before delivery.We also accept payment by West Union or L/C at sight.

Q12.Do you accept factory visiting?

A:Warmly welcome for your visiting.

Q13.How many years are you in printing field?

A:The Shanghai company since in 2008,the factory is more than 25years.

Q14.How many clients do you have?

A:We have sold our machines to about 60 countries.We have agents in South Africa,Morocco and Italy.

Tag:

Place of Origin:	China
Brand Name:	PRINTYOUNG
Certification:	CE
Model Number:	ZKT-890,ZKT-1200

Minimum Order Quantity:	1 Set
Price:	US 40000-48000 Set
Packaging Details:	Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.
Delivery Time:	30 days
Payment Terms:	L/C, T/T
Supply Ability:	10 Set/Sets per Month

Product Type:	Window Patching Machine	Voltage:	380 V
Power:	17 Kw	Dimension:	6200 * 1650 * 1950 Mm,6200 * 2150 * 1950 Mm
Weight:	2300 Kg,3000 Kg	Paper Length:	120 - 780 Mm
Paper Width:	140 - 800 Mm,140 - 1200mm	Film Length:	60 - 400 Mm
Film Width:	40 - 450 Mm,40 - 500mm	Speed:	4000-20000 Pcs/h
Film Thickness:	0.05 - 0.25 Mm,OPP , PVC , PET , PE Etc	Pump Power:	4.5 Kw
Highlight:	Automatic Envelope Window Patching Machine , 1200mm Paper Pasting Machine , ZKT-890 Window Patcher
