PRY-1400 Automatic Paperboard Slotting Machine

PRY-1400 Automatic Paperboard Slotting Machine
PRY-1400 Automatic Paperboard Slotting Machine
PRY-1400 Automatic Paperboard Slotting Machine PRY-1400 Automatic Paperboard Slotting Machine PRY-1400 Automatic Paperboard Slotting Machine
Basic Information
Place of Origin: China
Brand Name: PRINTYOUNG
Certification: CE
Model Number: PRY-1400
Minimum Order Quantity: 1 Set
Price: US 6000 Set
Packaging Details: Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.
Delivery Time: 30 days
Payment Terms: L/C, T/T
Supply Ability: 30 Set/Sets per Month
Contact Now
Model: PRY-1400 Feeder Model: Punching Type
Economic Printing Speed: 60 ~ 100 M/min Max. Size Of Paper: 660 * 1300 Mm
Min. Size Of Paperboard: 170 * 420 Mm Slotting Accuracy: ± 1.5 Mm
Min. Slotting Size: 60 * 160 Mm Slotting Width: 7 Mm
Thickness Of Cardboard: 2 ~ 11 Mm Suit Cardboard Type: 3ply 5ply 7ply

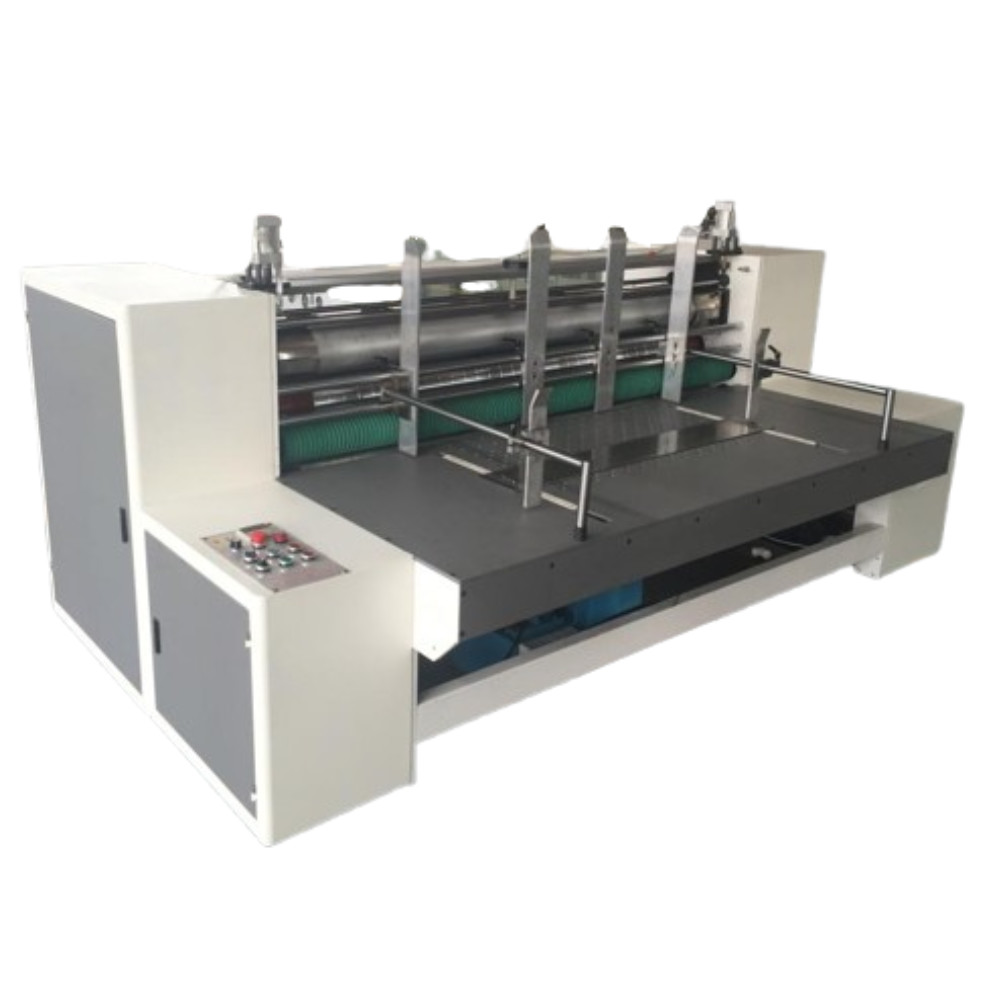

PRY-1400 Automatic Paperboard Slotting Machine 0
PRY-1400 Automatic Slotting Machine

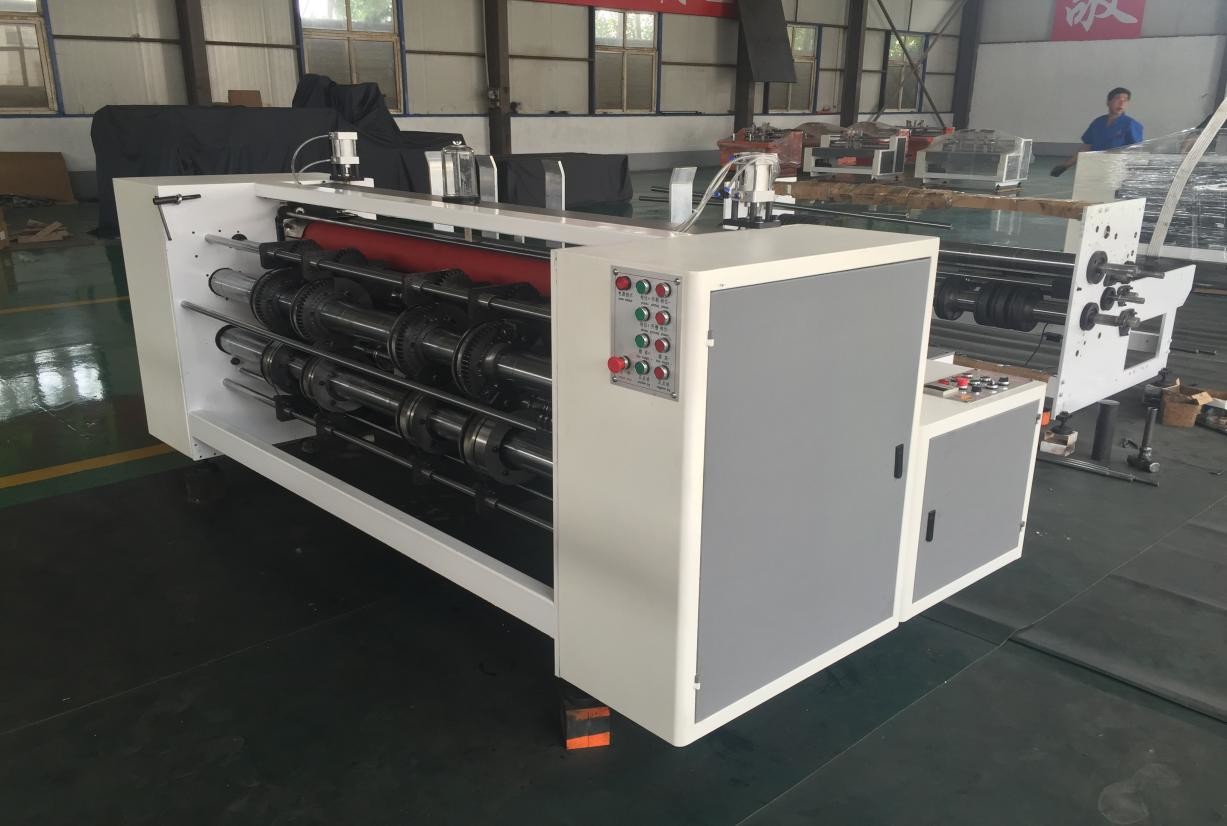

PRY-1400 Automatic Paperboard Slotting Machine 1
Features
The machine adopts manual paper vacuum adsorption auxiliary push board feeding system (air volume adjustable) feeding way.With a one-time corrugated paperboard slotting and angle cutting,edge,rolling line,and other functions,the machine and slot depth are electric adjustment,with the scale reading.Slotting phase adjustment to the planetary gear structure,adjust the use of electric digital type main 360 degrees,and slotting cutter disc and cutter to synchronous moving forward,(note: some special tool to adjust the mobile), is easy to use and maintenance,compact,is a professional in view of the small carton grooving forming equipment.
1.The paper roll shaft adopts decorative pattern,feed axis pressure regulation about using eccentric adjusting,eccentric,synchronous adjustment of high and low pressure.
2.Paper push board department adopts double side baffles and the tailgate solid cardboard, to avoid in the process of pushing plate paper took on a piece of cardboard from dislocation,cause slot error,can better adapt to all kinds of quality of cardboard,and paper stable and accurate.
3.Slotting cutter adopts full steel processing and become,semicircle arc slotting knife use serrated knife slot to crumbs,cardboard into the paper axis and the slot,paper knife cut carton two edge points and tidy.(note: paper cutter line pressing roller and points on the same shaft installation, easy to adjust.)
4.Paperboard slotting and Angle cutting and grooving,edge points by the equipment after the completion of the transfer paper of six axis is derived,the machine power is equipped with frequency conversion governor(can be arbitrary adjust the speed speed),inverter using jintian brand inverter.
5.The machine adopts electric planetary gear phase adjustment to adjust the board size, don't stop adjustment directly.
Technical Parameters
PRY-1400 Automatic Slotting Machine
Model
PRY-1400
Feeder Model
Puching Type
Economic Printing Speed
60 ~ 100 m/min
Max. Size of Paper
660 * 1300 mm
Min. Size of Paperboard
170 * 420 mm
Slotting Accuracy
± 1.5 mm
Min. Slotting Size
60 * 160 mm
Slotting Width
7 mm
Thickness of Cardboard
2 ~ 11 mm
Suit Cardboard Type
3ply 5ply 7ply

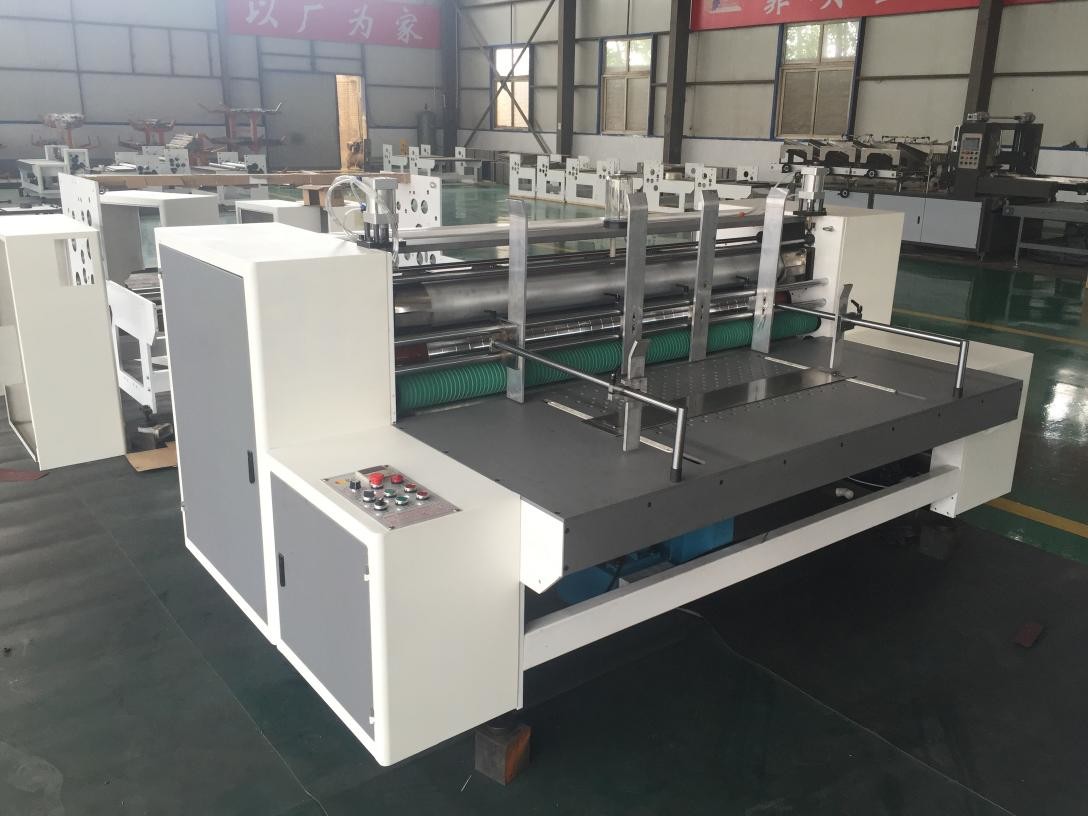

PRY-1400 Automatic Paperboard Slotting Machine 2
PRY-1400 Automatic Paperboard Slotting Machine 3
PRY-1400 Automatic Paperboard Slotting Machine 4
PRY-1400 Automatic Paperboard Slotting Machine 5
PRY-1400 Automatic Paperboard Slotting Machine 6
PRY-1400 Automatic Paperboard Slotting Machine 7
PRY-1400 Automatic Paperboard Slotting Machine 8
