AY-500G Automatic Thick Cardboard and A4 Paper Counting Machine

Basic Information
Place of Origin: China
Brand Name: PRINTYOUNG
Certification: CE
Model Number: AY-500G
Minimum Order Quantity: 1 Set
Price: US 16000 Set
Packaging Details: Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.
Delivery Time: 30 days
Payment Terms: L/C, T/T
Supply Ability: 30 Set/Sets per Month
Number Paper Height: 250 Mm Counting Accuracy: 100%
Maximum Counting Speed: 1000 Images/minute The Thickness Of Paper: 70/350 ~ 500 Gsm
Desk Size: 70 * 100 Cm Pneumatic Counter Top: 120 * 90 Cm (optional)
Weight Of The Machine: 400 Kg Power Supply For The Machine: 230V Single Phase AC , 50/60Hz , 5A

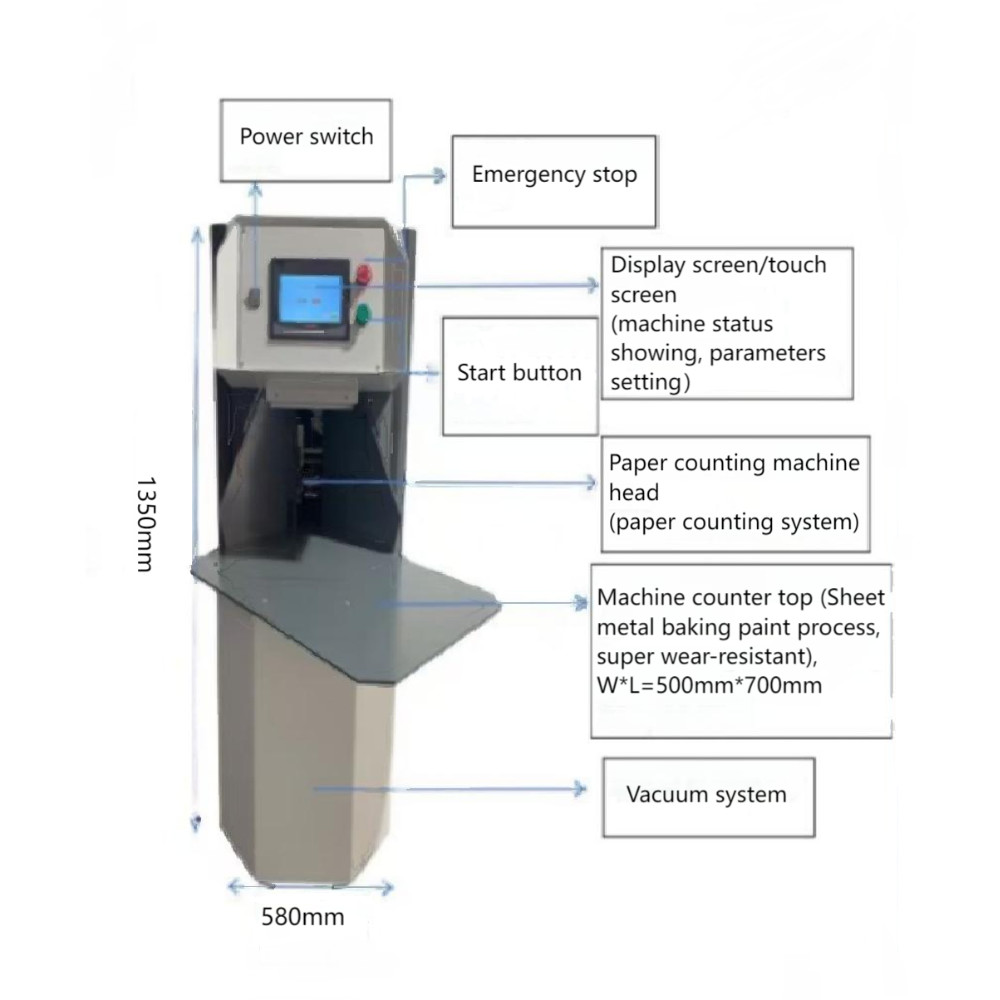

AY-500G Automatic Thick Cardboard and A4 Paper Counting Machine 0
AY-500G Paper Counting Machine
AY-500G Automatic Thick Cardboard and A4 Paper Counting Machine 1
Features
AY-500G paper counting machine adopts dual system paper counting.The working principle is a paper counting system with two suction sheets. "Paper corner upturned" is a typical problem of traditional paper counting technology(especially for paper over 100 grams),and the dual-system paper counting technology solves this problem very well. The paper counting machine can count paper,cardboard and even plastic sheets from 70G to 500G. The counting sequence is from top to bottom(allowing the operator to easily remove the counted paper from the top).When switching between different material thicknesses, adjustment is quick and easy by manually moving the plastic disc.No mechanical tools are required.Average time is 30 seconds.This means guaranteeing maximum productivity of the machine.The paper counting machine counts flat,clean paper with virtually no marks, scratches or smudges on the printed material.It can also count labels,stickers,photo paper, tickets and other finished products that have been trimmed or cut.The AY-500G is a floor-standing paper counter.It is reliable,flexible and very easy to operate.It can count paper sizes from 70x100cm and weights from 70G to 500G,covering almost every paper counting requirement.Ideal for medium to high volume counting needs.
Technical Parameters
AY-500G Paper Counting Machine
Number Paper Height
250 mm
Counting Accuracy
100%
Maximum Counting Speed
1000 images/minute
The Thickness of Paper
70/350 ~ 500 gsm
Desk Size
70 * 100 cm
Pneumatic Counter Top
120 * 90 cm (optional)
Weight of the Machine
400 kg
Power Supply for the Machine
230V single phase AC , 50/60Hz , 5A
Total Package Weight
450 kg
AY-500G Automatic Thick Cardboard and A4 Paper Counting Machine 2
AY-500G Automatic Thick Cardboard and A4 Paper Counting Machine 3
AY-500G Automatic Thick Cardboard and A4 Paper Counting Machine 4
AY-500G Automatic Thick Cardboard and A4 Paper Counting Machine 5
AY-500G Automatic Thick Cardboard and A4 Paper Counting Machine 6
AY-500G Automatic Thick Cardboard and A4 Paper Counting Machine 7
AY-500G Automatic Thick Cardboard and A4 Paper Counting Machine 8
AY-500G Automatic Thick Cardboard and A4 Paper Counting Machine 9
Q1.Are you a manufacturer or a trading company?
A:Our shanghai office is mainly doing export.We have our own factory in Wenzhou,Zhejiang Province.
Q2.What is the machine warranty?
A:One year.After the warranty,we still provide technical support to buyer at low cost.
Q3.What is the production time while placing order?
A:Normally about 10-20 days.
Q4.What is the delivery time?
A:15-30days after deposit.
Q5.Can your company handle shipping for customers?
A:Yes,just give us destination sea port or container yard.
Q6.Does the packing strong?
A:Yes.Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions.A full set of maintenance and operation manuals is included.
Q7.How about the machine installation and training?
A:1)We provide training in our factory for free; 2)We can send technicians (engineers) to your factory for installation and training.You shall pay the round trip air fare and accommodations,plus each technician charges USD100/per day.
Q8.Do you have machines in stock?
A:For standard model,we have a large quantity in stock.For special model,we need 20-30 days to produce it for you.
Q9.How can you assure the machines’ quality?
A:Each machine will be test running at least 24 hours before delivery to assure the quality.And during the warranty,we will give spare parts for free if machine has any problem.
Q10.Do you inspect machines or test running before packing?
A:Of course we do.We have QC department to debug the machine before packing.If you want to use specific material to do the test running,you need to pay for the cost of the material.
Q11.What’s the payment term?
A:T/T 30% in advance,the balance shall be paid before delivery.We also accept payment by West Union or L/C at sight.
Q12.Do you accept factory visiting?
A:Warmly welcome for your visiting.
Q13.How many years are you in printing field?
A:The Shanghai company since in 2008,the factory is more than 25years.
Q14.How many clients do you have?
A:We have sold our machines to about 60 countries.We have agents in South Africa,Morocco and Italy.
