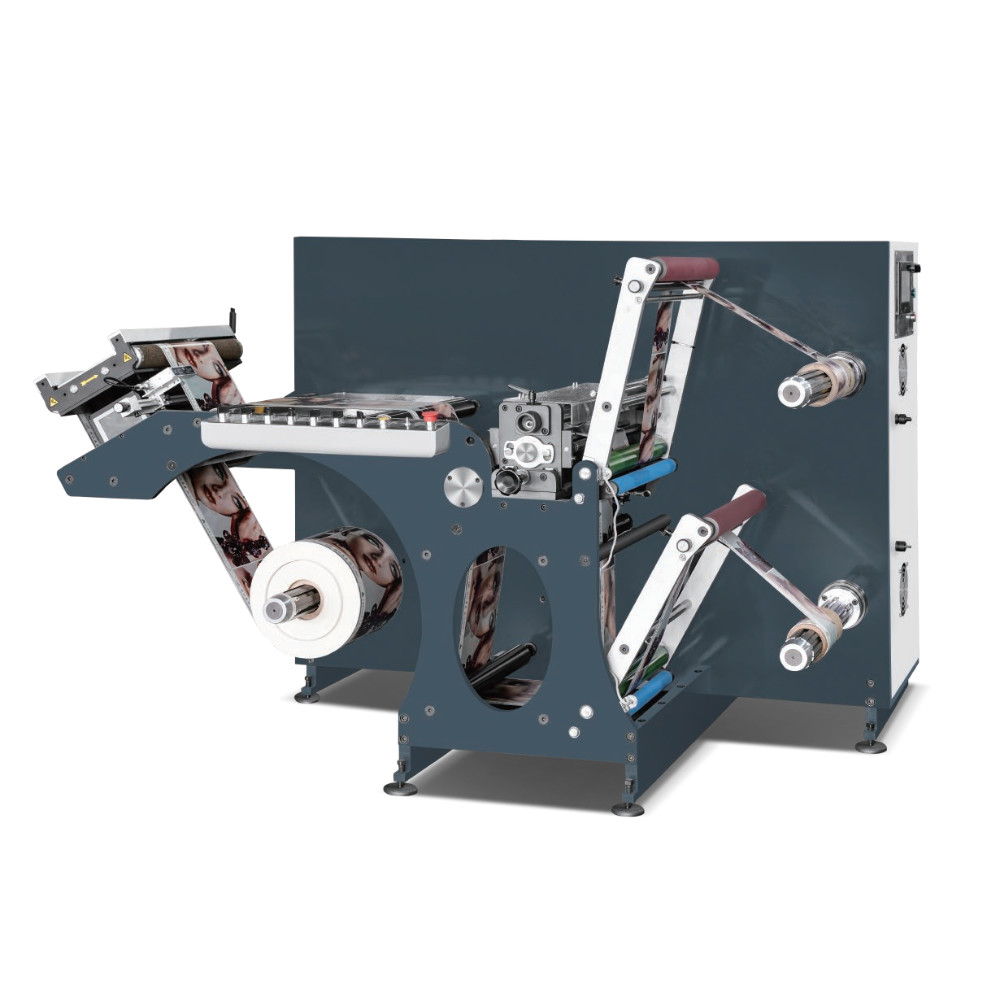

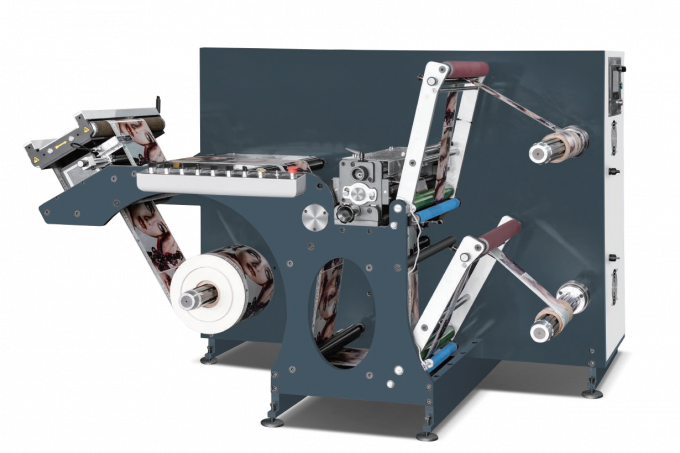

FQ-320C High Speed Slitting Machine

Features

The FQ-320C automatic slitting machine is the auxiliary product of the automatic die cutting machine.This machine is suitable for slitting narrow pieces of paper.It has meter counter and number counter.The unwinding is controlled by web guiding,the structure of the complete machine is compact,fast,with high efficiency,operate the characteristic simply, operate steadily.

Technical Parameters

FQ-C High Speed Slitting Machine
Model	FQ-320C	FQ-370C	FQ-480C
Slitting Speed	200 m/min
Max. Web Width	320 mm	370 mm	480 mm
Max. Unwinding Diameter	700 mm
Max. Rewinding Diameter	600 mm
Dimensions	2100 * 1250 * 1300 mm	2100 * 1300 * 1300 mm	2100 * 1400 * 1300 mm
Main Motor	4 kw
Voltage	380V , 3phase
Min. Cutting Width	10 mm
Machine Weight	about 2500kgs

Configuration

1. With 1pc 3’’ unwinding shaft,auto inflation air shaft.
2. With 2pc 3’’ rewinding shafts,auto inflation air shaft.
3. With meter/number counter.
4. With CHINESE web guiding.
5. With 10 pcs slitting knives.
6. Machine has blower fan to blow away the trimmed sides.

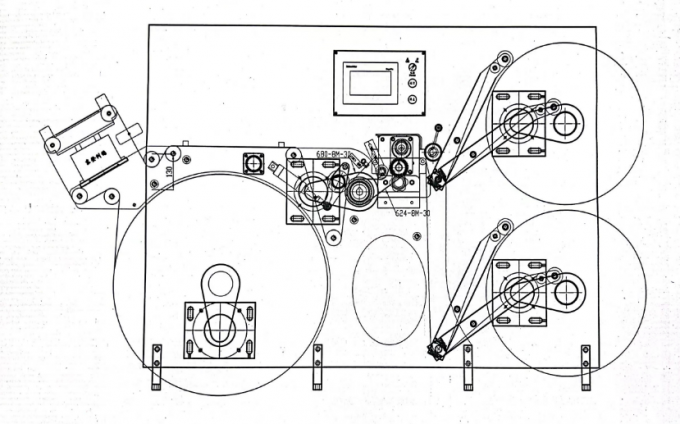

7. With pressure roll in rewind as drawing.
8. Machine with 25mm air shaft.
9. Machine comes with 4 servo motor,one for unwinding,one for nip roller,two for rewinding (up and down)
10.With platform form after unwinding.

OK4000/8000 Inspection System(option)

System Features(Full Range)

100% full-frame observation: covering the boot settings and the entire production process;
HD picture quality:Based on high-resolution camera;
Image stabilization:With the help of real-time images,the images are automatically synchronized,and are not affected by the deceleration of automatic detection with transparent labels;
Does not harm the health of operators and reduces fatigue:The use of LED light sources instead of strobe lights,the light is softer and more uniform;
Quick and easy task setting;
Reliable and stable operation.

System Configuration

OK4000 line scan camera for printing inspection;
The industrial computer uses a 64-bit eight-core processor,which is faster;
Using high-definition non-distortion lens;
Adopt integrated light source design,easy to install;
Imported high-speed dual-channel acquisition card.

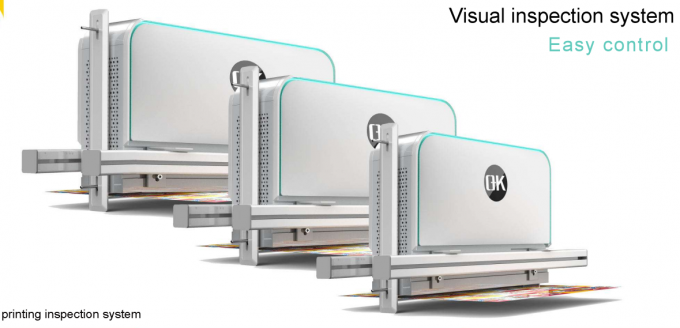

Visual Inspection System

Introducing a 100% flaw inspection system,from full-frame observation,to lack of standard detection + waste discharge detection,to high-precision full-frame detection + workflow system.With the help of modular design,customers can realize all their requirements on a set of systems through optional modules.The system uses a special contour light source to improve the contrast between the transparent label and the backing paper.Whether the backing paper is transparent or non-transparent,or even white,the system can complete the detection.It can realize the detection of almost all transparent labels for lack of standard and dirty waste.For blank labels,the system has an absolute advantage.The system can switch freely between ordinary light source and contour light source.
Image acquisition speed:30 frames per second,real-time detection of full frame.
Maximum inspection speed:150m/min-500m/min (choose according to the system model).
Maximum inspection width:180mm-1100mm (choose according to the system model).

The Full Set OK4000-4K/8k Includes Below Parts

1. Line scan camera--OK 8000(4/8K resolution)
2. Capture card--OR-X4C0-XPD00
3. Lens (including connecting ring, adapter ring, etc.)--Apo-Componon 2.8/40
4. Camera data cord--MVC-1-1-7M
5. Dome light source
6. Light source adapter (including data cable, power cable)
7. Encoder--R58S10-9C10M5-24L-5000
8. Plug strip(220V)
9. Button(metal)
10.Display(including cords--243V5QSB)
11.Keyboard(K120 USB)
12.Mouse(M170 wire)
13.Power cords
14.Power Switch--NES-100-24
15.Alert light(24V)
16.Control Box--TF-A610H-B250MD3V-8700K-16G+128G

Tag:

Place of Origin:	China
Brand Name:	PRINTYOUNG
Certification:	CE
Model Number:	FQ-320C 370C 480C

Minimum Order Quantity:	1 Set
Price:	US 16000 ~ 19000 Set
Packaging Details:	Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.
Delivery Time:	45 days
Payment Terms:	L/C, T/T
Supply Ability:	30 Set/Sets per Month

Model:	FQ-320C , FQ-370C , FQ-480C	Slitting Speed:	200 M/min
Max. Web Width:	320mm , 370mm , 480mm	Max. Unwinding Diameter:	700 Mm
Max. Rewinding Diameter:	600 Mm	Dimensions:	2100 * 1250,1300,1400 * 1300 Mm
Main Motor:	4 Kw	Voltage:	380V , 3phase
Min. Cutting Width:	10 Mm	Machine Weight:	About 2500kgs
