| Place of Origin: | China |
|---|---|
| Brand Name: | PRINTYOUNG |
| Certification: | CE |
| Model Number: | PRY-1450A |
| Minimum Order Quantity: | 1 Set/Sets |
| Price: | negotiaton |
| Packaging Details: | wooden case |
| Delivery Time: | 5-10(stock),20-60(unstock) |
| Payment Terms: | Western Union, L/C, T/T |
| Automatic Grade: | Automatic | Driven Type: | Eletric |
|---|---|---|---|
| Voltage: | 220V / 380V | Application: | Corrugated Paper / Cardboard |
| Feeding: | Vacumn Suction | Control System: | PLC |
| Laminating Acucracy: | ±1.5mm | Computerized: | Yes |
| Highlight: | paper lamination machine,industrial laminating machines |
||

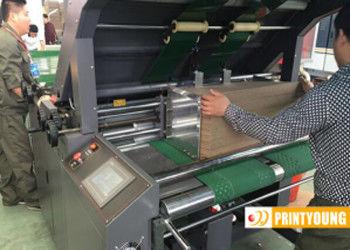

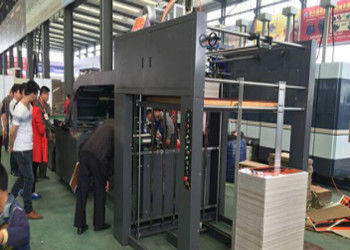

Computerized Automatic Flute Laminating Machine With Vacuum Feeding Machine
Quick Detail
This machine can be used in color printing corrugated paper and corrugated paper laminating, tissue using scale continuous paper feeding, unique front gauge positioning way to insure the bottom paper never advance. Easy to operate, easy to maintain
| Model | PRY-1450A | PRY-1600A |
|
Max size of cover face
|
1450mmX1200mm | 1600X1200 |
|
Mix size of cover face
|
400mmX400mm | 400X400 |
|
Economic speed
|
0-120 piece/min | 0-120 piece/min |
|
Precision
|
±1.5MM | ±1.5MM |
|
Power
|
10kw | 10kw |
|
Size
|
10m x 2m x 2.4m | 10m x 2m x 2.4m |
|
Weight
|
About 5.5T | About 6.0T |
Feature
1. The vacuum suction-type feeding system can lead the paper accurately into the machine; Cycle stacking planes could stack the next batch paper well in a state of non-stop working , more efficient.
2.Bottom sheet use suction auto feeding, automatic tracking according to the face paper's speed.
3.New concept front gauge location, position high accuracy, bottom sheet never pull ahead.
4. Machine uses touch-screen/PLC/servo motor control system, circuit system is stable and could display the failure alarm automatically.
5. Automatic gluing, and the glue can be used circulatory, avoid glue waste.
6. Roller design scientifically, avoid glue fly out when the speed is high.
7. Pressure rollers adopt one side adjustment, convenient and fast.
8. Rocker controls wash roller's fluctuation, easy cleaning.
9. Counter designs scientifically, easy recording the amount you have been worked.
Automatic feeding for top sheet Vacumn suction feeding
Flexible front lay to position the sheet precisely
Pressure roller adjusts single edge
Humanized design counter ,accurately and quickly
