8 Color Computerized Rotogravure Printing Machine For Pvc Shrink Bopp Pet Paper

Basic Information
Place of Origin: China
Certification: CE
Model Number: 1100E
Minimum Order Quantity: 1 Set/Sets
Packaging Details: Neutral packaging, suitable for shipping in a solid iron frame composite box or fumigation wooden box, to adapt to climate change, Fang Lin, moisture, mold, shock, rust.
Delivery Time: 5-8days (stock),20-60days(unstock)
Payment Terms: L/C, T/T, Western Union
Type: Rotogravure Printing Machine Heating Type: Electric Heating
Cooling Type: Air Cooling And Water Cooling Register: Computer
Suitable Material: Bill Printer, Card Printer, Cloths , Paper , Pet Printing Color: 8 Color
Max Printing Speed: 120 M / Min Mechanical Speed: 130 M / Min
Max Width Of Printing Material: 830mm Max. Printing Width: 800mm
The Max Diameter Of Unwind And Rewind: 600mm Machine Power: Max 35kw ( Gas Heating )
High Light:

gravure printing press


web offset printing machine

8 Color Computerized Rotogravure Printing Machine For Pvc Shrink Bopp Pet Paper


Quick Detail

The machine is used for bopp , pet , pvc ,cpp , pc , the same nature complex film and paper . Its printing speed is 80-100m/min, while the mechanical speed is 120m/min.The machine adopts air cylinder,  pulling the core shaft to install the plate.The drying is equipped with the centrifugal fan on the external frame to blow the absorption of heat recycling wind system and the tempeature is controlled by intelligent temperature controller to save electricity and strengthen the drying function.



Model 1100E

Printing colors

8 colors

Max. width of printing material


Max. Printing width


Max. Mechanical speed

      130 m/min

Max. Printing speed

120 m/min

Max diameter of unwind and rewind


Diameter of printing cylinder


Rewinding tension


Heating power

Each color 12KW(Electric heating,not neccessary for gas heating)

Machine power

Max 35kw(Gas heating)

Overall dimension


Net weight







PET: 12-100μm

PE: 35-100μm

BOPP: 15-100 μm

CPP: 20-100 μm





The machine is suitable for printing paper,bopp , pe , pvc , cpp or complex paper .



Main transmission device to save electricity

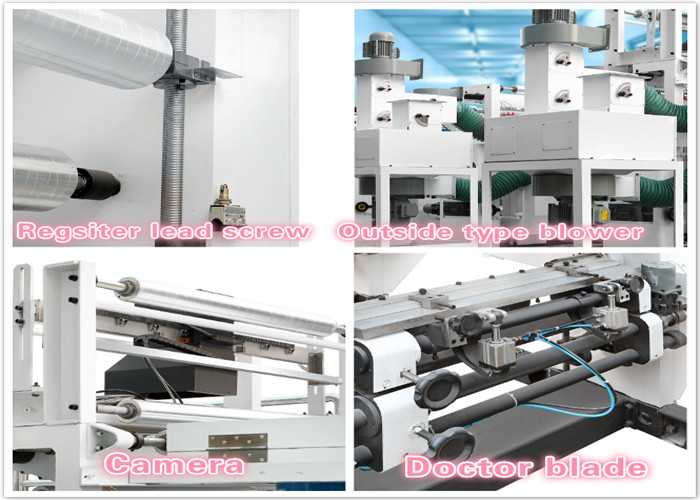

Chromatography manipulator ensure high precision of process printing

Structure of ink scraper adjusts up and down as well as its positions at random to lengthen the service of the printing cylinders.



Impression Lifting Structure : The pressing lifting adopts dual air cylinder to increase the pressure and solenoid valve to locate the position, which is a protector for the air leakage of the cylinder when the machine stops working .Performance: Assure the average of pressure and color chromatic aberration.

Material-Receiving and Feeding Device:The material receiving and feeding adopts dual station. The materail-feeding shelf reverse manually.The traction tension of the receiving and feeding material device adopts automatic tension controlling. The material-receiving device adopts moment motor controlling,the material-feeding adopts magnetic powder tension controlling. Performance: Reduce the waste materials and lower the cost.

Shaftless Printing Cylinder Installing Device : The Installation of printing cylinders adopts air cylinder to pull core of axis to install cylinders. Horizontal adjustment adopts movement of screw. Performance: reduce time of replacing the printing cylinders,assure boards concentric and improve the quality of product.
