Sleeve Shrinking Printing And Packaging Machines Semi - Automatic

Basic Information
Place of Origin: China
Certification: CE
Model Number: ST6040Q+BSE5045A
Minimum Order Quantity: 1 Set/Sets
Price: negotiation
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 30 working days after received your payment
Payment Terms: T/T or western Union
Supply Ability: 30 sets per month
Seal Size: L600*W400mm Working Effciency: 3-6sets/min
High Light:

packaging printing machine


automatic packaging machine

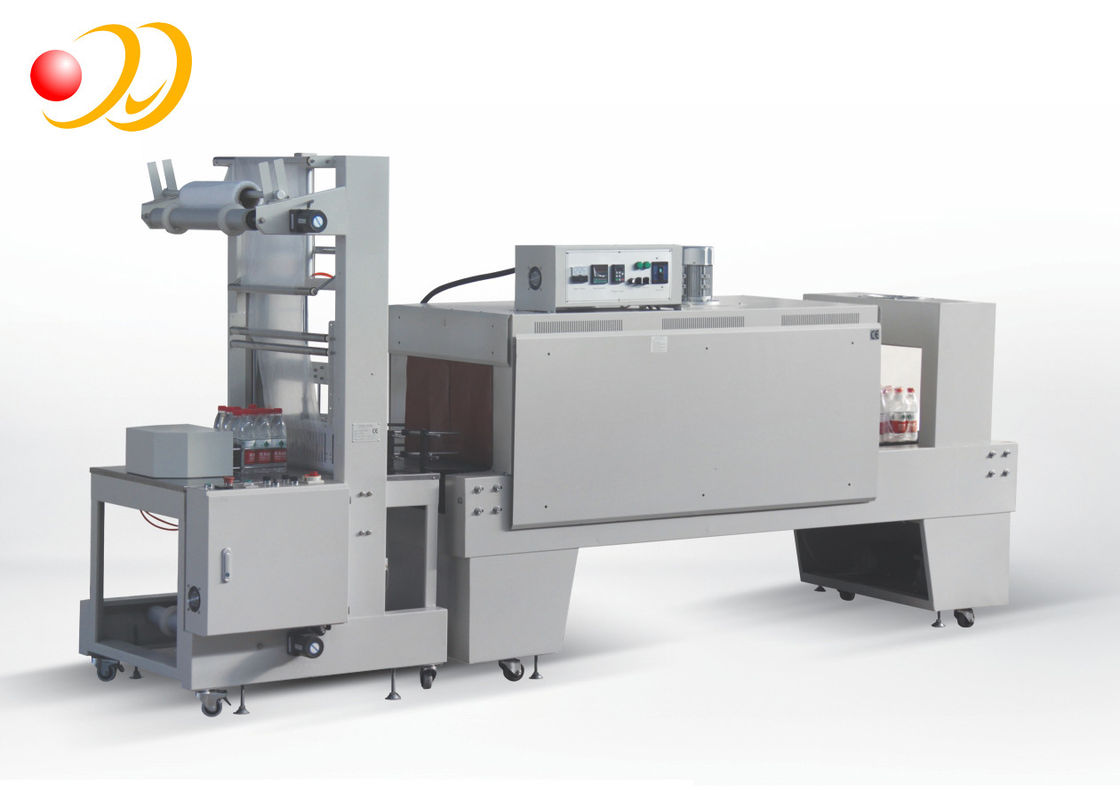

ST6040Q+BSE5045A Semi-automatic Sleeve Shrinking Packing Machine



Specifications :


Model ST6040Q
Power Supply 220-240V/50-60Hz
Seal Size L600*W400mm
Working Effciency 3-6sets/min
Air Pressure 1HP/2KW
Sealing Time 0.5-1.5S
Machine Size 1150*910*1860mm
Machine Weight 220kg


Model BSE5045A
Power Supply 3Phase 380V/50Hz
Heater Power 15KW
Tunnel Size 1800*500*450mm
Machine Size 2450*740*1550mm
Machine Weight 260kg




ST6040Q+BSE5045A is suitable for wrapping of such prkducts as pop-top,mineral water,bottles beer,drinks etc without bottom-tyay(or with bottom-tray).Working with PE shrink tunnel to pack the goods perfectly.The whole producing process adopt the Germany aduanced techics.And the main parts are imported from international famous companies,such as OMRON,MITSUBISHI,FUJI ets,capability stable and using long-time.


◆Double instruction lights system to prevent the mistake of sealing and protect the operato meanwhile
◆Double size fan carrying system ensur the perfect of sealing
◆Imported AC contractor,the temperature be controlleed by automatic
◆Imported frequency converter,stepless speed regulationg
◆Super cooling system to ensure the perfect shape of products quickly ofter shrinking
◆The control panel be operated with safe and simple
◆The imputing position can be adjustable precision base on the size of products
◆The size of tunnel can be customized for your requset
◆Up and down large power fan system to assure the excellent effect of shrinking in onetime
