SM12S Semi-Automatic Electric OPP Film/Paper Tape Banding Machine for Carton Box Packaging with Long Service Life

Basic Information
Place of Origin: China
Brand Name: PRINTYOUNG
Certification: CE
Model Number: SM12S
Minimum Order Quantity: 1 Set
Price: USD 590 Set
Packaging Details: Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.
Delivery Time: 15 days
Payment Terms: L/C, T/T
Supply Ability: 30 Sets per Month
Power Supply: 220V , 50/60Hz , 80W Banding Speed: ≤ 3 Second
Banding Tension: 5 ~ 40 N Bow Frame Size: W200 * H160 Mm
Workbench Height: 250 Mm Banding Tape: OPP Film Tape Or Paper Tape
Banding Sealing Way: Heat Sealing Width Of Band: 12 Mm
Max. Bundle Size: 200 * 160 Mm Minx. Bundle Size: 30 * 10 Mm

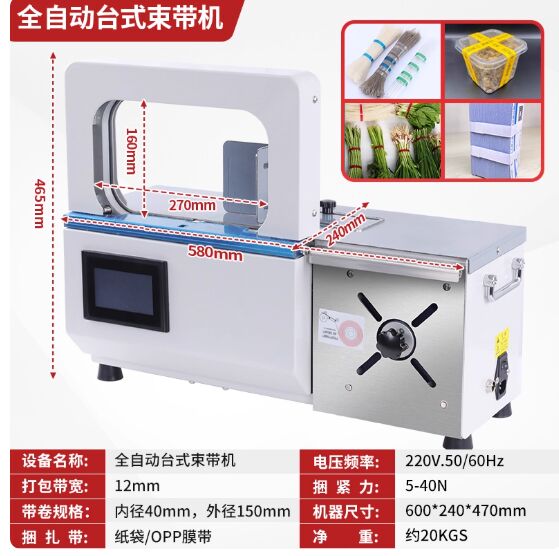

SM12S Semi-Automatic Electric OPP Film/Paper Tape Banding Machine for Carton Box Packaging with Long Service Life 0
SM12S Semi-Automatic Paper Banding Machine

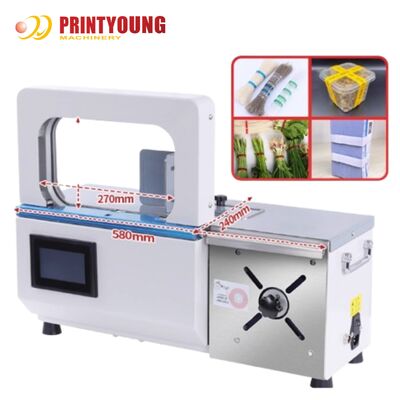

SM12S Semi-Automatic Electric OPP Film/Paper Tape Banding Machine for Carton Box Packaging with Long Service Life 1
Features
* The channel of the machine is fixed.One machine can only be used with one size of tape (opp film or laminated paper).
* The machine and dispenser can be tailor-made as per customer’s request.
Technical Parameters
Model
SM12S
Power Supply
220V , 50/60Hz , 80W
Banding Speed
≤ 3 second
Banding Tension
5 ~ 40 N
Bow Frame Size
W200 * H160 mm
Workbench Height
250 mm
Banding Tape
OPP film tape or paper tape
Banding Sealing Way
heat sealing
Width of Band
12 mm
Roll Band
Inner diameter:ф40mm , Outer diameter:ф150mm Width:11-11.5mm
Max. Bundle Size
200 * 160 mm
Minx. Bundle Size
30 * 10 mm
Machine Size
600 * 240 * 470 mm
Package Size
650 * 300 * 610 mm
Weight
Net weight 20KGS , Gross weight 36KGS

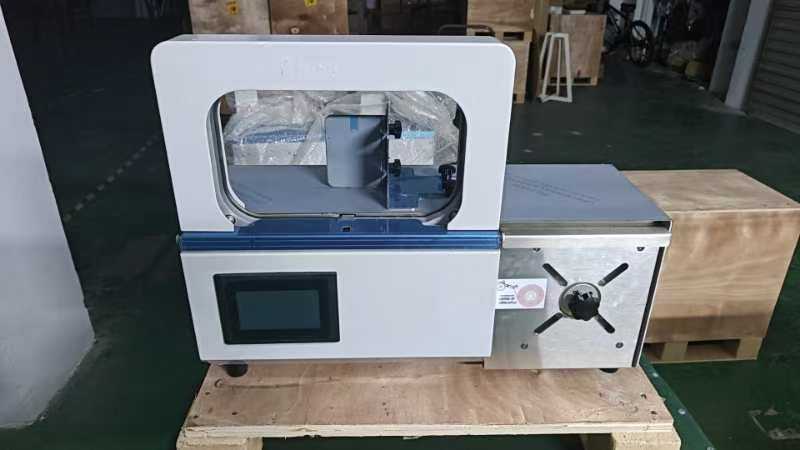

SM12S Semi-Automatic Electric OPP Film/Paper Tape Banding Machine for Carton Box Packaging with Long Service Life 2

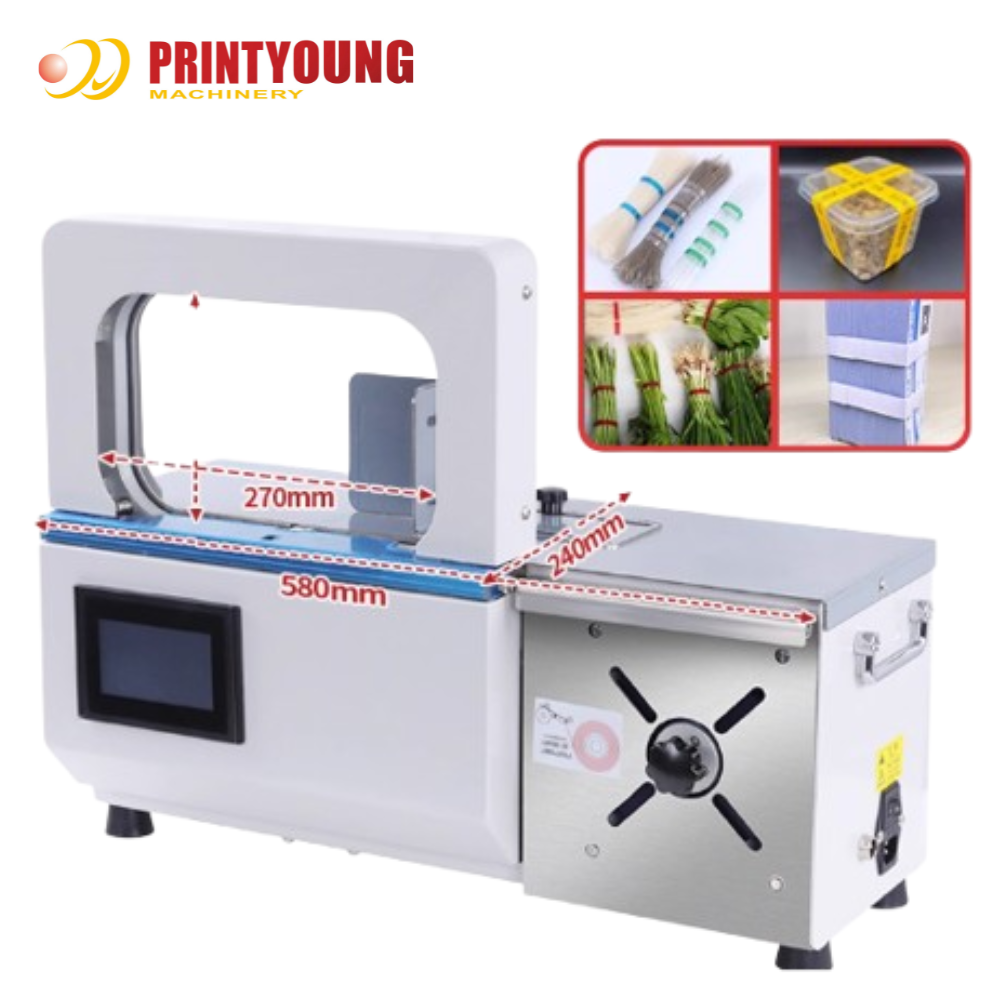

SM12S Semi-Automatic Electric OPP Film/Paper Tape Banding Machine for Carton Box Packaging with Long Service Life 3
SM12S Semi-Automatic Electric OPP Film/Paper Tape Banding Machine for Carton Box Packaging with Long Service Life 4
SM12S Semi-Automatic Electric OPP Film/Paper Tape Banding Machine for Carton Box Packaging with Long Service Life 5
SM12S Semi-Automatic Electric OPP Film/Paper Tape Banding Machine for Carton Box Packaging with Long Service Life 6
SM12S Semi-Automatic Electric OPP Film/Paper Tape Banding Machine for Carton Box Packaging with Long Service Life 7
SM12S Semi-Automatic Electric OPP Film/Paper Tape Banding Machine for Carton Box Packaging with Long Service Life 8
