BTA-450A+BM-500 Automatic L type shrink packaging machine

Basic Information
Place of Origin: China
Certification: CE
Model Number: BTA-450A+BM-500
Minimum Order Quantity: 1 Set/Sets
Price: negotiation
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 30 working days after received your payment
Payment Terms: T/T or western Union
Supply Ability: 30 sets per month
Max Packing Size: (L+H)≤500mm (W+H)≤430mm (H)≤130mm Max Sealing Size: (L)550×(W)450mm
Packing Speed: 15~30 Packs/min
High Light:

packaging printing machine


digital printing machines

BTA-450A+BM-500 Automatic L type shrink packaging machine



Specifications :



Model BTA-450A BM-500
Max Packing Size (L+H)≤500mm  (W+H)≤430mm (H)≤130mm (L)700×(W)450×(H)250mm
Max Sealing Size (L)550×(W)450mm (L)1200×(W)500×(H)300mm
Packing Speed 15~30 packs/min 30~50 packs/min
Electric Supply & Power 220V/50Hz  1.3kw 380V/50Hz  12kw
Air Pressure 5.5kg/cm3 /
Weight 300kg 220kg
Overall Dimensions (L)1850×(W)1000×(H)1600mm (L)1350×(W)750×(H)1500mm




BTA-450A It is a fully automatic L sealer,widely used in pipelining work for large quantity package with high work efficiency,installed with pin hole device,adjustable film feeding system and adjustable conveying table,meets different requirements for different products and it has a kissing device for packing the small products.


1. Adopts heat resistant alloy cutter plated Teflon,results in good sealing ,without melting the film and any smoke pollution.

2. Assembles one horizontal and one erect sensor for the entrance to the sealer it is easy to switch over ,even for some thin products,it is also easy to pack them.

3. The length of film feeding,controlled by magic eye and counter,also fixes an inductive motor for collecting wasted film automatically.

4. When pack different sizes of products ,it is simple to adjust,need not to exchange any molds or any bag making device.

5. To pack different size of products together for sales promotion effect.

6. Adopts OMRON digital temperature controller with PID function,sealing temperature is extremely sensititive and accurate,can set temperature optionally ,the cutter itself has a protective function,avoid from damage the products.

7. The machine fixes an organic safty glass cover,with alarm function,so that the operator is safe.

8. The machine can be connected with the production line, which is no need additional operators.



Suitable for large quantity shrink wrapping industries such as software, foodstuff, cosmetics, printing, pharmacy, flooring, ceramics, beverge and beer etc.

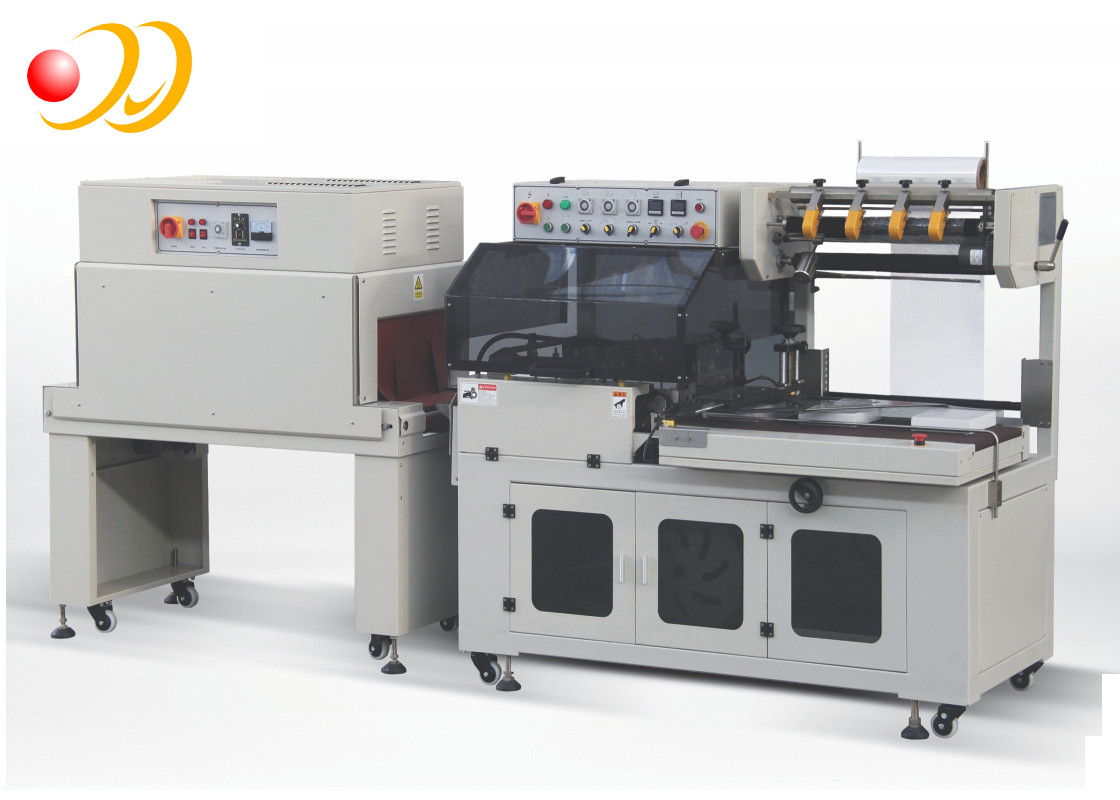

BTA-450A+BM-500 Automatic L type shrink packaging machine 0
