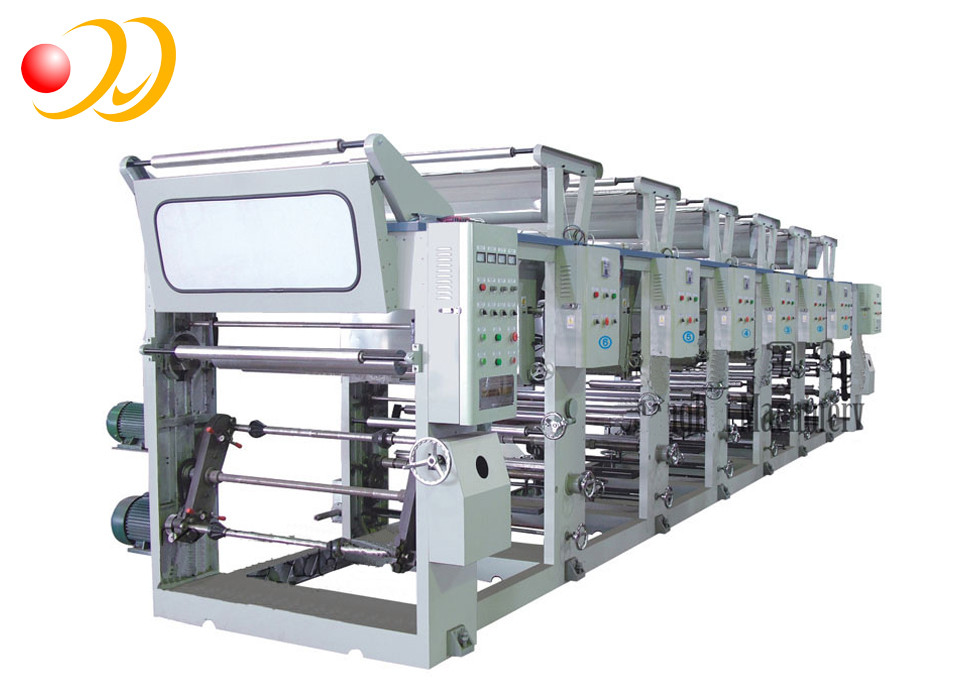

44kw Six Color Rotogravure Printing Machine Automatic For Package Bag

Basic Information
Place of Origin: China
Certification: CE
Model Number: PRT-A
Minimum Order Quantity: 1 Set/Sets
Price: negotiation
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 30 working days after received your payment
Payment Terms: T/T or western Union
Supply Ability: 30 sets per month
Diamter Of Pring Cylinder: 100-320mm Max.printing Width: 600mm
Diameter Of Unwind/rewind: 500mm Machine Printing Speed: 80m/min
High Light:

label printing machine


web offset printing machine

44kw Six Color Rotogravure Printing Machine Automatic For Package Bag



Specifications :


Model  PRT-600A PRT-800A PRT-1000A PRT-1200A
Diamter of pring cylinder 100-320mm
Max.printing width 600mm 800mm 1000mm 1200mm
diameter of unwind/rewind 500mm
Machine printing speed 80m/min
Max.printing speed 60m/min
Register precision ±0.2mm
Drying method Electric heating and steam heating or oil heating
Total power 44kw 48kw 54kw 60kw
 Weight of machine 5500KG 6000KG 6500KG 7000KG
Overall dimension












Applicable materials: This machine is used for BOPP, PET, PVC, PE, aluminum foil and roll paper with excellent properties of thin film reel material printing more continuous printing color.


Main structure character: Unwind and Rewind:Tilting the double location,receiving and replacing material without stopping the machine

Printing: 360 degrees adjustment gear box, with guide roller fine-tuning Don't stop registration device movable type doctor blade ,transverse reciprocating motion(optional pressure roller blades and all adopt pneumatic)

Dry oven: Double oven, conjoined twins oven(adopted the company patent technology), centrifugal big fan

Control: Cast iron chassis, Shaft cylinder,Host Frequency Control,But according to the customer request implementation positive, reverse side a continuous printing.
