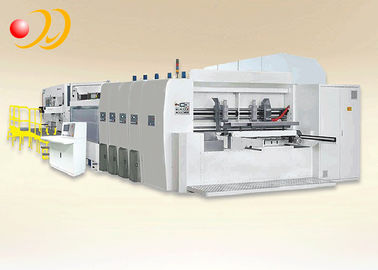

Corrugated Paper Box Machinery , Corrugated Carton Box Making Machine

Basic Information
Place of Origin: China
Certification: CE
Model Number: 1-7-KL Series
Minimum Order Quantity: 1 Set/Sets
Price: negotiation
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 30 working days after received your payment
Payment Terms: T/T or western Union
Supply Ability: 30 sets per month
Max. Mechanic Speed: 250 Pcs/min Max. Feeding Size: 1180*2400 Mm
Min. Feeding Size: 350*750 Mm Skip Feeding: 1500*2400 Mm
Max. Printing Area: 1150*2400 Mm Max. Thickness Of Board: 7.2mm
High Light:

paper box making machine


corrugated flexo printing machine

Corrugated Paper Box Machinery , Corrugated Carton Box Making Machine


Specifications :





Max. mechanic speed

250 pcs/min

180 pcs/min

Max. feeding size

1180*2400 mm

1570*2400 mm

Min. feeding size

350*750 mm


Skip feeding

1500*2400 mm

1900*2400 mm

Max. printing area

1150*2400 mm

1540*2400 mm

Thickness of printing plate


7.2 mm mm




· All electronic and pneumatic coponents are with European standaed.

· Centralized computer control,able to save order and easy to change order.

· Vacuum transfer system used in printing units,increase the feeding precision of the bended sheet.

· All gap and phase adjustments are computerized setting.

· Main gearing are adopted the best quality steel from Taiwan originally.

· It can be used for dot printing on white coated paper and kraft paper.

· The latest feeding design with servo drving.Able to feed E to AB layer board and achieve good die cutting effect.

· Vibrator system for options.

· Double insurance system ensure reliable safety.

· The sensors can show the error of the sheet in different position.

· The machine have oilhole in different section,easy to maintenance and keep precision of the machine for long life.
