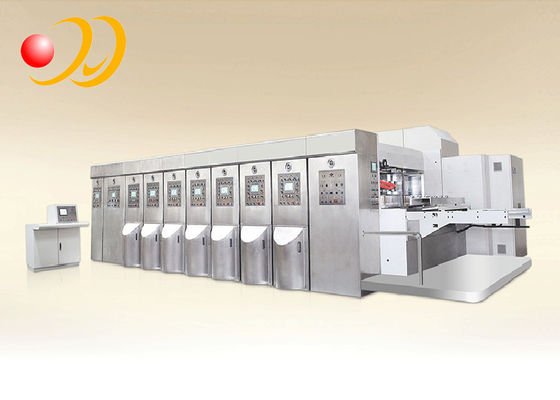

Fully Automatic Corrugated Box Making Machine Bottom Printing

Basic Information
Place of Origin: China
Brand Name: PRINTYOUNG
Certification: CE
Model Number: 2-1-K7 Series
Minimum Order Quantity: 1 Set/Sets
Price: negotiation
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 30 working days after received your payment
Payment Terms: T/T or western Union
Supply Ability: 30 sets per month
Max. Mechanic Speed: 250 Pcs/min Max. Feeding Size: 880*2000 Mm
Min. Feeding Size: 300*650 Mm Max. Printing Area: 800*2000 Mm
Skip Feeding: 1100*2000mm
Highlight:

corrugated flexo printing machine

,

corrugated carton box making machine

Fully Automatic Corrugated Box Making Machine Bottom Printing



Specifications :





Model

900*2000

1200*2000

1200*2400

Max. mechanic speed

250 pcs/min

250 pcs/min

250 pcs/min

Max. feeding size

880*2000 mm

1180*2000 mm

1180*2400 mm

Min. feeding size

300*650 mm

350*750 mm

350*750 mm

Skip feeding

1100*2000mm

1500*2000mm

1500*2400mm

Max. printing area

800*2000 mm

1150*2000 mm

1150*2400 mm

Max. thickness of board

7.2mm

7.2mm

7.2mm

Min slotting space

Slotting type L

240*80*

240*80mm

250*90*

250*90mm

250*90*

250*90mm

Max slot depth

250mm

320mm

320mm

Dimension(L*W*H)

11659*4240*3200mm

12079*4240*3200mm

13015*4800*3500mm

13550*4400*3500mm

13015*4800*3500mm

13550*4800*3500mm



Model

1400*2400

1600*2800

Max. mechanic speed

220 pcs/min

180 pcs/min

Max. feeding size

1380*2400 mm

1570*2800 mm

Min. feeding size

380*750mm

450*850 mm

Skip feeding

1700*2400mm

1900*2800mm

Max. printing area

1320*2400 mm

1540*2800 mm

Max. thickness of board

7.2 mm

7.2mm

Min slotting space

Slotting type L

260*90*

260*90mm

260*100*

260*100mm

Max slot depth

320mm

560mm

Dimension(L*W*H)

13570*4820*3500mm

14208*4820*3500mm

14021*5220*3500mm

14701*5220*3500mm



Introduction:



· This machine is designed and made to high quality and safety standard,with the advantages of high speed, auto control and quick order shift.

· Auto high quality materials and parts.

· Well hardened and ground transmission gears, hardness more than 60(HRC).

· Auto zero return and auto reset.

· All gaps between cylinders and rollers are computerized and/or motorized control.

· Vacuum transfer system used in all printing sections.

· Use expansion sets tight link to reduce abrasion of the shaft,keep precision of the machine for long years.

· All cylinders and rollers are chromed plated for ideal hardness.

· PLC control system with touch screen control.

· Able to save order,speed up the order shift.

· All electronic and pneumatic components are woth European standards.

· Able to facilitate the production management.
