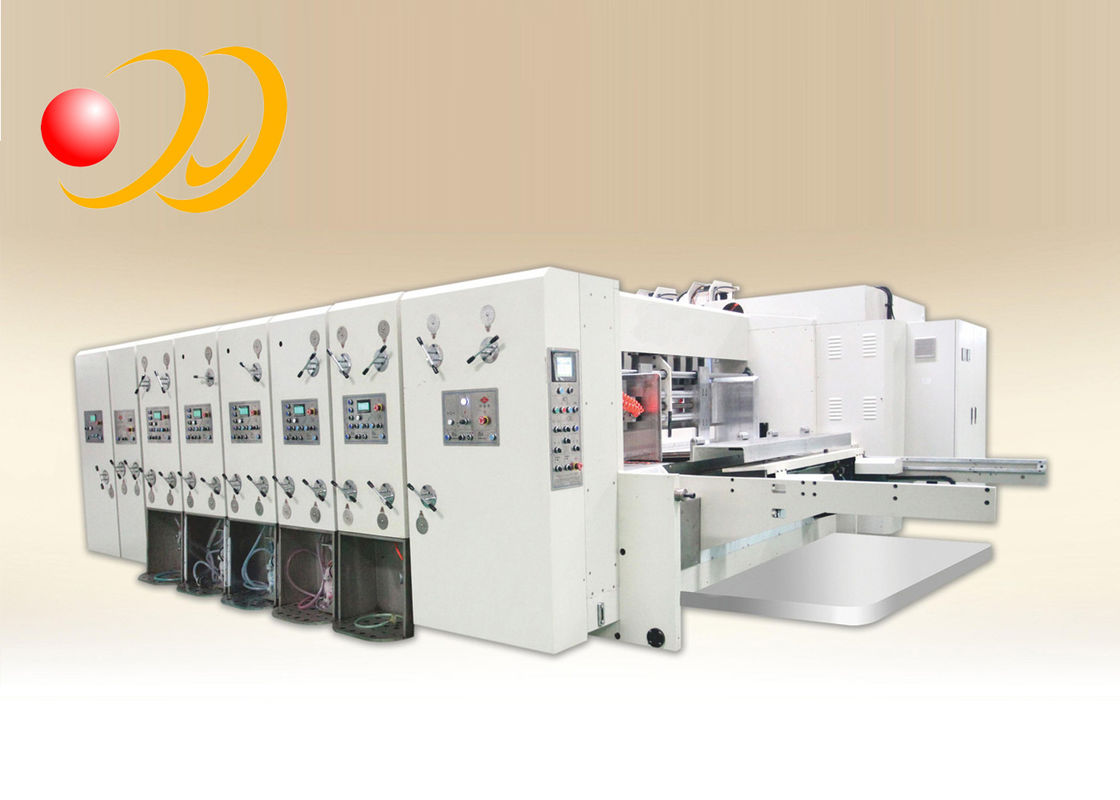

Name: Computerized Corrugated Box Machine Flexo Printing Slotting Die Cutting
Brand: Shanghai Printyoung International Industry Co.,Ltd
SKU: K4 Series
Price: 73,000.00 USD
Availability: InStock

Computerized Corrugated Box Machine Flexo Printing Slotting Die Cutting

Basic Information

Place of Origin:	China
Brand Name:	PRINTYOUNG
Certification:	CE
Model Number:	K4 Series

Minimum Order Quantity:	1 Set/Sets
Price:	negotiation
Packaging Details:	Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time:	30 working days after received your payment
Payment Terms:	T/T or western Union
Supply Ability:	30 sets per month

Contact Now

Max. Mechanic Speed:

200pcs/min

Max. Feeding Size:

880×2000mm

Min. Feeding Size:

280×650mm

Skip Feeding:

1100×2000mm

Max. Printing Area:

800×2000mm

Max. Thickness Of Board:

7.2mm

Highlight:

corrugated flexo printing machine

corrugated carton box making machine

Computerized Corrugated Box Machine Flexo Printing Slotting Die Cutting

Specifications :

Data & Model		900×2000	1200×2000	1200×2400	1400×2400
Max. mechanic speed(pcs/min)		200	200	200	200
Max. feeding size(mm)		880×2000	1180×2000	1180×2000	1380×2400
Min. feeding size(mm)		280×650	320×750	320×750	360×750
Skip feeding(mm)		1100×2000	1500×2000	1500×2400	1700x2400
Max. printing area(mm)		800×2000	1150×2000	1150×2400	1320x2400
Max. thickness of board(mm)		7.2	7.2	7.2	7.2
Min. slotting size	Slotting type L.(mm)	160×160×160×160	160×160×160×160	160×160×160×160	165×165×165×165
Min. slotting size	Slotting type L.(mm)	240×80×240×80	250×90×250×90	250×90×250×90	260×90×260×90
Max. slot depth(mm)		250	320	320	320
Max. thickness of board(mm)		12	12	12	12
Dimension(L×W×H)(mm) Note:S-Single D-Double T-Three F-Four		11659×4240×3200	13015×4400×3500	13015×4800×3500	13570×4820×3500
		12079×4240×3200	13550×4400×3500	13550×4800×3500	14208×4820×3500

Data & Model		1600×2800	1600×3200
Max. mechanic speed(pcs/min)		180	150
Max. feeding size(mm)		1600×2800	1600×3200
Min. feeding size(mm)		420×750	420×750
Skip feeding(mm)		1900×2800	1900×3200
Max. printing area(mm)		1540×2800	1540×3200
Max. thickness of board(mm)		7.2	7.2
Min. slotting size	Slotting type L.(mm)	160×160×160×160	160×160×160×160
Min. slotting size	Slotting type L.(mm)	280×90×280×90	280×90×280×90
Max. slot depth(mm)		560	560
Max. thickness of board(mm)		12	12
Dimension(L×W×H)(mm) Note:S-Single D-Double T-Three F-Four		14021×5220×3500	14021×5719×3500
		14701×5220×3500	14701×5719×3500

Introduction:

· The whole line is designed and made for high quality,high speed,high efficiency,high stability and high safety,convenient for quick order update and operation.

· Made with high quality materials and parts.

· Well hardened and ground transmission gears with hardness more than 60(HRC)

· Auto zero return and auto reset.

· Key-free connection rings to reduce central wear to keep stable precise printing.

· All cylinders and rollers are hard chromed for ideal hardness.

· Use imported PLC. touch screen for multifunctional control.

· Able to save daily orders to speed up the order update.

· All electric,electronic and pneumatic components are of European standards.

· Optional equipment-Lead edge feeder or auto kicking feeder.
