Electronic Semi Automatic Paper Cutting Machine For Big Area Hot Stamping

Basic Information
Place of Origin: China
Brand Name: PRINTYOUNG
Certification: CE
Model Number: TYMK Series
Minimum Order Quantity: 1 Set/Sets
Price: negotiation
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 30 working days after received your payment
Payment Terms: T/T or western Union
Supply Ability: 30 sets per month
Foil Groups: 2 Heating Area: 4
High Light:

paper die cutters

,

creasing and die cutting machine

Electronic Semi Automatic Paper Cutting Machine For Big Area Hot Stamping





Specifications :



Model

TYMK750

TYMK930

TYMK1040

TYMK1100

TYMK1200

TYMK1300

TYMK1400

TYMK1500

Max . die cutting size(mm)

750*520

930*660

1040*720

1100*800

1200*820

1300*920

1400*1000

1500*1040

Max . foil stamping size (mm)

740*510

930*640

1040*720

1100*800

1200*820

1300*920

1400*1000

1500*1040

Foil length(mm)

520

640

720

800

820

920

1000

1040

Moto power

2.2Kw-6H

4Kw-4H

4Kw-4H

4Kw-6H

4Kw-6H

7.5Kw-6H

7.5Kw-6H

7.5Kw-6H

Power (Kw)

10.2

16.5

16.5

20.5

20.5

28.5

28.5

28.5

Weight (Kg)

2200

3500

3800

4700

5000

6500

7000

7500

Speed (pcs/min)

26±3

23±2

23±2

20±2

20±2

15±2

15±2

15±2

Foil groups

2

3

3

3

3

3

3

3

Heating area

4

5

5

5

5

5

5

5

Overall dimensions(mm)

1450*

1900*1950

1800*

1900*

2150

1800*

1950*2150

2150*

2150*2300

2150*

2250*2300

2200*

2300*2300

2300*

2350*2300

2400*

2400*2300



Description :



The computerize foil stamping and die cutting machine is new generation of high precision and high effective innovative products,mainly suiable for hot stamping all kinds of colored aluminum foil, pressing the concave and convex and cutting various pictures trademarks, product catalog advertising, cartons, books, cover, new yearcards and other decorating, printing products. Ideal processing equipment for the printing, packaging and plastic industries.


Features:


. Adopt Taiwan PLC driver control,high precision, easy to operate,stable performance
. Stepping motor has large torque,can be set to the desired size,to be accurate, stable, reduce waste
. Having upper and lower delay, traveling ,jogging and the temperature control etc
. Ther are independent speed motor in feeding and delivery device to make feeding and delivery more convenient and practical
. The roller used aluminum alloy material,Processed through a special process. It has light weight but high precision, reduce the running load to extend service life
. Optional honeycomb board to make heating more evenly and quickly, easy to adjust plate
. Heating adopt stainless steel,more durable

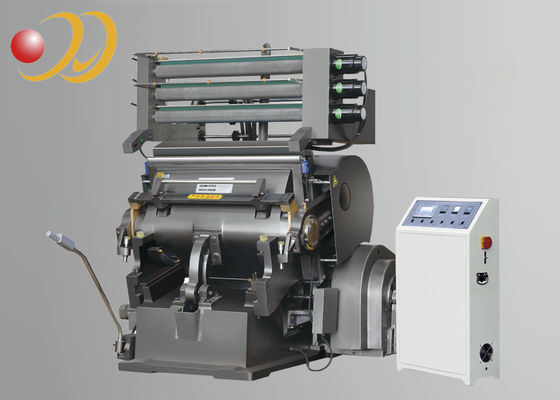

Electronic Semi Automatic Paper Cutting Machine For Big Area Hot Stamping 0
