Single Labor Flute Laminator Machine Semi - Automatic For Filmed Paper

Basic Information
Place of Origin: China
Brand Name: PRINTYOUNG
Certification: CE
Model Number: FMB Series
Minimum Order Quantity: 1 Set/Sets
Price: negotiation
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 30 working days after received your payment
Payment Terms: T/T or western Union
Supply Ability: 30 sets per month
Max. Sheet Size: 1000x1100mm Min. Sheet Size: 320x450mm
Speed: 0-90m/min Total Electric Consumption: 9kw
Overall Dimensions: 7400x1530x1400mm Weight: 3.2t
Highlight:

industrial laminating machines

,

automatic flute laminator

Single Labor Flute Laminator Machine Semi - Automatic For Filmed Paper





Main Technical Parameter:



Model FMB-1000 FMB-1300 FMB-1450 FMB-1650
Max. Sheet size 1000x1100mm 1300x1100mm 1450x1100mm 1650x1300mm
Min. Sheet size 320x450mm 320x450mm 320x450mm 320x450mm
Total electric consumption 7kw 7kw 7kw 11kw
Speed 0-90m/min 0-90m/min 0-90m/min 0-90m/min
Weight 3.2t 2.8t 3.0t 3.1t
Overall Dimensions 7400x1530x1400mm 7400x1830x1400mm 7400x2080x1400mm 7400x2250x1400mm



Features:



1. Turnup bridge plate is convenient for cleaning, discontinuous water-circulating system ensures washing clean.

2. Automatic feeding for bottom sheet, manual feeding for top sheet (feeding from side for top sheet is optional).

3. Flexible front  register, bottom sheet is not exceeding  the top sheet, and  it's  adjustable for the  front-and-rear  lamination  between bottom sheet and  top sheet.

4. Bottom sheet can be paperboard more than 350gsm, A/B/C/D/E/F corrugated cardboard.

5. Intelligent control and compacted energy-saving and controlling play from the stack of paper.

6. Using high-precision plastic block device, save glue.

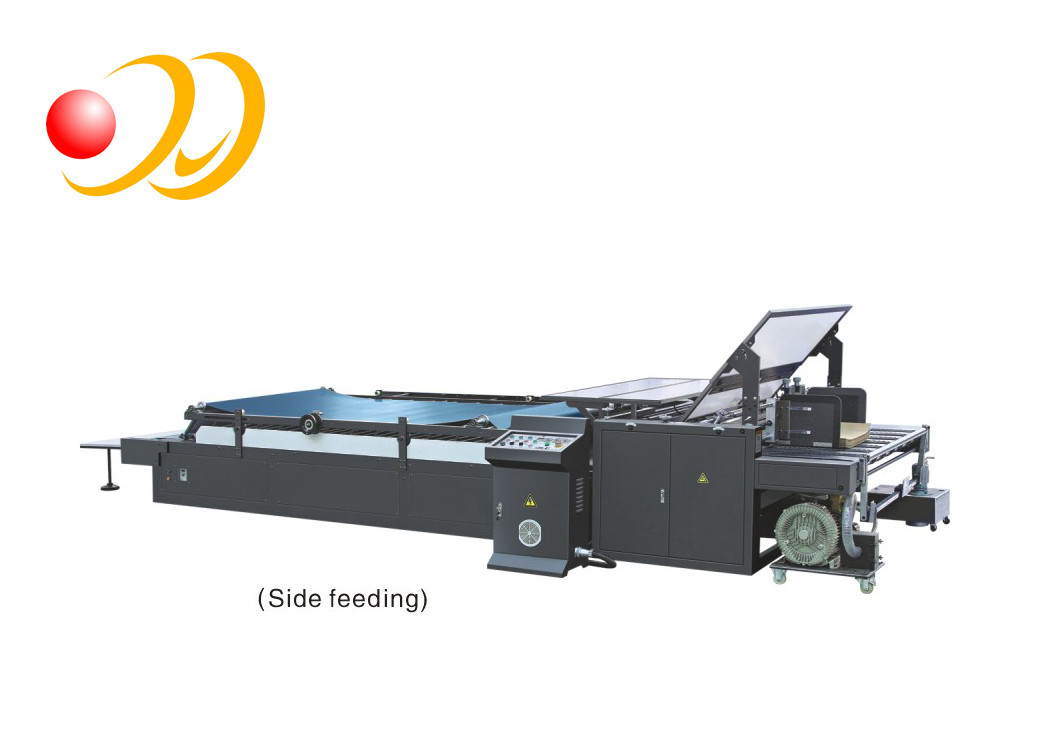

7. Side feeding is optional for top sheet.

  Optional: PLC control, lengthening compression part.
