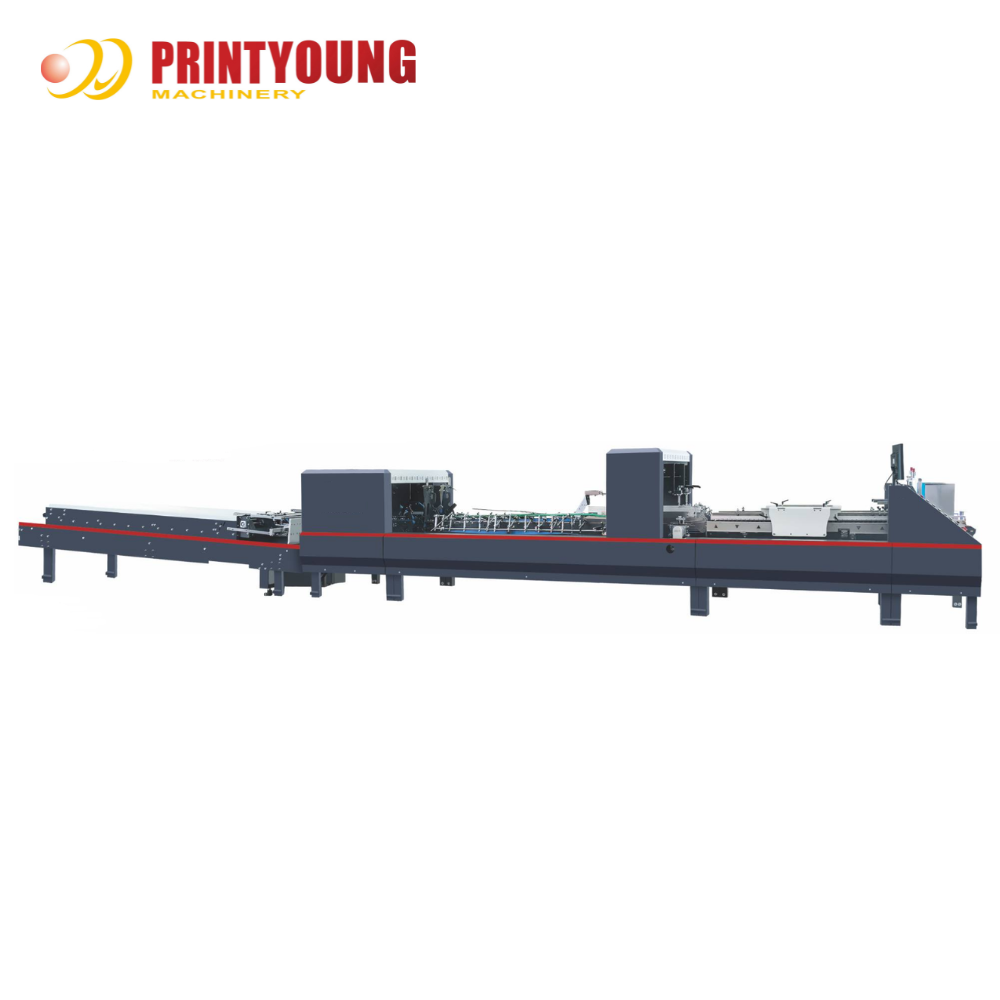

ZH-XT Automatic Side Gluing Box Folder Gluer Machine

ZH-XT Automatic Side Gluing Box Folder Gluer Machine
ZH-XT Automatic Side Gluing Box Folder Gluer Machine
Basic Information
Place of Origin: China
Brand Name: PRINTYOUNG
Certification: CE
Model Number: ZH-1100XT， ZH-1250XT ， ZH-1450XT
Minimum Order Quantity: 1 Set
Price: USD 16500 ~ 21000 Set
Packaging Details: Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.
Delivery Time: 25 work days
Payment Terms: L/C, T/T
Supply Ability: 30 Sets per Month
Contact Now
Model: ZH-1100XT， ZH-1250XT ， ZH-1450XT Paper Thickness: 210 ~ 600 G/m²
Paper Material: Paperboard , E/F Corrugated Max. Liner Speed: 0 ~ 300 M/min Continuous Adjustment
Feeding Way: Automatic Feeding Way Of Folding: Single Side Gluing Or Both Side Gluing
Glue Material: Cold Glue Electric Power: 12kw,13kw,14kw AC 3PH 380V
Weight: 3600kg , 3800kg , 4000kg Dimension: 12.2*1.5*1.3m , 12.2*1.7*1.3m , 12.9*1.9*1.3m

ZH-XT Automatic Side Gluing Box Folder Gluer Machine
ZH-1100XT Automatic Side Gluing Box Folder Gluer
ZH-XT Automatic Side Gluing Box Folder Gluer Machine
Features
1.A number of national patents,the performance of GEN 5 machine is ahead of the peers.
2.Modular structure,different functions can be combined according to customer needs,and functions can be upgraded after purchase.
3.Multi-motor transmission has strong power,fast speed,longer service life.
4.Synchronous belt transmission with high speed and low noise.
5.The upper and lower conveyor belts are powered,and there is no curling phenomenon.
6.The new curved arm bracket has a unique shape and a beautiful appearance.
7.Reserve the position of the four six corner devices to upgrade at any time.
8.The integrated electrical control box is hidden at the bottom of the conveyor,which saves space.
ZH-XT Automatic Side Gluing Box Folder Gluer Machine
ZH-XT Automatic Side Gluing Box Folder Gluer Machine
Technical Parameters
Model
ZH-1100XT
 ZH-1250XT ZH-1450XT
Paper Thickness
210 ~ 600 g/m²
Paper Material
Paperboard , E/F Corrugated
Max. Liner Speed
0 ~ 300 m/min Continuous Adjustment
Feeding Way
Automatic Feeding
Way of Folding
Single Side Gluing or Both Side Gluing
Glue Material
Cold Glue
Electric Power
12kw AC 3PH 380V
 13kw AC 3PH 380V 14kw AC 3PH 380V
Weight
3600 kg
 3800 kg 4000 kg
Dimension
12.2 * 1.5 * 1.3 m
 12.2 * 1.7 * 1.3 m 12.9 * 1.9 * 1.3 m
Model
Box Type
A
B
C(min)
D(min)
ZH-1100XT
Side-glue Box Corrugated Flat Box
160 ~ 1100 mm
100 ~ 700 mm
80 mm
15 mm
ZH-1250XT Side-glue Box Corrugated Flat Box 200 ~ 1250 mm 100 ~ 700 mm 80 mm 15 mm
ZH-1450XT Side-glue Box Corrugated Flat Box 200 ~ 1450 mm 100 ~ 800 mm 100 mm 30 mm
ZH-XT Automatic Side Gluing Box Folder Gluer Machine
Configuration
ZH-XT Automatic Side Gluing Box Folder Gluer Machine

Paper Feeding Section

Equipped with 2 output knives,adjust the asymmetric length according to the actual sample.The embossing power guide wheel guides the paper output belt,and there are baffles on the left and right sides,which can be moved left and right according to the product style.The vibrating device cooperates with the motor to feed paper quickly, easily and continuously automatically.

Aligner Section

The paper board sent from feeder section will be corrected by aligner section to ensure transmission accurately

Pressing drive pressure can be adjusted up and down to accommodate different paper board thickness.
ZH-XT Automatic Side Gluing Box Folder Gluer Machine

Lower Gluing Tank

Lower gluing tank is large volume.
Easy to remove and clean.

Folding and Closing

The Second and fourth folding line 180°.
Folding and closing section transmit from right and left side,the belt speed can be adjusted separately and correct the way of box running to ensure straightly delivery.
ZH-XT Automatic Side Gluing Box Folder Gluer Machine

Trombone Section

Up and down belt can be adjusted separately.Equipped with photo electronic counting device and kicking paper device,
which can press the paper after accounting and make it easy to pack.Also equipped with feeding paper inspection device.

Transmission

Upper section moves back and forward, allowing for different box length.Independent electrical box.The independent structure reduces the interference of the mechanical structure to the electrical system,and it is beautiful and atmospheric.
ZH-XT Automatic Side Gluing Box Folder Gluer Machine

Box Squaring Device

Full press section continuously and automatically box collection mechanism that ensures a neat transfer to the press section,
guaranteeing a well aligned flow.

Synchronous Belt & Wheel

The most efficient mechanical power transmission method currently on the market.Reduce noise,reduce wear,and efficient power transmission system.
ZH-XT Automatic Side Gluing Box Folder Gluer MachineZH-XT Automatic Side Gluing Box Folder Gluer Machine

Aviation Connector

Easy to install and transport.

Conveyor Monitoring

The situation in front of the conveying section can be observed on the screen of the paper feed section.
ZH-XT Automatic Side Gluing Box Folder Gluer MachineZH-XT Automatic Side Gluing Box Folder Gluer Machine

Conveying Part Snapping Function

The flat-mouth box can be slapped,so that the product has a better molding effect.

Electric Wallboard Move(Optional)

Accurate and labor-saving wall panel movement.
ZH-XT Automatic Side Gluing Box Folder Gluer Machine
ZH-XT Automatic Side Gluing Box Folder Gluer Machine
ZH-XT Automatic Side Gluing Box Folder Gluer Machine
ZH-XT Automatic Side Gluing Box Folder Gluer Machine
ZH-XT Automatic Side Gluing Box Folder Gluer Machine
ZH-XT Automatic Side Gluing Box Folder Gluer Machine
ZH-XT Automatic Side Gluing Box Folder Gluer Machine
