KL-H Fully Automatic Sheet Fed Shopping Bag Making Machine with Twisted Paper Rope Handle Motorized High Productivity

KL-H Fully Automatic Sheet Fed Shopping Bag Making Machine with Twisted Paper Rope Handle Motorized High Productivity
KL-H Fully Automatic Sheet Fed Shopping Bag Making Machine with Twisted Paper Rope Handle Motorized High Productivity KL-H Fully Automatic Sheet Fed Shopping Bag Making Machine with Twisted Paper Rope Handle Motorized High Productivity KL-H Fully Automatic Sheet Fed Shopping Bag Making Machine with Twisted Paper Rope Handle Motorized High Productivity KL-H Fully Automatic Sheet Fed Shopping Bag Making Machine with Twisted Paper Rope Handle Motorized High Productivity
Basic Information
Place of Origin: China
Brand Name: PRINTYOUNG
Certification: CE
Model Number: KL-220H , KL-350H , KL-450H
Minimum Order Quantity: 1 Set
Price: USD 280000 ~ 299000 Set
Packaging Details: Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.
Delivery Time: 30 work days
Payment Terms: L/C, T/T
Supply Ability: 10 Sets per Month
Contact Now
Model: KL-220H , KL-350H , KL-450H Paper Bag Width: 130~250mm/5.11~9.84inch , 180~350mm/7.08~13.78inch , 220~450mm/8.66~17.72inch
Bottom Width / Gusset: 60~130mm/2.36~5.11inch , 70~170mm/2.75~6.69inch , 80~180mm/3.15~7.09inch Feed Paper Width: 490~770mm/19.29~30.31inch , 600~1040mm/23.62~40.94inch , 600~1240mm/23.62~48.81inch
Feed Paper Length: 260~450mm/10.23~17.71inch , 340~600mm/13.38~23.62inch , 350~600mm/12.78~23.62inch Paper Weight: 100~190g/m² , 120~200g/m² , 120~200g/m²
Bag Mouth Fold Width: 40~50mm/1.57~1.96inch , 40~60mm/1.57~2.36inch , 40~60mm/1.57~2.36inch Handle Patching Length: 114mm/4.48inch , 152mm/5.98inch , 188mm/7.4inch
Handle Patching Width: 40~45mm/1.57~1.77inch Patch Paper Thickness: 100~140g/m² , 120~150g/m² , 120~150g/m²
Patch Paper Roll Diameter: φ1200mm/47.24inch Patch Paper Roll Width: 80~90mm/3.15~3.54inch
Twisted Rope Handle Diameter: φ4~6mm/0.16~0.24inch Twisted Rope Handle Height: 160~180mm/6.29~7.28inch
Twisted Rope Handle Pitch: 57mm/2.24inch , 76mm/2.99inch , 95mm/3.74inch Glue Type: Water Glue (tube Gluing With Additional Hot Melt Glue System)
Working Speed: 40~75pcs/min Total Power: 26kw,28kw,30kw/380V/50Hz/4Wires/3Phases
Machine Weight: 18T , 20T , 22T Dimension: 14000*5000*3100mm , 15000*5500*3100mm , 16000*6000*3100mm

KL-H Fully Automatic Sheet Fed Shopping Bag Making Machine with Twisted Paper Rope Handle Motorized High Productivity

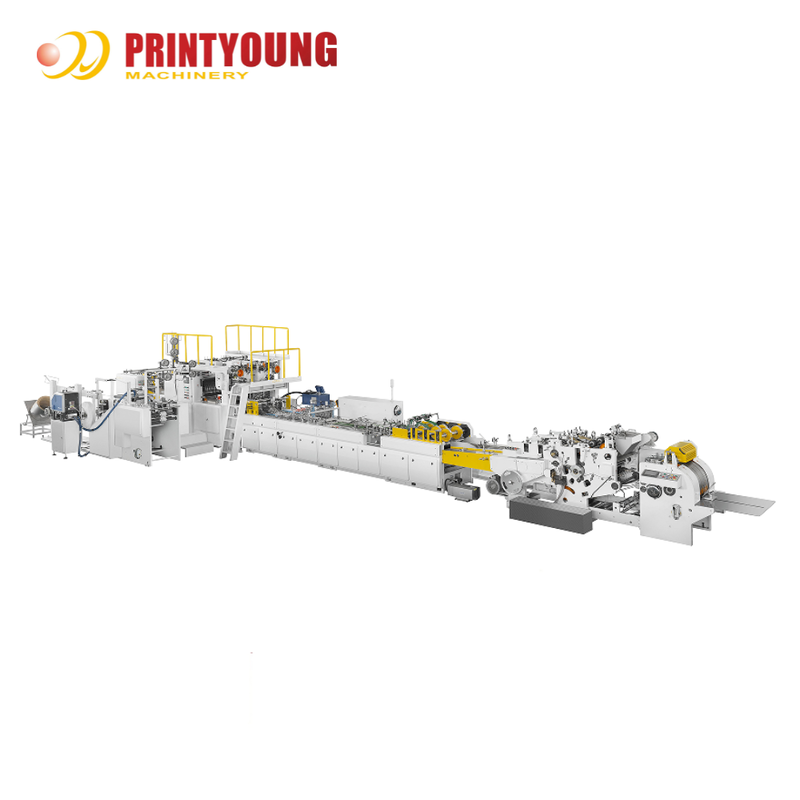

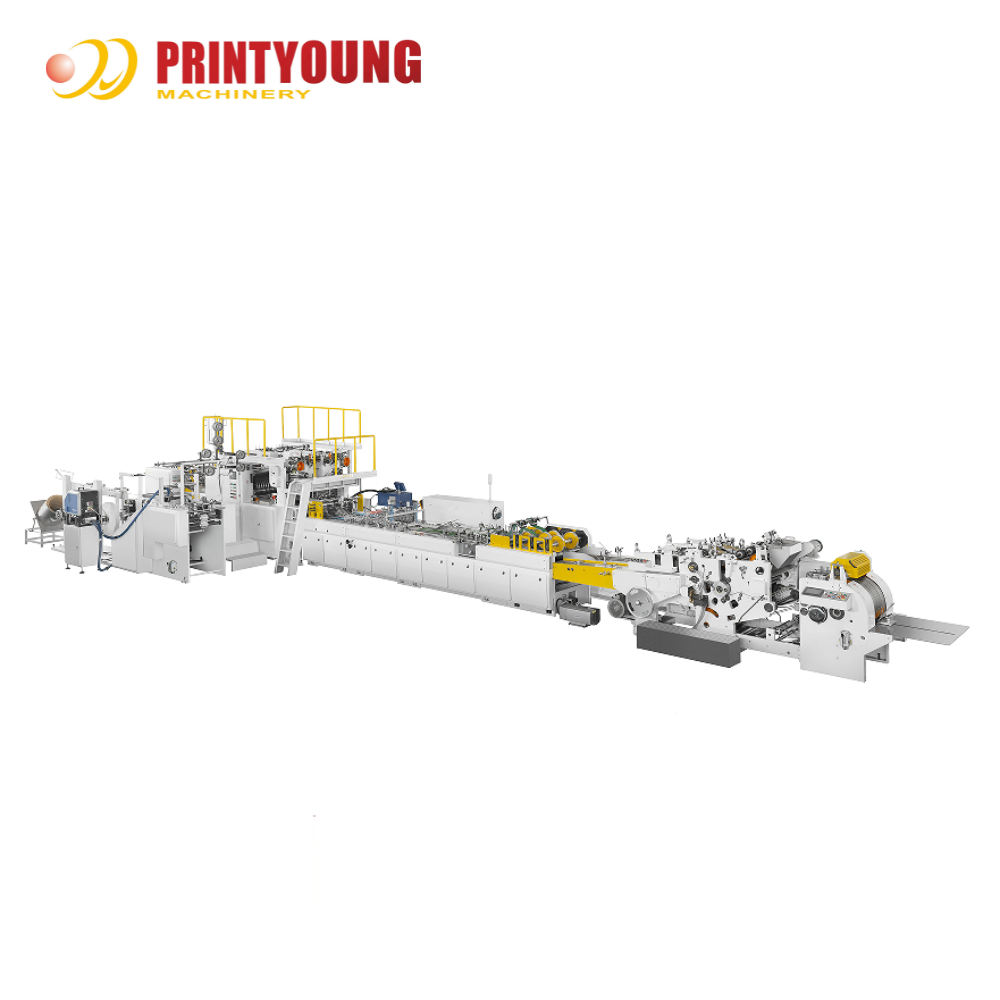

KL-220H Automatic Sheet Fed Paper Bag Making Machine
KL-H Fully Automatic Sheet Fed Shopping Bag Making Machine with Twisted Paper Rope Handle Motorized High Productivity
Features
This machine can produce three different options as below
KL-H Fully Automatic Sheet Fed Shopping Bag Making Machine with Twisted Paper Rope Handle Motorized High Productivity
Paper handle making,handle pasting,top folding,tube forming,gusset forming,square bottom open,bottom gluing,bottom pasting,compaction output.
KL-H Fully Automatic Sheet Fed Shopping Bag Making Machine with Twisted Paper Rope Handle Motorized High Productivity
Reinforce card making,reinforce card pasting,top folding,tube forming,gusset forming,hole punching,square bottom open,bottom gluing,bottom pasting,compaction output.
KL-H Fully Automatic Sheet Fed Shopping Bag Making Machine with Twisted Paper Rope Handle Motorized High Productivity
Paper handle making,handle pasting (without top folding),tube forming,gusset forming, square bottom open,bottom gluing,bottom pasting,compaction output.
KL-H Fully Automatic Sheet Fed Shopping Bag Making Machine with Twisted Paper Rope Handle Motorized High Productivity
Handle winding way,make the rope.
Handle slitting inline.
Handle patch cut off,servo motor drive and sensor detect to make sure the precision.
Handle patch delivery,sensor positioning to ensure the pasting accuracy onto the bag.
Technical Parameters
Model
KL-220H
 KL-350H KL-4520H
Paper Bag Width
130~250mm
5.11~9.84inch

180~350mm

7.08~13.78inch

220~450mm

8.66~17.72inch
Bottom Width / Gusset
60~130mm
2.36~5.11inch

70~170mm

2.75~6.69inch

80~180mm

3.15~7.09inch
Feed Paper Width
490~770mm
19.29~30.31inch

600~1040mm

23.62~40.94inch

600~1240mm

23.62~48.81inch
Feed Paper Length
260~450mm
10.23~17.71inch

340~600mm

13.38~23.62inch

350~600mm

12.78~23.62inch
Paper Weight
100~190g/m²
 120~200g/m²
Bag Mouth Fold Width
40~50mm/1.57~1.96inch
 40~60mm/1.57~2.36inch
Handle Patching Length
114mm/4.48inch
 152mm/5.98inch 188mm/7.4inch
Handle Patching Width
40~45mm/1.57~1.77inch
Patch Paper Thickness
100~140g/m²
 120~150g/m²
Patch Paper Roll Diameter
φ1200mm/47.24inch
Patch Paper Roll Width
80~90mm/3.15~3.54inch
Twisted Rope Handle Diameter
φ4~6mm/0.16~0.24inch
Twisted Rope Handle Height
160~180mm/6.29~7.28inch
Twisted Rope Handle Pitch
57mm/2.24inch
 76mm/2.99inch 95mm/3.74inch
Glue Type
Water Glue(tube gluing with additional hot melt glue system)
Working Speed
40~75pcs/min
Total Power
26kw/380V/50Hz
4Wires/3Phases

28kw/380V/50Hz

4Wires/3Phases

30kw/380V/50Hz

4Wires/3Phases
Machine Weight
18T
 20T 22T
Dimension
14000*5000*3100mm
 15000*5500*3100mm 16000*6000*3100mm
Configuration
KL-H Fully Automatic Sheet Fed Shopping Bag Making Machine with Twisted Paper Rope Handle Motorized High Productivity

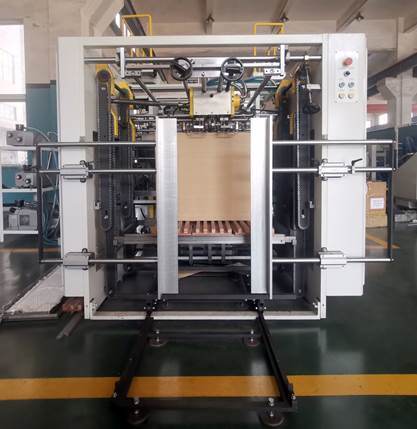

Step 1:Non-stop Auto Speed Feeder
Pre-packed paper feeder to realize non stop speed paper feeding,greatly save the time to load and adjust raw paper.
Step 2:Automatic Paper Feeder
Step 3:Handle U-cut Knife
Equipped with 6pcs,which could produce bag surface side and gusset side.
KL-H Fully Automatic Sheet Fed Shopping Bag Making Machine with Twisted Paper Rope Handle Motorized High ProductivityKL-H Fully Automatic Sheet Fed Shopping Bag Making Machine with Twisted Paper Rope Handle Motorized High ProductivityKL-H Fully Automatic Sheet Fed Shopping Bag Making Machine with Twisted Paper Rope Handle Motorized High Productivity

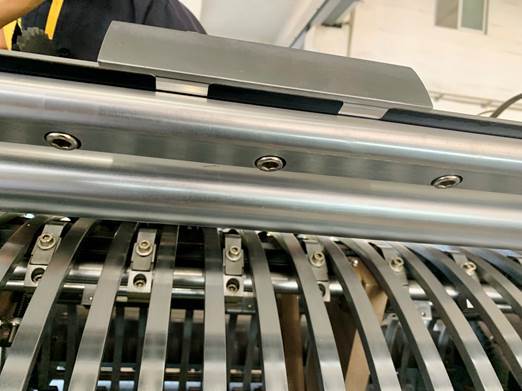

Step 4:Top Folding Unit
Equipped with grating system safety device.
Large observation space with hand railing.
Easy for operator walking and do certain machine adjustment.
The unique copper plate device to prevent the operation of the rope handle stuck to stop.
Step 5:Auto Creasing Unit
All the sheet feeding to this machine not need die-cutting in advance.
The machine equipped with auto creasing unit.
Equipped with digital number to display to creasing wheel position,easy to adjust and operate.
KL-H Fully Automatic Sheet Fed Shopping Bag Making Machine with Twisted Paper Rope Handle Motorized High ProductivityKL-H Fully Automatic Sheet Fed Shopping Bag Making Machine with Twisted Paper Rope Handle Motorized High Productivity

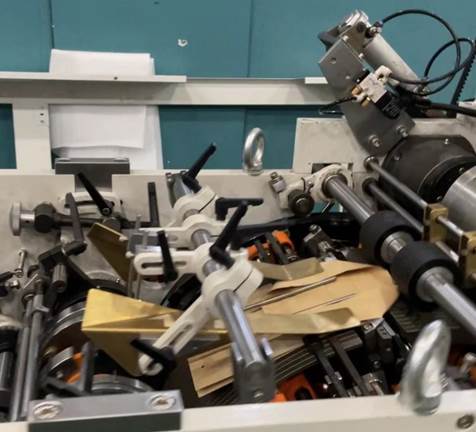

Step 6:Gusset Folding Unit
Adopts copper blade M shape folding gusset making system and special for big bottom size.
KL-H Fully Automatic Sheet Fed Shopping Bag Making Machine with Twisted Paper Rope Handle Motorized High ProductivityKL-H Fully Automatic Sheet Fed Shopping Bag Making Machine with Twisted Paper Rope Handle Motorized High Productivity
Step 7:Tube Side Pasting
The pasting side could choose bag surface side (big side) or gusset side (small side).Which could fulfill different kinds of customer bag orders.
KL-H Fully Automatic Sheet Fed Shopping Bag Making Machine with Twisted Paper Rope Handle Motorized High Productivity
Step 8:Bottom Opening
Name of patent:Bottom opening device.
Step 9:Hole Punching
Name of patent:Handle holes punching device.
Step10:Bottom Gluing
Adopts water glue for bottom gluing.
Delta grating system.
Emergency stop button.
Equipped with hole punching unit diameter 5mm diameter 6mm.
The hole distance is 80mm and 120mm.
If special size could be customized before taking the order.
Applications
KL-H Fully Automatic Sheet Fed Shopping Bag Making Machine with Twisted Paper Rope Handle Motorized High Productivity
KL-H Fully Automatic Sheet Fed Shopping Bag Making Machine with Twisted Paper Rope Handle Motorized High Productivity
KL-H Fully Automatic Sheet Fed Shopping Bag Making Machine with Twisted Paper Rope Handle Motorized High Productivity
KL-H Fully Automatic Sheet Fed Shopping Bag Making Machine with Twisted Paper Rope Handle Motorized High Productivity
KL-H Fully Automatic Sheet Fed Shopping Bag Making Machine with Twisted Paper Rope Handle Motorized High Productivity
KL-H Fully Automatic Sheet Fed Shopping Bag Making Machine with Twisted Paper Rope Handle Motorized High Productivity
KL-H Fully Automatic Sheet Fed Shopping Bag Making Machine with Twisted Paper Rope Handle Motorized High Productivity
KL-H Fully Automatic Sheet Fed Shopping Bag Making Machine with Twisted Paper Rope Handle Motorized High Productivity
