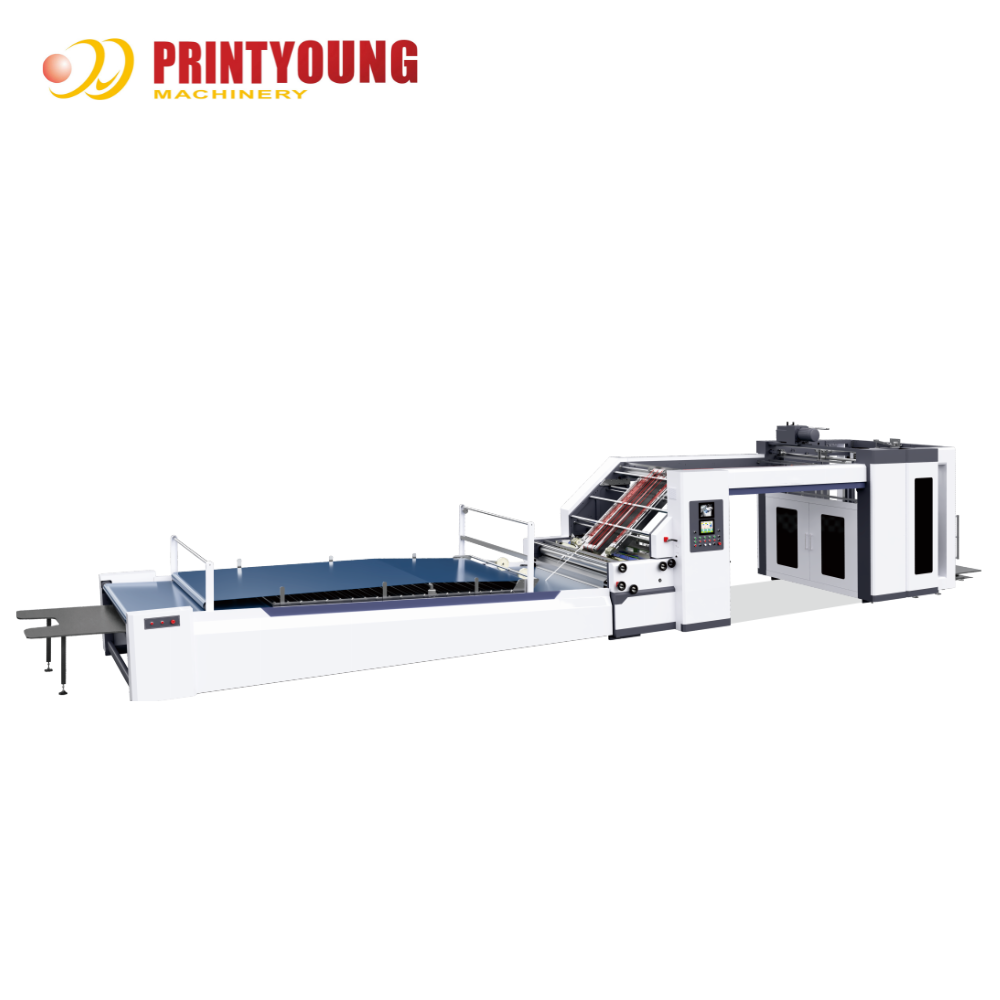

PRY-HG Automatic Servo Type Intelligent Adjustment Cardboard Flute Laminating Machine

PRY-HG Automatic Servo Type Intelligent Adjustment Cardboard Flute Laminating Machine
PRY-HG Automatic Servo Type Intelligent Adjustment Cardboard Flute Laminating Machine PRY-HG Automatic Servo Type Intelligent Adjustment Cardboard Flute Laminating Machine PRY-HG Automatic Servo Type Intelligent Adjustment Cardboard Flute Laminating Machine PRY-HG Automatic Servo Type Intelligent Adjustment Cardboard Flute Laminating Machine PRY-HG Automatic Servo Type Intelligent Adjustment Cardboard Flute Laminating Machine
Basic Information
Place of Origin: China
Brand Name: PRINTYOUNG
Certification: CE
Model Number: PRY-1450HG , PRY-1650HG
Minimum Order Quantity: 1 Set
Price: USD 50000 ~ 55000 Set
Packaging Details: Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.
Delivery Time: 45 work days
Payment Terms: L/C, T/T
Supply Ability: 30 Sets per Month
Contact Now
Model: PRY-1450HG , PRY-1650HG Max. Sheet Size: 1450 * 1450 Mm , 1650 * 1650 Mm
Min. Sheet Size: 380 * 350 Mm Top Paper Thickness: 120 ~ 500 G
Precision For Front And Back: ± 1 Mm Weight: 8500 Kgs , 9000 Kgs
Max. Speed: 0 ~ 180 M/min Air Consumption: 0.2 M³/min

PRY-HG Automatic Servo Type Intelligent Adjustment Cardboard Flute Laminating Machine
PRY-HG Flute Laminating Machine
PRY-HG Automatic Servo Type Intelligent Adjustment Cardboard Flute Laminating Machine
Features
This machine adopted with motion control system and servo correction system perfect combination,using multiple sets of photoelectric sensor at the end of the paper the relative position,control top paper on both sides of the servo motor independent drive compensation action,top paper and bottom paper precise positioning.Servo laminating machine has the advantages of simple operation,only need to input the size of paper can be completed automatically adjust the machine.
★ Automatic width adjustment for width when set up the sheet size.
★ Automatic adjustment for glue amount and roller pressure.
★ Max linear speed 165m/min.
★ Casting frame 40mm.
★ Φ165mm jumbo roller for transsmion with no glue splashing.
★ Linkage control by the 10 servo motors for the whole machine.
★ Streaming feeding for top sheets.
★ Oil-free bearing technology and maintaince-free.
★ Independent servo ilde speed transmission for glue roller.
★ Stepping motor controls the format-set-up,high accuracy.
Technical Parameters
PRY-1450HG Flute Laminating Machine
Model
PRY-1450HG
 PRY-1650HG
Max. Sheet Size
1450 * 1450 mm
 1650 * 1650 mm
Min. Sheet Size
380 * 350 mm
 380 * 350 mm
Top Paper Thickness
120 ~ 500 g
 120 ~ 500 g
Precision for Front and Back
± 1 mm
 ± 1 mm
Weight
8500 kgs
 9000 kgs
Max. Speed
0 ~ 180 m/min
 0 ~ 180 m/min
Air Consumption
0.2 m³/min
 0.2 m³/min
Overall
15.5 * 2.4 * 2.4 m
 15.7 * 2.6 * 2.4 m
Machine Power
24 kw
 26 kw
Bottom Paper
A , B , C , E , F , G Corrugated paper
Four Layers Corrugated paper : AB/BB/BC/EE
Cardboard paper is above the 300gsm
Configuration
PRY-HG Automatic Servo Type Intelligent Adjustment Cardboard Flute Laminating Machine
Top Sheet Feeding Mechanism
Equipped with high speed auto dedicated feeder,both paper lifting and feeding nozzle can freely adjust angle to the paper,to ensure that whether thick or thin paper can be delivered rapidly and smoothly.
PRY-HG Automatic Servo Type Intelligent Adjustment Cardboard Flute Laminating Machine
Leading edge feeding for the bottom feeding,suitable for running various kinds of the corrugation board,more helpful when the corrugated board is bent.
(could not run cardboard if choose this device)
PRY-HG Automatic Servo Type Intelligent Adjustment Cardboard Flute Laminating Machine
Bottom Sheet Feeding Mechanism(Optional)
Use imported servo motor electric controlling system,with Japan NITTA suction belt to make suction power inverter,could run both corrugated paper and cardboard that is above 300gsm.
PRY-HG Automatic Servo Type Intelligent Adjustment Cardboard Flute Laminating Machine
Top Paper Feeding
Stream feeding type (overlap),ensuring that the paper will not get stuck during the high speed running.
PRY-HG Automatic Servo Type Intelligent Adjustment Cardboard Flute Laminating Machine
Side-pulling Positioning
Using side-pulling balls for the top sheet positiong,making it always passing in one direction,performing high accuracy for the side alignment.
PRY-HG Automatic Servo Type Intelligent Adjustment Cardboard Flute Laminating Machine
Automatic Width Adjustment System
When the paper size is input,the lower paper system,feeder and upper paper transport parts will automatically move to the corresponding size.
PRY-HG Automatic Servo Type Intelligent Adjustment Cardboard Flute Laminating Machine
Automatically Adjust Glue and Roller Pressure
When the corrugated height is input,the glue gap and roller gap will automatically move to the corresponding position,and the data can be saved.You can directly click "execute" next time you manufacture this product.
PRY-HG Automatic Servo Type Intelligent Adjustment Cardboard Flute Laminating Machine
Feeder Monitoring
Operators do not need to frequently go to the feeder department to check the operation of the feeder,which saves manpower.
PRY-HG Automatic Servo Type Intelligent Adjustment Cardboard Flute Laminating Machine
Positioning System
Using groups of photoelectric sensing bottom paper forward relative position,control top paper on both sides of the servo motor,independent compensation action,the top paper and bottom paper precision laminated.
PRY-HG Automatic Servo Type Intelligent Adjustment Cardboard Flute Laminating Machine
Transmission Part
Imported double toothed synchronous belt drive,equipped with a tensioning device to ensure the accuracy of the transmission,stable,low noise.
PRY-HG Automatic Servo Type Intelligent Adjustment Cardboard Flute Laminating Machine
Glue Roller
Stainless steel roller,never rust,after narrowly grinding,guaranteed the minimum amount glue coated evenly.Down roller be cleaned by water roller.The diameter has been enlarged to Φ165mm to ensure a stable running for high speed and no glue splashing.
PRY-HG Automatic Servo Type Intelligent Adjustment Cardboard Flute Laminating Machine
Electrical System
Designed in the accordance with European CE requirement,ensure machine stability, high efficiency and low failure.Using man-machine interface and PLC combination, display all the information,such as warning,error detect,failures,and operating speed.
PRY-HG Automatic Servo Type Intelligent Adjustment Cardboard Flute Laminating Machine
Pre-stack Section
Pre-stack pile of paper under the condition of non-stop,the piled sheet could also be pushed in directly by the forklift;improve efficiency.The special design of the pre stack paper frame,save time and effort.
PRY-HG Automatic Servo Type Intelligent Adjustment Cardboard Flute Laminating Machine
Paper Thickness Detection
Put the paper here and the screen will display its thickness.After entering this thickness,the glue and pressure can be adjusted automatically.
PRY-HG Automatic Servo Type Intelligent Adjustment Cardboard Flute Laminating Machine
PRY-HG Automatic Servo Type Intelligent Adjustment Cardboard Flute Laminating Machine
PRY-HG Automatic Servo Type Intelligent Adjustment Cardboard Flute Laminating Machine
PRY-HG Automatic Servo Type Intelligent Adjustment Cardboard Flute Laminating Machine
PRY-HG Automatic Servo Type Intelligent Adjustment Cardboard Flute Laminating Machine
PRY-HG Automatic Servo Type Intelligent Adjustment Cardboard Flute Laminating Machine
PRY-HG Automatic Servo Type Intelligent Adjustment Cardboard Flute Laminating Machine
