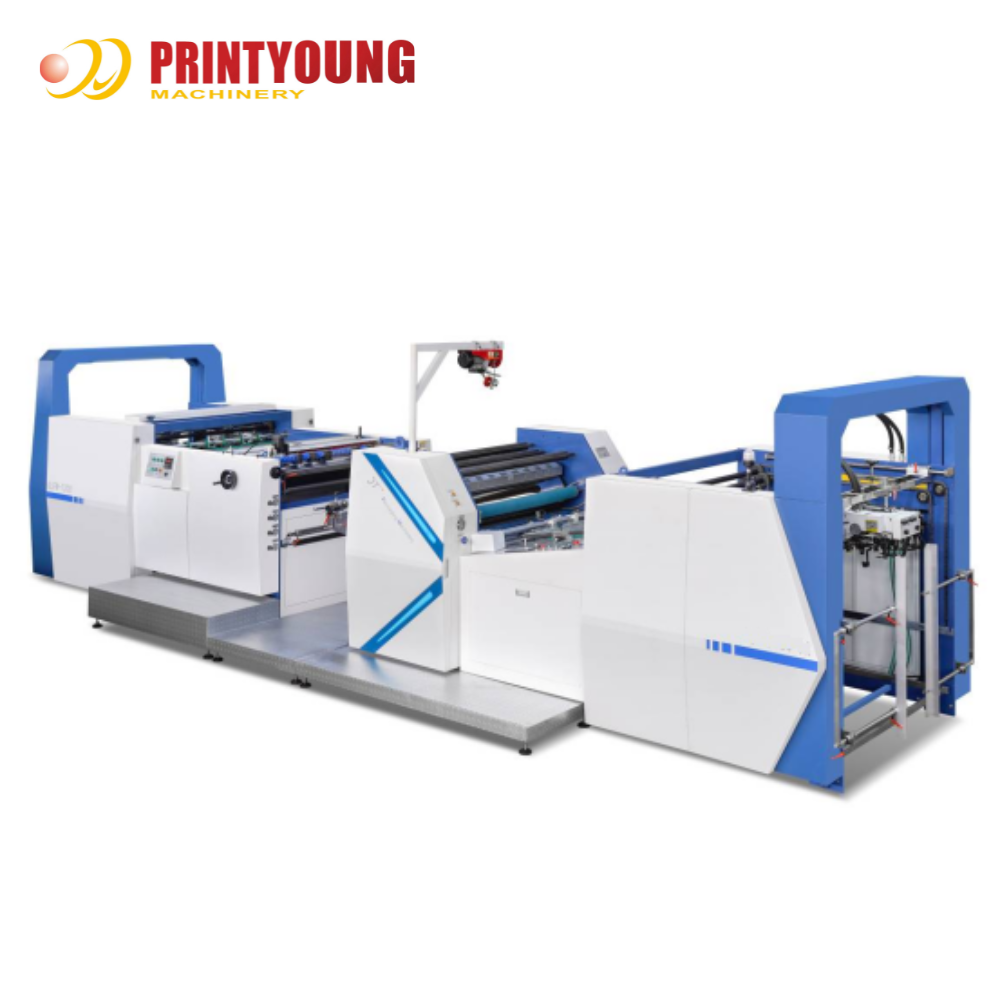

PRY-FM1100 fully automatic thermal lamination machine is designed for thermal (pre-coated) lamination,easy to use without glue coating unit.Features high automation,high laminating speed,high accuracy,electrical appliance is centralized by programmable system,touch screen easy to operate,with high cost-performance.

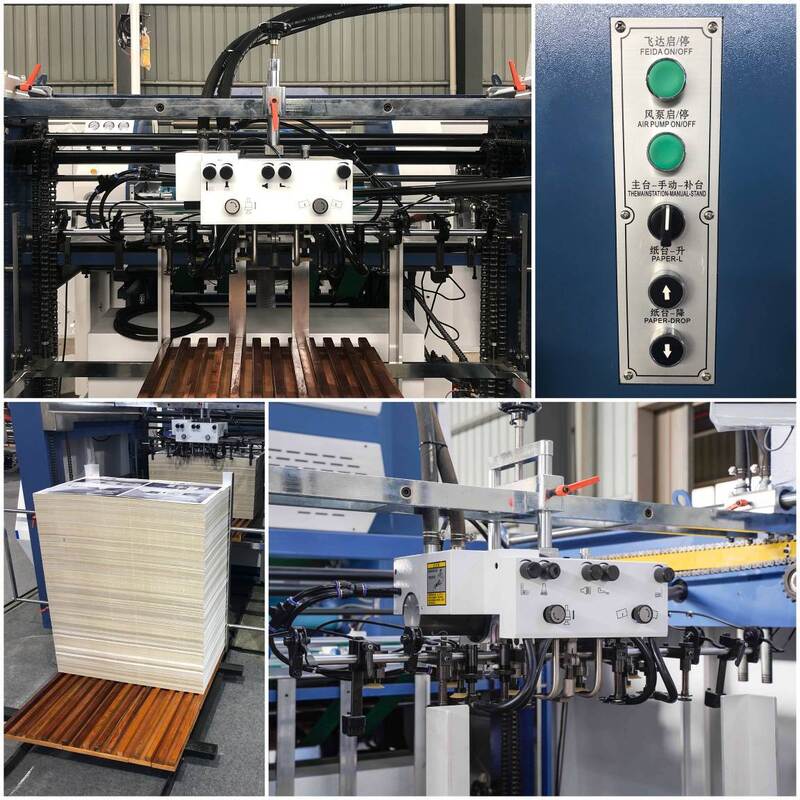

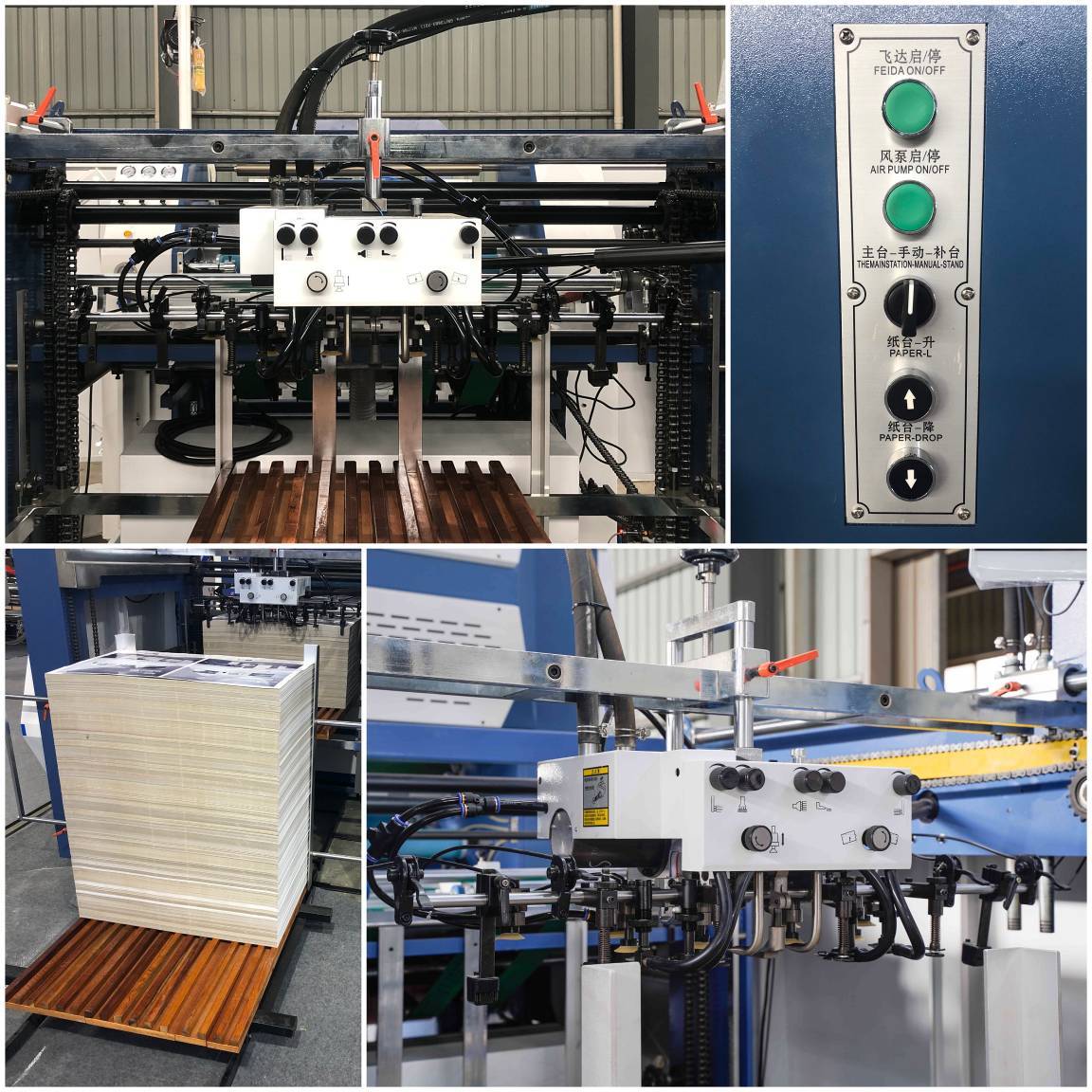

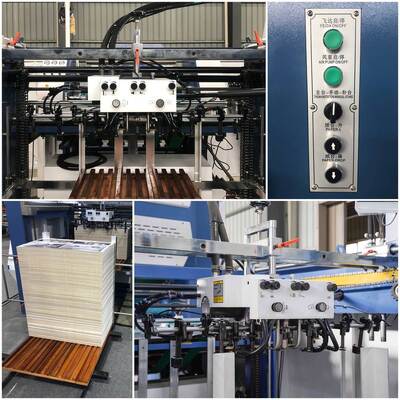

1.Automatic High Speed Feeder
Adopt high speed pneumatic offset feeder,speed up to 120m/min.Pre-stacking system can realize non-stop feeding,obviously improving work efficiency.

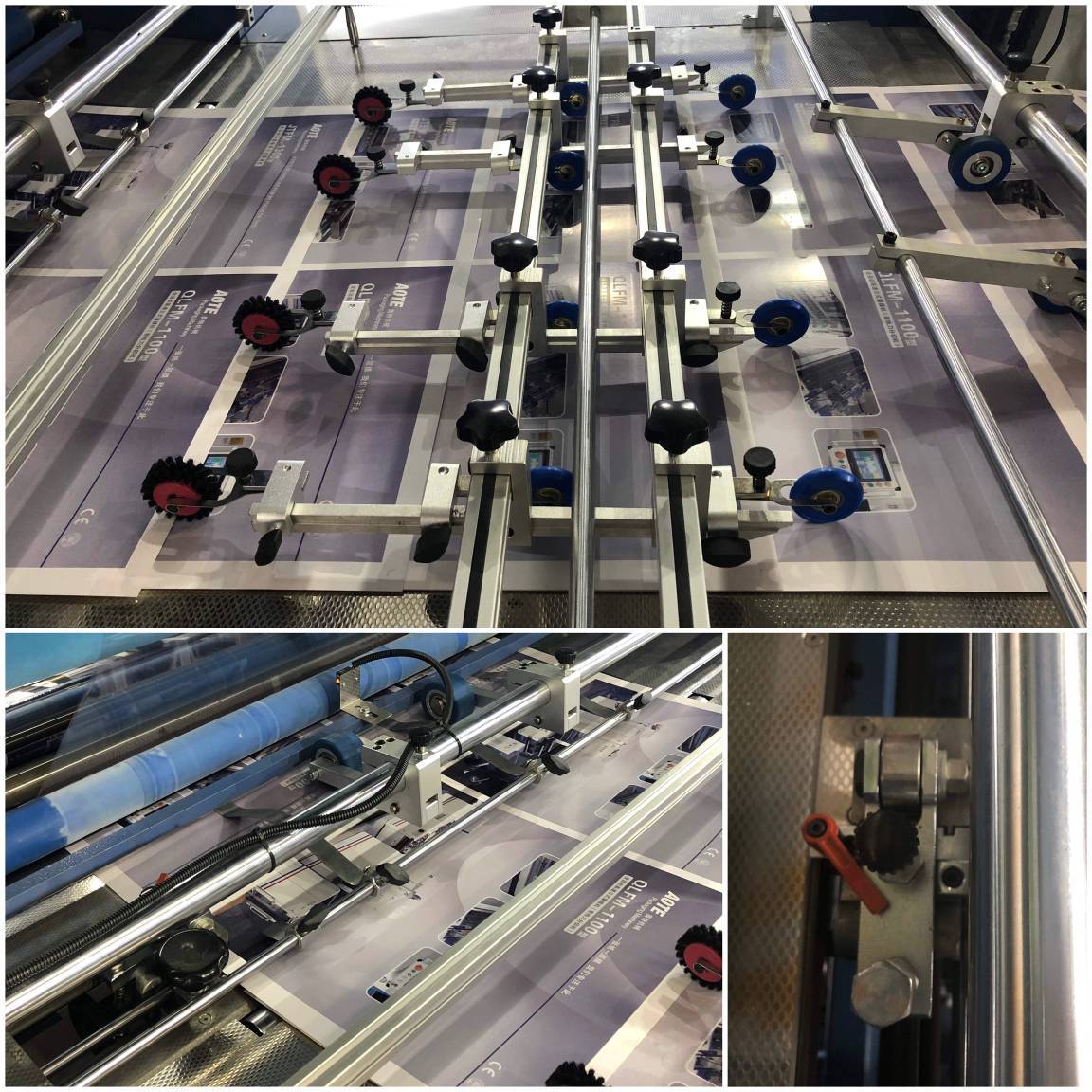

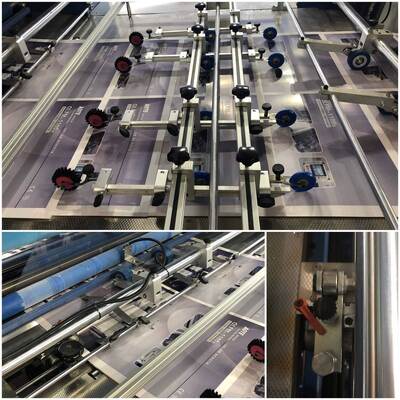

2.High Accuracy Lap Control
Servo-controlled lap within ±2mm,synchronizes with feeder,high accuracy front lay and pneumatic side lay regulator ensure accurate and stable position.
3.Automatic Shutdown Protection System
Equipped with photoelectrically controlled automatic shutdown protection devices,in case of paper shortage, paper broken and paper overlap.
4.Thermal Laminating System
The 360mm diameter mirror laminating roller is equipped with electromagnetic heating device,can realize high speed booting and heating,2 times heating performance than traditional oil heating device meanwhile save much power consumption.
5.Automatic Hydraulic System
The hydraulic system automatically provides stable and large pressure to ensure high quality of lamination.
6.Man-machine Interface System
Equipped with color touch screen,easy and convenient to operate.The operator can view the machine's working status at any time from the touch screen.

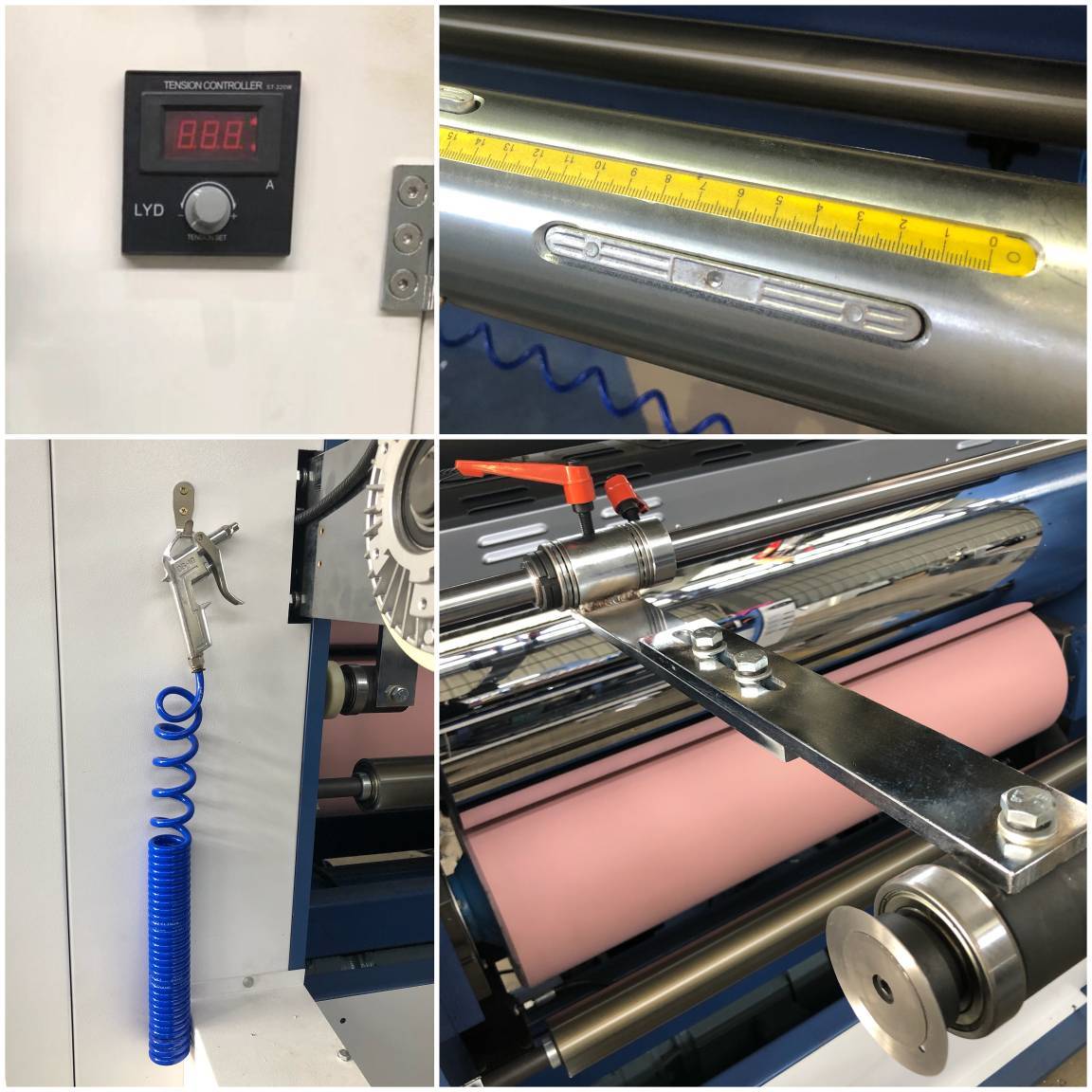

7.Air Shaft and Tension Control System
Adopt air shaft, easy to load film,accurate film position by the graduation of the air shaft.At the same time the intelligent tension system easy to control the tension of film,increase laminating performance.

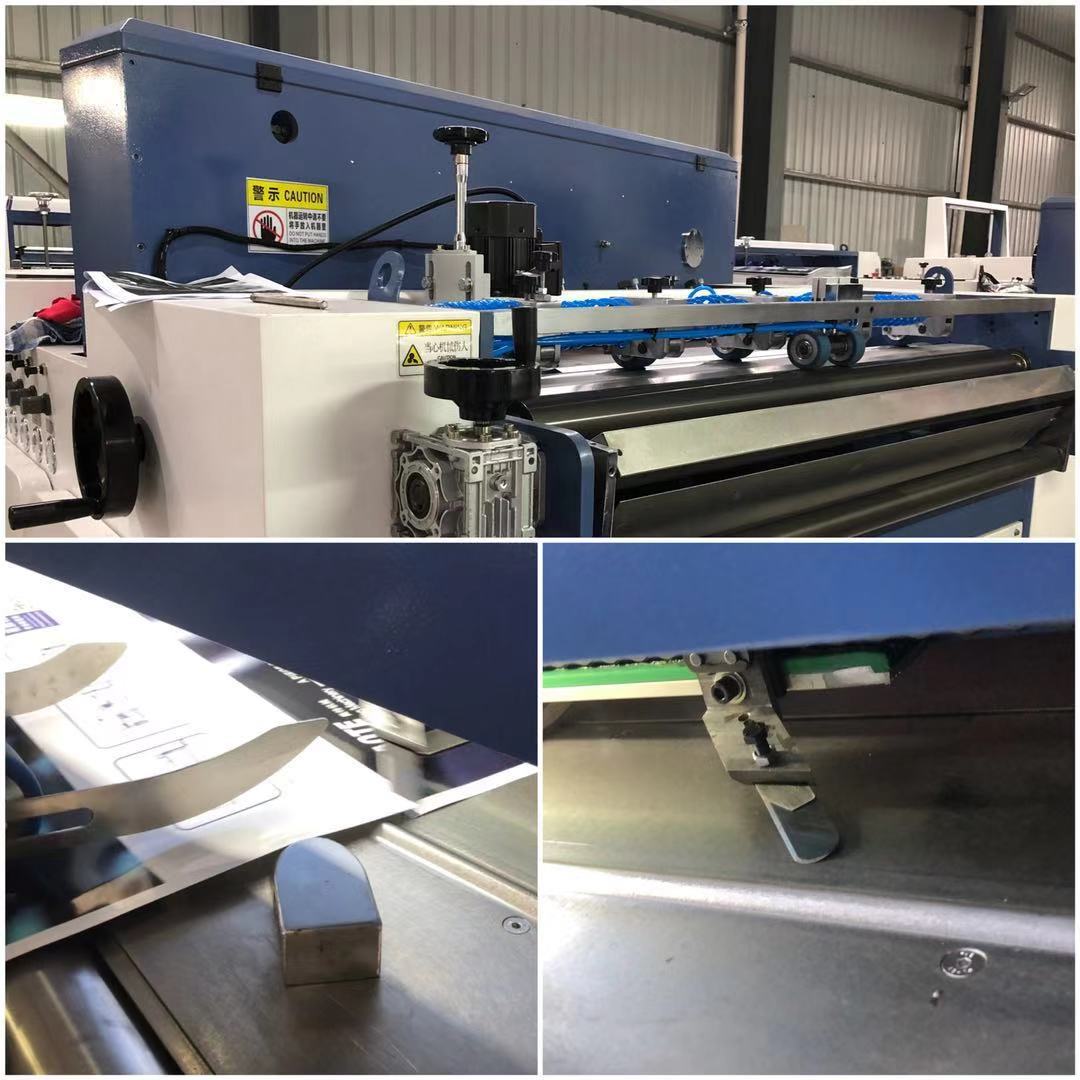

8.Slitting System
Adopt disc knife,coordinated with pneumatic pull and separating device,can slit BOPP and OPP film perfectly.(If you use PET or metalized film/foil,we have Chain knife slitting machine optional.)
9.Anti-Curvature System
Adopt corrugated delivery and anti-curvature system,especially designed for thin paper, avoid paper curvature.
10.Automatic Stacker
Equipped with IR sensor,automatically count the sheets.Three-direction high speed pneumatic stacker can collect the sheets automatically and flat without stopping.
