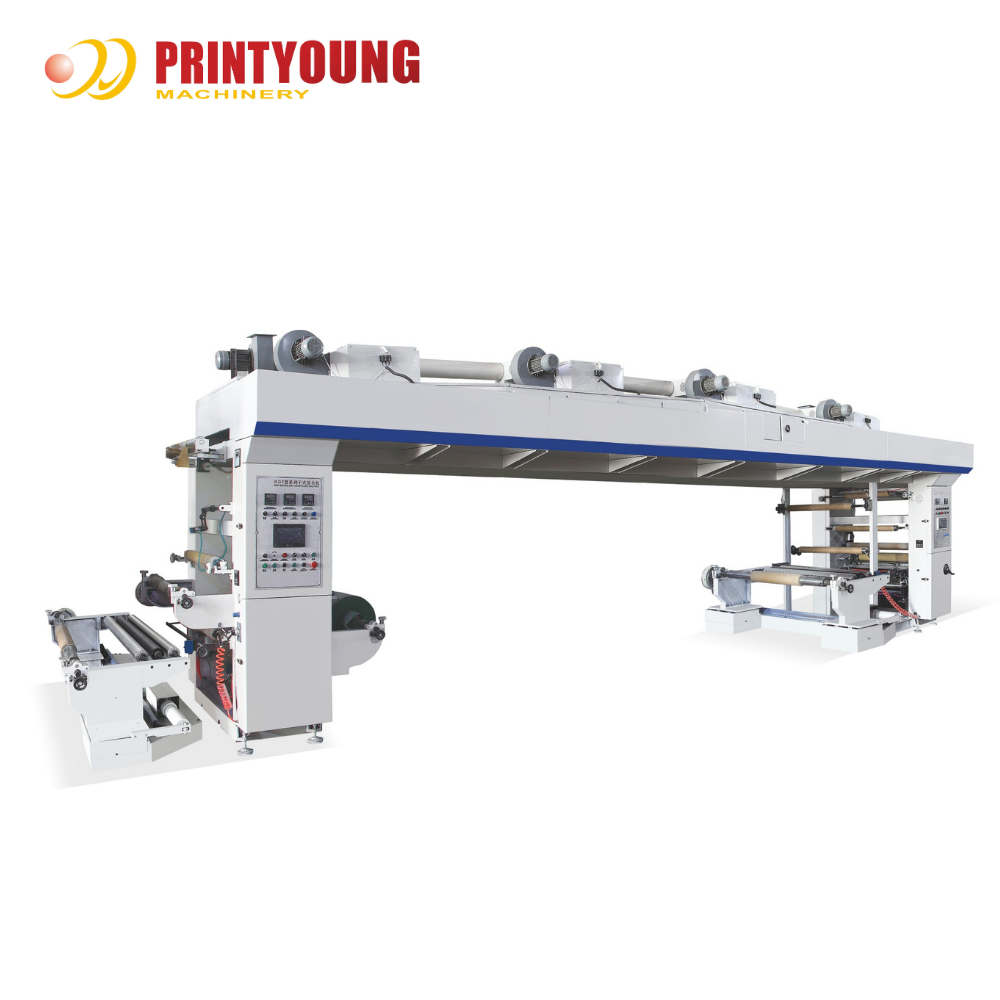

Name: PRY-1300 Automatic Electric Dry Method Film Laminating Machine with PLC Control 3 Motors High Productivity 180m/min
Brand: Shanghai Printyoung International Industry Co.,Ltd
SKU: PRY-1300
Price: 32000 USD
Availability: InStock

PRY-1300 Dry Method Laminating Machine

Features

The PRY-1300 energy-saving medium-speed dry composite machine integrates electrical, pneumatic and mechanical components.It adopts a three-motor vector control system,with the tension in the drying section being controlled by a floating roller swing arm tension closed-loop system.It is equipped with an industrial-grade PLC and a 7-inch color touch central control panel.The feeding is controlled manually by a magnetic powder brake with constant torque output.It features excellent rigidity and operational stability.The structure is exquisite and the appearance is beautiful.It is suitable for the composite of various film materials.It is your ideal choice.

Technical Parameters

Maximum Width of the Film Material	1300 mm
Width of the Guide Rollers	1350 mm
Coated Substrate and Composite Substrate	PET 12-60μm,BOPP 19-60μm,CPP 30-60μm, PE 30-100mm,etc. Roll-type Material Films
Maximum Mechanical Speed	180 m/min
Maximum Working Speed	20 ~ 160 m/min
Maximum Diameter of the First Feeding Roll	Φ 600 mm
Maximum Diameter of the Second Feeding Roll	Φ 600 mm
Maximum Diameter of the Receiving Roll	Φ 800 mm
Spindle for Receiving and Feeding Rolls	Air-expandable Spindle
Diameter of the Core of the Receiving and Feeding Rolls	Φ3", inner diameter Φ76mm outer diameter: Φ92mm
Tension Range	3 ~ 30 kg
Total Length of the Oven	9000mm (divided into 4 zones)
Maximum Temperature of the Oven	100 ℃
Drying Method	electric heating hot air drying
Power Supply	3-phase 380V, 50Hz
Electric Heating Power	90 kw
Total Power	approximately 110kw
Machine Dimensions	approximately 10500 * 3200 * 3200 mm
Machine Weight	approximately 6T

Configuration

First Unwinding Section

1.Independent single workstation unwinding frame.Photoelectric automatic deviation correction.
2.Horizontal manual adjustment range of the material roll:±20mm
3.First unwinding tension:100n.m magnetic brake
4.Second unwinding tension:100n.m magnetic brake
5.Third unwinding tension:150 N.m magnetic powder brake
6.Tension range:3-50kg

Gluing Unit

1.Gluing method is quantitative gluing by mesh roller.Driven by a separate motor.
2.Gluing mesh roller is a split roller with a roller shaft.Pneumatic top-pressing structure, easy to replace.
3.Heavy-duty scraper device is an air-pressure press clutch,horizontally driven.

The front, back,up and down positions and angle positions of the scraper can be manually adjusted.
4.Glue hopper is made of stainless steel,the upper and lower positions can be manually adjusted.
5.Mesh roller diameter:Ф160mm,Pressing rubber roller diameter:Ф120mm,Gluing unit uses variable frequency motor YVP132S-4 type,power:3kw

Oven Section

1.Oven 9 meters.Divided into 4 zones,fully enclosed double-body air-top oven.
2.Temperature of each oven zone is automatically controlled,temperature displayed by temperature control.
3.Each oven zone is equipped with a separate hot air drying system,each group of electric heaters (15kw),to save energy.
4.Opening of the upper box of the oven is controlled by an air cylinder and equipped with a safety support rod device.
5.Central exhaust air pipeline.
6.The entire oven is designed with negative pressure.
7.The oven has heat insulation and heat preservation measures.
8.The air volume of the inlet and outlet of the mesh roller in each oven zone can be adjusted.
9.The guide roller in the oven is the active roller and rotates at the same speed as the main machine.
10.There is an ultrasonic automatic deviation correction system after the oven.
11.Parameters:

W-shaped stainless steel electric heating tube power:1.2kw per root

DF9-1 type centrifugal blower power:2.2kw(matching motor Y90L-2 type,4 sets)

Oven maximum temperature:100℃

Number of blowing nozzles:32 (8×4)

Diameter of the guide roller in the oven:Ф70mm

Composite Section

1.Composite roller is the active roller,driven by 1 main motor,the surface linear speed of the composite roller is synchronized controlled with the linear speed of the gluing mesh roller.
2.Composite pressing roller is controlled by double pneumatic cylinders for its opening and closing.Pressure can be adjusted.
3.Composite roller is heated by conductive oil,the heat is transmitted to the surface of the composite roller through the conductive oil circulation,making the temperature of the composite roller surface uniform in the entire width direction,which is conducive to ensuring the quality of the composite product.
4.Composite heating drum and pressing roller mechanism:The heating is through the composite heating drum.The rubber layer material of the composite pressing roller is heat-resistant silicone rubber,hardness Shore A 80-85°.The maximum temperature of the composite roller surface is 80℃,the maximum pressure is 500kg.
5.Surface temperature of the composite roller (composite temperature) is automatically controlled by constant temperature.
6.Parameters:

Composite steel roller diameter:Ф320mm.

Pressing rubber roller diameter:Ф160mm.

The rubber layer material of the composite pressing roller is heat-resistant terpolymer rubber,hardness Shore A 80-85°

main motor is YVP132M-4 variable frequency motor,power:5.5kw.

Reeling Section

1.Receiving material single workstation.
2.Unwinding shaft driven by a separate frequency conversion motor.
3.Constant pressure air damping swing roller and rotating encoder tension detection system.
4.Material shaft uses Ф3″ expandable shaft.
5.Receiving tension closed-loop automatic control.
6.Material reel pressing roller device controlled by air cylinder.
7.Parameters:

Reeling servo motor.Power:7.5kw

horizontal manual adjustment range of the material reel:±20mm

tension range:3-30kg.

Tag:

Place of Origin:	China
Brand Name:	PRINTYOUNG
Certification:	CE
Model Number:	PRY-1300

Minimum Order Quantity:	1 Set
Price:	USD 32000 Set
Packaging Details:	Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.
Delivery Time:	60 work days
Payment Terms:	L/C, T/T
Supply Ability:	10 Sets per Month

Maximum Width Of The Film Material:	1300 Mm	Width Of The Guide Rollers:	1350 Mm
Maximum Mechanical Speed:	180 M/min	Maximum Working Speed:	20 ~ 160 M/min
Tension Range:	3 ~ 30 Kg	Total Length Of The Oven:	9000mm (divided Into 4 Zones)
Maximum Temperature Of The Oven:	100 ℃	Drying Method:	Electric Heating Hot Air Drying
Power Supply:	3-phase 380V,50Hz	Electric Heating Power:	90 Kw
