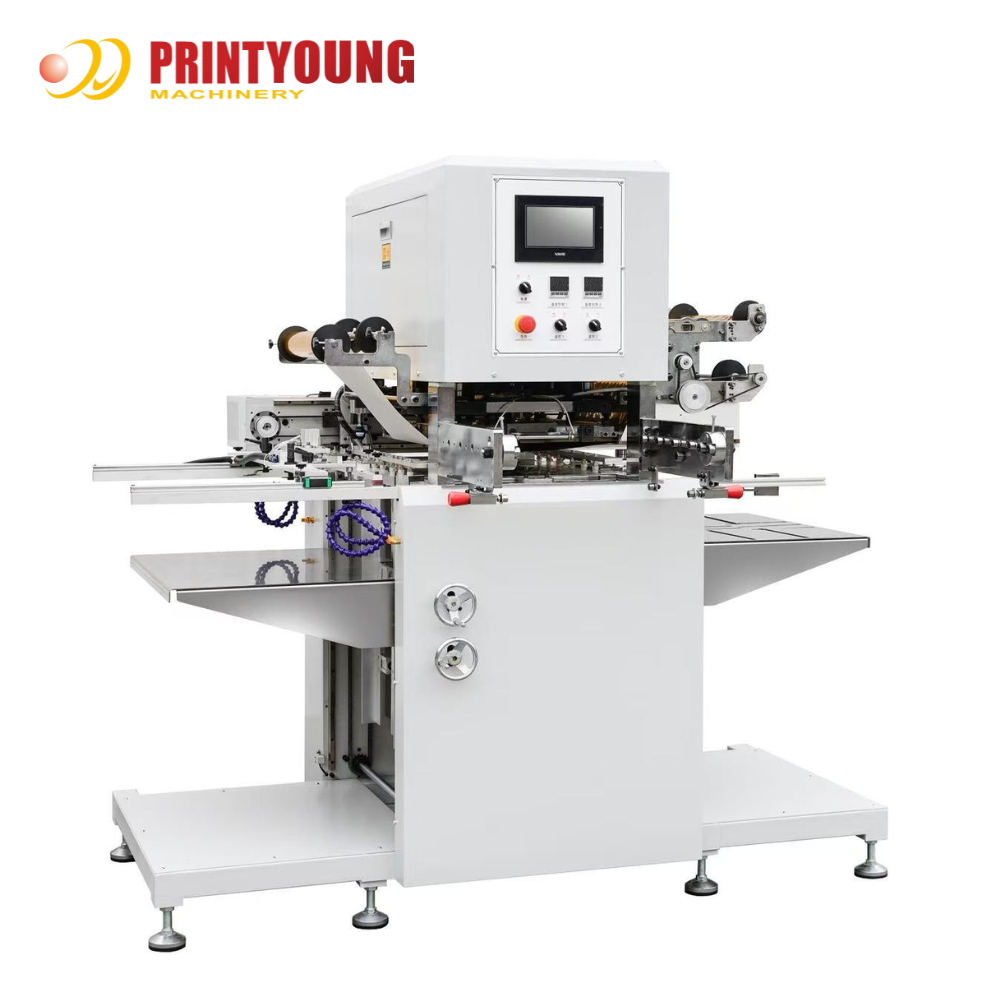

PRY-62 Servo Automatic Electric Heat Press Machine 220V New

PRY-62 Servo Automatic Electric Heat Press Machine 220V New
PRY-62 Servo Automatic Electric Heat Press Machine 220V New
Basic Information
Place of Origin: China
Brand Name: PRINTYOUNG
Certification: CE
Model Number: PRY-62
Minimum Order Quantity: 1 Set
Price: USD 11500 Set
Packaging Details: Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.
Delivery Time: 20 days
Payment Terms: L/C, T/T
Supply Ability: 30 Sets per Month
Contact Now
Max. Feeding Paper Size: 600 * 500 Mm Min. Feeding Paper Size: 200 * 150 Mm
Max. Foil Stamping Size: 500 * 400 Mm Foil Stamping Precision: ≤ ± 0.1 Mm
Max. Working Pressure: 20 T Max. Working Speed: 1800 S/h
Max. Feed Pile Height: 600 Mm Max. Foil Length: 240 M (length Wise)

PRY-62 Servo Automatic Electric Heat Press Machine 220V New 0
PRY-62 Hot Foil Stamping Machine
PRY-62 Servo Automatic Electric Heat Press Machine 220V New 1
Features
PRY-62 model features comprehensive hardware configurations adaptable to diverse foil stamping requirements.
(1) The entire machine utilizes Q235 carbon steel.The body wall panels undergo special processing for high strength,permanent dimensional stability,and structural safety. (2) Equipped with imported Taiwanese ball screws to ensure precise movement.The main servo includes overload protection,and the timing belt features fracture protection. Automatically halts upon external impact to minimize damage to the body/feeding accuracy and prevent malfunctions.
(3) Main unit employs imported genuine bearings.
(4) Critical components integrate imported electrical parts(e.g., Omron [Japan],Schneider [France]).
(5) Foil stamping accuracy:±0.1mm;Maximum speed:1,800 sheets/hour.
(6) Features printyoung’s automatic pressure adjustment system for swift and precise stamping pressure control.
(7) Chinese-English touchscreen control interface.
(8) Taiwan,Chinese Air TAC pneumatic components ensure accuracy in every pneumatic motion.
(9) Main PLC utilizes Printyoung Electric for stable machine smooth operation.
Technical Parameters
Max. Feeding Paper Size
600 * 500 mm
Min. Feeding Paper Size
200 * 150 mm
Max. Foil Stamping Size
500 * 400 mm
Paper Specifications
128 ~ 3000 g/m²(cardboard),3.0mm thick grey board
Foil Stamping Precision
≤ ± 0.1 mm
Max. Working Pressure
20 T
Max. Working Speed
1800 s/h
Max. Feed Pile Height
600 mm
Max. Foil Length
240 m (length wise)
Main Motor Power
3 kw
Overall Dimensions
1800 * 1550 * 1800 mm
Machine Weight
1000 kg
Full Load Power
7 kw
Configuration
Paper Feeding Section
1.Utilizes an advanced control system to regulate the paper feeding speed,ensuring smooth paper transportation.
2.The paper separation part is made of special aluminum alloy for smoother paper feeding.
3.Single-sheet feeding,ensuring stability and accuracy.
4.Servo micro-adjustment technology for the suction paper row,allowing adjustments without stopping the machine.
PRY-62 Servo Automatic Electric Heat Press Machine 220V New 2PRY-62 Servo Automatic Electric Heat Press Machine 220V New 3
Electrical Unit
1.The human-machine interactive touch interface allows configuration of different long and short pulls.
2.An alarm is triggered if the foil length is less than 6 cm.
3.The computer-controlled foil monitoring system displays the remaining and consumed foil length.
4.Equipped with Schneider electric components (France) and Printyoung PLC control system to ensure stable machine operation.
5.Uses photoelectric components from Japan's Omron and Germany's SICK.
PRY-62 Servo Automatic Electric Heat Press Machine 220V New 4PRY-62 Servo Automatic Electric Heat Press Machine 220V New 5PRY-62 Servo Automatic Electric Heat Press Machine 220V New 6

Hot Stamping Section

1.The hot stamping plate uses 7075 high-grade aviation aluminum alloy and surface undergoes hard anodizing treatment,ensuring lightweight operation while maintaining high surface hardness and resistance to deformation.
2.Longitudinal Foil Feeding System:Reduces foil consumption and saves foil replacement time.
3.Dual Longitudinal Foil Feeding Mechanism:Equipped with Hangzhou Zhishan servo motors (China) and Printyoung PLC control system for user-friendly operation.The mechanism is positioned behind the longitudinal foil feeding to ensure smooth and flat foil collection after stamping.
4.Independent Manual Control:The main unit can be operated manually when needed.
5.Parallel Pressure Adjustment Device:Features a flat upper platform for precise pressure regulation.
6.Vacuum negative pressure detection ensures machine operation ceases upon absence of paper.
7.L-Shaped Right-Angle Push Gauge:Accommodates different printing registration requirements for accurate alignment.
Paper Receiving Section
1.Automatic paper aligning device.
2.Photoelectric device ensures neat paper collection.
3.Automatic lifting and lowering control system for the paper receiving table
PRY-62 Servo Automatic Electric Heat Press Machine 220V New 7
Applications
PRY-62 Servo Automatic Electric Heat Press Machine 220V New 8
PRY-62 Servo Automatic Electric Heat Press Machine 220V New 9
PRY-62 Servo Automatic Electric Heat Press Machine 220V New 10
PRY-62 Servo Automatic Electric Heat Press Machine 220V New 11
PRY-62 Servo Automatic Electric Heat Press Machine 220V New 12
PRY-62 Servo Automatic Electric Heat Press Machine 220V New 13
PRY-62 Servo Automatic Electric Heat Press Machine 220V New 14
PRY-62 Servo Automatic Electric Heat Press Machine 220V New 15
