YW-1080,1100 Automatic Feeding Paper Embossing Machine

YW-1080,1100 Automatic Feeding Paper Embossing Machine
YW-1080,1100 Automatic Feeding Paper Embossing Machine YW-1080,1100 Automatic Feeding Paper Embossing Machine YW-1080,1100 Automatic Feeding Paper Embossing Machine YW-1080,1100 Automatic Feeding Paper Embossing Machine YW-1080,1100 Automatic Feeding Paper Embossing Machine
Basic Information
Place of Origin: China
Brand Name: PRINTYOUNG
Certification: CE
Model Number: YW-1080 , YW-1100
Minimum Order Quantity: 1 Set
Price: USD 3000 ~ 33000 Set
Packaging Details: Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.
Delivery Time: 30 days
Payment Terms: L/C, T/T
Supply Ability: 30 Sets per Month
Contact Now
Model: YW-1080 , YW-1100 Max. Paper Size: 1080 * 800 Mm , 1080 * 1100 Mm
Min. Paper Size: 280 * 280 Mm Paper Thickness: 150 ~ 800 G/m²
Feeding Height Of Paper: 920 Mm Delivery Height Of Paper: 920 Mm
Max. Speed: 1000 ~ 6000 S/h Temperature Range: 20 ~ 120 °C
Total Power: 9.5 Kw Machine Weight: 3500 Kg
Machine Dimension: 6300 * 1800 * 1800 Mm , 6800 * 1800 * 1800 Mm Max. Working Pressure: 50 T

YW-1080,1100 Automatic Feeding Paper Embossing Machine 0

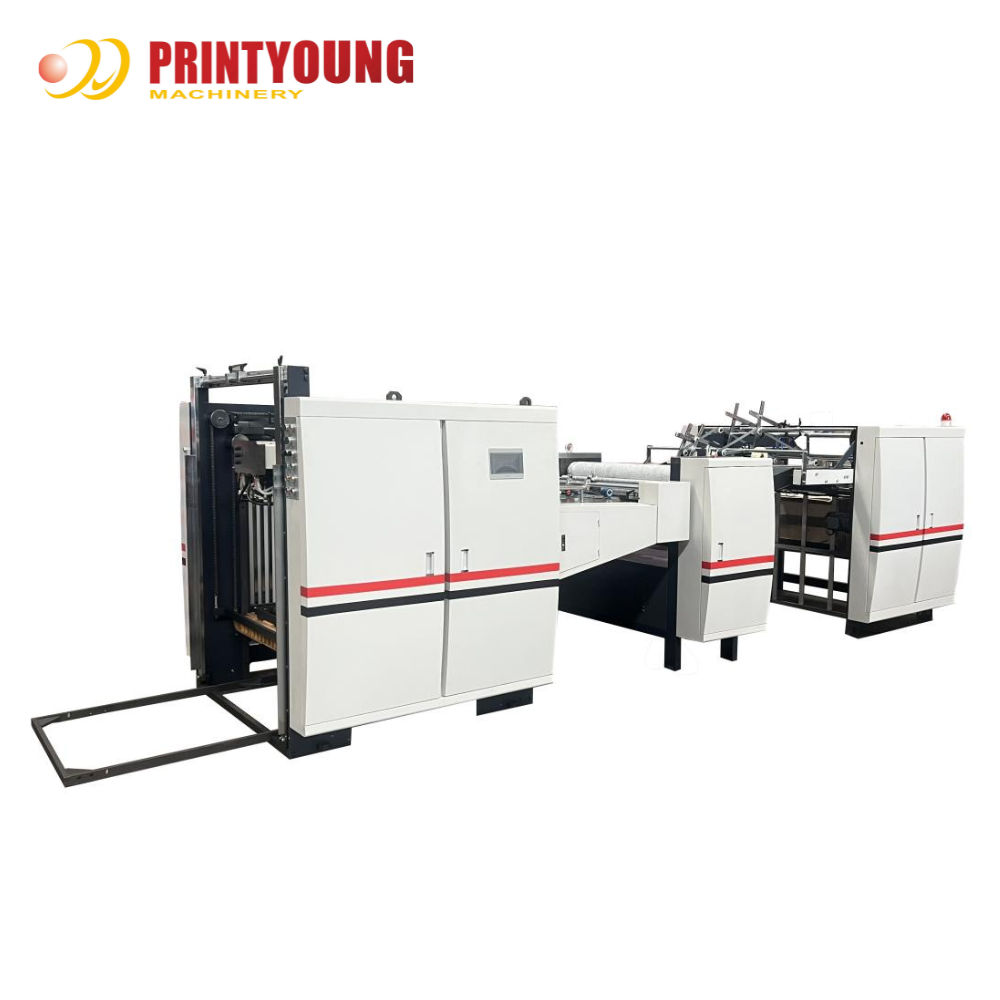

YW-1080 Automatic Feeding Paper Embossing Machine
YW-1080,1100 Automatic Feeding Paper Embossing Machine 1
Features
YW-1080 automatic embossing machine with a speed of 6000 sheets/hour.The vacuum pump drives Feida and paper feeding.There is a double sheet control in front of the paper feeding.When the paper is fed with two or more sheets,it will stop automatically.
The embossing part is composed of wool roller and embossing roller.The diameter of wool roller is 350mm and the diameter of embossing roller is 175mm.The paper is pressed out of the grain pattern between wool roller and embossing roller.
Its main working performance is as follows:fine smooth lines can be carved on the upper surface of the pattern roller of the machine,and the smooth lines on the surface can be directly printed and pressed on special paper such as paper,gold and silver card,aluminum foil paper and coated paper through embossing.
Our automatic embossing machine is driven by frequency converter.The whole machine is controlled by PLC.There is a pressure of 50 tons between the two rollers of the machine.
Characteristic:
1.With international leading technology.
2.Stable overall performance,energy saving and consumption,green environmental protection.
3.It has the characteristics of low cost and anti-counterfeiting.
Product Advantage
Difference from traditional embossing machine.
Embossing machine is an ink-free and environment-friendly packaging equipment.It can form refraction lines,frosted lines,ice flowers,laser lines,three-dimensional animation and other effects on paper,gold and silver card,aluminum foil paper,coated paper and other packaging products.It is a good helper in today's packaging and printing industry.
However,the embossing machine uses the optical refraction principle to transfer the required patterns and patterns to paper,gold and silver card,aluminum foil paper and coated paper to form a strong refraction effect,which can make the printed products luxurious,eye-catching,exquisite and far more noble than ordinary printing and packaging.It also has the characteristics of low cost and anti-counterfeiting.The new technology and new products can be widely used in the printing of cigarette boxes,wine boxes,medicine boxes,cosmetic boxes,tea boxes,wall calendars,greeting cards and other packaging boxes.
Contrast with the same type of products
1.Feida is directly driven by servo motor -- (traditional transmission shaft configuration)
2.Fast speed:6000pcs/h (the highest speed of the same type at home and abroad)
3.The embossing force is greater.(the roller is thickened on the original basis to avoid paper bending and more force during paper output.The wall plate structure and thickness are greatly improved.It is a solid structure,which has more use guarantee and safety compared with the structure of other products of the same type)
4.It has double sheet and multi sheet control.(the use of the equipment is safer and more stable,while reducing paper loss)
5.The machine is equipped with ready paper loading,which saves time and improves output
6.Adopt the most high-end electrical equipment.Performance and safety are better guaranteed,walking on the high-quality route.
7.Processing technology:after forging,put it into the baking house for simmering processing.Prevent casting deformation and make the material stronger.
Technical Parameters
Automatic Feeding Paper Embossing Machine
Model
YW-1080
 YW-1100
Max. Paper Size
1080 * 800 mm
 1080 * 1100 mm
Min. Paper Size
280 * 280 mm
Paper Thickness
150 ~ 800 g/m²
Feeding Height of Paper
920 mm
Delivery Height of Paper
920 mm
Max. Speed
6000 s/h
Temperature Range
20 ~ 120 °C
Total Power
9.5 kw
Machine Weight
3500 kg
 3700 kg
Machine Dimension
6300 * 1800 * 1800 mm
 6800 * 1800 * 1800 mm
Max. Working Pressure
50 t
Configuration
YW-1080,1100 Automatic Feeding Paper Embossing Machine 2YW-1080,1100 Automatic Feeding Paper Embossing Machine 3YW-1080,1100 Automatic Feeding Paper Embossing Machine 4

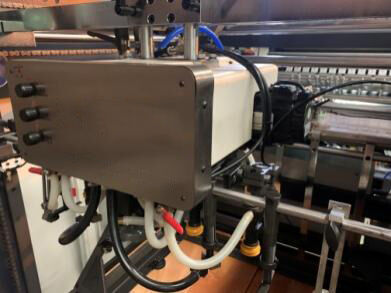

Feeding Section & Feeder

High speed Feida is directly driven by servo motor (traditional transmission shaft configuration),and some parts are imported and assembled in China;

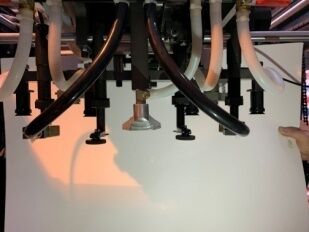

It has a four suction and two feeding structure with strong paper suction.The suction head can adjust various paper suction angles according to the deformation of the paper,which can better ensure the smooth paper feeding from thin paper to large gram paper jam;
Equipped with Feida head quick adjustment device;
Equipped with 3-channel Feida head anti-collision device to protect Feida head.
Transportation
The paper feeding part is driven by synchronous belt;
The paper feeding accessories are changed to general type,and the paper feeding is relatively stable;
Using servo motor to directly drive Feida,the structure is more stable;
In order to cope with various complex and changeable box shapes of modern packaging,the ultra-small format paper feeding device can easily make up,set the most economical production paper format and greatly enhance the competitiveness.

Embossing Section

The wool roller is made of high-grade wool paper and high-strength hydraulic pressure.The pattern roller is processed by special No. 45 steel and then carved.
Resin sand cast iron is selected for the main engine wall panel and base to ensure the long-term reliable and stable operation of the whole machine.
The driving chain adopts special reinforced chain to improve the accuracy and stability of the machine and prolong the service life.

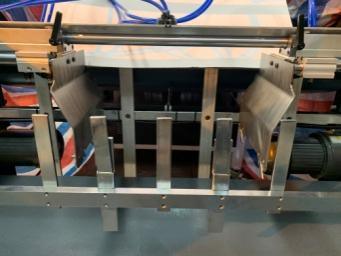

Delivery Section

The paper is fed into the receiving table by the conveyor belt and automatically drops to the bottom.Two way pneumatic automatic and neat paper receiving,convenient operation and labor saving.
YW-1080,1100 Automatic Feeding Paper Embossing Machine 5YW-1080,1100 Automatic Feeding Paper Embossing Machine 6

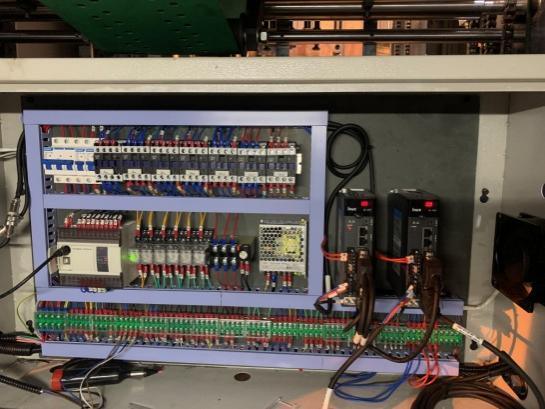

Electric Control System

The advanced national safety standards in Europe and America are adopted for electrical components and electrical circuits.
The electrical cabinet adopts air cooling device to effectively ensure the normal operation of electrical control under high temperature conditions.
The interface controls are integrated,and a large number of electrical switch controls are involved in the operation interface,which is simple and easy to operate.PLC controls the operation and fault monitoring system of the whole machine.
Applications
It is suitable for high-grade wine boxes,cosmetics boxes,drug packaging boxes,food packaging boxes,cigarette boxes,calendar boxes,advertising pictures and other products.
It can form refraction patterns,frosted patterns,ice patterns and concave convex patterns.
It is the most advanced and practical post press processing equipment in the world.
YW-1080,1100 Automatic Feeding Paper Embossing Machine 7
YW-1080,1100 Automatic Feeding Paper Embossing Machine 8
YW-1080,1100 Automatic Feeding Paper Embossing Machine 9
YW-1080,1100 Automatic Feeding Paper Embossing Machine 10
YW-1080,1100 Automatic Feeding Paper Embossing Machine 11
YW-1080,1100 Automatic Feeding Paper Embossing Machine 12
YW-1080,1100 Automatic Feeding Paper Embossing Machine 13
YW-1080,1100 Automatic Feeding Paper Embossing Machine 14YW-1080,1100 Automatic Feeding Paper Embossing Machine 15
