PRY-420 High Productivity Computerized PLC Schneider Automatic Paper Punching Machine 420mm

PRY-420 High Productivity Computerized PLC Schneider Automatic Paper Punching Machine 420mm
PRY-420 High Productivity Computerized PLC Schneider Automatic Paper Punching Machine 420mm PRY-420 High Productivity Computerized PLC Schneider Automatic Paper Punching Machine 420mm PRY-420 High Productivity Computerized PLC Schneider Automatic Paper Punching Machine 420mm
Basic Information
Place of Origin: China
Brand Name: PRINTYOUNG
Certification: CE
Model Number: PRY-420
Minimum Order Quantity: 1 Set
Price: USD 11500 Set
Delivery Time: 30 work days
Payment Terms: L/C, T/T
Supply Ability: 30 Sets per Month
Contact Now
Max. Punching Size For Cover: 285 * 285 Mm Min. Punching Size For Cover: 148 * 120 Mm
Max. Punching Range Of Inner-sheet,PP Plate: 420 * 420 Mm Min. Punching Range Of Inner-sheet,PP Plate: 120 * 120 Mm
Max. Punching Thickness: 2 Mm Max. Paper Stack Height: 500 Mm
Max. Working Speed (Inner Sheet): 4800 ~ 7200 Times/hour Max. Working Speed (Cover): 1800 ~ 6000 Time/hour
Paper Specification: 50 ~ 250 G/m² Paper Collecting Type: Lift Or Belt (optional)
Power: AC 380V / 3PH / 50Hz / 3kw Machine Size: 2200 * 1000 * 1300 Mm
Machine Weight: 800 Kg Air Compressor(Provide By User): 0.37 Kw
Compressed Air: 4 ~ 6 Bar Vacuum Pump: 0.75 Kw

PRY-420 High Productivity Computerized PLC Schneider Automatic Paper Punching Machine 420mm 0

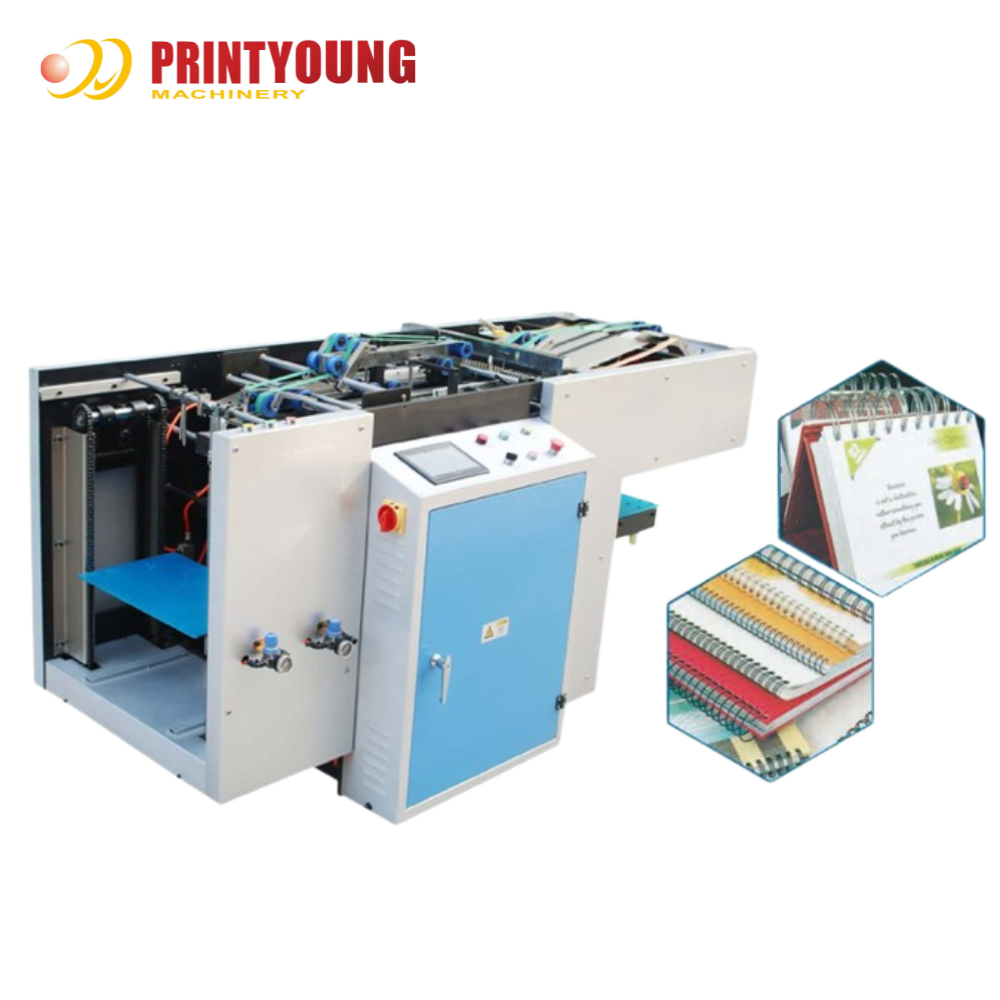

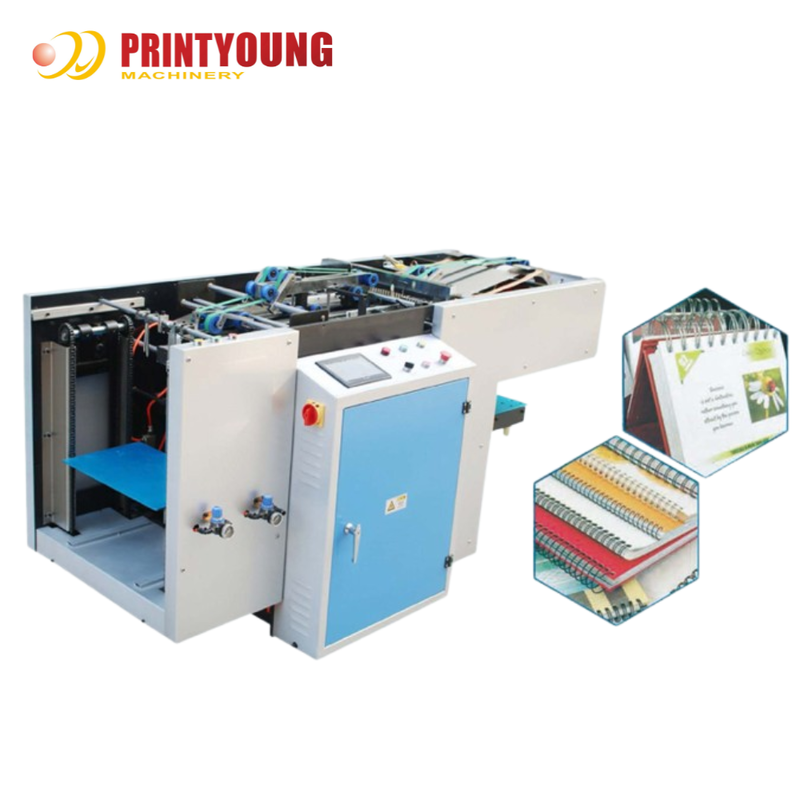

PRY-420 Automatic Punching Machine
PRY-420 High Productivity Computerized PLC Schneider Automatic Paper Punching Machine 420mm 1
Features
This machine adopts the stepping-motor and can change the thickness.The paper would be send into the punching-mold through the conveyor,after adjusting the paper to align by modulating the three sides of paper at the same time then punching.After punching the paper would be auto-sent to the container in order.The size of paper and margin could be adjusted.By changing the different mold we can punch the different size of hole.
PRY-420 High Productivity Computerized PLC Schneider Automatic Paper Punching Machine 420mm 2
Technical Parameters
Max. Punching Size for Cover
285 * 285 mm
Min. Punching Size for Cover
148 * 120 mm
Max. Punching Range of Inner-sheet,PP Plate
420 * 420 mm
Min. Punching Range of Inner-sheet,PP Plate
120 * 120 mm
Max. Punching Thickness
2 mm
Max. Paper Stack Height
500 mm
Max. Working Speed (Inner Sheet)
4800 ~ 7200 times/hour
Max. Working Speed (Cover)
1800 ~ 6000 time/hour
Paper Specification
50 ~ 250 g/m²
Paper Collecting Type
lift or belt (optional)
Power
AC 380V / 3PH / 50Hz / 3kw
Machine Size
2200 * 1000 * 1300 mm
Machine Weight
800 kg
Air Compressor(Provide by User)
0.37 kw
Compressed Air
4 ~ 6 bar
Vacuum Pump
0.75 kw
Applications
PRY-420 auto-punching machine is the exclusive equipment the paper’s punch,mostly used in the calendar,notebook,exercise book,gray cardboard and PP board etc. it can’t be used to punch the steel and other things.
PRY-420 High Productivity Computerized PLC Schneider Automatic Paper Punching Machine 420mm 3
PRY-420 High Productivity Computerized PLC Schneider Automatic Paper Punching Machine 420mm 4
PRY-420 High Productivity Computerized PLC Schneider Automatic Paper Punching Machine 420mm 5
PRY-420 High Productivity Computerized PLC Schneider Automatic Paper Punching Machine 420mm 6
PRY-420 High Productivity Computerized PLC Schneider Automatic Paper Punching Machine 420mm 7
PRY-420 High Productivity Computerized PLC Schneider Automatic Paper Punching Machine 420mm 8
PRY-420 High Productivity Computerized PLC Schneider Automatic Paper Punching Machine 420mm 9
