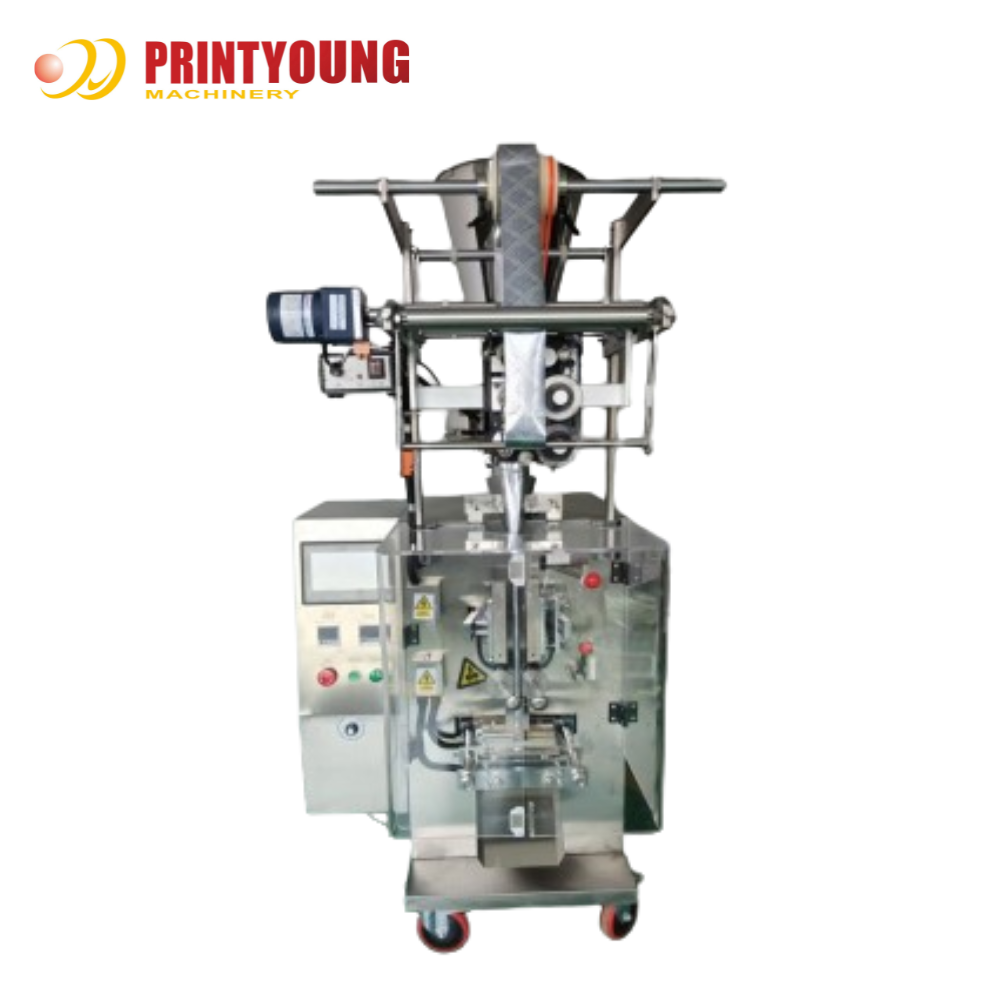

PRY-300A Zigzag Cutting Center Sealing Automatic Granule Packing Machine

PRY-300A Zigzag Cutting Center Sealing Automatic Granule Packing Machine
PRY-300A Zigzag Cutting Center Sealing Automatic Granule Packing Machine
Basic Information
Place of Origin: China
Brand Name: PRINTYOUNG
Certification: CE
Model Number: PRY-300A
Minimum Order Quantity: 1 Set
Price: USD 5500 Set
Packaging Details: Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.
Delivery Time: 20 days
Payment Terms: L/C, T/T
Supply Ability: 30 Sets per Month
Contact Now
Hopper Volume: About 19 Liter Max. Film Width: 300 Mm
Sealing Type: Center Sealing Cutting Type: Zigzag Cutter
Speed: 40 ~ 60 Bags/min Package Width: 10 ~ 140 Mm
Package Length: 30 ~ 170 Mm Total Power: 2000 W

PRY-300A Zigzag Cutting Center Sealing Automatic Granule Packing Machine 0
PRY-300A Granule Packing Machine
PRY-300A Zigzag Cutting Center Sealing Automatic Granule Packing Machine 1PRY-300A Zigzag Cutting Center Sealing Automatic Granule Packing Machine 2
Features
1.PLC and touch screen control,China Xinje brand,easy to operate;
2.All the parts in contact with materials are food grade SUS304 material.It can be upgraded to SS316 material according to customer requirements;And the frame and electric box are made of 304 stainless steel;
3.Bag-making,measuring,filling,sealing,cutting and counting are all finished automatically;
4.Either under set length control or photo-electronic color tracing,we set bag length and cut it in one step.Time and film saving;
5.Alarm function:Abnormal cursor detection,abnormal bag pulling signal,abnormal paper feeding signal.
Technical Parameters
Model
PRY-300A
Hopper Volume
about 19 liter
Max. Film Width
300 mm
Control
by PLC touch screen (China Xinje brand)
Sealing Type
center sealing
Measurement
cup type : 1 ~ 80 ml (through change cup sets)
Cutting Type
zigzag cutter
Sealer
horizontal sealer : line or diamond pattern   vertical sealer : line or diamond pattern
Speed
40 ~ 60 bags/min
Package Size
W : 10 ~ 140 mm (through replace bag former)   L : 30 ~ 170 mm (adjustable)
Total Power
2000 W
Voltage
220V 50/60Hz 1P
Weight
250 kg
Machine Size
930 * 730 * 1820 mm
Includes
one photo sensor
one bag former
one volumetric cup set
one date coding ribbon printer
Roll Film Material
max. diameter of film roll D : ≤ 300 mm     inner diameter of film roll:76 mm
film thickness : 70 ~ 90 um (suggestion)     photo sensor mark size : 5 * 8 mm (suggestion)
film material : must be composite film,2 layers orthree layers,such as PET/PE,Paper/PE,PET/AL/PE,OPP/PE

 Machine Material
touch material : SS304     machine cabinet : SS304
roll film holder : SS304     all the exposed screws : SS304
heating sealer:iron plated with chrome (faster thermal conductivity)
pulling film wheels : iron plated with chrome (high hardness)
cutter : carbon steel (high hardness)
Configuration
PLC and Touch Screen Control
China Xinje brand;Easy to operate;Chinese and English Language,all the functions can be achieved on the screen.We can add another language according to customer’s
need.It can be upgrade to Siemens or Omron brand.
PRY-300A Zigzag Cutting Center Sealing Automatic Granule Packing Machine 3PRY-300A Zigzag Cutting Center Sealing Automatic Granule Packing Machine 4
Measurement Method-Cup Set for Granule Products
Cup Material:food grade SS304.One set includes 6 pieces;It is volume way not weight.We make cup sets according to different material’s density and requested weight.One machine isequipped with one set cups.Cup Volume:can be fine adjusted;Max. Cup Volume:80ml.
Date Coding Ribbon Printer
It is heating code printer with three lanes.Each lane can put 13 codes(each code W2mm H3mm). And it is very easy to changecodes(0-9, A-Z).
Printer Ribbon:30mm x 100m;If the ribbon runs out or breaks, the machine will alarm and stop running.
PRY-300A Zigzag Cutting Center Sealing Automatic Granule Packing Machine 5PRY-300A Zigzag Cutting Center Sealing Automatic Granule Packing Machine 6
Photo Sensor
If your roll film has color code,you need to use photo sensor to read it.Please press mark cutting on the touch screen,and choose the dark color or light color according to your color code.For this photo sensor,the lens can be converted 90°,and two-color light source can be switched at any time.
Bag Former/Forming Tube/ Funnel
Material:304 stainless steel,bag width changes through it.One machine is equipped with one piece.Bag length can be adjusted
PRY-300A Zigzag Cutting Center Sealing Automatic Granule Packing Machine 7PRY-300A Zigzag Cutting Center Sealing Automatic Granule Packing Machine 8
Electric Control Box
The electrical control box is neatly arranged,and each wire has its own number,which is easy to check and repair circuit faults and improve work efficiency.
Tool Box(includes free part,free tools and doc) as below
PRY-300A Zigzag Cutting Center Sealing Automatic Granule Packing Machine 9
Applications
This series installed with cup filler is suitable for packing granule products,such as seasoning,monosodium glutamate,sugar,salt,tea,desiccating agents,seeds and beans etc.
PRY-300A Zigzag Cutting Center Sealing Automatic Granule Packing Machine 10
PRY-300A Zigzag Cutting Center Sealing Automatic Granule Packing Machine 11
PRY-300A Zigzag Cutting Center Sealing Automatic Granule Packing Machine 12
PRY-300A Zigzag Cutting Center Sealing Automatic Granule Packing Machine 13
PRY-300A Zigzag Cutting Center Sealing Automatic Granule Packing Machine 14
PRY-300A Zigzag Cutting Center Sealing Automatic Granule Packing Machine 15
PRY-300A Zigzag Cutting Center Sealing Automatic Granule Packing Machine 16
