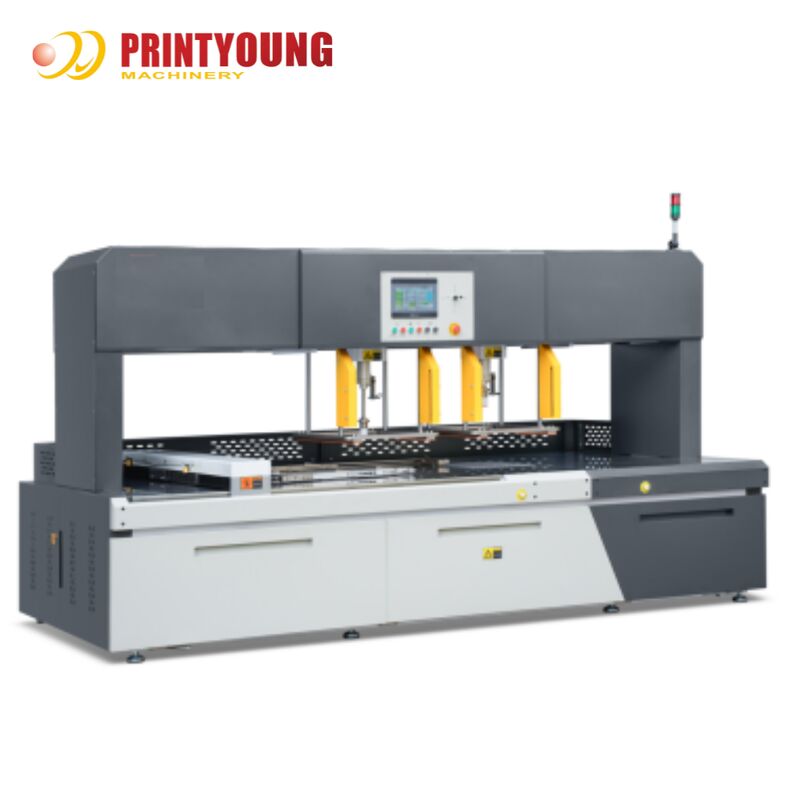

PRY-1080B Automatic Paper Waste Stripping Machines with Double Heads

PRY-1080B Automatic Paper Waste Stripping Machines with Double Heads
PRY-1080B Automatic Paper Waste Stripping Machines with Double Heads
Basic Information
Place of Origin: China
Brand Name: PRINTYOUNG
Certification: CE
Model Number: PRY-1080B
Minimum Order Quantity: 1 Set
Price: USD 18500 Set
Packaging Details: Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.
Delivery Time: 30 days
Payment Terms: L/C, T/T
Supply Ability: 30 Sets per Month
Contact Now
Machine Floor Area: 3800 * 1850 * 1950 Mm Max. Sheet Size: 1080 * 780 Mm
Min. Sheet Size: 650 * 450 Mm Max. Pile Height: 100 Mm
Min. Pile Height: 40 Mm Max. Blanking Size: 500 * 750 Mm
Min. Blanking Size: 30 * 30 Mm Max. Speed: 20 Cycles/minute
Pressure: 70 Bar Total Power: 5kw 380V

PRY-1080B Automatic Paper Waste Stripping Machines with Double Heads 0
PRY-1080B Paper Stripping Machine with Double Heads
PRY-1080B Automatic Paper Waste Stripping Machines with Double Heads 1
Features
* Fully Automatic.
* Dual-head blanking system for running sheets with nested blanks.
* Heavy-Duty,quality-built gantry structure main frame.
* Frame style support base for precision blanking to ensure damage free loads.
* Operator friendly touch screen for quick and simple programing.
* Equipped with high-precision linear bearing rails and servo motors for smooth and precise movement.
* Big-size working area easy for doing jobs of big-size blanking,which can be customized according to customers’ demand.
* Automatic lubrication system with timely maintenance extends the service life of the machine.
* Hydraulic system with inserted motor and oil temperature cooling fan ensures constant and big working pressure.
* The complete machine is equipped with PLC,and with a touch screen interface in operation.
Technical Parameters
Model
PRY-1080B (double work unit)
Machine Floor Area
3800 * 1850 * 1950 mm
Max. Sheet Size
1080 * 780 mm
Min. Sheet Size
650 * 450 mm
Max. Pile Height
100 mm
Min. Pile Height
40 mm
Max. Blanking Size
500 * 750 mm
Min. Blanking Size
30 * 30 mm
Max. Speed
20 cycles/minute
Pressure
70 bar
Total Power
5kw 380V
Net Weight
3300 kgs
Gross Weight
3500 kgs
PRY-1080B Automatic Paper Waste Stripping Machines with Double Heads 2
PRY-1080B Automatic Paper Waste Stripping Machines with Double Heads 3
PRY-1080B Automatic Paper Waste Stripping Machines with Double Heads 4
PRY-1080B Automatic Paper Waste Stripping Machines with Double Heads 5
PRY-1080B Automatic Paper Waste Stripping Machines with Double Heads 6
PRY-1080B Automatic Paper Waste Stripping Machines with Double Heads 7
PRY-1080B Automatic Paper Waste Stripping Machines with Double Heads 8
