Home ProductsPaper Processing MachineryPRY-950 Manual Cardboard Slotting and Grooving Machine

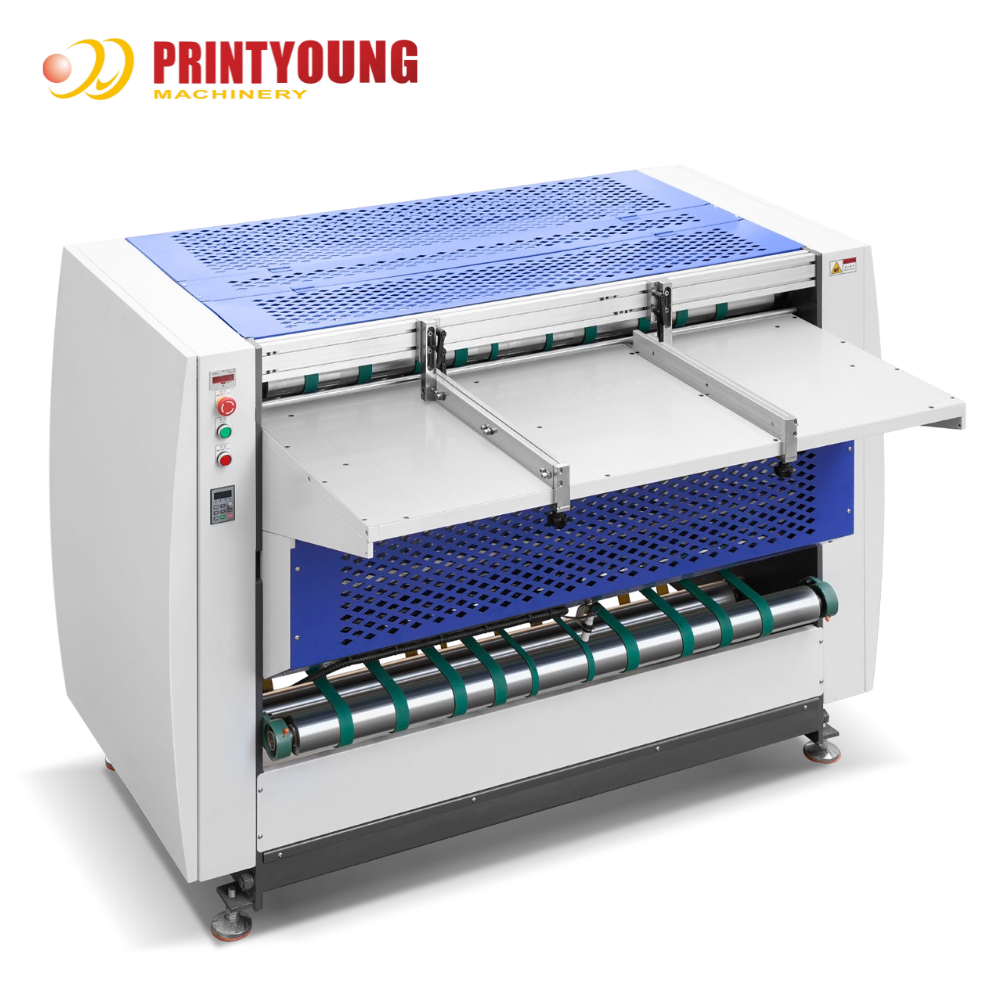

PRY-950 Manual Cardboard Slotting and Grooving Machine

PRY-950 Manual Cardboard Slotting and Grooving Machine
PRY-950 Manual Cardboard Slotting and Grooving Machine
Basic Information
Place of Origin: China
Brand Name: PRINTYOUNG
Certification: CE
Model Number: PRY-950
Minimum Order Quantity: 1 Set
Price: USD 3800 Set
Packaging Details: Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.
Delivery Time: 20 work days
Payment Terms: L/C, T/T
Supply Ability: 30 Sets per Month
Contact Now
Width Of Cardboard: 100 ~ 950 Mm Length Of Cardboard: 100 ~ 950 Mm
Distance Of Each Groove: 0 ~ 830 Mm Thickness Of Cardboard: 300gsm , 3.6mm
Grooving Degree: 80° ~ 140° (adjustable) The Amount Of Groove: 9 Pieces One Time
Production Speed: 10 ~ 35 M/min Power: 2.2kw / 380V
Dimension: 1500 * 1300 * 1300 Mm Weight: 1000 Kg

PRY-950 Manual Cardboard Slotting and Grooving Machine 0
PRY-950 Manual Slotting and Grooving Machine

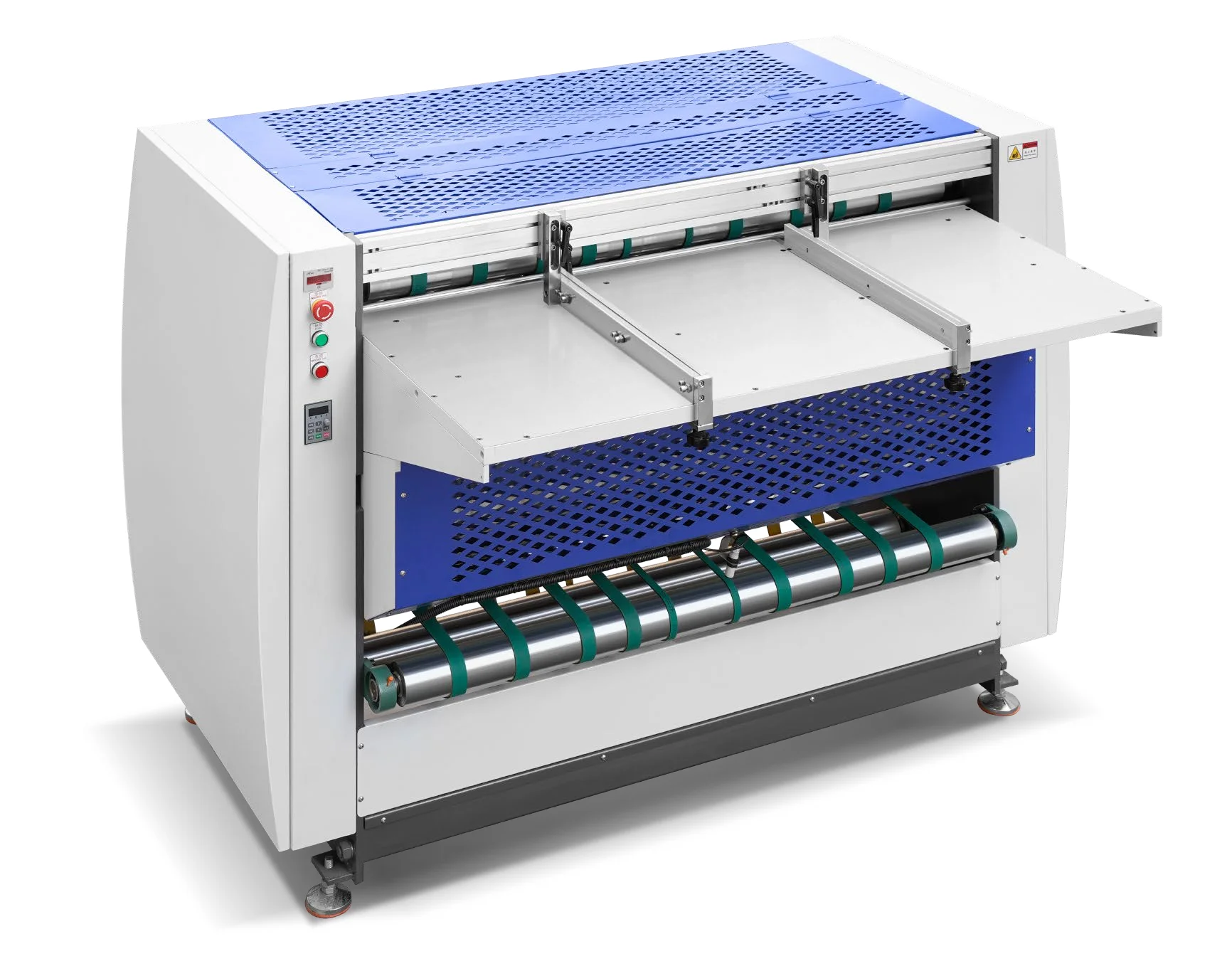

PRY-950 Manual Cardboard Slotting and Grooving Machine 1
Features
The machine is special designed for notching V type groove,use for industry-cardboard, ash-cardboard,MDF board and other several of cardboard,to make it suitable for box or other packaging making.Suitable for high quality package,gift box,jewelry boxes,watch packaging,mobile phone boxes,wine boxes,storage box,shirt and shoes boxes, make-up,toiletry boxes,biscuits and cakes boxes,note book cover,book shape boxes,hardcover,file folders,display,game boards,display stands,posters and calendars,etc.
1. Each cutting blade could move left and right by itself.
2. Double sides position plate are adjustable. The can ensure the precision.
3. The belt press wheel could adjust the pressure of belt.
4. The counter is used for record the number of production.
5. The wheel is use for adjust grooving degree from 80-140.
6. Scrap remove equipment.
7. Special use knife grinder,usually grind one piece of cutting blade need 2 minutes only.
8. Cutting blade and holder.
Technical Parameters
Model
PRY-950
Width of Cardboard
100 ~ 950 mm
Length of Cardboard
100 ~ 950 mm
Distance of Each Groove
0 ~ 830 mm
Thickness of Cardboard
300gsm , 3.6mm
Grooving Degree
80° ~ 140° (adjustable)
The Amount of Groove
9 pieces one time
Production Speed
10 ~ 35 m/min
Power
2.2kw / 380V
Dimension
1500 * 1300 * 1300mm
Weight
1000 kg
PRY-950 Manual Cardboard Slotting and Grooving Machine 2
PRY-950 Manual Cardboard Slotting and Grooving Machine 3
PRY-950 Manual Cardboard Slotting and Grooving Machine 4
PRY-950 Manual Cardboard Slotting and Grooving Machine 5
PRY-950 Manual Cardboard Slotting and Grooving Machine 6
PRY-950 Manual Cardboard Slotting and Grooving Machine 7
PRY-950 Manual Cardboard Slotting and Grooving Machine 8
