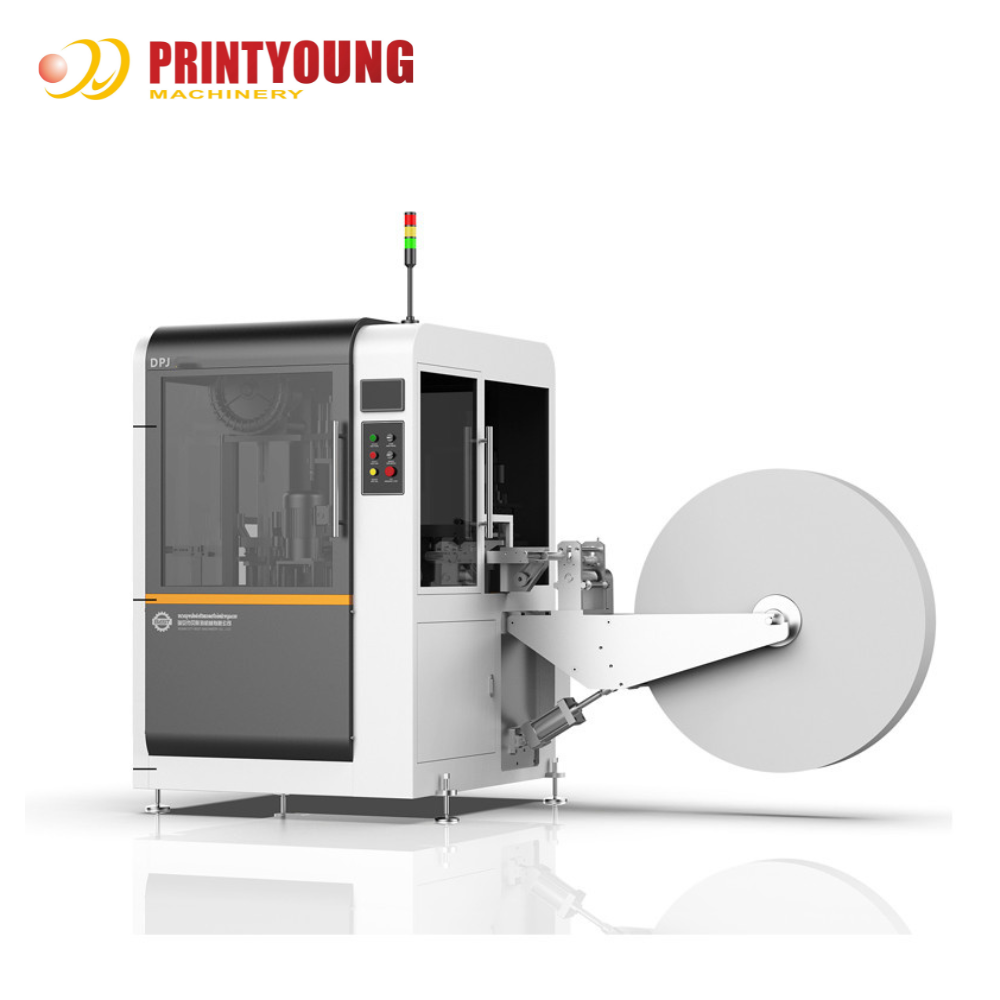

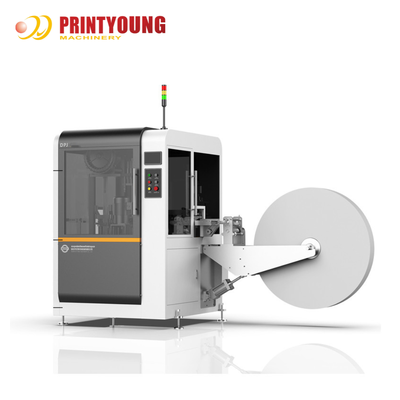

DPJ-200 Single Cup Paper Lid Forming Machine

DPJ-200 Single Cup Paper Lid Forming Machine
DPJ-200 Single Cup Paper Lid Forming Machine
Basic Information
Place of Origin: China
Brand Name: PRINTYOUNG
Certification: CE
Model Number: DPJ-200
Minimum Order Quantity: 1 Set
Price: USD 36000 Sets
Packaging Details: Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.
Delivery Time: 50 work days
Payment Terms: L/C, T/T
Supply Ability: 30 Sets per Month
Contact Now
Lid Height: 8 ~ 15 Mm Paper Cover Diameter: 150 ~ 200 Mm
Raw Material: PE Coated Paper Suitable Paper Weight: 250 ~ 350 Gsm
Max. Rated Productivity: 50 ~ 60 Pcs/min Power: 10 Kw
Power Source: 220V / 380V , 50Hz , 3PH Machine Weight: 3200 Kgs
Working Air Source: 0.4 MPa , 0.3 M³/min Packing Size: 3000 * 1900 * 2150 Mm

DPJ-200 Single Cup Paper Lid Forming Machine 0
DPJ-200 Paper Lid Forming Machine

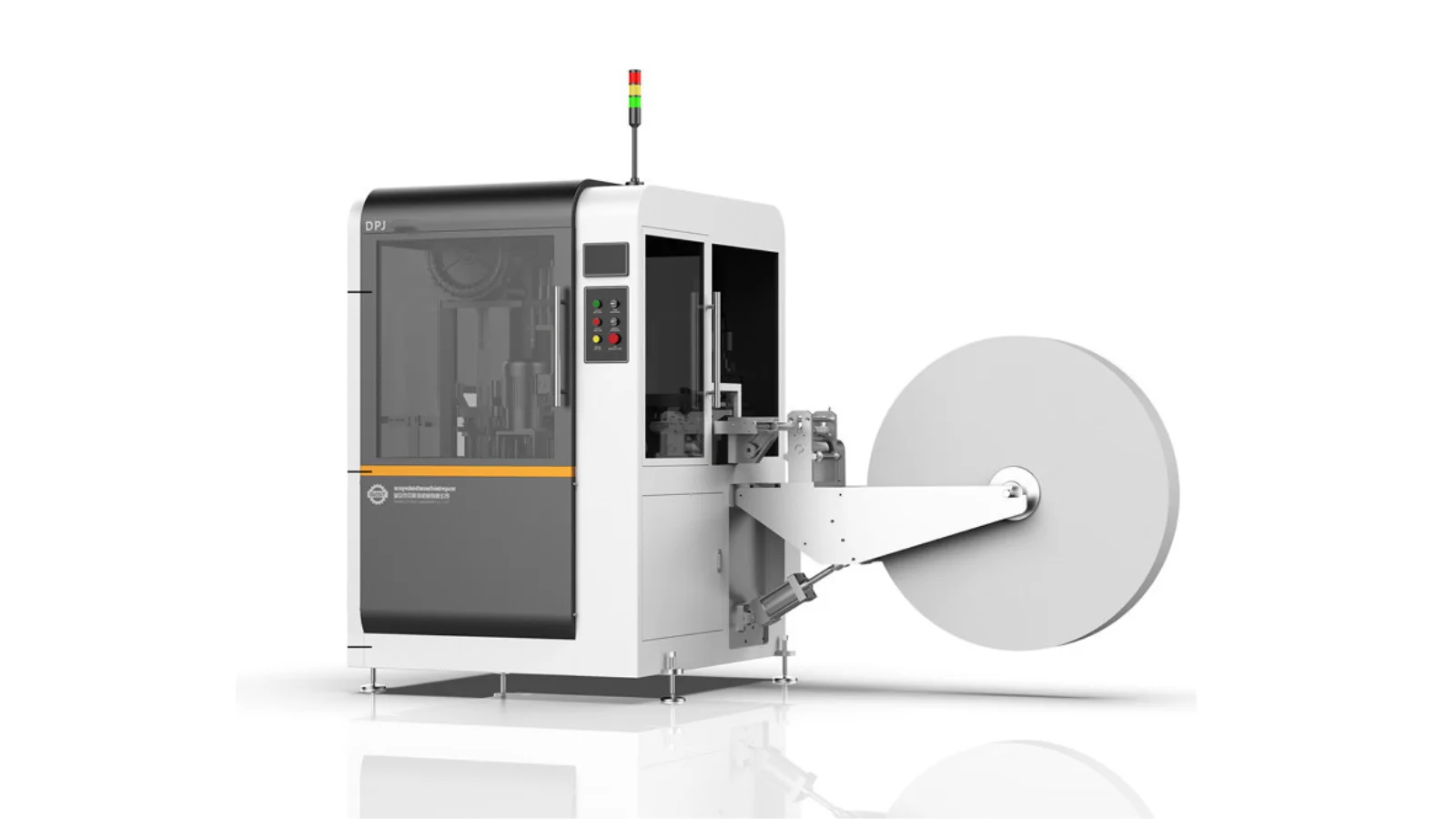

DPJ-200 Single Cup Paper Lid Forming Machine 1
Features
A.Automatic roll paper feeding;
B.Creasing (make the forming guide line);
C.Emboss (can make emboss word and logo);

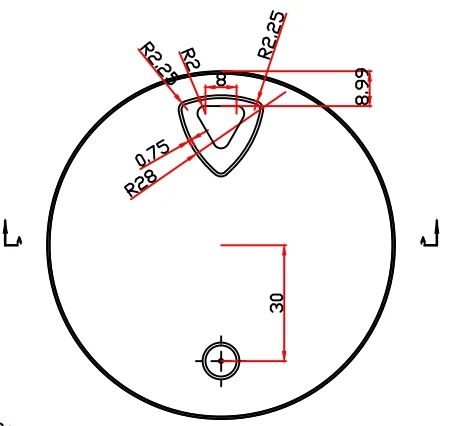

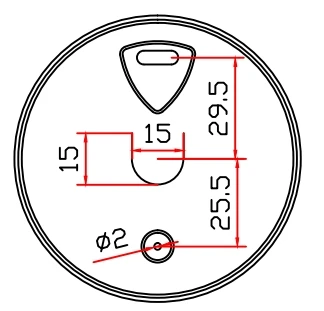

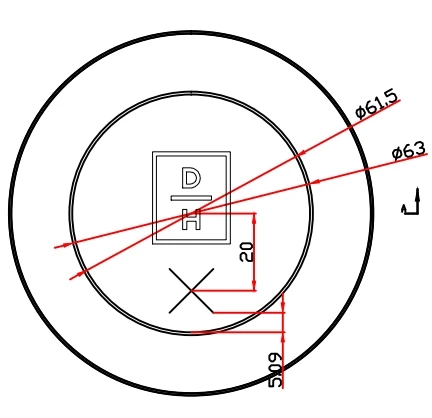

D.Cross cut (make hole or cross for paper straw or sip hole and vent hole);
E.Punching (punching the roll paper to lid open disc);
F.Automatic feed disc to mold,heating,folding,knurling,and discharge;
G.With convey and counter for collection.

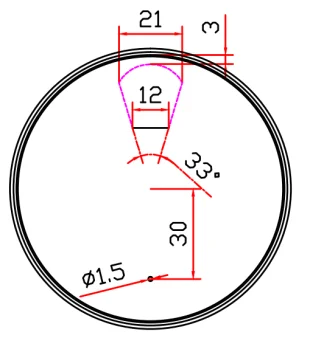

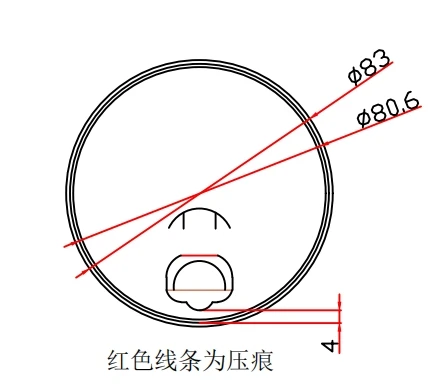

DPJ-200 Single Cup Paper Lid Forming Machine 2DPJ-200 Single Cup Paper Lid Forming Machine 3DPJ-200 Single Cup Paper Lid Forming Machine 4
DPJ-200 Single Cup Paper Lid Forming Machine 5DPJ-200 Single Cup Paper Lid Forming Machine 6DPJ-200 Single Cup Paper Lid Forming Machine 7
Technical Parameters
Lid Height
8 ~ 15 mm
Paper Cover Diameter
150 ~ 200 mm
Raw Material
PE coated paper
Suitable Paper Weight
250 ~ 350 gsm
Max. Rated Productivity
50 ~ 60 pcs/min
Power
10 kw
Power Source
220V / 380V , 50Hz , 3PH
Machine Weight
3200 kgs
Working Air Source
0.4 MPa , 0.3 m³/min
Packing Size
3000 * 1900 * 2150 mm
Applications
1)Paper bowl cover;

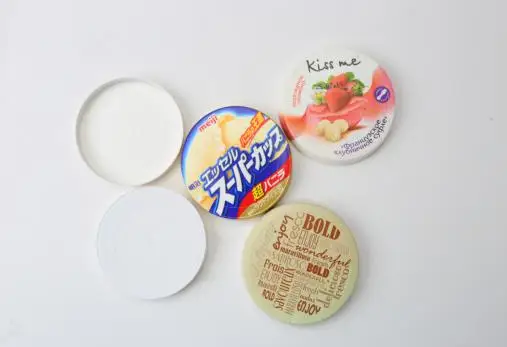

2)Paper cup ice cream cup cover;

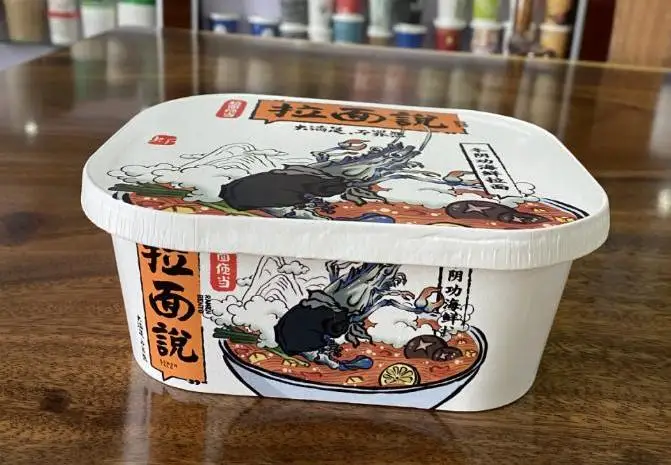

3)Instant noodles bowl cover;

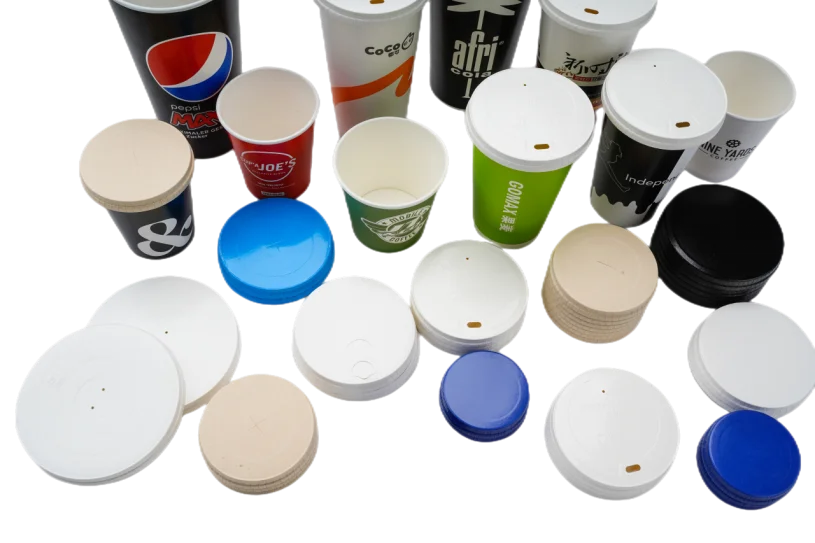

4)Coffee cup cover etc.

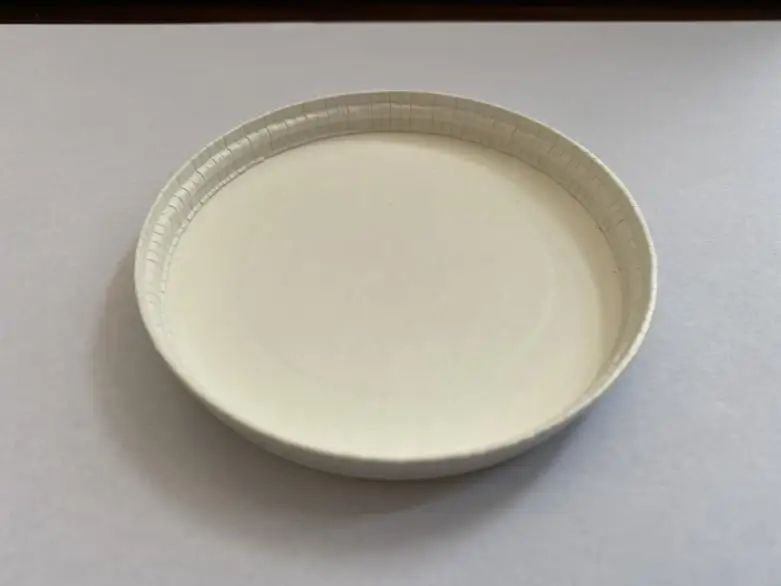

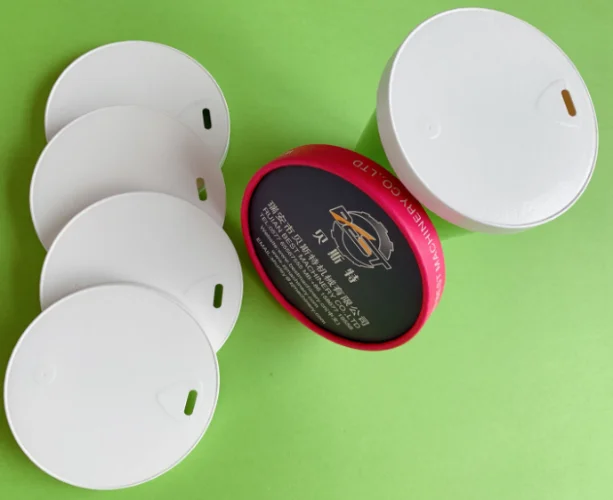

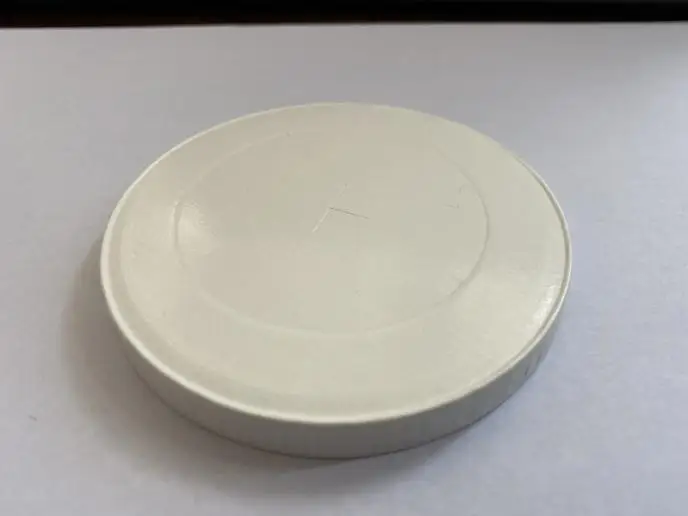

DPJ-200 Single Cup Paper Lid Forming Machine 8DPJ-200 Single Cup Paper Lid Forming Machine 9DPJ-200 Single Cup Paper Lid Forming Machine 10DPJ-200 Single Cup Paper Lid Forming Machine 11

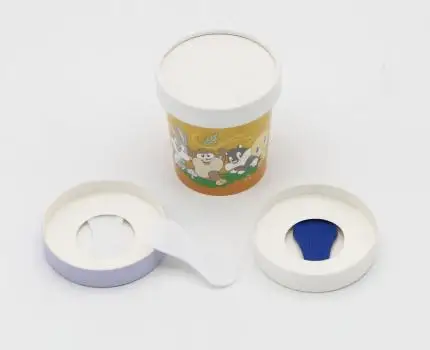

DPJ-200 Single Cup Paper Lid Forming Machine 12DPJ-200 Single Cup Paper Lid Forming Machine 13DPJ-200 Single Cup Paper Lid Forming Machine 14DPJ-200 Single Cup Paper Lid Forming Machine 15
DPJ-200 Single Cup Paper Lid Forming Machine 16
DPJ-200 Single Cup Paper Lid Forming Machine 17
DPJ-200 Single Cup Paper Lid Forming Machine 18
DPJ-200 Single Cup Paper Lid Forming Machine 19
DPJ-200 Single Cup Paper Lid Forming Machine 20
DPJ-200 Single Cup Paper Lid Forming Machine 21
DPJ-200 Single Cup Paper Lid Forming Machine 22DPJ-200 Single Cup Paper Lid Forming Machine 23
