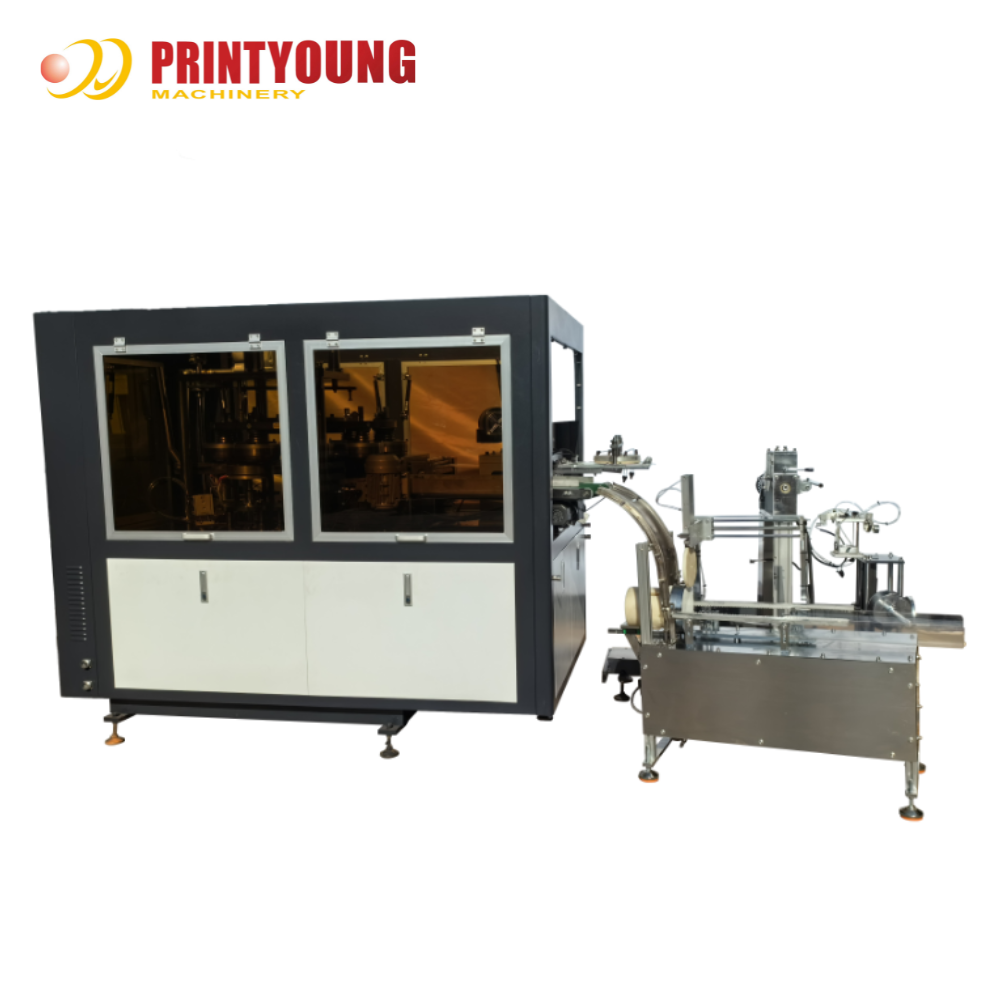

FG-50 Big Paper Bowl Cup Lid Forming Machine

FG-50 Big Paper Bowl Cup Lid Forming Machine
FG-50 Big Paper Bowl Cup Lid Forming Machine
Basic Information
Place of Origin: China
Brand Name: PRINTYOUNG
Certification: CE
Model Number: FG-50
Minimum Order Quantity: 1 Set
Price: USD 26500 Set
Delivery Time: 30 work days
Payment Terms: L/C, T/T
Supply Ability: 30 Sets per Month
Contact Now
Suitable Paper: One & Two Side PE Coated Paper,glossy Coated Paper Paper Weight: 250 ~ 350 Gsm
Lid Diameter: 100 ~ 200 Mm Lid Height: 10 ~ 15 Mm
Speed: 40 ~ 60 Pcs/minute Power Source: AC 380V 3-phase , 50Hz
Total Power: 15 Kw Weight: 4000 Kg
Machine Size: 2800 * 2200 * 2200 Mm Air Requirement: Consumption 0.02 M³/minute , Pressure : 0.5 MPa

FG-50 Big Paper Bowl Cup Lid Forming Machine 0
FG-50 Big Paper Bowl Lid Forming Machine

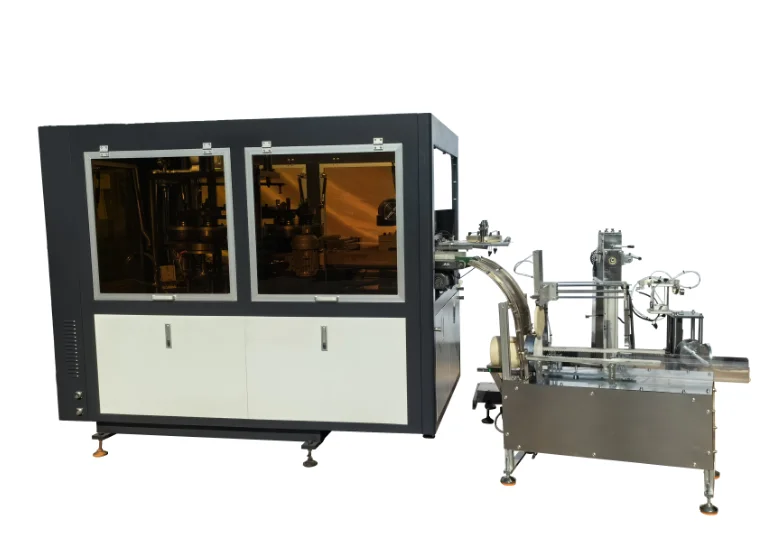

FG-50 Big Paper Bowl Cup Lid Forming Machine 1
Features
FG-50 paper lid machine is our patent machine,which make paper lid,paper cover.
It’s an automatic machine with the functions:
Automatic roll paper feed,creasing(make the forming guide line),emboss(can make emboss ,logo),cross cut(make hole for straw),punching(punch the roll paper to lid open disc),auto feed disc to mold,heating,folding,knurling,and discharge,with convey and counter for collection.
Advantage:
* Patent equipment,high speed.
* Feed roll paper.
* Auto creasing(guide line).
* Auto emboss(logo and shape on lid top,also make cross cut).
* Auto punching(cut roll paper to lid disc).
* Lid made by one paper disc,save cost.
* PLC control + servo motor feed paper.
* Open cam + shaft + cam + gear control movement,stable and reliable.
Technical Parameters
Suitable Paper
one & two side PE coated paper,glossy coated paper
Paper Weight
250 ~ 350 gsm
Lid Diameter
100 ~ 200 mm
Lid Height
10 ~ 15 mm
Speed
40 ~ 60 pcs/minute
Power Source
AC 380V 3-phase , 50Hz
Total Power
15 kw
Weight
4000 kg
Machine Size
2800 * 2200 * 2200 mm
Air Requirement
consumption 0.02 m³/minute , pressure : 0.5 MPa
FG-50 Big Paper Bowl Cup Lid Forming Machine 2
FG-50 Big Paper Bowl Cup Lid Forming Machine 3
FG-50 Big Paper Bowl Cup Lid Forming Machine 4
FG-50 Big Paper Bowl Cup Lid Forming Machine 5
FG-50 Big Paper Bowl Cup Lid Forming Machine 6
FG-50 Big Paper Bowl Cup Lid Forming Machine 7
FG-50 Big Paper Bowl Cup Lid Forming Machine 8
