Home ProductsPaper Processing MachineryPRY-1080 Automatic Paper Board Stripping and Blanking Machine

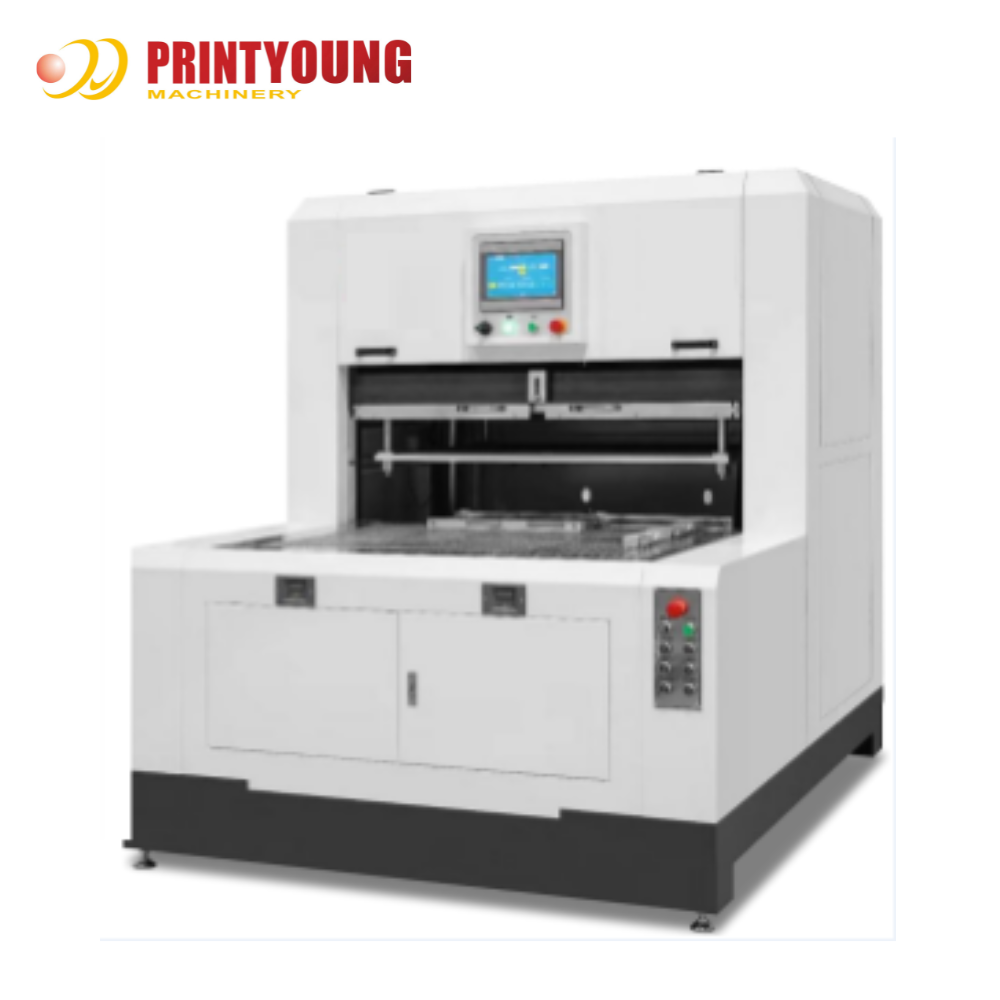

PRY-1080 Automatic Paper Board Stripping and Blanking Machine

PRY-1080 Automatic Paper Board Stripping and Blanking Machine
PRY-1080 Automatic Paper Board Stripping and Blanking Machine
PRY-1080 Automatic Paper Board Stripping and Blanking Machine
Basic Information
Place of Origin: China
Brand Name: PRINTYOUNG
Certification: CE
Model Number: PRY-1080
Minimum Order Quantity: 1 Set
Price: US 19000 Set
Packaging Details: Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.
Delivery Time: 30 days
Payment Terms: L/C, T/T
Supply Ability: 30 Set/Sets per Month
Contact Now
Max. Paper Size: 1080 * 780 Mm Min. Paper Size: 400 * 200 Mm
Max. Blanking Size: 1030 * 730 Mm Min. Blanking Size: 40 * 40 Mm
Stripping Height: 40 ~ 120 Mm Weight: 3.5 T
Voltage: 380 V Power: 8 Kw

PRY-1080 Automatic Paper Board Stripping and Blanking Machine 0
PRY-1080 Stripping and Blanking Machine
PRY-1080 Automatic Paper Board Stripping and Blanking Machine 1
Features
* Large torque,fast starting,fast braking,fast reversing,precise pressure stroke control,and can work stably in harsh environments of high and low temperatures.It is safer and more stable than ordinary hydraulic systems.
* Compared with ordinary hydraulic systems,it saves 70% energy.
* It is 1/10 of the noise of ordinary hydraulic systems.
* It can continuously maintain pressure with infinite speed regulation,and the oil temperature is 1/3 of that of ordinary hydraulic stations,which prolongs the service life of the hydraulic system and is simple to maintain.
* High-density honeycomb panels can be equipped with φ 5/3 φ stripping pin to achieve full page stripping.The upper and lower honeycomb panels are engraved with scales for fast and accurate alignment.
PRY-1080 Automatic Paper Board Stripping and Blanking Machine 2
Technical Parameters
Model
PRY-1080
Max. Paper Size
1080 * 780 mm
Min. Paper Size
400 * 200 mm
Max. Blanking Size
1030 * 730 mm
Min. Blanking Size
40 * 40 mm
Stripping Height
40 ~ 120 mm
Weight
3.5 t
Voltage
380 V
Power
8 kw
Blanking Speed
1 ~ 2 times/min
Net Weight
3500 kg
Machine Size
2000 * 1700 * 1950 mm
Machine Packing Dimension
2180 * 1870 * 2240 mm
Applications
PRY-1080 Automatic Paper Board Stripping and Blanking Machine 3
PRY-1080 Automatic Paper Board Stripping and Blanking Machine 4
PRY-1080 Automatic Paper Board Stripping and Blanking Machine 5
PRY-1080 Automatic Paper Board Stripping and Blanking Machine 6
PRY-1080 Automatic Paper Board Stripping and Blanking Machine 7
PRY-1080 Automatic Paper Board Stripping and Blanking Machine 8
PRY-1080 Automatic Paper Board Stripping and Blanking Machine 9
PRY-1080 Automatic Paper Board Stripping and Blanking Machine 10
