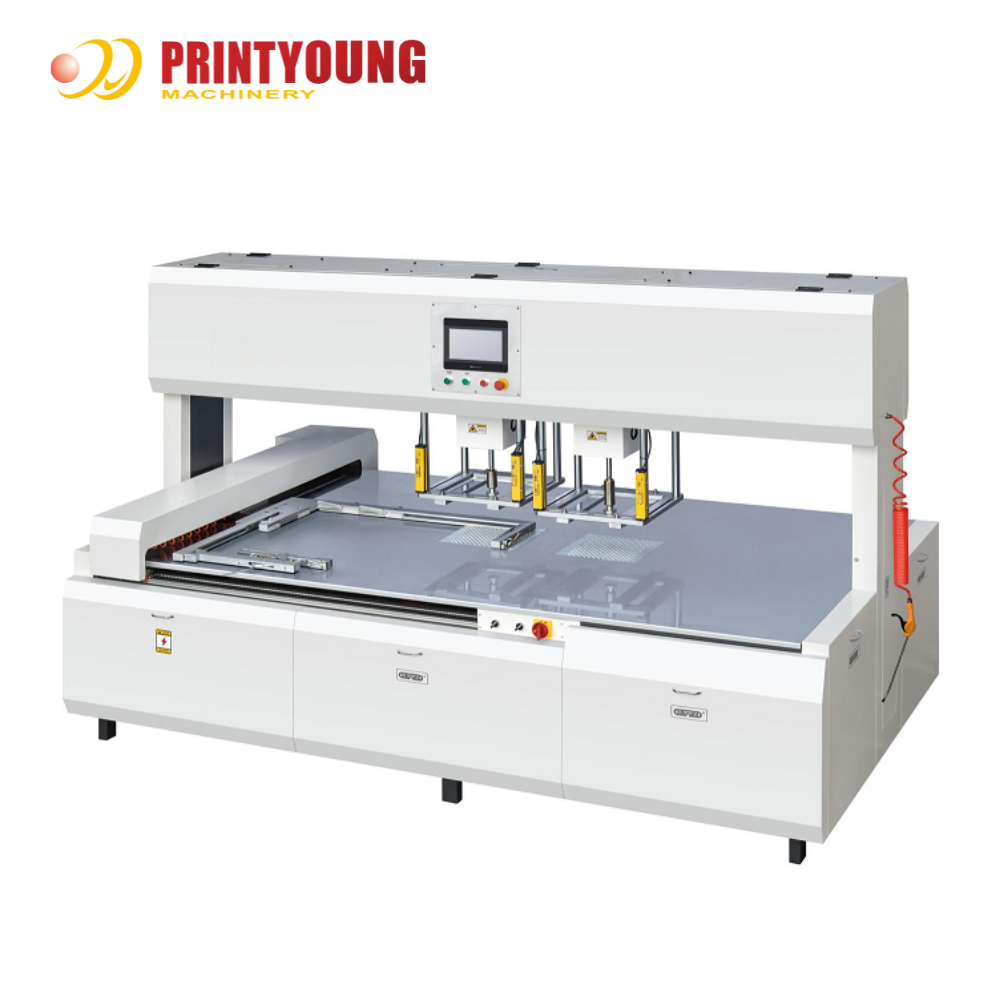

PRY-68 Automatic Single and Double Head Paper Board Stripping Machine

PRY-68 Automatic Single and Double Head Paper Board Stripping Machine
PRY-68 Automatic Single and Double Head Paper Board Stripping Machine
PRY-68 Automatic Single and Double Head Paper Board Stripping Machine PRY-68 Automatic Single and Double Head Paper Board Stripping Machine
Basic Information
Place of Origin: China
Brand Name: PRINTYOUNG
Certification: CE
Model Number: PRY-68
Minimum Order Quantity: 1 Set
Price: US 8500 ~ 11000 Set
Packaging Details: Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.
Delivery Time: 30 days
Payment Terms: L/C, T/T
Supply Ability: 30 Set/Sets per Month
Contact Now
Max. Stripping Area: 680 * 450 Mm Min. Stripping Area: 450 * 320 Mm
Max. Stripping Finished Product Size: 220 * 220 Mm Min. Stripping Finishes Product Size: 30 * 30 Mm
Stripping Height: 40 ~ 120 Mm Stripping Speed: 15 ~ 20 Time/min
Main Power: 4 Kw Wire Specification: 2.5 Mm

PRY-68 Automatic Single and Double Head Paper Board Stripping Machine 0

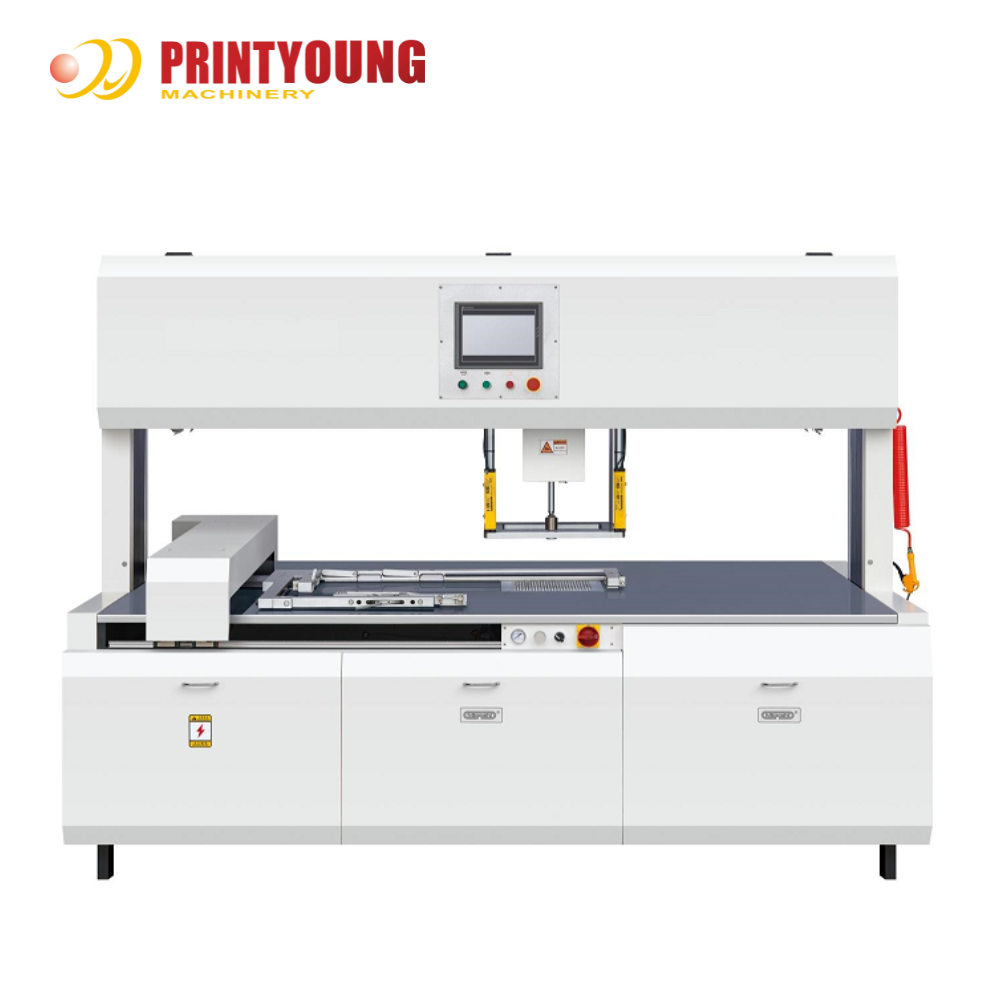

PRY-68 Automatic Single Head Stripping Machine

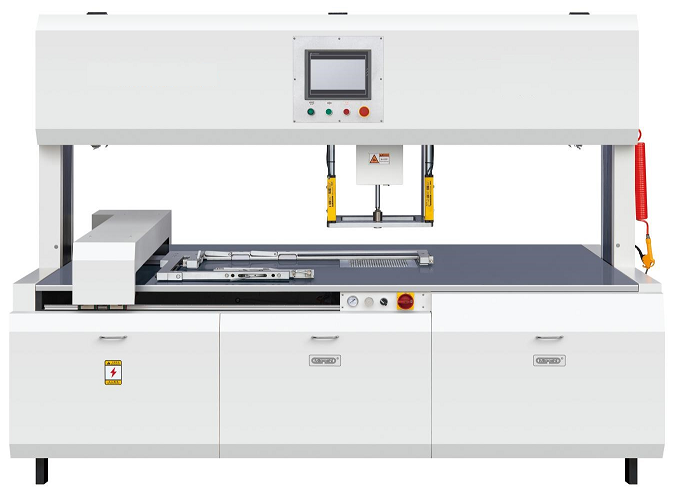

PRY-68 Automatic Single and Double Head Paper Board Stripping Machine 1PRY-68 Automatic Single and Double Head Paper Board Stripping Machine 2
Features
Automatic stripping machine is designed and manufactured by our company in order to solve the problem of difficult talking out finished products by workers after die cutting cardboard.
After die cutting,use the machine to stripping automatically which is more convenient for workers to take out the finished products,high production,less cost and high efficient for customers.
Use the computerized PLC touch screen to adjust the data which is more convenient users, the main movement is combined by the hydraulic system and ball screw driven by servo motor which has low failure rate and more agile.
PRY-68 Automatic Single and Double Head Paper Board Stripping Machine 3PRY-68 Automatic Single and Double Head Paper Board Stripping Machine 4
Technical Parameters
Model
PRY-68
 PRY-ST68
Max. Stripping Area
680 * 450 mm
 680 * 450 mm
Mini. Stripping Area
450 * 320 mm
 450 * 320 mm
Max. Stripping Finished Product Size
220 * 220 mm
 220 * 220 mm
Mini. Stripping Finishes Product Size
30 * 30 mm
 30 * 30 mm
Stripping Height
40 ~ 120 mm
 40 ~ 120 mm
Stripping Speed
15 ~ 20 time/min
 15 ~ 20 time/min
Main Power
4 kw
 4 kw
Voltage
380V / 50HZ
 380V / 50HZ
Wire Specification
2.5 mm
 2.5 mm
Machine Weight
1500 kg
 2000 kg
Overall Dimension
2210 * 1600 * 1900 mm
 2710 * 1600 * 1900 mm
Packing Size
2510 * 1900 * 2050 mm
 3010 * 1900 * 2050 mm
Configuration
Excellent Hydraulic System
Semi-automatic PET bottle blowing machine bottle making machine bottle moulding machine PET bottle making machine is suitable for producing PET plastic containers and bottles in all shapes.
PRY-68 Automatic Single and Double Head Paper Board Stripping Machine 5PRY-68 Automatic Single and Double Head Paper Board Stripping Machine 6
Double Safe Protection
Protection 1:Mechanical safe protection
Protection 2: High density safe light curtain

Solid Structure and Bear High Pressure

The new generation of blanking machine adopts a double cross beam structure.This structure is much more solid and it won't get crushed due to high pressure (especially
for big models)
PRY-68 Automatic Single and Double Head Paper Board Stripping Machine 7
Double Servo,Ball-screw and LM Rail Drive Systems
The ball screw is driven by double servo to ensure the high product precision by using the Ball-Screw and LM Rail Drive Systems, blanking precision with smooth and quiet operation is realized.
New Structure
-Mirror polishing platform for wear resist and dirty proof,this can ensure the bottom paper won’t be scratched or get damaged while dragged on platform.
-No blanking tools is needed,two procedures will be saved.
PRY-68 Automatic Single and Double Head Paper Board Stripping Machine 8PRY-68 Automatic Single and Double Head Paper Board Stripping Machine 9
Material Movement System
After the blanking material has been picked up,the sheets automatically slide into place,and blanking is performed efficiently.
Arrange Pins to the Proper Shape
By simply arranging the pins,the blanking machine can blank a variety of product shapes and sizes.
PRY-68 Automatic Single and Double Head Paper Board Stripping Machine 10PRY-68 Automatic Single and Double Head Paper Board Stripping Machine 11
Precise Arranging Pins Loader
The high density stripping pin loader is made by CNC processing center.Reasonable and compact design makes the stripping pin changing jobs are easy and fast.High precision and no need to change blanking tools.
Applications

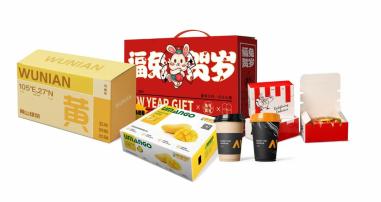

It is suitable for automatic taking out the products like cloths label,card,medicine boxes,cigarette boxes,small toy boxes,etc.
PRY-68 Automatic Single and Double Head Paper Board Stripping Machine 12
PRY-68 Automatic Single and Double Head Paper Board Stripping Machine 13
PRY-68 Automatic Single and Double Head Paper Board Stripping Machine 14

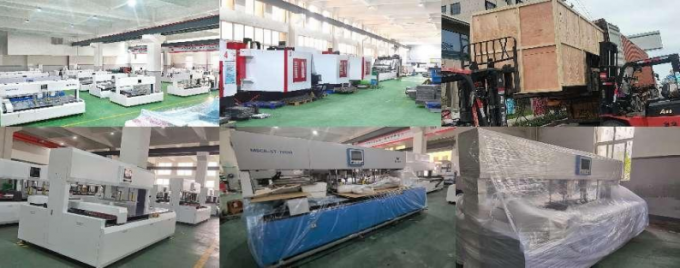

PRY-68 Automatic Single and Double Head Paper Board Stripping Machine 15
PRY-68 Automatic Single and Double Head Paper Board Stripping Machine 16
PRY-68 Automatic Single and Double Head Paper Board Stripping Machine 17
PRY-68 Automatic Single and Double Head Paper Board Stripping Machine 18
PRY-68 Automatic Single and Double Head Paper Board Stripping Machine 19
PRY-68 Automatic Single and Double Head Paper Board Stripping Machine 20
