Name: PRY-850 Double-Sided Tape Applicator Machine Non-Fabric Application for Textiles and Commodities
Brand: Shanghai Printyoung International Industry Co.,Ltd
SKU: PRY-850
Price: 13000 USD
Availability: InStock

PRY-850 Double-Sided Tape Applicator Machine Non-Fabric Application for Textiles and Commodities

Basic Information

Place of Origin:	China
Brand Name:	PRINTYOUNG
Certification:	CE
Model Number:	PRY-850

Minimum Order Quantity:	1 Set
Price:	US 13000 Set
Packaging Details:	Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.
Delivery Time:	30 days
Payment Terms:	L/C, T/T
Supply Ability:	30 Set/Sets per Month

Contact Now

Material:

≥ 200 Gsm

Min. Open Blank:

140 * 100 Mm

Max. Open Blank:

850 * 850 Mm

Working Width:

850 Mm

Conveyor Speed:

70 M/min

Tape Roll Width:

5 ~ 40 Mm

Needed Air Supply:

Min. 6 Bar

Power Required:

5.5 Kw

Weight:

1600 Kg

Machine Size:

4100 * 1100 * 1400 Mm

PRY-850 Double-side Tape Applicator

Features

Double-side tape applicators use the new technology and design.This machine is developed special for high-end cardboard,color boxes and cartons.Automatic feeding and calibration section make this machine more efficient and more precise.It applies to tag,label,envelope, online shopping box,package of IT products,paper bags etc.Except the efficient and precise features,it can freely set up the double side tape length and sections you want to cut. Nearly,the sales of this machine have huge leaps at domestic and aboard.With the good quality and highly appreciated from customers,the machine is long term sale out Europe and America.This machine is the most ideal equipment for sticking double side tape.

Technical Parameters

Material	≥ 200 gsm
Min. Open Blank	140 * 100 mm
Max. Open Blank	850 * 850 mm
Working Width	850 mm
Conveyor Speed	70 m/min
Tape Roll Width	5 ~ 40 mm
Needed Air Supply	Min. 6 bar
Power Required	5.5 kw
Weight	1600 kg
Machine Size	4100 * 1100 * 1400 mm

Configuration

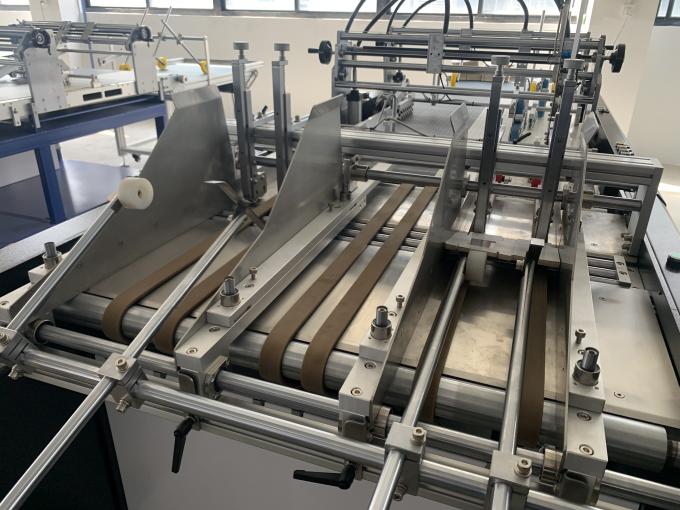

Friction Belt Feeder

Special system makes the feeding belt be adjusted individually and easily.Independent vibration motor system enhances the feeding quality.Feeding knife and flap on left and right can be adjusted up and down as one set which can shorten the changing time.

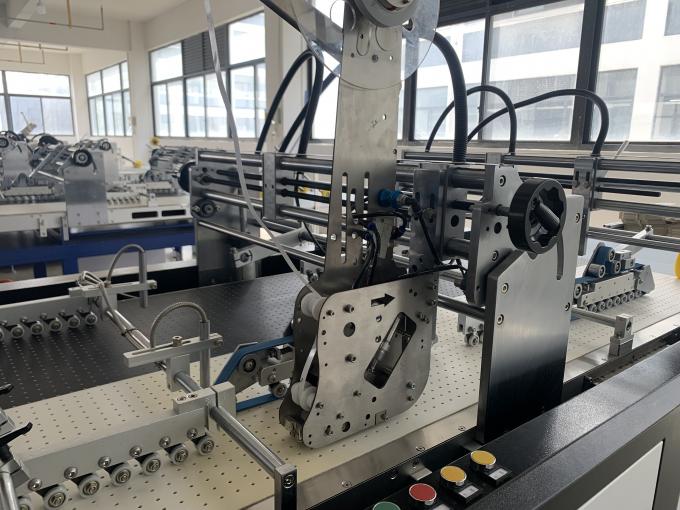

Tape Application

Newest design and concept,humanization design all make sure the precision of double side tape pasting,tear red tape pasting and silicone paper pasting.Hot melt glue system is option.

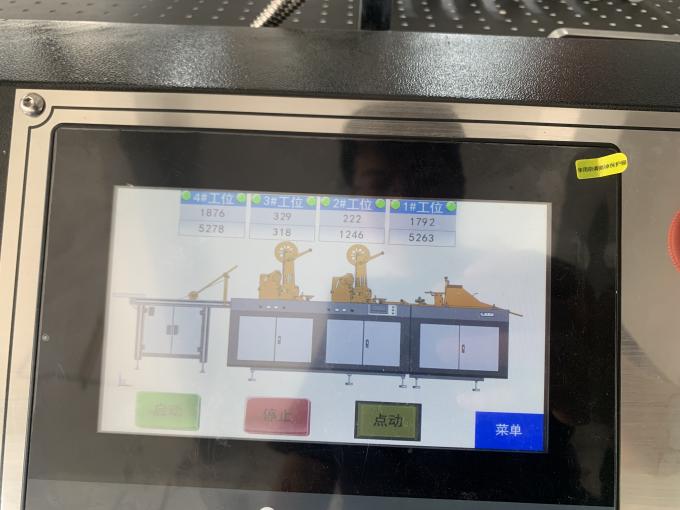

Electrical Controller

Using the latest PLC controller system,equipped with European and Japanese international brand electrical control components,simple circuit control procedures,stable operation,low failure rate, convenient maintenance.

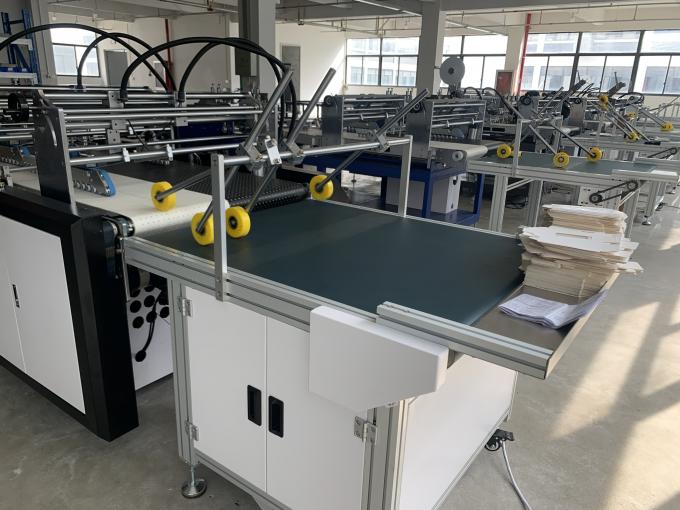

Conveyor Section

Equipped with two sets of different conveyors,choose to change the conveying direction of the conveyor,according to different types of products can change the direction of paper collecting. Stacking type paper collecting and climbing type paper collecting machine can reduce waist fatigue of personnel.
