GKM-212 Automatic Single Color Carton Printing Slotting Machinery

GKM-212 Automatic Single Color Carton Printing Slotting Machinery
GKM-212 Automatic Single Color Carton Printing Slotting Machinery GKM-212 Automatic Single Color Carton Printing Slotting Machinery
Basic Information
Place of Origin: China
Brand Name: PRINTYOUNG
Certification: CE
Model Number: GKM-212
Minimum Order Quantity: 1 Set
Price: US 11500 Set
Packaging Details: Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.
Delivery Time: 45 days
Payment Terms: L/C, T/T
Supply Ability: 30 Set/Sets per Month
Contact Now
Min. Feeder Size: 170 * 420 Mm Max. Feeder Size: 530 * 1200 Mm
Skip Feeder Size: 600 * 1200 Mm Printing Plate Thickness: 4.0 Mm
Applicable Cardboard Thickness: 1.2 ~ 12 Mm Max. Printer Size: 530 * 1100 Mm
Max. Machine Speed: 180 Sheets/min Economy Speed: 120 ~ 150 Sheets/min
Color Accuracy: ± 1.0 Mm Slotter Accuracy: ± 1.0 Mm

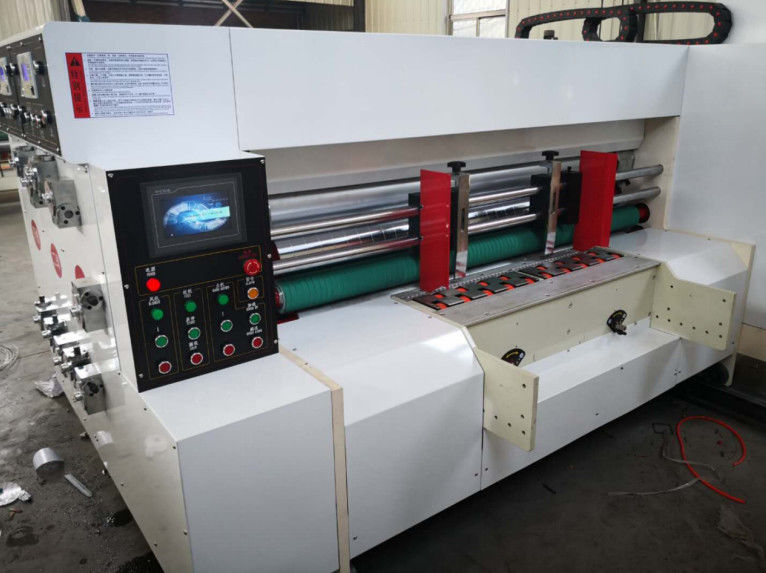

GKM-212 Automatic Single Color Carton Printing Slotting Machinery 0

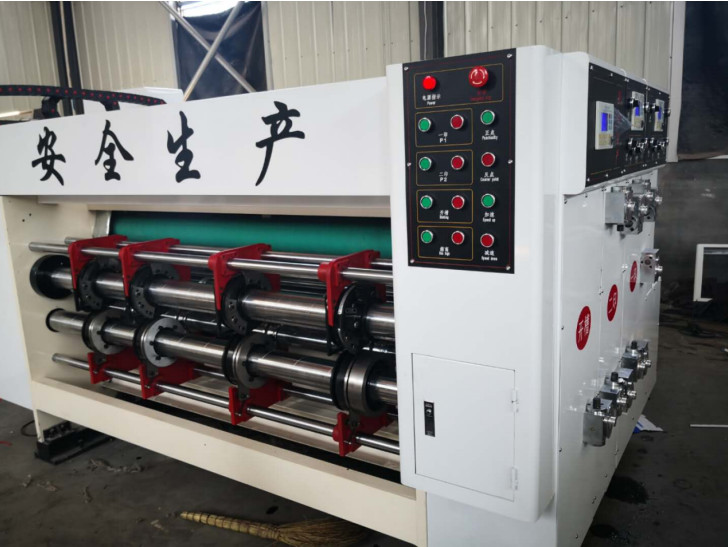

GKM-212 Automatic Printing Slotting Machine
GKM-212 Automatic Single Color Carton Printing Slotting Machinery 1
Features
This product can complete multiple processes such as printing,creasing,trimming,and slotting of cardboard in one time.Host frequency conversion control,phase adjustment through digital display and electric adjustment;The transmission gear adopts steel teeth shaving;The main transmission gear and transmission shaft adopt a tension free key connection method,which enlarges the virtual position,eliminates the wear of the center, and maintains the long service life of the printing machine with high printing accuracy;The whole machine adopts electric opening and closing,pneumatic locking,and tight single machine combination,with no misalignment during printing;This machine has the characteristics of accurate color matching,exquisite printing patterns,easy use and maintenance,and high degree of automation.
Technical Parameters
GKM-212 Automatic Printing Slotting Machine
Min. Feeder Size
170 * 420 mm
Max. Feeder Size
530 * 1200 mm
Skip Feeder Size
600 * 1200 mm
Printing Plate Thickness
4.0 mm
Applicable Cardboard Thickness
1.2 ~ 12 mm
Max. Printer Size
530 * 1100 mm
Max. Machine Speed
180 sheets/min
Economy Speed
120 ~ 150 sheets/min
Color Accuracy
± 1.0 mm
Slotter Accuracy
± 1.0 mm
Configuration

1.Feeder Unit

Machine Separation Device
1.The clutch of the electric control machine is equipped with an alarm bell,which continuously rings during operation to ensure the safety of the operators.
2.Pneumatic interlocking device.
3.When the motor start protection device of the main engine is not locked,the main engine cannot operate.
Leading Edge Roller Paper Feeding System
Suction assisted paper feeding,fan 4.0kw,can adjust the air volume according to different bending conditions of the cardboard to ensure smooth paper supply.
Feeding Roll
1.The outer diameter of the paper feeding roll on top is φ 104mm,made of seamless steel pipe,wrapped with wear-resistant rubber,and balanced.
2.The outer diameter of the paper feeding roll is 104mm,and it is embossed with hard chrome plating.
3.Manually adjust the gap dial of the paper feeding stick,with an adjustment range of 1.2-12mm.

2.Printing Unit

Printing Roll
1.The outer diameter is 220mm(including the outer diameter size of the plate).
2.Surface grinding and hard chrome plating on 2 steel pipes.
3.Perform balance correction and ensure smooth operation.
Printing Pressure Roll
1.The outer diameter is 136mm and the wall thickness is 14mm.
2.Grinding the surface of the steel pipe and plating it with hard chromium.
3.Perform balance correction to ensure smooth operation.
4.Manually adjust the gap dial of the printing press roller,with an adjustment range of 1.2-12mm.
Feeding Upper/Down Roll
1.Upper Roller:Thick walled steel pipe with an outer diameter of 71mm,equipped with two rings with an outer diameter of 104mm.
2.Lower Roller:Thick walled steel pipe with an outer diameter of φ104mm,surface polished and plated with hard chromium.
3.Manually adjust the gap dial of the paper feeding stick,with an adjustment range of 1.2-12mm.
Steel Anilox Roll
1.The outer diameter is 136mm and the wall thickness is 22mm.It is produced in Dalian.
2.Grind the surface of the steel pipe,press the mesh pattern,and coat it with hard chromium.
3.Perform balance correction to ensure smooth operation.
4.The mesh size is 220 mesh,250 mesh,etc.
5.Anilox roller with wedge type overrunning clutch,convenient and fast for ink mixing and washing.
Rubber Roll
1.The outer diameter is φ 128±0.02mm,originating from Jizhou.
2.Wrap wear-resistant rubber on the surface of the steel pipe and perform balance correction.
3.Rubber with high special grinding and good ink transfer effect.
Phase Adjustment Mechanism
1.Planetary gear structure.
2.Manually adjust the lateral position to a distance of ±5mm.
Ink Cycle
1.Pneumatic diaphragm pump,stable ink supply,easy operation and maintenance.
2.Ink filter screen,filter impurities,ink separation.
Printing Phase Fixture
1.Pneumatic automatic braking device.
2.When the machine is separated or the phase is adjusted,the brake mechanism restricts the rotation of the machine and maintains the fixed point of the original gear position.

3.Slotting Unit

Operation Control
1.The paper gap adopts a hand adjustable quick gap fine adjustment self-locking device.
2.Equipped with an emergency stop device to ensure safety.
Manual Operation Control
Manual four blade horizontal movement,electric box height adjustment.
Creasing Roll
1.The upper and lower shafts have a diameter of 60mm and are equipped with four sets of pressure rollers.
2.Manually synchronize the position of the wire pressing wheel and the slotting cutter head in the axial direction.
Slotting Knife/Slotting Holder
1.A high-quality alloy steel heat treated toothed slotting machine with a slotting blade thickness of 5mm,manufactured by a professional manufacturer to ensure quality.
2.The upper shaft diameter is 99mm,with surface grinding,hard chrome plating,and smooth movement.
With: Four upper knife discs.
3.The lower shaft diameter is 99mm,the surface is polished,plated with hard chromium,and moves smoothly.
With: four bottom knife discs
4.The slotting cutter head is also manually synchronized with the position of the wire pressing wheel in the axial direction.
5.The slotting blade can be moved,suitable for producing large-scale double piece boxes.
6.Adopting a unique chip removal device to reduce costs and have a long lifespan.
Punching Device
Can choose.
GKM-212 Automatic Single Color Carton Printing Slotting Machinery 2
GKM-212 Automatic Single Color Carton Printing Slotting Machinery 3
GKM-212 Automatic Single Color Carton Printing Slotting Machinery 4
GKM-212 Automatic Single Color Carton Printing Slotting Machinery 5
GKM-212 Automatic Single Color Carton Printing Slotting Machinery 6
GKM-212 Automatic Single Color Carton Printing Slotting Machinery 7
GKM-212 Automatic Single Color Carton Printing Slotting Machinery 8
