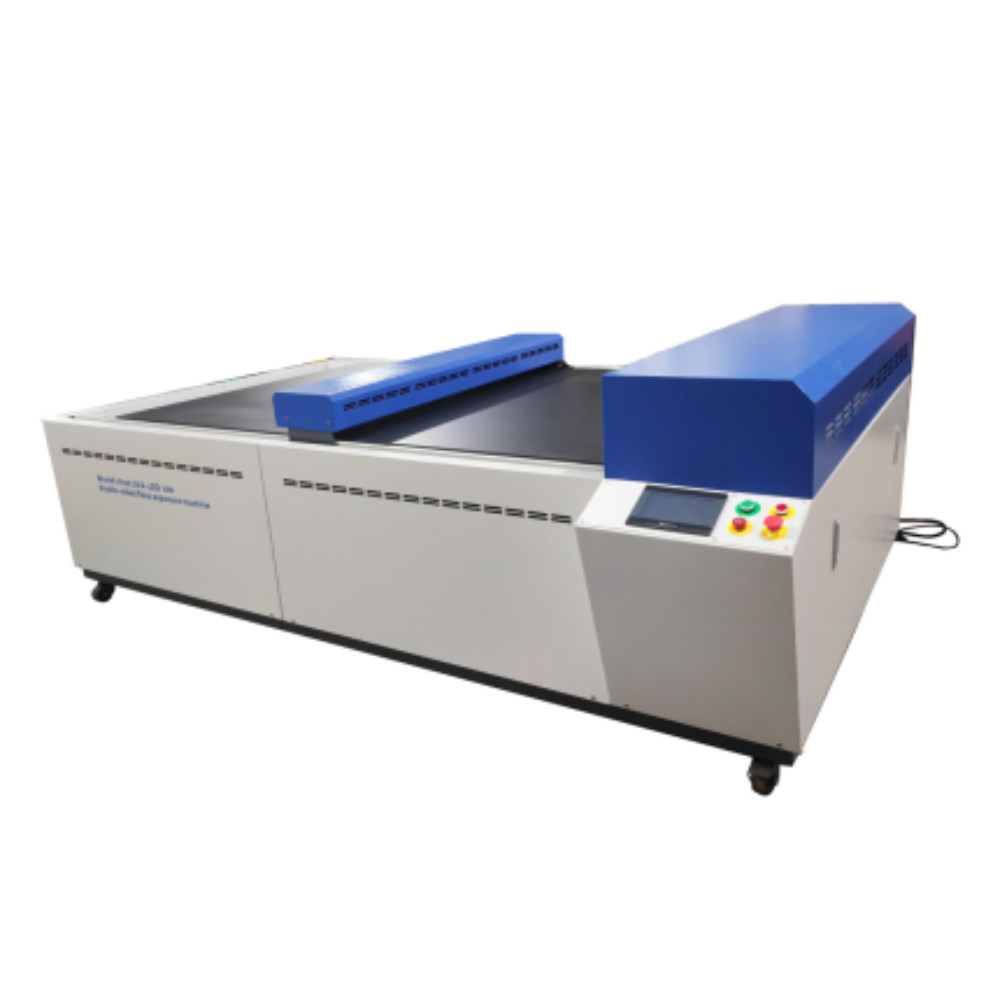

UVA-LED Automatic Scanning Double-sided Multi-light Flexo Plate Exposure Machine

UVA-LED Automatic Scanning Double-sided Multi-light Flexo Plate Exposure Machine
UVA-LED Automatic Scanning Double-sided Multi-light Flexo Plate Exposure Machine
Basic Information
Place of Origin: China
Brand Name: PRINTYOUNG
Certification: CE
Model Number: UVA-LED
Minimum Order Quantity: 1 Set
Price: US 9000 ~ 24000 Set
Packaging Details: Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.
Delivery Time: 45 days
Payment Terms: L/C, T/T
Supply Ability: 30 Set/Sets per Month
Contact Now
High Energy Light Sources: 6 ~ 10 Rows Low Energy Light Sources: 2 ~ 4 Rows
Lamp Beads: 480 ~ 1680 Min. Exposure Size: 920 * 640 Mm
Max. Exposure Size: 3050 * 1320 Mm Voltage: 220 V

UVA-LED Automatic Scanning Double-sided Multi-light Flexo Plate Exposure Machine 0
UVA-LED Scanning Flexo Exposure Machine

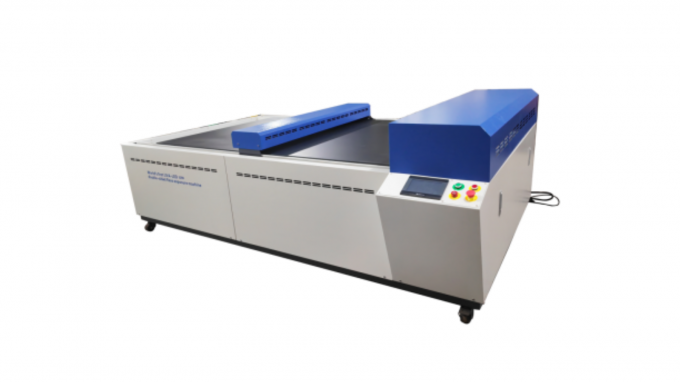

UVA-LED Automatic Scanning Double-sided Multi-light Flexo Plate Exposure Machine 1
Features
Scanning pure UVA-LED light source flexographic exposure machine is PRINTYOUNG's first product in the world.High energy UVA-LED light source mixed with low energy UVA-LED light source packaged with imported quartz.It can meet the requirements of flat-top dot, high-precision plate making,light source energy can be adjusted high or low,suitable for any flexographic exposure plate making requirements,uniform light source to promote the thickness of the flexographic everywhere,UVA-LED light source for flexographic tolerance, strong penetration,high energy source,low consumption,fast quality,environmental protection,energy saving,safety,easy to operate.For back exposure,you only need to turn on the low energy light source,and for main exposure,including the back exposure light source,you can fast exposure speed.Two-way exposure or one-way exposure can be set. The light source is more than 20 times stronger than the traditional exposure lamp,and the life is more than 10 times longer than the traditional light source.Suction adopts quiet 1500W dry vacuum pump without refueling.The quotation is the price of air-cooled configuration,and the price of water-cooled configuration is increased by 10%(including water-cooled light source and water-cooled platform).
UVA-LED Automatic Scanning Double-sided Multi-light Flexo Plate Exposure Machine 2
Technical Parameters
UVA-LED Scanning Flexo Exposure Machine
Model No.
UVA-LED2335
 UVA-LED3648 UVA-LED4260 UVA-LED5280 UVA-LED52100 UVA-LED52120
High Energy Light Sources
6 rows
 7 rows 8 rows 10 rows
Low Energy Light Sources
2 rows
 3 rows 4 rows
Lamp Beads
480 in 8 rows
 900 in 10 rows 1152 in 12 rows 1680 in 14 rows
Exposure Size
920*640mm
 1220*920mm 1530*1070mm 2032*1070mm 2032*1320mm 2540*1320mm 3050*1320mm
Machine Shape Size
1700*1120* 1220 mm
 2100*1400* 1220 mm

2400*1550*

1220 mm

2900*1550*

1220 mm

2900*1750*

1220 mm

3400*1750*

1220 mm

3920*1750*

1220 mm
Voltage
220 V
Power
2.1 kw
 2.6 kw 3.3 kw 3.6 kw 5 kw 5.2 kw 5.5 kw
Weight
300 kg
 400 kg 630 kg 700 kg 790 kg 900 kg
UVA-LED Automatic Scanning Double-sided Multi-light Flexo Plate Exposure Machine 3
UVA-LED Automatic Scanning Double-sided Multi-light Flexo Plate Exposure Machine 4
UVA-LED Automatic Scanning Double-sided Multi-light Flexo Plate Exposure Machine 5
UVA-LED Automatic Scanning Double-sided Multi-light Flexo Plate Exposure Machine 6
UVA-LED Automatic Scanning Double-sided Multi-light Flexo Plate Exposure Machine 7
UVA-LED Automatic Scanning Double-sided Multi-light Flexo Plate Exposure Machine 8
UVA-LED Automatic Scanning Double-sided Multi-light Flexo Plate Exposure Machine 9
