PRY-5 Automatic 40m Speed Paper Straw Making Machine

PRY-5 Automatic 40m Speed Paper Straw Making Machine
PRY-5 Automatic 40m Speed Paper Straw Making Machine
PRY-5 Automatic 40m Speed Paper Straw Making Machine PRY-5 Automatic 40m Speed Paper Straw Making Machine PRY-5 Automatic 40m Speed Paper Straw Making Machine PRY-5 Automatic 40m Speed Paper Straw Making Machine
Basic Information
Place of Origin: China
Brand Name: PRINTYOUNG
Certification: CE
Model Number: PRY-5
Minimum Order Quantity: 1 Set
Price: US 12500 Set
Packaging Details: Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.
Delivery Time: 35 days
Payment Terms: L/C, T/T
Supply Ability: 30 Set/Sets per Month
Contact Now
Paper Layer: 2 ~ 5 Layers Inner Diameter: 6 ~ 12 Mm
Thickness: 0.3 ~ 1 Mm Speed: 0 ~ 50 M/min
Cutting Length: 120 ~ 1050 Mm Way Of Gluing: Single / Double Side
Fixed Length: Enbcoder Operator: 1 ~ 2 Staff
Speed Control: Pole Free Speed Regulation Blade: 6

PRY-5 Automatic 40m Speed Paper Straw Making Machine 0

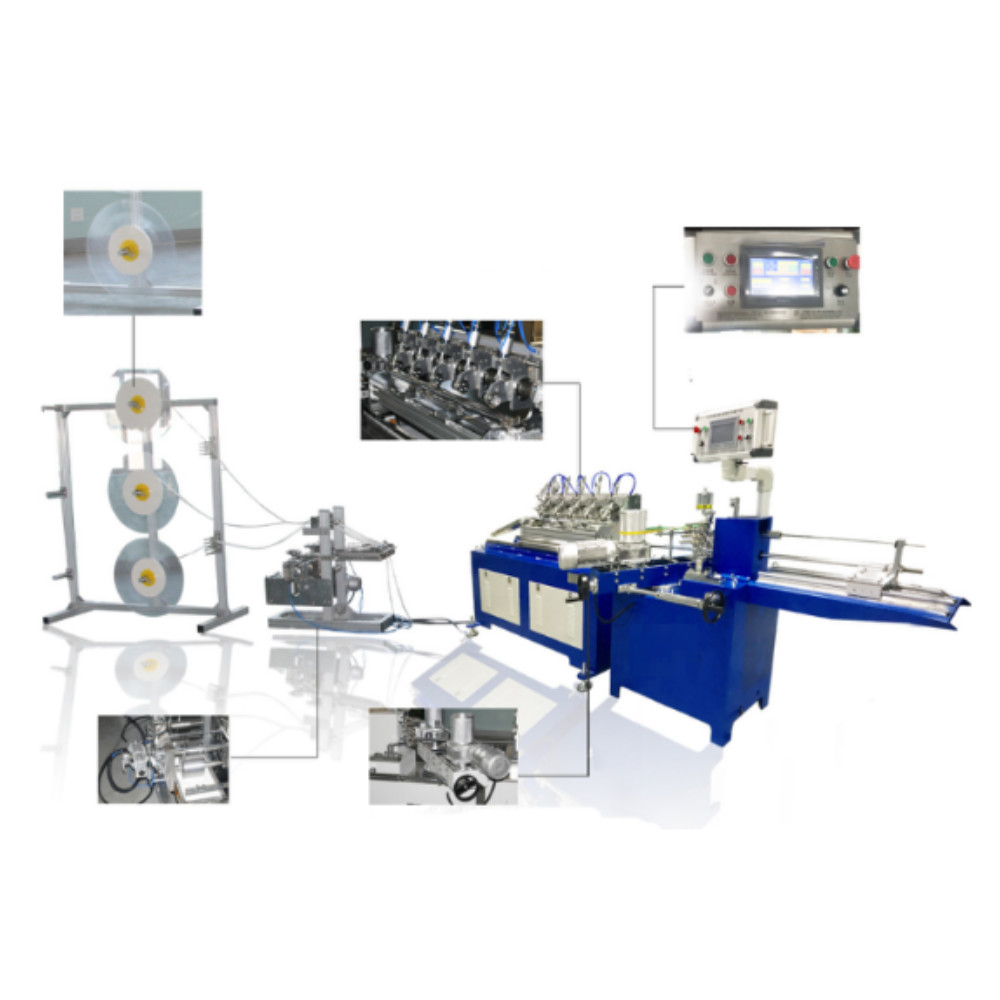

PRY-5 Automatic Paper Straw Making Machine

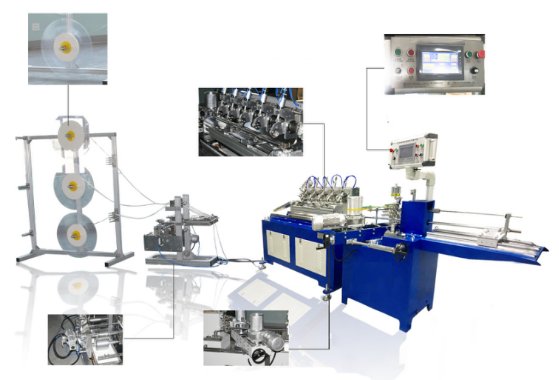

PRY-5 Automatic 40m Speed Paper Straw Making Machine 1
Features
6 blades model,blue color.Standard specification is 380V,50Hz.If you need other voltage or 60Hz motor,tell us advance.Standard is for making 3 layers,if you need more layer glue unit and paper reel bracket,tell us advance.Stable speed,for 6mm straws,30~40m/min. Max speed is not stable working speed.6 blade model is for making 6~12mm straws.If 5mm,need special 5-blade model.Also includ the different Units.
PRY-5 Automatic 40m Speed Paper Straw Making Machine 2PRY-5 Automatic 40m Speed Paper Straw Making Machine 3PRY-5 Automatic 40m Speed Paper Straw Making Machine 4
                Glue unit                                                 Paper reel bracket                             Conveyor & Collector
                1.0 * 0.68 * 1 m                                      1.62 * 0.81 * 1.92 m                        0.71 * 0.31 * 0.89 m
                                                                                                                                     1.68 * 0.35 * 0.89 m
Technical Parameters
PRY-5 Automatic Paper Straw Machine
Paper Layer
2 ~ 5 layers
Inner Diameter
6 ~ 12 mm
Thickness
0.3 ~ 1 mm
Speed
0 ~ 50 m/min
Cutting Length
120 ~ 1050 mm
Way of Gluing
single / double side
Fixed Length
enbcoder
Operator
1 ~ 2 staff
Speed Control
pole free speed regulation
Power Supply
380V / 3phase / 50Hz
Blade
6
Glue Method
three layer spray type
Weight
1350 kg
Main Part Dimension
5600 * 1600 * 1750 mm
Overall Dimension
8000 * 6000 * 1800 mm
Configuration

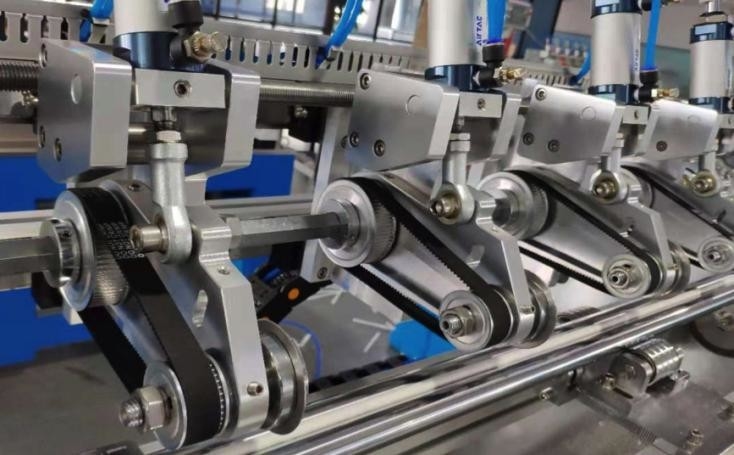

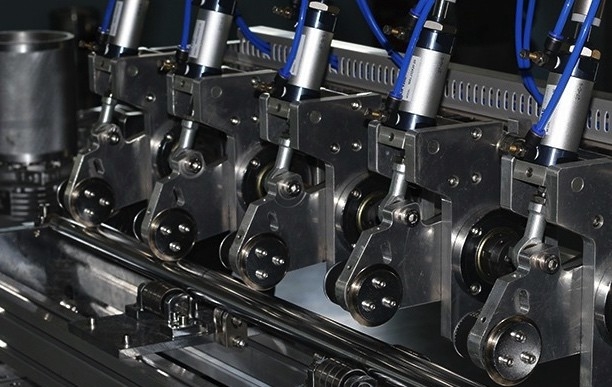

1.Multi-blade Cutting System and Spiral Rolling Mechanism

Adopted man-machine control interface,touch screen parameters setting,easy for operating
Controlled by encoder,driven by servomotor,automatic and high efficiency.
Rolling by belt and tension device adjusted by handle wheel.

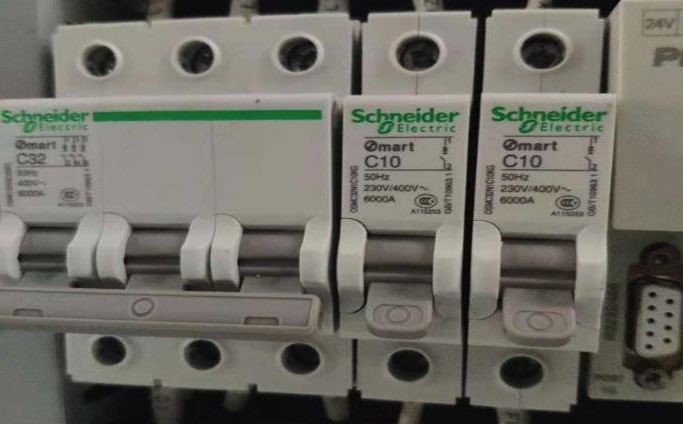

Select and use famous brand suppliers for motor and electrical equipment.

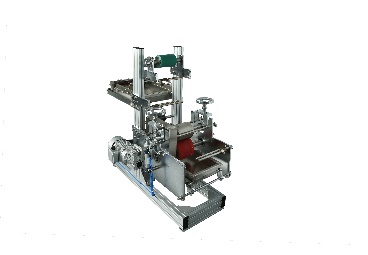

2.Glue Unit

Choose gluing single side or double sides.Automatically lift up and drop off.The drinking straws are glued evenly and sticked firmly.Synchronous sensor for interruption protection.

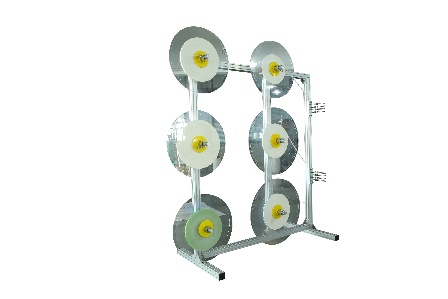

3.Paper Reel Bracket

The paper roller can be easily installed on the T-bar and rotate flexibly.According to the requirement of paper layers,you can put 2~5 paper rollers.New design of constant tension rewinding roller shaft for better winding effect.

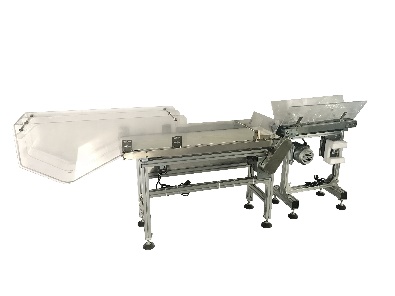

4.Conveyor & Straw Collector

Pick up the straws automatically and row them tidily at the container.Speed controllable.
PRY-5 Automatic 40m Speed Paper Straw Making Machine 5
PRY-5 Automatic 40m Speed Paper Straw Making Machine 6
PRY-5 Automatic 40m Speed Paper Straw Making Machine 7
PRY-5 Automatic 40m Speed Paper Straw Making Machine 8
PRY-5 Automatic 40m Speed Paper Straw Making Machine 9
PRY-5 Automatic 40m Speed Paper Straw Making Machine 10
PRY-5 Automatic 40m Speed Paper Straw Making Machine 11
PRY-5 Automatic 40m Speed Paper Straw Making Machine 12
Q1.Are you a manufacturer or a trading company?
A:Our shanghai office is mainly doing export.We have our own factory in Wenzhou,Zhejiang Province.
Q2.What is the machine warranty?
A:One year.After the warranty,we still provide technical support to buyer at low cost.
Q3.What is the production time while placing order?
A:Normally about 10-20 days.
Q4.What is the delivery time?
A:15-30days after deposit.
Q5.Can your company handle shipping for customers?
A:Yes,just give us destination sea port or container yard.
Q6.Does the packing strong?
A:Yes.Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions.A full set of maintenance and operation manuals is included.
Q7.How about the machine installation and training?
A:1)We provide training in our factory for free;2)We can send technicians (engineers) to your factory for installation and training.You shall pay the round trip air fare and accommodations,plus each technician charges USD100/per day.
Q8.Do you have machines in stock?
A:For standard model,we have a large quantity in stock.For special model,we need 20-30 days to produce it for you.
Q9.How can you assure the machines’ quality?
A:Each machine will be test running at least 24 hours before delivery to assure the quality.And during the warranty,we will give spare parts for free if machine has any problem.
Q10.Do you inspect machines or test running before packing?
A:Of course we do.We have QC department to debug the machine before packing.If you want to use specific material to do the test running,you need to pay for the cost of the material.
Q11.What’s the payment term?
A:T/T 30% in advance,the balance shall be paid before delivery.We also accept payment by West Union or L/C at sight.
Q12.Do you accept factory visiting?
A:Warmly welcome for your visiting.
Q13.How many years are you in printing field?
A:The Shanghai company since in 2008,the factory is more than 25years.
Q14.How many clients do you have?
A:We have sold our machines to about 60 countries.We have agents in South Africa,Morocco and Italy.
