Home ProductsPaper Processing MachineryPRY-20 Automatic High Speed Paper Straw Making Machine

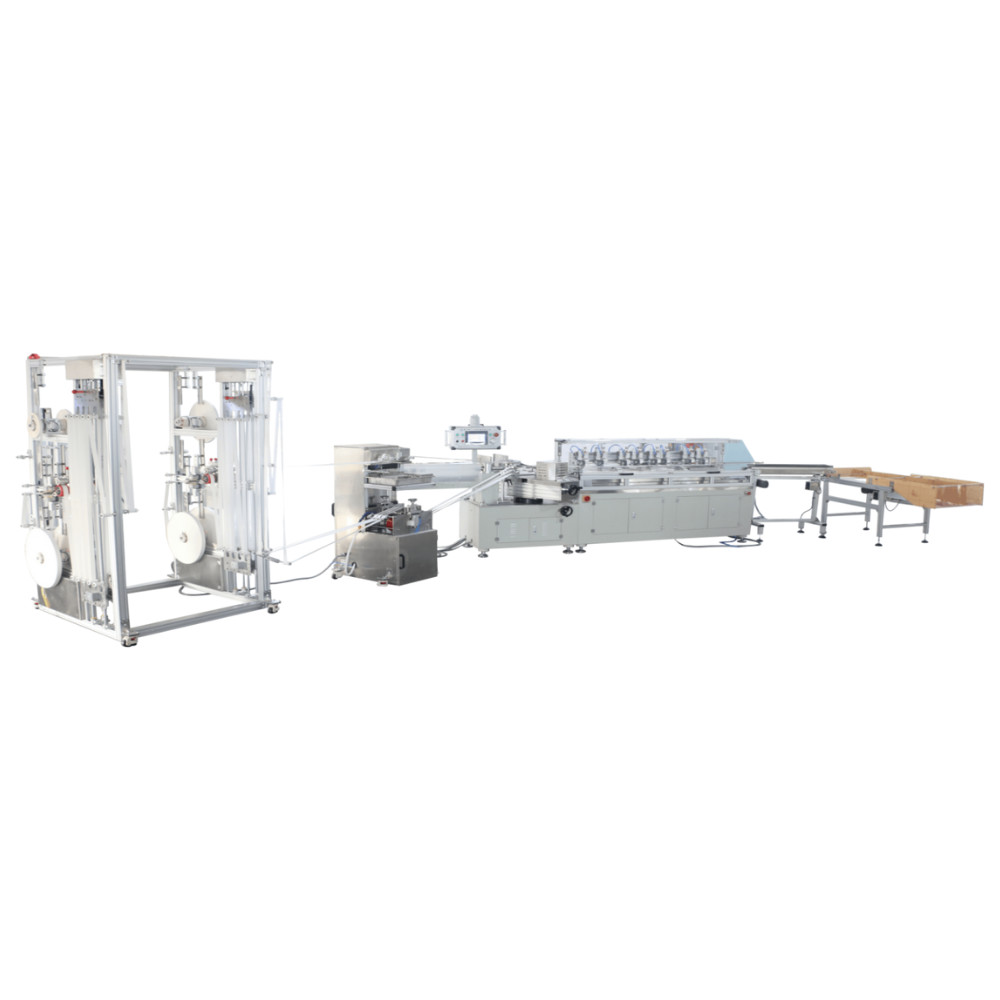

PRY-20 Automatic High Speed Paper Straw Making Machine

PRY-20 Automatic High Speed Paper Straw Making Machine
PRY-20 Automatic High Speed Paper Straw Making Machine
PRY-20 Automatic High Speed Paper Straw Making Machine
Basic Information
Place of Origin: China
Brand Name: PRINTYOUNG
Certification: CE
Model Number: PRY-20
Minimum Order Quantity: 1 Set
Price: US 27500 Set
Packaging Details: Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.
Delivery Time: 30 days
Payment Terms: L/C, T/T
Supply Ability: 30 Set/Sets per Month
Contact Now
Layer Of Paper: 3 ~ 4 Layers Max. Diameter: 12 Mm
Min. Inner Diameter: 3.5 Mm Max. Thickness: 1 Mm
Min. Thickness: 0.2 Mm Min. Length: 90 Mm
Output Speed: 0 ~ 100 M/min Winding System: 2 Servo / 1 Pc Belt
Cutting Way: 9 Knives Pneumatic / 1 Servo Glue Method: Double Side / Single Side

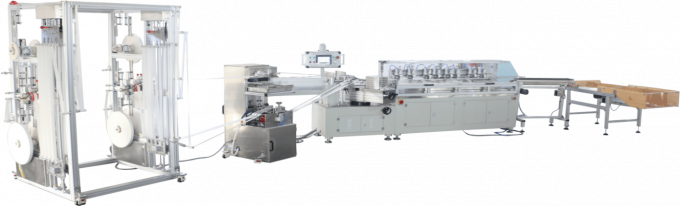

PRY-20 Automatic High Speed Paper Straw Making Machine 0
PRY-20 Automatic Paper Straw Making Machine
PRY-20 Automatic High Speed Paper Straw Making Machine 1
PRY-20 Automatic High Speed Paper Straw Making Machine 2
Features
1.Higher speed,max 120m/min input,95m/min output.
2.9 cutting-knife system,new structure of cutting cylinder.Easier to adjust air cylinder up and down when making different diameter paper straws.
3.5 sets servo motor for spiraling roller,cutting system moving left & right,supporting roller and cutting knifes.
4.Auto paper roll connecting function hanging bracket,auto splicer,4 layers.Other brand paper straw making machine paper roll hanging bracket is only 3 layers.
5.Auto feeding function glue station.
6.Auto lubrication grease feeding system for cutting system.

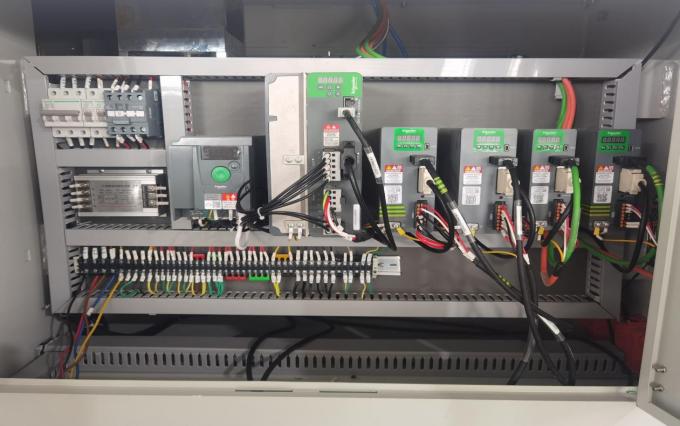

7.Main electric parts choose famous brand,Schneider.Like main servo motor,servo motor driver,frequency converter,touch screen.
Working Principle and Short Instruction
Winding/spiraling different layers paper strip into paper tube with glue. Multi-cutting knife system,by servo tracking,cut paper tube into small piece of paper drinking straws. Material:food grade white craft paper and food grade glue. Sub-raw material:may need oil for lubrication and cooling.White mineral oil. Standard electric power:380V/3 phase/50Hz,could change by special requirement,like 60Hz or 220V/3 phase. Electric consumption:rated power,6.15kw/h FLA( Full load amp):13.5A
Capacity
How many pieces straw per minute?For example:90m/min,making 6*197mm straws. Consider some waste,we use 200mm for calculating.
90*1000/200=450 pcs/minute.Total machine includes 6 parts:from left to right side
1)Paper roll hanging bracket,4 layers,auto connecting/splicing;
2)Glue station,stainless steel,glue auto feeding;
3)Winding and control mechanism;
4)Muti-cutting system,9 cutting knives with dust & protecting cover;
5) Conveyor;
6) Collector.

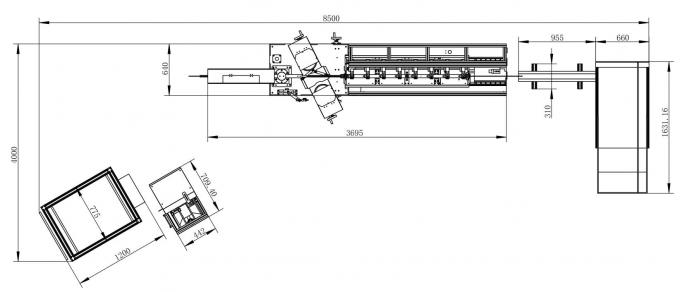

Different Unit Dimension
Unit Name
Dimension (mm)
Unit Name
Dimension (mm)
Winding & Control Unit
1720*1050*1680
Glue Station
670*720*1430
Multi-cutting System
1950*650*1450
Conveyor
1200*400*1050
Paper Roller Bracket
1120*1300*2050
Straw Collector
1650*520*1080
Technical Parameters
PRY-20 Automatic Paper Straw Making Machine
Layer of Paper
3 ~ 4 layers
Max. Diameter
12 mm
Min. Inner Diameter
3.5 mm
Max. Thickness
1 mm
Min. Thickness
0.2 mm
Min. Length
90 mm
Output Speed
0 ~ 100 m/min
Winding System
2 servo / 1 pc belt
Cutting Way
9 knives pneumatic / 1 servo
Glue Method
double side / single side
Lenght Control
encoder
Operator
1 person
Mandrel Fixing
screw clamp
Speed Control
servo
Power Input
3P / 380V / 50Hz
Configuration
Paper Straw Making Mechanism
PRY-20 Automatic High Speed Paper Straw Making Machine 3
PRY-20 Automatic High Speed Paper Straw Making Machine 4PRY-20 Automatic High Speed Paper Straw Making Machine 5PRY-20 Automatic High Speed Paper Straw Making Machine 6PRY-20 Automatic High Speed Paper Straw Making Machine 7

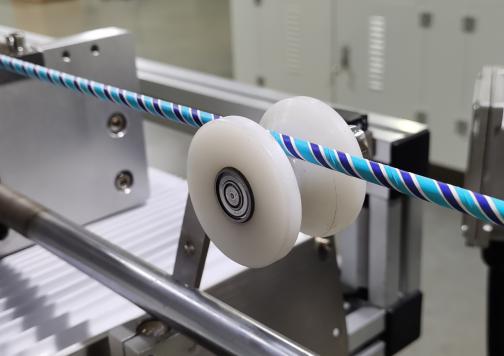

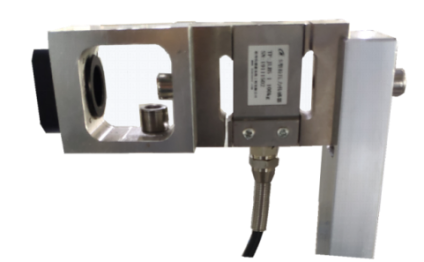

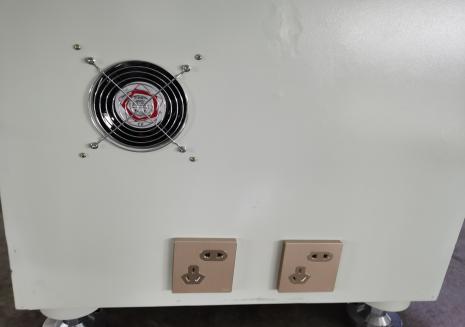

Cutting Blade                          Mould Anti-vibration Roller         Pull Rod Force Sensor                            Electric Socket and Cooling Fan
Cutting Blade Material

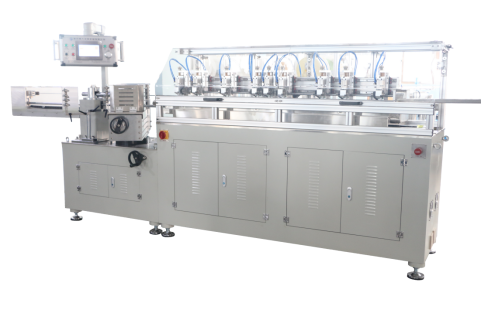

Winding&Control Mechanism & Multi-knife Cutting System

Carbon steel;
5 sets servo motor;
Dust & protect cover;
Language:Chinese,English,Spanish,Polish,Vietnamese,Portuguese and so on;
High and low voltage electric equipment separated isolation;
Laser cutting and heat treatment to avoid micro shaking;
Longer service life;
Famous brand electric equipment:Schneider;
High speed and stable working;
Safety labels for protecting method.
PRY-20 Automatic High Speed Paper Straw Making Machine 8PRY-20 Automatic High Speed Paper Straw Making Machine 9PRY-20 Automatic High Speed Paper Straw Making Machine 10

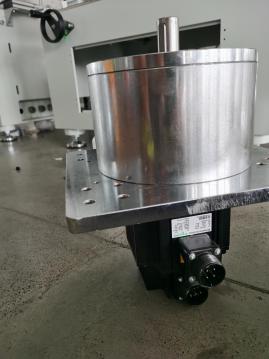

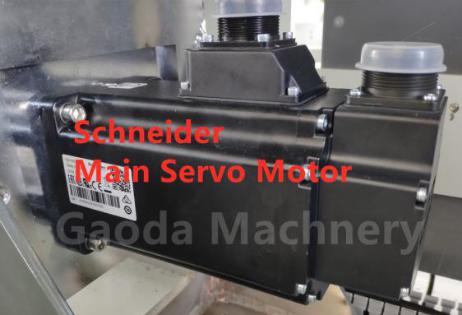

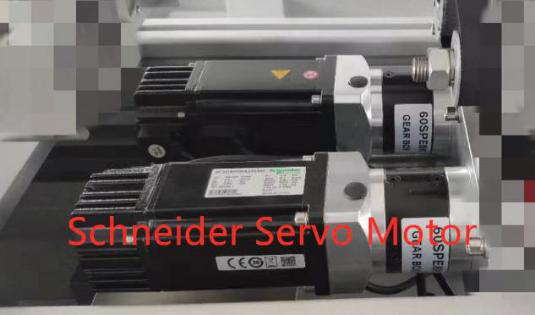

2 auxiliary servo motor                                                               main servo motor                                                 2 winding roller servo motors
PRY-20 Automatic High Speed Paper Straw Making Machine 11
PRY-20 Automatic High Speed Paper Straw Making Machine 12PRY-20 Automatic High Speed Paper Straw Making Machine 13

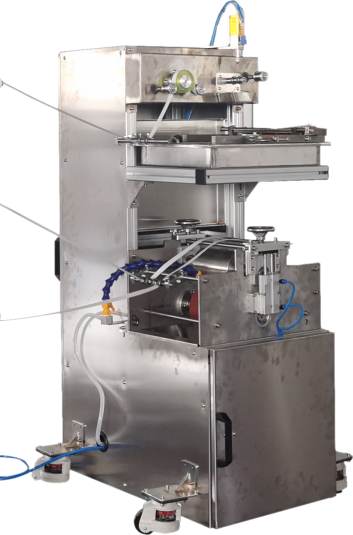

Glue Station

Aluminum and stainless steel frame;
Stainless steel glue pot;
Glue recycle system;
Lubrication oil roller for inner paper strip;
One pair roller(rubber roller and steel roller) for filming glue on paper;
1 motor to drive glue roller;
Easy to adjust glue quantity by adjust the distance of two roller.

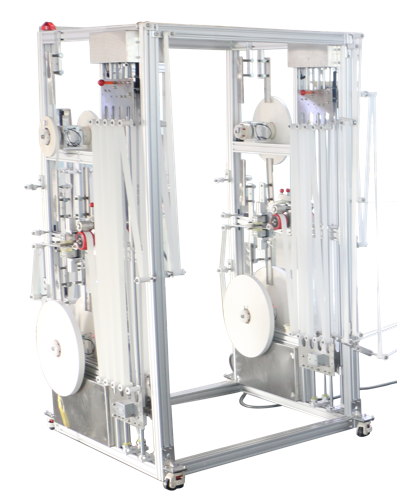

Paper Roll Hanging Bracket with Connecting Function

1.Help paper straw making machine no stop working.
2.Use auto detection:When the paper roll is going to use out,the mechanism will cut the tail ends of old paper roll and connect new paper roll automatically.
3.Smaller dimension,easy delivery and moving to adjust paper feeding angle.
4.Construction simpleness.If paper break,no need to stop to route the paper up and down complicated.
5.Constant unwinding force for the paper rolls,to let paper feeding more smoothly.
6.Our own patent for this connecting mechanism,not copy from others,especially European brands,so no patent problem.
7.Optional choose:4 layers connecting mechanism.
PRY-20 Automatic High Speed Paper Straw Making Machine 14
PRY-20 Automatic High Speed Paper Straw Making Machine 15
PRY-20 Automatic High Speed Paper Straw Making Machine 16
PRY-20 Automatic High Speed Paper Straw Making Machine 17
PRY-20 Automatic High Speed Paper Straw Making Machine 18
Q1.Are you a manufacturer or a trading company?
A:Our shanghai office is mainly doing export.We have our own factory in Wenzhou,Zhejiang Province.
Q2.What is the machine warranty?
A:One year.After the warranty,we still provide technical support to buyer at low cost.
Q3.What is the production time while placing order?
A:Normally about 10-20 days.
Q4.What is the delivery time?
A:15-30days after deposit.
Q5.Can your company handle shipping for customers?
A:Yes,just give us destination sea port or container yard.
Q6.Does the packing strong?
A:Yes.Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions.A full set of maintenance and operation manuals is included.
Q7.How about the machine installation and training?
A:1)We provide training in our factory for free; 2)We can send technicians (engineers) to your factory for installation and training.You shall pay the round trip air fare and accommodations,plus each technician charges USD100/per day.
Q8.Do you have machines in stock?
A:For standard model,we have a large quantity in stock.For special model,we need 20-30 days to produce it for you.
Q9.How can you assure the machines’ quality?
A:Each machine will be test running at least 24 hours before delivery to assure the quality.And during the warranty,we will give spare parts for free if machine has any problem.
Q10.Do you inspect machines or test running before packing?
A:Of course we do.We have QC department to debug the machine before packing.If you want to use specific material to do the test running,you need to pay for the cost of the material.
Q11.What’s the payment term?
A:T/T 30% in advance,the balance shall be paid before delivery.We also accept payment by West Union or L/C at sight.
Q12.Do you accept factory visiting?
A:Warmly welcome for your visiting.
Q13.How many years are you in printing field?
A:The Shanghai company since in 2008,the factory is more than 25years.
Q14.How many clients do you have?
A:We have sold our machines to about 60 countries.We have agents in South Africa,Morocco and Italy.
