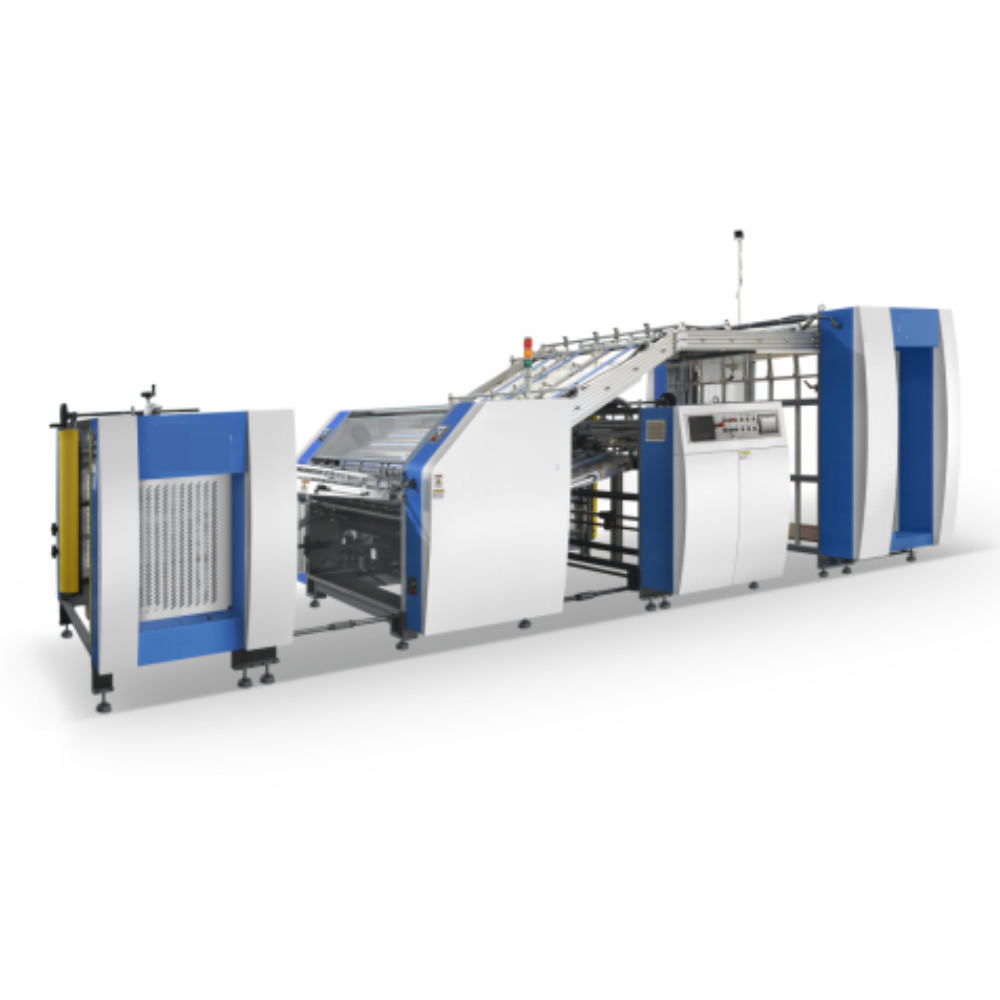

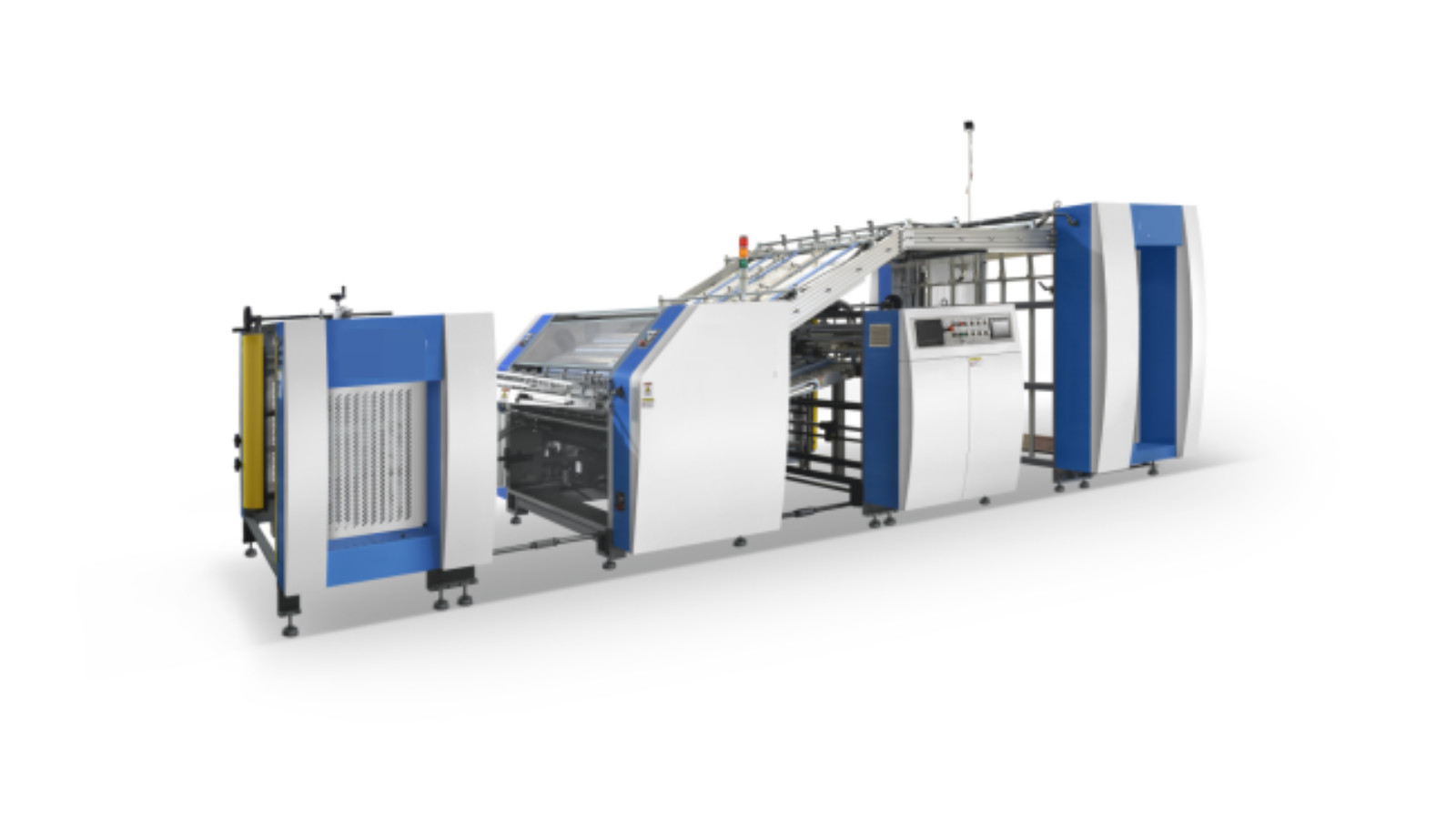

PRY-1100JBK Automatic Cardboard Flute Laminating Machinery

PRY-1100JBK Automatic Cardboard Flute Laminating Machinery
PRY-1100JBK Automatic Cardboard Flute Laminating Machinery PRY-1100JBK Automatic Cardboard Flute Laminating Machinery
Basic Information
Place of Origin: China
Brand Name: PRINTYOUNG
Certification: CE
Model Number: PRY-1100JBK
Minimum Order Quantity: 1 Set
Price: US 50000 Set
Packaging Details: Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.
Delivery Time: 45 days
Payment Terms: L/C, T/T
Supply Ability: 30 Set/Sets per Month
Contact Now
Max. Laminating Size: 1100 * 720 Mm Min. Laminating Size: 380 * 380 Mm
Work Speed: 20 ~ 55 Pcs/min Gram Weight Before Laminating: 157 ~ 500 Gsm
Thickness After Laminating: 0.30 ~ 1.00 Mm Laminate Precision: ± 0.5 Mm
Margin: ≤ 8 Mm Power: 14.6 Kw
Weight: 6800 Kgs Overall Dimension: 7500 * 2100 * 2150 Mm

PRY-1100JBK Automatic Cardboard Flute Laminating Machinery 0
PRY-1100JBK Automatic Cardboard Laminating Machine

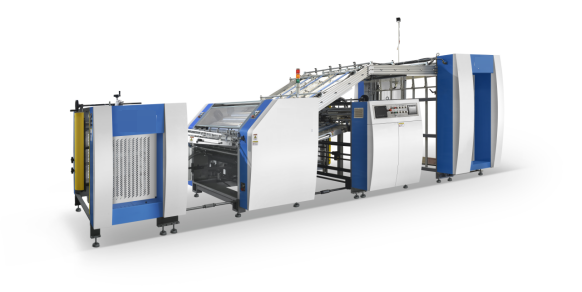

PRY-1100JBK Automatic Cardboard Flute Laminating Machinery 1
Features
PRY-1100JBK fully automatic cardboard laminating machine,using new type feeder vacuum paper guide to face paper and body paper separately,and adopting overlap paper feed way, so paper feed process are more steady and precise.Pasting to the body paper is based on different surface paper requirement,so we can adjust thickness system, even if the machine is running,the pasting will still keep thinner and evener,therefore,it achieves effects of increasing work efficiency and saving glue water.Couple high strength grip paper compound roller to locate,paste,first press the face and body paper,then the two paper will be pressed four times by strong pressing in roller to delivery stacker,at last the products will be piled in three sided even way,and height of the piled papers can reach 1650mm.machine combines the advantages of manual and automatic,reducing "human cost",improve efficiency,more "economic,reasonable,high quality,high efficiency".
This machine adopts Siemens PLC programmable controller,multipoled pressure,automatic control hydraulic station.The finished product is not only precise in laminating,but also very firm and even.Meanwhile,they will directly enter into next process such as die cutting without glue drying.Automatic production and high efficiency greatly reduce output cost, can help company create considerable benefit.This automatic production and high efficiency greatly reduce output cost,can help company create considerable benefit.
Advantage
1.Castings for base and wallboard,better seismic and stability.The paper gripper roller and pressing roller are made of thick-walled seamless steel pipe,which has better seismic resistance and stability after processing.After the actual effect processing,by the numerical control processing center processing becomes,guarantees the machine the stability and the precision;
2.The wall thickness of the paper fix roller and pressure roller is 28-29mm;
3.Through two times of strengthening pressures and two times of consolidation press,the upper paper and bottom paper combination firm,smooth,products beautiful,stiff and smooth;
4.Discharge glue equably,less consumption,low cost,short drying time,and it can direct die cutting;
5.The whole machine is controlled by PLC programmed controller.And the inverter with customers;
6.Detect no sheet,double sheet,crooked sheet,jam sheet and stop by full-process automatic photoelectric control system;
7.PLC set a complete alarm system.It is convenient to operation.And it is easy to maintenance;
8.Automatic feeding glue controls the discharge equably and accurately;
9.Automatic roller cleaning system,further reflects the degree of automation of the machine,improve work efficiency,save manpower;
10.The whole transmission structure abandons the traditional chain transmission and replaces it with more stable gear transmission,which ensures high precision and good stability in the transmission process;
11.The glue rollers are provided by well-known manufacturer in China.
Technical Parameters
PRY-1100JBK Automatic Cardboard Laminating Machine
Model
PRY-1100JBK
Max. Laminating Size
1100 * 720 mm
Min. Laminating Size
380 * 380 mm
Work Speed
20 ~ 55 pcs/min
Gram Weight Before Laminating
157 ~ 500 g/m2
Thickness After Laminating
0.30 ~ 1.00 mm
Laminate Precision
± 0.5 mm
Margin
≤ 8 mm
Power
14.6 kw
Weight
6800 kgs
Overall Dimension
7500 * 2100 * 2150 mm
Applications
This automatic production line is applied to manufacture garment hangtag,wine box,shoes box,food box and so on,it will inevitably help company and improve economic performance.
PRY-1100JBK Automatic Cardboard Flute Laminating Machinery 2PRY-1100JBK Automatic Cardboard Flute Laminating Machinery 3PRY-1100JBK Automatic Cardboard Flute Laminating Machinery 4PRY-1100JBK Automatic Cardboard Flute Laminating Machinery 5
PRY-1100JBK Automatic Cardboard Flute Laminating Machinery 6
PRY-1100JBK Automatic Cardboard Flute Laminating Machinery 7
PRY-1100JBK Automatic Cardboard Flute Laminating Machinery 8
PRY-1100JBK Automatic Cardboard Flute Laminating Machinery 9
PRY-1100JBK Automatic Cardboard Flute Laminating Machinery 10
PRY-1100JBK Automatic Cardboard Flute Laminating Machinery 11
PRY-1100JBK Automatic Cardboard Flute Laminating Machinery 12PRY-1100JBK Automatic Cardboard Flute Laminating Machinery 13PRY-1100JBK Automatic Cardboard Flute Laminating Machinery 14
PRY-1100JBK Automatic Cardboard Flute Laminating Machinery 15
Q1.Are you a manufacturer or a trading company?
A:Our shanghai office is mainly doing export.We have our own factory in Wenzhou,Zhejiang Province.
Q2.What is the machine warranty?
A:One year.After the warranty,we still provide technical support to buyer at low cost.
Q3.What is the production time while placing order?
A:Normally about 10-20 days.
Q4.What is the delivery time?
A:15-30days after deposit.
Q5.Can your company handle shipping for customers?
A:Yes,just give us destination sea port or container yard.
Q6.Does the packing strong?
A:Yes.Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions.A full set of maintenance and operation manuals is included.
Q7.How about the machine installation and training?
A:1)We provide training in our factory for free; 2)We can send technicians (engineers) to your factory for installation and training.You shall pay the round trip air fare and accommodations,plus each technician charges USD100/per day.
Q8.Do you have machines in stock?
A:For standard model,we have a large quantity in stock.For special model,we need 20-30 days to produce it for you.
Q9.How can you assure the machines’ quality?
A:Each machine will be test running at least 24 hours before delivery to assure the quality.And during the warranty,we will give spare parts for free if machine has any problem.
Q10.Do you inspect machines or test running before packing?
A:Of course we do.We have QC department to debug the machine before packing.If you want to use specific material to do the test running,you need to pay for the cost of the material.
Q11.What’s the payment term?
A:T/T 30% in advance,the balance shall be paid before delivery.We also accept payment by West Union or L/C at sight.
Q12.Do you accept factory visiting?
A:Warmly welcome for your visiting.
Q13.How many years are you in printing field?
A:The Shanghai company since in 2008,the factory is more than 25years.
Q14.How many clients do you have?
A:We have sold our machines to about 60 countries.We have agents in South Africa,Morocco and Italy.
