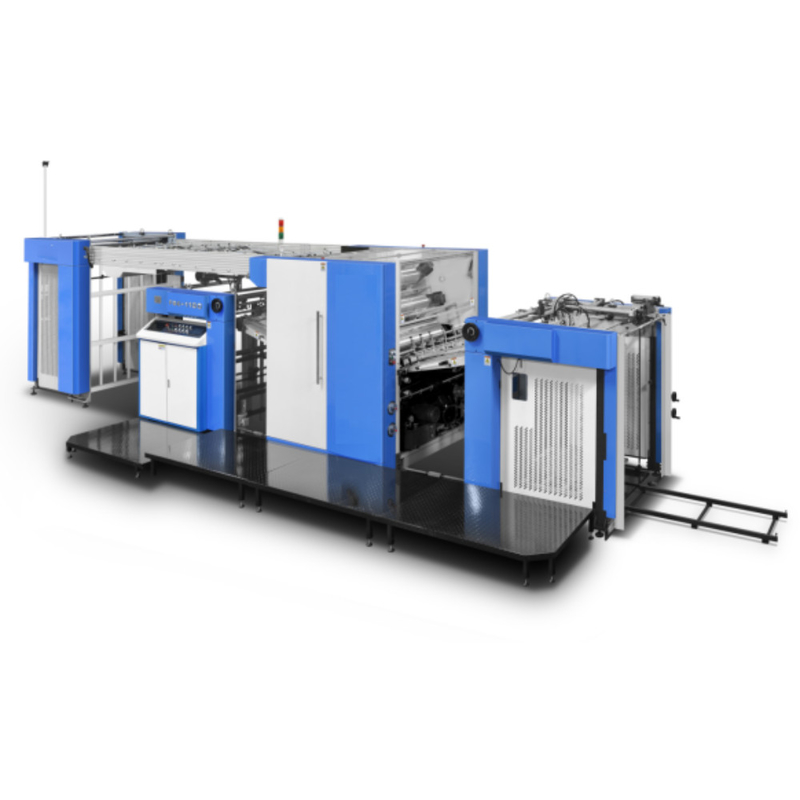

PRY-1100 Automatic Cardboard Flute Laminating Machine

PRY-1100 Automatic Cardboard Flute Laminating Machine
PRY-1100 Automatic Cardboard Flute Laminating Machine PRY-1100 Automatic Cardboard Flute Laminating Machine
Basic Information
Place of Origin: China
Brand Name: PRINTYOUNG
Certification: CE
Model Number: PRY-1100
Minimum Order Quantity: 1 Set
Price: US 11000 Set
Packaging Details: Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.
Delivery Time: 30 days
Payment Terms: L/C, T/T
Supply Ability: 30 Set/Sets per Month
Contact Now
Model: PRY-1100 Max. Laminating Size: 1100 * 800 Mm
Min. Laminating Size: 380 * 380 Mm Work Speed: 100 Pcs/min
Gram Weight Before Laminating: 157 ~ 800 G/m2 Laminate Precision: ± 0.5 Mm
Margin: ≤ 8 Mm Power: 18.6 Kw
Weight: 10500 Kg Overall Dimension: 9850 * 1900 * 2140 Mm

PRY-1100 Automatic Cardboard Flute Laminating Machine 0
PRY-1100 Automatic Cardboard Laminating Machine

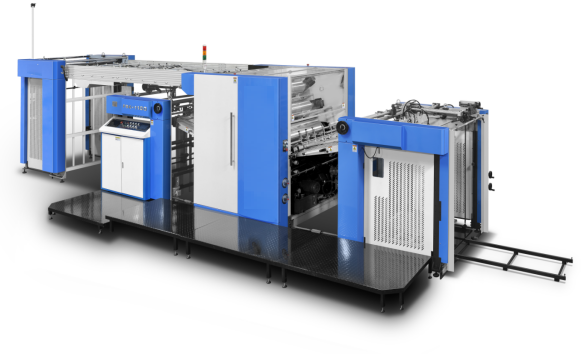

PRY-1100 Automatic Cardboard Flute Laminating Machine 1
Features
PRY-1100 fully automatic cardboard laminating machine,using new type feeder vacuum paper guide to face paper and body paper separately,and adopting overlap paper feed way, so paper feed process are more steady and precise.Pasting to the body paper is based on different surface paper equipment,so we can adjust thickness system, even if the machine is running,the pasting will still keep thinner and evener,therefore,it achieves effevts of increasing work efficiency and saving glue water.Couple high strength grip paper compound roller to locate,paste,first press the face and body paper,then the two paper will be pressed four times by strong pressing in roller to delivery stacker,at last the products will be piled in three sided even way,and height of the piled papers can reach 1650mm.This machine adopts Siemens PLC programmable controller,multipoled pressure,automatic control hydraulic station.The finished product is not only precise in laminating,but also very firm and even.Meanwhile,they will directly enter into next process such as die cutting without glue drying.Automatic production and high dfficiency greatly reduce output cost,can help company create considerable benefit.This automatic production and high efficiency greatly reduce output cost,can help company create considerable benefit.
1.Adopted imported bearing which have high precision and long service life;
2.All of the wallboard adopted HT250 gray iron which is cast from resion sand mould;
3.The wall thickness of the paper fix roller and pressure roller is 28-29mm;
4.4 pressure rollers press by hydraulic gear drive;
5.Main transmission adopted helical gear drive;
6.The whole machine is controlled by PLC programmed controller.And the inverter with customers;
7.Detect no sheet,double sheet,crooked sheet,jam sheet and stop by full-process automatic photoelectric control system;
8.PLC set a complete alarm system,it is convenient to operation.And it is easy to maintenance;
9.Main transmission sysytem adopted centralized lubricating;
10.Automatic feeding glue controls the discharge equably and accurately;
11.Discharge glue equably,less consumption,low cost,short drying time,and it can direct die cutting;
12.The glue rollers are provided by well-known manufacturer in China;
13.Some accessory such as air pump,motor,reducer,glue pump are provided by well-known manufacturer in China;
14.Provide long-term and comprehensive training.Free one-year warranty.
Technical Parameters
PRY-1100 Automatic Cardboard Laminating Machine
Model
PRY-1100
Max. Laminating Size
1100 * 800 mm
Min. Laminating Size
380 * 380 mm
Work Speed
100 pcs/min
Gram Weight Before Laminating
157 ~ 800 g/m2
Laminate Precision
± 0.5 mm
Margin
≤ 8 mm
Power
18.6 kw
Weight
10500 kg
Overall Dimension
9850 * 1900 * 2140 mm
Configuration
PRY-1100 Automatic Cardboard Flute Laminating Machine 2PRY-1100 Automatic Cardboard Flute Laminating Machine 3

Feeding Machine

Motive power is from main motor,it adopted overlap feeding.Include engine,electric,air structure.

Feeder

Remote control mechanism with conjugate cam control for suction nozzle movement, The Taiwan Yongchuan Feida,to transport paper stable and orderly,suitable for different thickness of paper.
PRY-1100 Automatic Cardboard Flute Laminating Machine 4PRY-1100 Automatic Cardboard Flute Laminating Machine 5

Paper Conveying Table

Undergo mirror treatment the stainless steel surface.

Bite Paper Roller and Open Shut Tooth CAM Structure

PRY-1100 Automatic Cardboard Flute Laminating Machine 6PRY-1100 Automatic Cardboard Flute Laminating Machine 7

Conveyer Device

Enclosed type double belt conveyor stable and orderly.

The Main Transmission

Use offset press transmission ways,key position adopt six levels of inclined gear transmission.Strength evenly,quiet run.
Delivery Apparatus
Hommization test structures,Paper receiver height 1650mm,Pheumatic three-pronged noodle paper.
PRY-1100 Automatic Cardboard Flute Laminating Machine 8PRY-1100 Automatic Cardboard Flute Laminating Machine 9PRY-1100 Automatic Cardboard Flute Laminating Machine 10

Automatic Gluing System & Which Riser

Use membrane pump with pneumatic drive;
The value of glue and time are auto control use electric drive.
PRY-1100 Automatic Cardboard Flute Laminating Machine 11

User-friendly Panel

7 inch touch screen interface,safe,convenient and improve the efficiency.
Applications
This automatic production line is applied to manufacture garment hangtag,wine box,shoes box,food box and so on,it will inevitably help company and improve economic performance.
PRY-1100 Automatic Cardboard Flute Laminating Machine 12PRY-1100 Automatic Cardboard Flute Laminating Machine 13PRY-1100 Automatic Cardboard Flute Laminating Machine 14PRY-1100 Automatic Cardboard Flute Laminating Machine 15
PRY-1100 Automatic Cardboard Flute Laminating Machine 16
PRY-1100 Automatic Cardboard Flute Laminating Machine 17
PRY-1100 Automatic Cardboard Flute Laminating Machine 18
PRY-1100 Automatic Cardboard Flute Laminating Machine 19
PRY-1100 Automatic Cardboard Flute Laminating Machine 20
PRY-1100 Automatic Cardboard Flute Laminating Machine 21
PRY-1100 Automatic Cardboard Flute Laminating Machine 22PRY-1100 Automatic Cardboard Flute Laminating Machine 23PRY-1100 Automatic Cardboard Flute Laminating Machine 24
PRY-1100 Automatic Cardboard Flute Laminating Machine 25
Q1.Are you a manufacturer or a trading company?

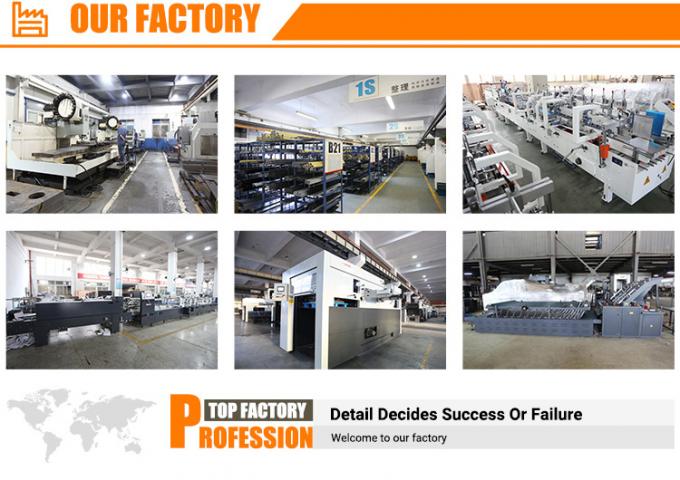

A:Our shanghai office is mainly doing export.We have our own factory in Wenzhou,Zhejiang Province.
Q2.What is the machine warranty?
A:One year.After the warranty,we still provide technical support to buyer at low cost.
Q3.What is the production time while placing order?
A:Normally about 10-20 days.
Q4.What is the delivery time?
A:15-30days after deposit.
Q5.Can your company handle shipping for customers?
A:Yes,just give us destination sea port or container yard.
Q6.Does the packing strong?
A:Yes.Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions.A full set of maintenance and operation manuals is included.
Q7.How about the machine installation and training?
A:1)We provide training in our factory for free; 2)We can send technicians (engineers) to your factory for installation and training.You shall pay the round trip air fare and accommodations,plus each technician charges USD100/per day.
Q8.Do you have machines in stock?
A:For standard model,we have a large quantity in stock.For special model,we need 20-30 days to produce it for you.
Q9.How can you assure the machines’ quality?
A:Each machine will be test running at least 24 hours before delivery to assure the quality.And during the warranty,we will give spare parts for free if machine has any problem.
Q10.Do you inspect machines or test running before packing?
A:Of course we do.We have QC department to debug the machine before packing.If you want to use specific material to do the test running,you need to pay for the cost of the material.
Q11.What’s the payment term?
A:T/T 30% in advance,the balance shall be paid before delivery.We also accept payment by West Union or L/C at sight.
Q12.Do you accept factory visiting?
A:Warmly welcome for your visiting.
Q13.How many years are you in printing field?
A:The Shanghai company since in 2008,the factory is more than 25years.
Q14.How many clients do you have?
A:We have sold our machines to about 60 countries.We have agents in South Africa,Morocco and Italy.
