Home ProductsFlute Laminating MachinePRY-HG Series Heavy Duty Type Intelligent Adjustment Cardboard Flute Laminating Machine

PRY-HG Series Heavy Duty Type Intelligent Adjustment Cardboard Flute Laminating Machine

PRY-HG Series Heavy Duty Type Intelligent Adjustment Cardboard Flute Laminating Machine
PRY-HG Series Heavy Duty Type Intelligent Adjustment Cardboard Flute Laminating Machine
PRY-HG Series Heavy Duty Type Intelligent Adjustment Cardboard Flute Laminating Machine PRY-HG Series Heavy Duty Type Intelligent Adjustment Cardboard Flute Laminating Machine
Basic Information
Place of Origin: China
Brand Name: PRINTYOUNG
Certification: CE
Model Number: PRY-HG
Minimum Order Quantity: 1 Set
Price: US 48000~52000 Set
Packaging Details: Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.
Delivery Time: 30 days
Payment Terms: L/C, T/T
Supply Ability: 30 Set/Sets per Month
Contact Now
Model: PRY-1450HG , PRY-1650HG Max. Sheet Size: 1450 * 1450 Mm , 1650 * 1650 Mm
Min. Sheet Size: 380 * 350 Mm Top Paper Thickness: 120 ~ 500 G
Precision For Front And Back: ± 1 Mm Weight: 9280 Kgs , 10500 Kgs
Speed: 0 ~ 200 M/min Air Consumption: 0.2 M^3/min
Overall: 15.5 * 2.4 * 2.4 M , 15.7 * 2.6 * 2.4 M Machine Power: 22 Kw , 25 Kw

PRY-HG Series Heavy Duty Type Intelligent Adjustment Cardboard Flute Laminating Machine 0

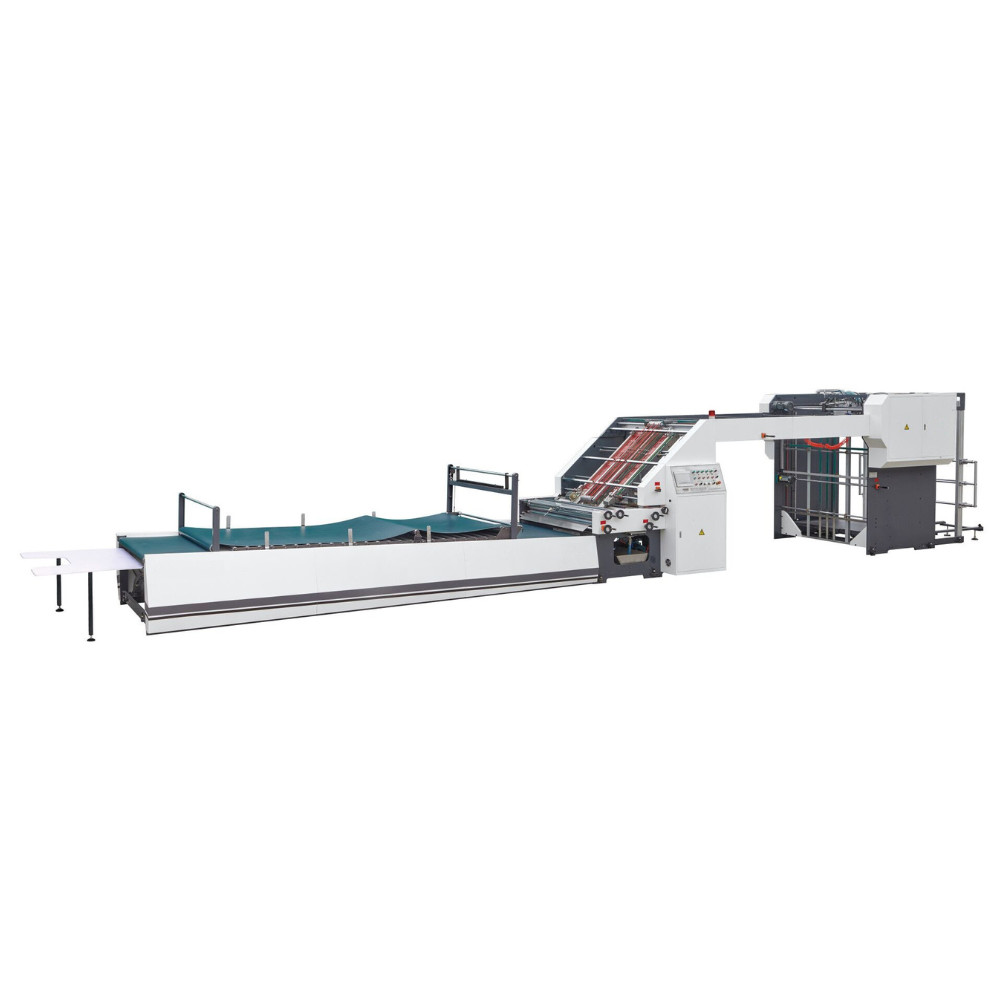

PRY-HG Flute Laminating Machine
PRY-HG Series Heavy Duty Type Intelligent Adjustment Cardboard Flute Laminating Machine 1
Features
This machine adopted with motion control system and servo correction system perfect combination,using multiple sets of photoelectric sensor at the end of the paper the relative position,control top paper on both sides of the servo motor independent drive compensation action,top paper and bottom paper precise positioning.Servo laminating machine has the advantages of simple operation,only need to input the size of paper can be completed automatically adjust the machine.
1.Automatic width adjustment for width when set up the sheet size;
2.Automatic adjustment for glue amount and roller pressure;
3.Max linear speed 200m/min;
4.Non-pressing lead edge feeding system,strength increase by 5%;
5.Casting frame 40mm;
6.Φ165mm jumbo roller for transsmion with no glue splashing;
7.Linkage control by the 9 servo motors for the whole machine;
8.Streaming feeding for top sheets and won’t get stuck;
9.Oil-free bearing technology and maintaince-free;
10.Independent servo ilde speed transmission for glue roller;
11.Stepping motor controls the format-set-up, high accuracy.
Technical Parameters
PRY-HG Flute Laminating Machine
Model
PRY-1450HG
 PRY-1450HG
Max. Sheet Size
1450 * 1450 mm
 1650 * 1650 mm
Min. Sheet Size
380 * 350 mm
Top Paper Thickness
120 ~ 500 g
Precision for Front and Back
± 1 mm
Weight
9280 kgs
 10500 kgs
Speed
0 ~ 200 m/min
Air Consumption
0.2 m3/min
Overall
15.5 * 2.4 * 2.4 m
 15.7 * 2.6 * 2.4 m
Machine Power
22 kw
 25 kw
Bottom Paper
A , B , C , E , F , G Corrugated paper
Four Layers Corrugated paper : AB/BB/BC/EE
Cardboard paper is above the 300gsm
Top Sheet
1.Cardboard from 150gsm to 500gsm;
2.The kraft paper from the 145gsm to 500gsm;
3.The glossy/art paper is above the 120gsm.
Bottom Sheet
1.A/B/C/E/F corrugated paper;
2.The four layers corrugated paper:AB/BB/BC/BE/EE;
3.The gray board paper from 600gsm to 1800gsm;
4.The cardboard is above the 300gsm.
Glue
Cornstarch glue or the glue is suitable for the flute laminating machine.
The Spare Part List for laminating machine(free)
1.Synchronous belt:8M*35*2400MM:1PC
2.Sucking belt:1040*120*4MM:1PCS
3.The red rubber belt:Φ4:20M
4.Feeder tablet:2PCS
5.Feeder sucking rubber ring:10PCS
6.Delta-ring:4PCS
7.Electric soldering iron:1PC
8.Oil gun:1PC
9.TOOLBOX:1SET
Remark:these spare parts will be sent with the machine.
Configuration
PRY-HG Series Heavy Duty Type Intelligent Adjustment Cardboard Flute Laminating Machine 2

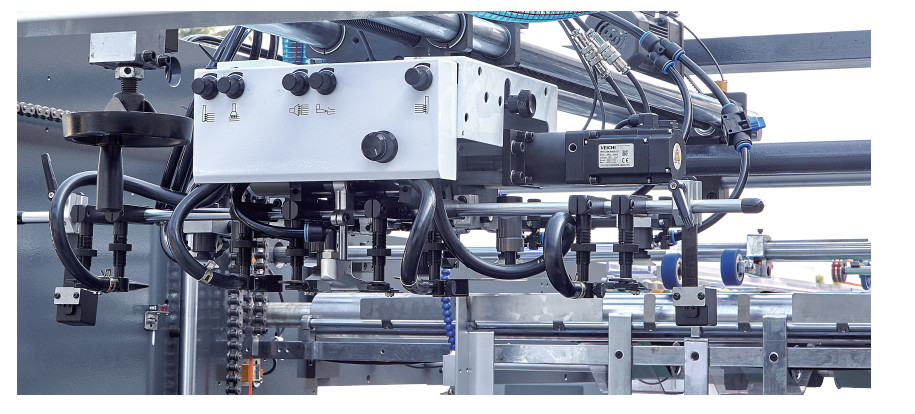

Top Sheet Feeding Mechanism
Equipped with high speed auto dedicated feeder,both paper lifting and feeding nozzle can freely adjust angle to the paper,to ensure that whether thick or thin paper can be delivered rapidly and smoothly.
PRY-HG Series Heavy Duty Type Intelligent Adjustment Cardboard Flute Laminating Machine 3
Bottom Paper Feeding
Use imported Servo motor electric controlling system,with Japan NITTA suction belt to make suction power inverter,could run both corrugated paper and cardboard that is above 300gsm.
PRY-HG Series Heavy Duty Type Intelligent Adjustment Cardboard Flute Laminating Machine 4
Side-pulling Positioning
Using side-pulling balls for the top sheet positiong,making it always passing in one direction,performing high accuracy for the side alignment.
PRY-HG Series Heavy Duty Type Intelligent Adjustment Cardboard Flute Laminating Machine 5
Positioning System
Using groups of photoelectric sensing bottom paper forward relative position,control top paper on both sides of the servo motor,independent compensation action,the top paper and bottom paper precision laminated.
PRY-HG Series Heavy Duty Type Intelligent Adjustment Cardboard Flute Laminating Machine 6
Transmission Part
Imported double toothed synchronous belt drive,equipped with a tensioning device to ensure the accuracy of the transmission,stable,low noise.
PRY-HG Series Heavy Duty Type Intelligent Adjustment Cardboard Flute Laminating Machine 7
Glue Roller
Stainless steel roller,never rust,after narrowly grinding,guaranteed the minimum amount glue coated evenly.Down roller be cleaned by water roller.The diameter has been enlarged to Φ165mm to ensure a stable running for high speed and no glue splashing.
PRY-HG Series Heavy Duty Type Intelligent Adjustment Cardboard Flute Laminating Machine 8PRY-HG Series Heavy Duty Type Intelligent Adjustment Cardboard Flute Laminating Machine 9
Electrical System
Designed in the accordance with European CE requirement,ensure machine stability,high efficiency and low failure.Using man-machine interface and PLC combination,display all the information,such as warning,error detect,failures,and operating speed.
Pre-stack Section
Pre-stack pile of paper under the condition of non-stop,the piled sheet could also be pushed in directly by the forklift;improve efficiency.The special design of the pre stack paper frame,save time and effort.
PRY-HG Series Heavy Duty Type Intelligent Adjustment Cardboard Flute Laminating Machine 10
PRY-HG Series Heavy Duty Type Intelligent Adjustment Cardboard Flute Laminating Machine 11
PRY-HG Series Heavy Duty Type Intelligent Adjustment Cardboard Flute Laminating Machine 12
PRY-HG Series Heavy Duty Type Intelligent Adjustment Cardboard Flute Laminating Machine 13
PRY-HG Series Heavy Duty Type Intelligent Adjustment Cardboard Flute Laminating Machine 14
PRY-HG Series Heavy Duty Type Intelligent Adjustment Cardboard Flute Laminating Machine 15
PRY-HG Series Heavy Duty Type Intelligent Adjustment Cardboard Flute Laminating Machine 16
PRY-HG Series Heavy Duty Type Intelligent Adjustment Cardboard Flute Laminating Machine 17
Q1.Are you a manufacturer or a trading company?
A:Our shanghai office is mainly doing export.We have our own factory in Wenzhou,Zhejiang Province.
Q2.What is the machine warranty?
A:One year.After the warranty,we still provide technical support to buyer at low cost.
Q3.What is the production time while placing order?
A:Normally about 10-20 days.
Q4.What is the delivery time?
A:15-30days after deposit.
Q5.Can your company handle shipping for customers?
A:Yes,just give us destination sea port or container yard.
Q6.Does the packing strong?
A:Yes.Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions.A full set of maintenance and operation manuals is included.
Q7.How about the machine installation and training?
A:1)We provide training in our factory for free; 2)We can send technicians (engineers) to your factory for installation and training.You shall pay the round trip air fare and accommodations,plus each technician charges USD100/per day.
Q8.Do you have machines in stock?
A:For standard model,we have a large quantity in stock.For special model,we need 20-30 days to produce it for you.
Q9.How can you assure the machines’ quality?
A:Each machine will be test running at least 24 hours before delivery to assure the quality.And during the warranty,we will give spare parts for free if machine has any problem.
Q10.Do you inspect machines or test running before packing?
A:Of course we do.We have QC department to debug the machine before packing.If you want to use specific material to do the test running,you need to pay for the cost of the material.
Q11.What’s the payment term?
A:T/T 30% in advance,the balance shall be paid before delivery.We also accept payment by West Union or L/C at sight.
Q12.Do you accept factory visiting?
A:Warmly welcome for your visiting.
Q13.How many years are you in printing field?
A:The Shanghai company since in 2008,the factory is more than 25years.
Q14.How many clients do you have?
A:We have sold our machines to about 60 countries.We have agents in South Africa,Morocco and Italy.
