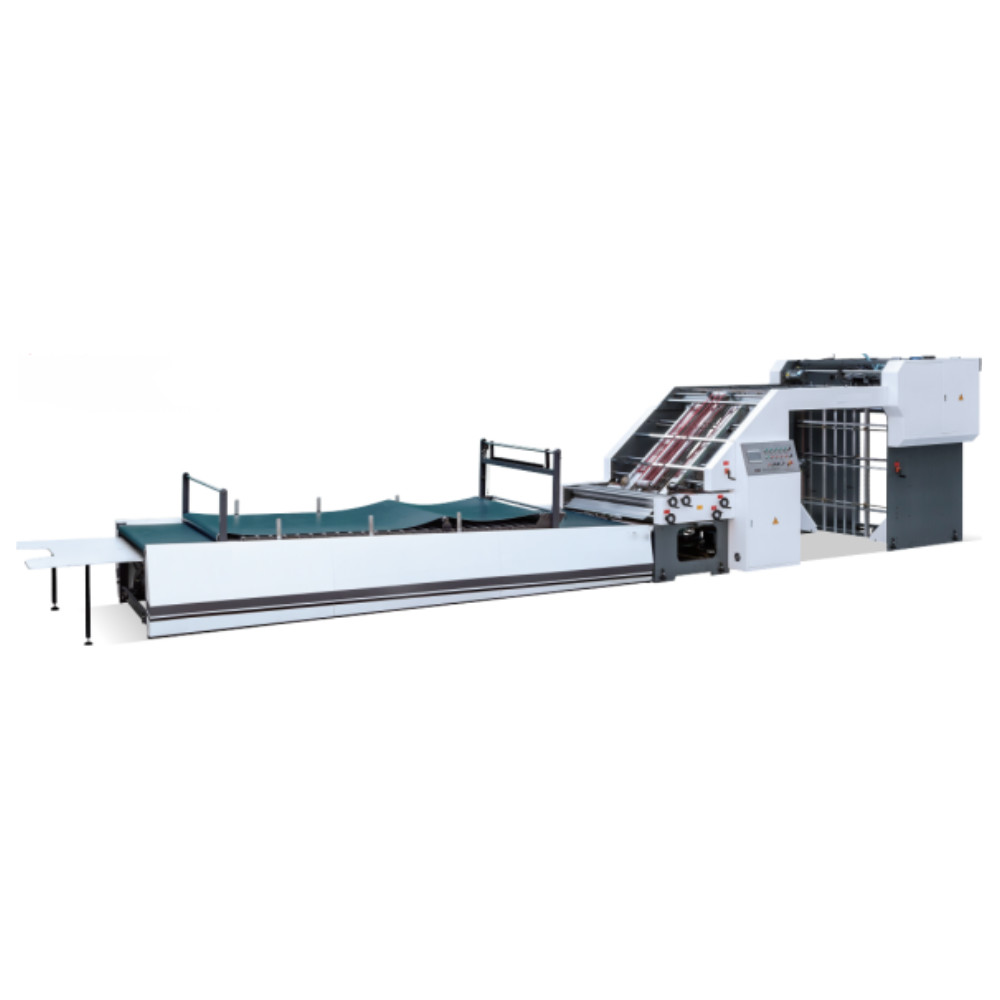

PRY-F Series Fully Automatic Servo Type Paper Flute Laminating Machine

PRY-F Series Fully Automatic Servo Type Paper Flute Laminating Machine
PRY-F Series Fully Automatic Servo Type Paper Flute Laminating Machine
PRY-F Series Fully Automatic Servo Type Paper Flute Laminating Machine
Basic Information
Place of Origin: China
Brand Name: PRINTYOUNG
Certification: CE
Model Number: PRY-F
Minimum Order Quantity: 1 Set
Price: US 39000~45000 Set
Packaging Details: Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.
Delivery Time: 30 days
Payment Terms: L/C, T/T
Supply Ability: 30 Set/Sets per Month
Contact Now
Model: PRY-F Max Sheet Size: 1150 * 1150 Mm , 1450 * 1450 Mm , 1650 * 1650 Mm
Min Sheet Size: 350 * 350 Mm , 380 * 350 Mm , 380 * 350 Mm Top Paper Thickness: 120 ~ 500 Gsm , 120 ~ 600 Gsm , 120 ~ 500 Gsm
Fitting Precision: ± 1.5 Mm Max Speed: 150 M/min
Weight: 5500 Kgs , 6000 Kgs , 6500 Kgs Air Consumption: 0.2 M^3/min
Overall: 10 * 2.1 * 2.3 M , 13 * 2.4 * 2.4 M , 13 * 2.6 * 2.4 M Machine Power: 22kw / 380V

PRY-F Series Fully Automatic Servo Type Paper Flute Laminating Machine 0
PRY-F Flute Laminating Machine
PRY-F Series Fully Automatic Servo Type Paper Flute Laminating Machine 1
Features
This machine adopted with motion control system and servo correction system perfect combination,using multiple sets of photoelectric sensor at the end of the paper the relative position,control top paper on both sides of the servo motor independent drive compensation action,top paper and bottom paper precise positioning.Servo laminating machine has the advantages of simple operation,only need to input the size of paper can be completed automatically adjust the machine.
Technical Parameters
PRY-F Flute Laminating Machine
Model
PRY-1150F
 PRY-1450F PRY-1650F
Max Sheet Size
1150 * 1150 mm
 1450 * 1450 mm 1650 * 1650 mm
Min Sheet Size
350 * 350 mm
 380 * 350 mm 380 * 350 mm
Top Paper Thickness
120 ~ 500 gsm
 120 ~ 600 gsm 120 ~ 500 gsm
Fitting Precision
± 1.5 mm
Max Speed
150 m/min
Weight
5500 kgs
 6000 kgs 6500 kgs
Air Consumption
0.2 m3/min
Overall
10 * 2.1 * 2.3 m
 13 * 2.4 * 2.4 m 13 * 2.6 * 2.4 m
Machine Power
22kw / 380V
Bottom Paper
A , B , C , E , F , G Corrugated paper
Four Layers Corrugated paper : AB/BB/BC/EE
Cardboard paper is above the 300gsm
Configuration
PRY-F Series Fully Automatic Servo Type Paper Flute Laminating Machine 2
Top Sheet Feeding Mechanism
Shaftless feeder transmission,equipped with high speed auto dedicated feeder,both paper lifting and feeding nozzle can freely adjust angle to the paper,to ensure that whether thick or thin paper can be delivered rapidly and smoothly.
PRY-F Series Fully Automatic Servo Type Paper Flute Laminating Machine 3
Bottom Paper Feeding
Use imported Servo motor electric controlling system,with Japan NITTA suction belt to make suction power inverter;Patented technology to ensure corrugate and cardboard goes out smoothly and simple operation.
PRY-F Series Fully Automatic Servo Type Paper Flute Laminating Machine 4
Positioning System
Using groups of photoelectric sensing bottom paper forward relative position,control top paper on both sides of the servo motor,independent compensation action,the top paper and bottom paper precision laminated.
PRY-F Series Fully Automatic Servo Type Paper Flute Laminating Machine 5
Transmission Part
Imported double toothed synchronous belt drive,equipped with a tensioning device to ensure the accuracy of the transmission,stable,low noise.
PRY-F Series Fully Automatic Servo Type Paper Flute Laminating Machine 6
Glue Roller
Stainless steel roller, never rust,after narrowly grinding,guaranteed the minimum amount glue coated evenly. Down roller be cleaned by water roller.
PRY-F Series Fully Automatic Servo Type Paper Flute Laminating Machine 7
Electrical System
Designed in the accordance with European CE requirement,ensure machine stability, high efficiency and low failure.Using man-machine interface and PLC combination, display all the information,such as warning,error detect,failures,and operating speed, etc on the screen at a glance.
PRY-F Series Fully Automatic Servo Type Paper Flute Laminating Machine 8
Pre-stack Section
Pre-stack pile of paper under the condition of non-stop,the piled sheet could also be pushed in directly by the forklift;improve efficiency.The special design of the pre stack paper frame,save time and effort.
PRY-F Series Fully Automatic Servo Type Paper Flute Laminating Machine 9
Leading Edge Feeding System
This system is for option,more suitable for large size and thick bottom sheets.
PRY-F Series Fully Automatic Servo Type Paper Flute Laminating Machine 10
PRY-F Series Fully Automatic Servo Type Paper Flute Laminating Machine 11
PRY-F Series Fully Automatic Servo Type Paper Flute Laminating Machine 12
PRY-F Series Fully Automatic Servo Type Paper Flute Laminating Machine 13
PRY-F Series Fully Automatic Servo Type Paper Flute Laminating Machine 14
PRY-F Series Fully Automatic Servo Type Paper Flute Laminating Machine 15
PRY-F Series Fully Automatic Servo Type Paper Flute Laminating Machine 16
PRY-F Series Fully Automatic Servo Type Paper Flute Laminating Machine 17
Q1.Are you a manufacturer or a trading company?
A:Our shanghai office is mainly doing export.We have our own factory in Wenzhou,Zhejiang Province.
Q2.What is the machine warranty?
A:One year.After the warranty,we still provide technical support to buyer at low cost.
Q3.What is the production time while placing order?
A:Normally about 10-20 days.
Q4.What is the delivery time?
A:15-30days after deposit.
Q5.Can your company handle shipping for customers?
A:Yes,just give us destination sea port or container yard.
Q6.Does the packing strong?
A:Yes.Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions.A full set of maintenance and operation manuals is included.
Q7.How about the machine installation and training?
A:1)We provide training in our factory for free; 2)We can send technicians (engineers) to your factory for installation and training.You shall pay the round trip air fare and accommodations,plus each technician charges USD100/per day.
Q8.Do you have machines in stock?
A:For standard model,we have a large quantity in stock.For special model,we need 20-30 days to produce it for you.
Q9.How can you assure the machines’ quality?
A:Each machine will be test running at least 24 hours before delivery to assure the quality.And during the warranty,we will give spare parts for free if machine has any problem.
Q10.Do you inspect machines or test running before packing?
A:Of course we do.We have QC department to debug the machine before packing.If you want to use specific material to do the test running,you need to pay for the cost of the material.
Q11.What’s the payment term?
A:T/T 30% in advance,the balance shall be paid before delivery.We also accept payment by West Union or L/C at sight.
Q12.Do you accept factory visiting?
A:Warmly welcome for your visiting.
Q13.How many years are you in printing field?
A:The Shanghai company since in 2008,the factory is more than 25years.
Q14.How many clients do you have?
A:We have sold our machines to about 60 countries.We have agents in South Africa,Morocco and Italy.
