Home ProductsFolder Gluer MachinePRY-2600 High Speed Full Automatic Folder Gluer Machine with Strapping Unit

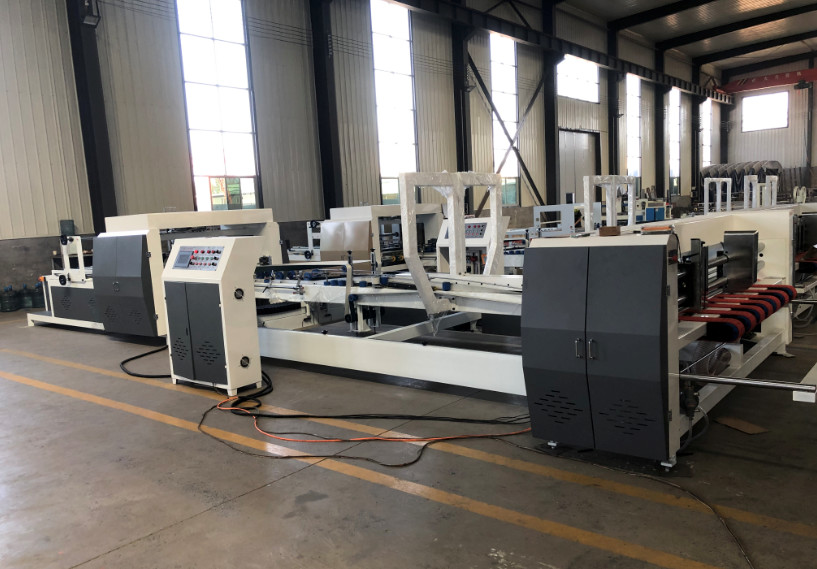

PRY-2600 High Speed Full Automatic Folder Gluer Machine with Strapping Unit

PRY-2600 High Speed Full Automatic Folder Gluer Machine with Strapping Unit
PRY-2600 High Speed Full Automatic Folder Gluer Machine with Strapping Unit
PRY-2600 High Speed Full Automatic Folder Gluer Machine with Strapping Unit
Basic Information
Place of Origin: China
Brand Name: PRINTYOUNG
Certification: CE
Model Number: PRY-2600
Minimum Order Quantity: 1 Set
Price: US 16500 Set
Packaging Details: Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.
Delivery Time: 30 days
Payment Terms: L/C, T/T
Supply Ability: 30 Set/Sets per Month
Contact Now
Max. Cardboard: 1200 * 2600 Mm Min. Cardboard: 170 * 700 Mm
Power Required: 11 Kw Weight: 8.5 Ton
Speed: 5000 ~ 8000 Pcs/h Paperboard Thickness: 3 Or 5 Layer Cardboard

PRY-2600 High Speed Full Automatic Folder Gluer Machine with Strapping Unit 0
PRY-2600 Folder Gluer Machine with Strapping Unit
PRY-2600 High Speed Full Automatic Folder Gluer Machine with Strapping Unit 1
Features
1.Automatically finish the top folding and middle folding,meanwhile finish the glue belt glue of the upper and down part,save labor and time.
2.Suitable range is wide,can be used in different size of carton,puicd and convenient to adjust.
3.The machine work steadly and reliable,the effect is firm and good looking.
4.Easy to operate and easy to maintain.
5.Automatic amend the carton right-angle degree.
Technical Parameters
PRY-2600 High Speed Full Automatic Folder Gluer Machine with Strapping Unit 2
PRY-2600 Folder Gluer Machine

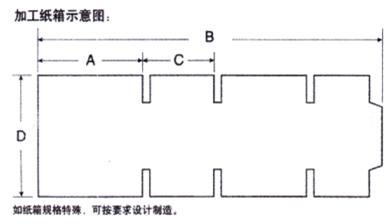

Model
PRY-2600
Max. Cardboard
1200 * 2600 mm
Min. Cardboard
170 * 700 mm
Max. Size A
880 mm
Min. Size A
80 mm
Max. Size C
840 mm
Min. Size C
160 mm
Max. Size D
1200 mm
Min. Size D
170 mm
Max. Size B
2600 mm
Min. Size B
700 mm
Power Required
11 kw
Weight
8.5 ton
Speed
5000 ~ 8000 pcs/h
Paperboard Thickness
3 or 5 layer cardboard
Diemensions
15000 * 4200 * 1600 mm
Configuration
PRY-2600 High Speed Full Automatic Folder Gluer Machine with Strapping Unit 3PRY-2600 High Speed Full Automatic Folder Gluer Machine with Strapping Unit 4

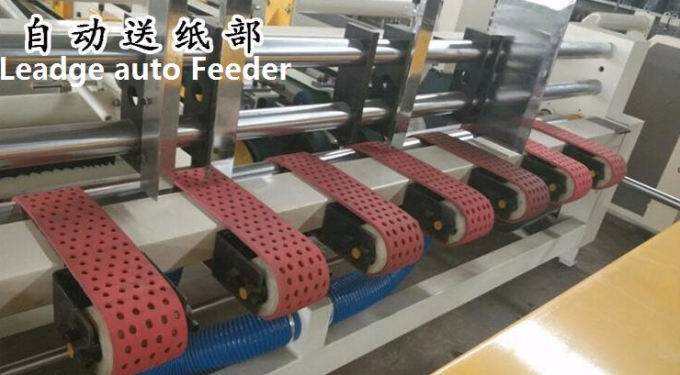

Feeding Part

1.Suction belt front edge feeding,accurate and reliable.
2.High quality electromagnetic clutch and brake system,and this section can be controlled along,easy operation.
3.The height of the pressing wheel can be adjusted;suitable for 2-10mm thickness of cardboard.
4.Linking action with folding section,speed is adjusted by VFD,feeding speed : 0 ~ 150 sheets/min.
5.The positions of the front baffle and the feeding belts can be adjusted.
PRY-2600 High Speed Full Automatic Folder Gluer Machine with Strapping Unit 5PRY-2600 High Speed Full Automatic Folder Gluer Machine with Strapping Unit 6

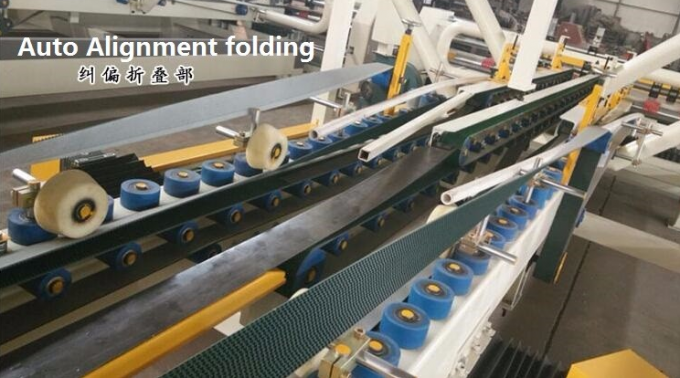

Folder Gluer Part

1.The main motor is VFD speed adjustment; without noise,flexible speed adjustment, stability.
2.Imported transportation belts.

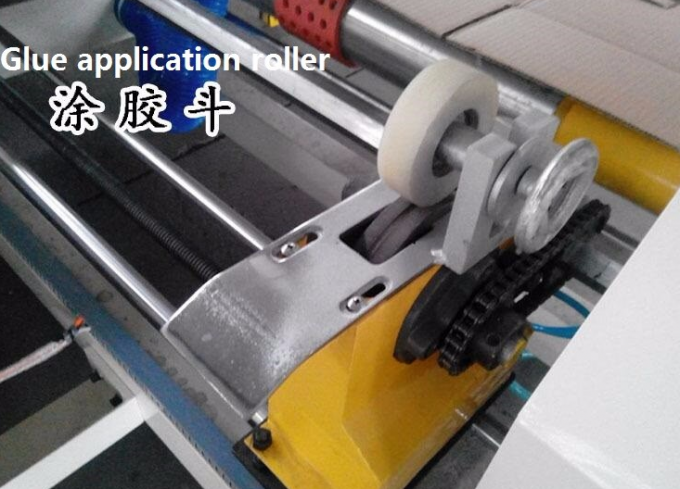

3.Stainless steel glue wheel.
4.There are paperboard and creasing correction device.
5.High advanced edge alignment device, servo motor drive,PLC control.
PRY-2600 High Speed Full Automatic Folder Gluer Machine with Strapping Unit 7PRY-2600 High Speed Full Automatic Folder Gluer Machine with Strapping Unit 8

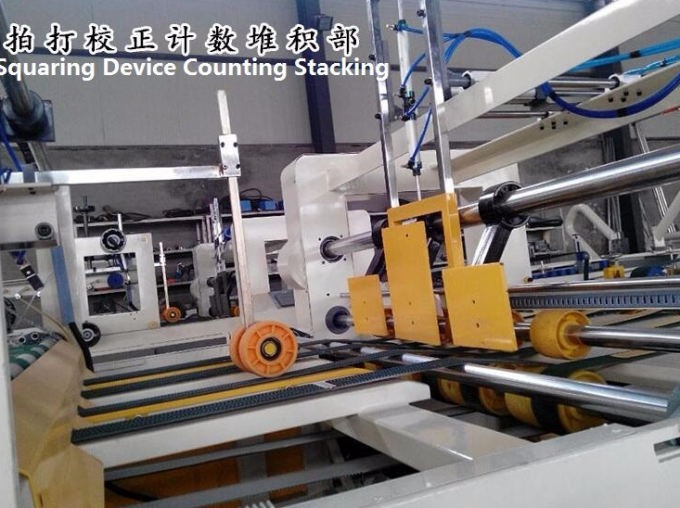

Counter and Stacker Part

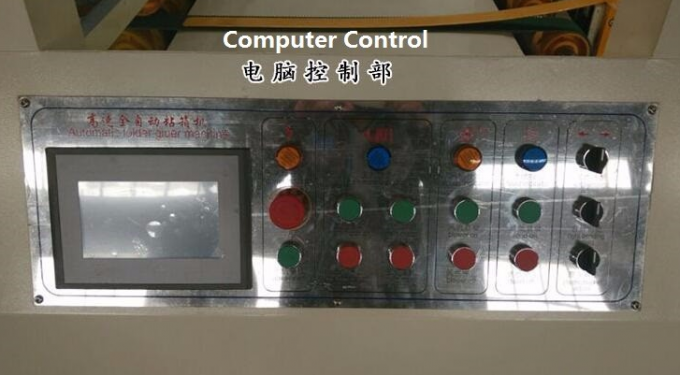

1.PLC and touch screen digital control,can input parameters without stopping the machine;automatic counting and stacking.
2.Having stacking ordering function.
3.Pneumatic counting and stacking.
4.Carton delivered by bottom belt and top synchronous pressing belt;pile height:8-25 pieces of carton sheets.
5.Separated VFD stacking speed adjusting0-140m/min.

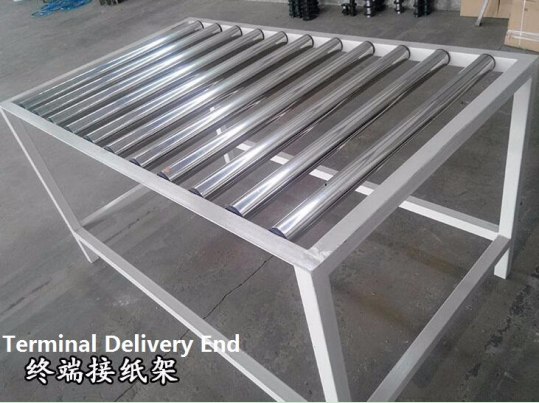

PRY-2600 High Speed Full Automatic Folder Gluer Machine with Strapping Unit 9PRY-2600 High Speed Full Automatic Folder Gluer Machine with Strapping Unit 10

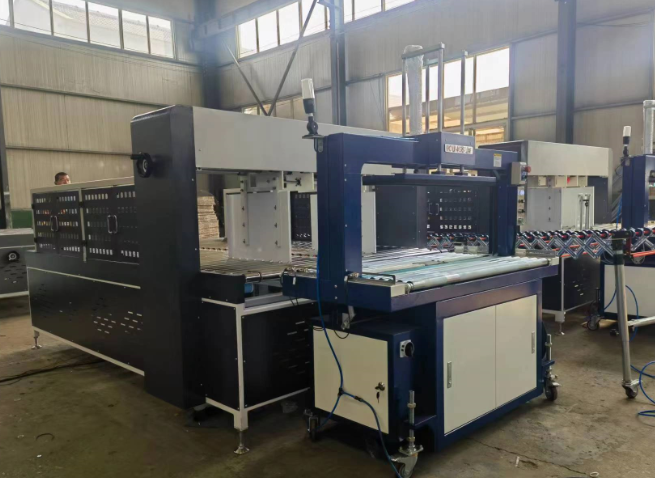

Automatic Strapping Machine

★Usage and Characteristic
Automatic strapping machine is mainly used in automatic sticky box machine/output after automatic strapping automatic order box machine,the machine by turning,taken together, pressurized banding.Using PP strapping,strong,do not rebound,paper edge damage.The whole process automatically,without human intervention,can save a lot of artificial cost. Such as color,paper products factory packaging equipment for increasing the income of enterprises and reducing consumption.
★Main Structure
The machine contains four parts:Receive board and turn part,clear up and patting part,delivery part,pressure strapping part.
★Each Part Characteristic and Function
(1)Receive Board and Turn Part
※ Smoothly receive cardboard before prior conveying.
※ Double touch type steering,will be 90 degrees of corner cardboard.
(2)Clear Up and Patting Part
※ Can be adjusted according to different specifications carton size.
※ Arrange positioning automatically four direction taken together,and then delivery.
(3)Delivery Part
After finishing send carton smoothly,improve the work efficiency.
(4)Pressure Strapping Part
※ Pneumatic pressure will be more than one solid board.
※ PP belt automatically,the elastic can be adjusted,paper edge damage light.
※ Automatic adaptation cardboard size.
※ Photoelectric sensing detection strap position.
※ 1~2 Road,the use of knob switch.
※ Strapping automatically after delivery.
(5)Work Procedure
Receive paper and turn→pat and clear up→delivery→press and strap→finish delivery
(6)Strapping Unit
The strapping head used Youngsun brand.
★Technique Parameter
Raw Material
PP
Model
width 5mm , thickness 0.5 ~ 0.8 mm
Max. Bundle Power
45 kg
Overall Dimension
3800 * 2200 * 2100 mm
Machine Weight
1.5 T
Working Table Height
850 mm
Supply Weight
80 kg
Max. Sheet Size(Folder Size)
1250 * 1100 mm
Min. Sheet Size
300 * 400 mm
Speed
≤ 1.5 second/bundle
Glue Model
hot melting

Glue Type
bottom glue , bonding surface ≥ 90%
bonding position deviation ≤ 1.5 mm
Power
2.2 kw
Power Supply
220V / 50Hz (can according to the customer needs)
Gas Pressure
0.5 ~ 0.8 MPa
★The Main Features
A. To adapt to the automatic sticky box carton strapping.
B. Reduce human dependence,replacing workers operation.
C. Compact work,don't need human intervention.
D. Strapping good carton has sticky mouth is strong,strong,do not rebound,low box edge breakage,etc.
E. Choose and employ persons,less speed,than the ordinary strapping machine is 2 ~ 4 provinces,than manual strapping province 10 to 20 people.
F. Suitable for export packaging,green packaging,such as beverage containers,beer case, instant noodles,boxes,cases of high grade ceramic tile packaging carton.
PRY-2600 High Speed Full Automatic Folder Gluer Machine with Strapping Unit 11
PRY-2600 High Speed Full Automatic Folder Gluer Machine with Strapping Unit 12
PRY-2600 High Speed Full Automatic Folder Gluer Machine with Strapping Unit 13
PRY-2600 High Speed Full Automatic Folder Gluer Machine with Strapping Unit 14
PRY-2600 High Speed Full Automatic Folder Gluer Machine with Strapping Unit 15
PRY-2600 High Speed Full Automatic Folder Gluer Machine with Strapping Unit 16
PRY-2600 High Speed Full Automatic Folder Gluer Machine with Strapping Unit 17
PRY-2600 High Speed Full Automatic Folder Gluer Machine with Strapping Unit 18
Q1.Are you a manufacturer or a trading company?
A:Our shanghai office is mainly doing export.We have our own factory in Wenzhou,Zhejiang Province.
Q2.What is the machine warranty?
A:One year.After the warranty,we still provide technical support to buyer at low cost.
Q3.What is the production time while placing order?
A:Normally about 10-20 days.
Q4.What is the delivery time?
A:15-30days after deposit.
Q5.Can your company handle shipping for customers?
A:Yes,just give us destination sea port or container yard.

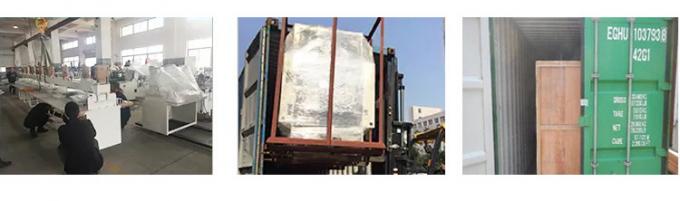

Q6.Does the packing strong?
A:Yes.Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions.A full set of maintenance and operation manuals is included.
Q7.How about the machine installation and training?
A:1)We provide training in our factory for free; 2)We can send technicians (engineers) to your factory for installation and training.You shall pay the round trip air fare and accommodations,plus each technician charges USD100/per day.
Q8.Do you have machines in stock?
A:For standard model,we have a large quantity in stock.For special model,we need 20-30 days to produce it for you.
Q9.How can you assure the machines’ quality?
A:Each machine will be test running at least 24 hours before delivery to assure the quality.And during the warranty,we will give spare parts for free if machine has any problem.
Q10.Do you inspect machines or test running before packing?
A:Of course we do.We have QC department to debug the machine before packing.If you want to use specific material to do the test running,you need to pay for the cost of the material.
Q11.What’s the payment term?
A:T/T 30% in advance,the balance shall be paid before delivery.We also accept payment by West Union or L/C at sight.
Q12.Do you accept factory visiting?
A:Warmly welcome for your visiting.
Q13.How many years are you in printing field?
A:The Shanghai company since in 2008,the factory is more than 25years.
Q14.How many clients do you have?
A:We have sold our machines to about 60 countries.We have agents in South Africa,Morocco and Italy.
