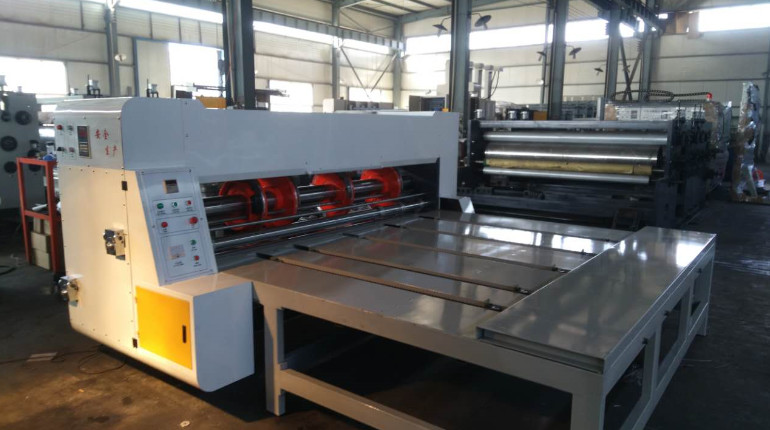

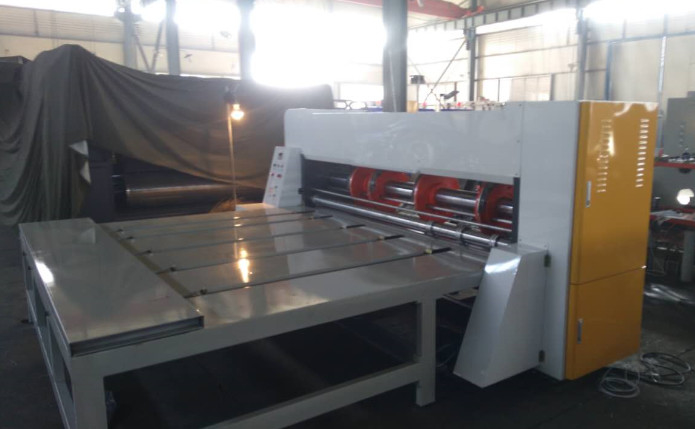

PRY-2400 Semi-automatic Chain Feeder Paper Cardboard Slotting Machine

PRY-2400 Semi-automatic Chain Feeder Paper Cardboard Slotting Machine
PRY-2400 Semi-automatic Chain Feeder Paper Cardboard Slotting Machine
PRY-2400 Semi-automatic Chain Feeder Paper Cardboard Slotting Machine PRY-2400 Semi-automatic Chain Feeder Paper Cardboard Slotting Machine
Basic Information
Place of Origin: China
Brand Name: PRINTYOUNG
Certification: CE
Model Number: PRY-2400
Minimum Order Quantity: 1 Set
Price: US 6500 Set
Packaging Details: Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.
Delivery Time: 45 days
Payment Terms: L/C, T/T
Supply Ability: 30 Set/Sets per Month
Contact Now
Machine Model: 2400 Max Feeder Size: 1200 * 2400 Mm
Adopt To Cardboard Thickness: 3/5/7 Layers Slot Width: 7 Mm
Max Speed: 70 Pcs/min Economy Speed: 40 ~ 60 Pcs/min
Weight: 2700 Kg Dimension: 2750 * 1900 * 1650 Mm

PRY-2400 Semi-automatic Chain Feeder Paper Cardboard Slotting Machine 0
PRY-2400 Semi-automatic Slotting Machine
PRY-2400 Semi-automatic Chain Feeder Paper Cardboard Slotting Machine 1
Features
Chain Feeding Unit
1.Table by a welded steel plate and channel.Table plate thickness:3.7mm.Channel is China's national standard of 10# channel steel.
2.4 to 5 groups feed chain.Each chain has three push feeder.
3.Configuration 2 side cover.Made with 5# angle iron.
4.Automatic measurement of the number of cardboard.
Slotting Unit
1.Creasing device is process balance correction,smooth operation.
2.Pressing roller adopt French Martin technology,use hard pressure the soft,the press line straight and not easy seam broken line.
3.Alloy steel after heat treatment material grinding trimming edge knife,knife edge sharp, high precision.
4.The slotting knives are from Qingdao production,using high-quality front steel material, the forging,high frequency quenching processes,finishing and become,internal tooth shape design (month teeth) knife sharp,durable.
5.Functions of the slotting unit:slot,trimming,creasing,cut angle,slit paperboard.
6.Electrically control the phase,very convenient,automatic spray lubrication,to prolong the using life of the gears and the machine.
Technical Parameters
PRY-2400 Semi-automatic Slotting Machine
Machine Model
2400
Max Feeder Size
1200 * 2400 mm
Adopt to Cardboard Thickness
3/5/7 layers
Slot Width
7 mm
Max Speed
70 pcs/min
Economy Speed
40 ~ 60 pcs/min
Weight
2700 kg
Dimension
2750 * 1900 * 1650 mm
PRY-2400 Semi-automatic Chain Feeder Paper Cardboard Slotting Machine 2
PRY-2400 Semi-automatic Chain Feeder Paper Cardboard Slotting Machine 3
PRY-2400 Semi-automatic Chain Feeder Paper Cardboard Slotting Machine 4
PRY-2400 Semi-automatic Chain Feeder Paper Cardboard Slotting Machine 5
PRY-2400 Semi-automatic Chain Feeder Paper Cardboard Slotting Machine 6
PRY-2400 Semi-automatic Chain Feeder Paper Cardboard Slotting Machine 7
PRY-2400 Semi-automatic Chain Feeder Paper Cardboard Slotting Machine 8
PRY-2400 Semi-automatic Chain Feeder Paper Cardboard Slotting Machine 9
Q1.Are you a manufacturer or a trading company?
A:Our shanghai office is mainly doing export.We have our own factory in Wenzhou,Zhejiang Province.
Q2.What is the machine warranty?
A:One year.After the warranty,we still provide technical support to buyer at low cost.
Q3.What is the production time while placing order?
A:Normally about 10-20 days.
Q4.What is the delivery time?
A:15-30days after deposit.
Q5.Can your company handle shipping for customers?
A:Yes,just give us destination sea port or container yard.
Q6.Does the packing strong?
A:Yes.Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions.A full set of maintenance and operation manuals is included.
Q7.How about the machine installation and training?
A:1)We provide training in our factory for free; 2)We can send technicians (engineers) to your factory for installation and training.You shall pay the round trip air fare and accommodations,plus each technician charges USD100/per day.
Q8.Do you have machines in stock?
A:For standard model,we have a large quantity in stock.For special model,we need 20-30 days to produce it for you.
Q9.How can you assure the machines’ quality?
A:Each machine will be test running at least 24 hours before delivery to assure the quality.And during the warranty,we will give spare parts for free if machine has any problem.
Q10.Do you inspect machines or test running before packing?
A:Of course we do.We have QC department to debug the machine before packing.If you want to use specific material to do the test running,you need to pay for the cost of the material.
Q11.What’s the payment term?
A:T/T 30% in advance,the balance shall be paid before delivery.We also accept payment by West Union or L/C at sight.
Q12.Do you accept factory visiting?
A:Warmly welcome for your visiting.
Q13.How many years are you in printing field?
A:The Shanghai company since in 2008,the factory is more than 25years.
Q14.How many clients do you have?
A:We have sold our machines to about 60 countries.We have agents in South Africa,Morocco and Italy.
