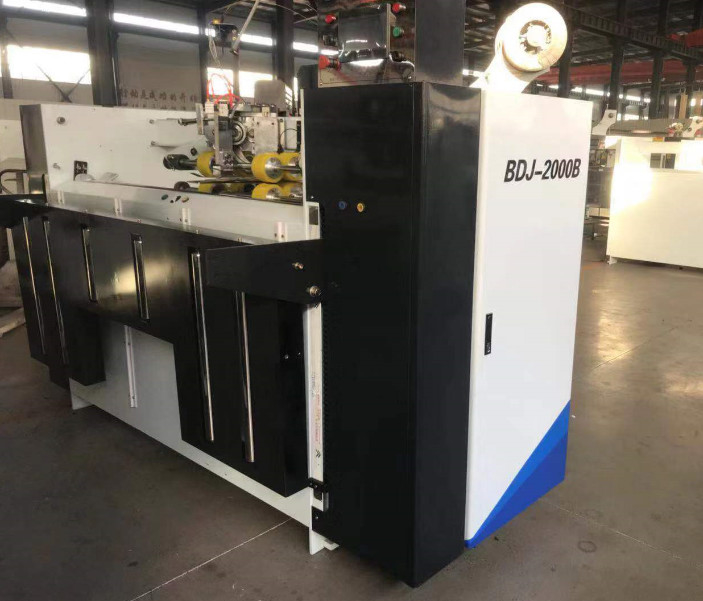

BDJ-2000 Semi-automatic Single Piece Carton Box Stitching Machine

BDJ-2000 Semi-automatic Single Piece Carton Box Stitching Machine
BDJ-2000 Semi-automatic Single Piece Carton Box Stitching Machine
BDJ-2000 Semi-automatic Single Piece Carton Box Stitching Machine BDJ-2000 Semi-automatic Single Piece Carton Box Stitching Machine
Basic Information
Place of Origin: China
Brand Name: PRINTYOUNG
Certification: CE
Model Number: BDJ2000
Minimum Order Quantity: 1 Set
Price: US 8300 Set
Packaging Details: Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.
Delivery Time: 45 days
Payment Terms: L/C, T/T
Supply Ability: 30 Set/Sets per Month
Contact Now
Max Feeder Size: 3600 Mm Min Feeder Size: 600 Mm
Max Rocking Cover: 350 Mm Min Rocking Cover: 65 Mm
Min Width: 350 Mm Max Box Width: 700 Mm
Min Box Width: 150 Mm Max Box Length: 1100 Mm
Min Box Length: 150 Mm Total Power: 4 Kw
Machine Area Covered: 2800 * 2600 Mm Machine Weight: 1500 Kg
Stitching Distance: 20 ~ 120 Mm Machine Speed: 600 Nail/min
Nail Number: 1 ~ 99

BDJ-2000 Semi-automatic Single Piece Carton Box Stitching Machine 0
BDJ-2000 Semi-automatic Carton Stitching Machine
BDJ-2000 Semi-automatic Single Piece Carton Box Stitching Machine 1
Features
1.Double servo drive,precision accurate,mechanical transmission part decreases,can effectively reduce the mechanical trouble.
2.General in large carton,outfit was quickly and effort.
3.The machine adopts computer screen shows fault and description.
4.Use horsepower:Delta servo motor.
5.Tailgate electric function.Stepping motor drive precise size,transform size easily and quickly.
6.To deliver the paper roller clearance electric adjustment.
7.Touch screen operation,parameters(nail distance,nail number,from the number of nails, tailgate).Transform convenient and quick.
8.It can nail single nail,double nail,strengthen nail completed in one-time,can be suitable for different kinds of customer requirements of nails.
9.Transform size just two to three minutes
10.Paper feeding section can automatic count,send after the bundle into the bundle.
11.Can nail has a top box and no cover box.(the first was the shortest distance to the cartons for 25 mm)
12.After playing with nail line,automatic alarm device.(avoid for nail the leakage nails, produce line of nail less bad product)
13.Semi-finished products nailing to the finished products display only need two operators. This can operate simply and reduce wages.
14.The workbench is in hydraulic platform.(optional)
BDJ-2000 Semi-automatic Single Piece Carton Box Stitching Machine 2BDJ-2000 Semi-automatic Single Piece Carton Box Stitching Machine 3
Technical Parameters
BDJ-2000 Carton Stitching Machine
Max Feeder Size (A＋B)×2
3600 mm
Min Feeder Size (A＋B)×2
600 mm
Max Rocking Cover C
350 mm
Min Rocking Cover C
65 mm
Min Width (Ｃ＋Ｄ＋Ｃ)
350 mm
Max Box Width (Ｂ)
700 mm
Min Box Width (Ｂ)
150 mm
Max Box Length (Ａ)
1100 mm
Min Box Length (Ａ)
150 mm
Total Power
4 kw
Machine Area Covered
2800 * 2600 mm
Machine Weight (kg)
1500 kg
Stitching Distance (small/bigmm)
20 ~ 120 mm
Machine Speed
600 nail/min
Nail Number
1 ~ 99
BDJ-2000 Semi-automatic Single Piece Carton Box Stitching Machine 4
BDJ-2000 Semi-automatic Single Piece Carton Box Stitching Machine 5
BDJ-2000 Semi-automatic Single Piece Carton Box Stitching Machine 6
BDJ-2000 Semi-automatic Single Piece Carton Box Stitching Machine 7
BDJ-2000 Semi-automatic Single Piece Carton Box Stitching Machine 8
BDJ-2000 Semi-automatic Single Piece Carton Box Stitching Machine 9
BDJ-2000 Semi-automatic Single Piece Carton Box Stitching Machine 10
BDJ-2000 Semi-automatic Single Piece Carton Box Stitching Machine 11
Q1.Are you a manufacturer or a trading company?
A:Our shanghai office is mainly doing export.We have our own factory in Wenzhou,Zhejiang Province.
Q2.What is the machine warranty?
A:One year.After the warranty,we still provide technical support to buyer at low cost.
Q3.What is the production time while placing order?
A:Normally about 10-20 days.
Q4.What is the delivery time?
A:15-30days after deposit.
Q5.Can your company handle shipping for customers?
A:Yes,just give us destination sea port or container yard.
Q6.Does the packing strong?
A:Yes.Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions.A full set of maintenance and operation manuals is included.
Q7.How about the machine installation and training?
A:1)We provide training in our factory for free; 2)We can send technicians (engineers) to your factory for installation and training.You shall pay the round trip air fare and accommodations,plus each technician charges USD100/per day.
Q8.Do you have machines in stock?
A:For standard model,we have a large quantity in stock.For special model,we need 20-30 days to produce it for you.
Q9.How can you assure the machines’ quality?
A:Each machine will be test running at least 24 hours before delivery to assure the quality.And during the warranty,we will give spare parts for free if machine has any problem.
Q10.Do you inspect machines or test running before packing?
A:Of course we do.We have QC department to debug the machine before packing.If you want to use specific material to do the test running,you need to pay for the cost of the material.
Q11.What’s the payment term?
A:T/T 30% in advance,the balance shall be paid before delivery.We also accept payment by West Union or L/C at sight.
Q12.Do you accept factory visiting?
A:Warmly welcome for your visiting.
Q13.How many years are you in printing field?
A:The Shanghai company since in 2008,the factory is more than 25years.
Q14.How many clients do you have?
A:We have sold our machines to about 60 countries.We have agents in South Africa,Morocco and Italy.
