Name: PRYWJ100-1800 3 Layer Steam Heating Corrugated Cardboard Machine Production Line
Brand: Shanghai Printyoung International Industry Co.,Ltd
SKU: PRYWJ100-1800
Price: 198000 USD
Availability: InStock

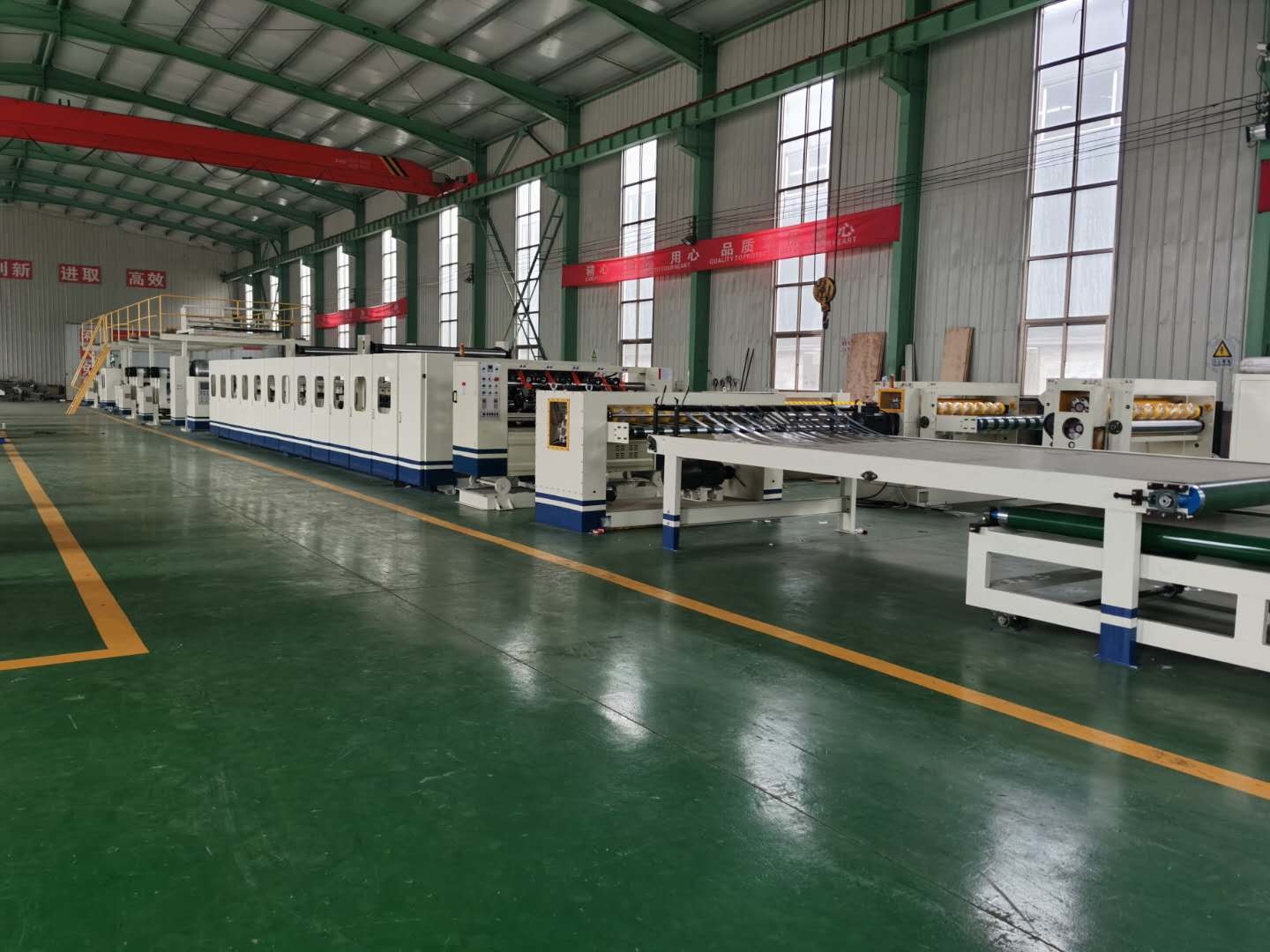

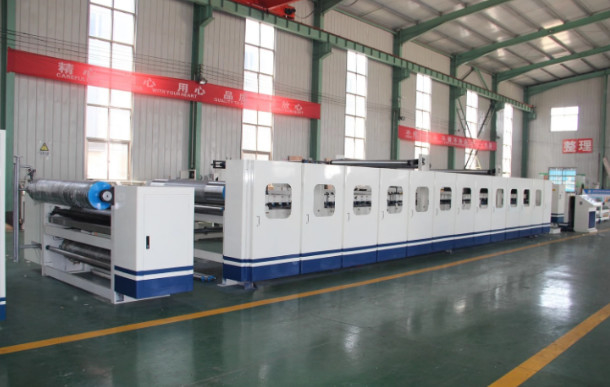

PRYWJ100-1800 Corrugated Cardboard Production Line

Technical Parameters

PRYWJ100-1800 Corrugated Cardboard Production Line
Design Speed	100 m/min
Economic Speed	40 ~ 60 m/min for five-layer cardboards
Working Width	500 ~ 1800 mm
Grade of Base Paper	≥ B
Water Rate of Base Paper	11% ± 1%
Surface Paper	150 ~ 200 g/m2
Core Paper	150 ~ 200 g/m2
Corrugated Paper	105 ~ 180 g/m2
Quantity of Steam	2500 ~ 3200 kg/h
Max. Pressure	1.6Mpa
Usual Pressure	0.98 ~ 1.12 Mpa
Production Line Length	45 m
Production line Width	6 m

Operation Style of Base Paper Stand	Electrically mechanical type
Dia. of Clip Paper	Φ350mm ~ Φ1400mm
Max. Weight of One Side	1500 kg
Working Pressure of Air Supply	0.6 ~ 0.9 MPa
Total Power	5.2 kw

*The symmetric structure can be installed with two bundles of base paper at the same time used to change papers without halt.
*This machine adopts the electrical driver to finish lifting up or down,clamping,loosening and centering the base paper.
*This machine adopts the pneumatic tension controller to adjust the tensile force of base paper.
*The head of clip paper adopts expansion style.
*The tension control adopts pneumatic braking,which can also be on-line control together with paper splicer.

Paper Feeding Trolley and Ground Rail

*The base paper is fed in operational position,conveniently and flexibly.
*The whole rail is under ground and the main structure is welded by 12# channel,firm and durable.
*Two paper feeding trolleys are used to feed papers from two sides.

SF-280D Single Facer

*The paper guiding adopts wind adsorption,keeping the stability of flutes under the condition of high speed.
*The corrugated paper is adsorbed to the middle corrugated roller to form a negative pressure zone of 180°and then to finish the rolling of corrugation through the vacuum box by fan.
*The width of suction slot of lower corrugated roller is not more than 2.6mm,able to reduce the stripe mark on single side corrugated cardboard.
*The transmission part adopts universal joint transmission and separates the vibration source,which makes the maintainability higher,the transmission more stable and the operation more reliable.
*The reducer casing adopts oil bath lubrication and closed gear transmission,reducing the vibration of machine.
*This machine adopts auto-cycle glue supply and pneumatic control glue supply and return, making it be characterized by buffering effect.
*The glue roller surface is treated with special mesh nicking and chrome-plating.
*The upper and lower corrugated rollers are made of 48CrMo high quality alloy steel.After heat-treatment, the rigidity is HRC58-62.The surface is grinded and chrome plated.
*Flute profile:up to the customer.
*Upper & lower corrugated roller:Φ280mm,48CrMo alloy steel
*Pressure Roller:Φ290mm,45# seamless steel pipe,quenched
*Glue Roller:Φ240mm,45# seamless steel pipe,surface treated with special mesh nicking and chrome-plating
*Glue Scraping Roller:Φ120mm,20# seamless steel pipe,place of origin:Chengdu
*Pre-heating Roller:Φ320mm,20G Jigang steel,wall thickness:16mm

TO-B Over Bridge

Up-front	Φ 135 mm
Up-back	Φ 135 mm
Active Roller	Φ 135 mm
Driven Roller	Φ 135 mm
Tension Roller	Φ 85 mm
Lifting Roller	Φ 85 mm
Paper Adsorption Leading Roller	Φ 85 mm

*The single side corrugated cardboard fabricated by single facer shall be transmitted to the tension brake or the suction brake for being used by the next overbridge transmission system by conveyer belt.
*The adoption of suction wind up device,the use of high pressure centrifugal frequency conversion fan vacuum adsorption cardboard,electric correction,to ensure the cardboard sticked firmly and level off.
*Two groups of operation panels are installed and controlled by electrics,which can be adjusted on or off the bridge.
*Tractor using sprocket chain drive and single machine synchronization,the single-sided corrugated board traction to the bridge,the accumulation of conveying speed is slow,thus forming a wave form,to have single-sided corrugated board to change speed to compensate the production line required.
*This machine is equipped with paper feeding stand,which adopts dual transmission slope device.The stacking speed is a little low,able to form waveform overlaps and reach the purpose of storing corrugated cardboards of single facer.

PH-B-600 Pre-Heater & Double Roller Pre-Heater

*Each roller surface is treated with exactitude milling and chrome plating,glorious and durable.
*Electrically adjusting wrap angles ensures to adjust the pre-heating area of paper within the range of 300°.
*Electrically adjusting wrap angles is suitable to different papers and different trolley speeds.
*The pre-heater roller is professionally produced,conforming to the national safety standard of pressure vessel.
*The pre-heating roller and paper leading roller are treated with electric plating.

TJ Pasting Machine

Dia. of Pre-Heating Roller	320 mm
wall Thickness	20 mm
Dia. of Paper Leading Roller	135 mm
Wall Thickness	15 mm
Dia. of Glue Roller	240 mm
Wall Thickness	30 mm
Dia. of Uniform-Glue Roller	130 mm , 45# round steel

*This machine adopts independent motor transmission and variable-frequency control.

*The surface of glue roller is treated with special mesh nicking and chrome-plating and the surface of glue scraping roller and ballast roller is treated with chrome-plating after exactly milling.

*This machine adopts the dual paper pressing roller system and pneumatic operation, convenient and flexible.

*Auto-cycle glue feeding can prevent the glue from depositing.

*This machine is matched with the pre-heating system,which can speed up glue moulding.

DF-C Double Facer Machine

Outline Size of Hot Plates	2180 * 600 * 135 mm
Material	20G steel from Jigang Group
Processing	Surface well-grinded
Joint Style	Single-plate cross form
Temperature Control	Multi-group temperature control
Pressure Style	Intensive pressure rollers
Pressure Roller	Φ 70 mm , 45# solid steel
Carrying Roller	Φ 70 mm , 45# solid steel
Main Driving Roller	upper : Φ 600 mm , lower : Φ 520 mm
Long & Short Belt Driven Roller	Φ 320 mm , 20# steel
Long & Short Belt Adjusting Roller	Φ 215 mm , 20# steel
Front & Back Belt Carrying Roller	Φ 100 mm , 20# steel
Manual Straining Roller	Φ 100 mm , 20# steel

*This whole machine adopts high intensity wide channel steel structure,firm,stable, beautiful and suitable to high-speed run.
*Hot plates are professionally fabricated,conforming to the national safety standard of pressure vessel.600mm hot plates and the inner S-shape air flow structure improve the utilization ratio of steam.Multi steel bars welded keep the hot plate non-deforming forever.
*The intensive roller pressing structure is provided to make sure the cardboard sticked firmly and shaped smoothly.
*The steam inlet and outlet of pipeline are S-shaped,keeping the temperature of hot plates steady and balance.
*The parts of hot plates separately control the temperature,suitable to the adjustment of trolley speed.
*The heavy roller of heating part adopts entirely hydraulic lifting-up,up-down steady,safe and reliable.
*The upper cotton belt is equipped with 1 set of automatic and 1 set of manual deflection–corrected system as well as 1 set of pneumatic and 1 set of manual strain device.The lower cotton belt is equipped with strain and left-right adjustment system.
*The driving part adopts big diameter netted wearable rubber,able to reduce the possibility of belt skidding and improve the operation stability of equipment.
*This machine adopts independent reducer casing driving and closed oil bath gear transmission,making little noise.

BFY Thin Blade Slitting Machine

Min. Cutting Width	140 mm
Left or Right Movement of Full Slitting Machine	± 90 mm
Working Air Pressure	0.6 ~ 0.9 MPa
Relative Humidity	20% ~ 90%
Temperature	5 ~ 50℃

*Adopting the famous variable-frequency converter of motor and keep in the same step as the production line with high precision.
*The auto-milling system can achieve the purpose of blade milling without halt during the process of production.The milling system can also set up the interval length and grinding time according to materials or the situation of trimming at any time.
*1.2mm high quality blade cuts off the cardboard at high speed,ensuring the cutting edge smooth,the flute non-deforming,beautiful and convenient for full-version printing of cardboard.

SC-B100 NC Cutter Machine

Technical Parameters
*Cutting speed:120m/min
*Length of paper cutting:500-9999mm
*Precision of paper cutting:±1mm(at steady speed)
*Cardboard:base paper<360g/m2,core paper<200g/m2
Thickness:3-14mm,water rate<10%
min. width:1000mm,angularity:<30mm
*Relative humidity:20%-90%
*Relative temperature:5℃-50℃
*Air source pressure:0.6-9MPa
*Cutter shaft: upper:Φ188mm,lower:Φ188mm
*Paper leading roller:upper-front:Φ165mm(sun gear),lower-front:Φ120mm
upper-back:Φ165mm(sun gear),lower-back:Φ120mm
Structural Features
*Special structural design:high intensity machine wallboard and base,transparent window on both sides of wallboard,convenient for examination and maintenance.
*The transmission system adopts oil pump auto-cycle lubrication to ensure the precision of transmission.
*Adopting high precision and high rigidity grinding gear with high speed paper tolerance and long service life to make sure of the precise meshing of cutting points and the cardboard clean without burr.
*High precise design of knife shaft and cutter frame ensures smooth cutting at high speed.
*Special blade changer/replacement design ensures the blade changing swift and convenient.
*The entire system adopts C.E. standard design and is subject to the strict measurement of NC industrial grade to make sure of the quality,stability and life expectancy.
*The driving part adopts AC servo with Germanic driver and domestic motor,high quality,fast and precise response.
*Adopting special power-regeneration storage design with quite good power-saving effect and very high ability of overcoming the instability of power in factories.
*The system owns the function of automatic detection,able to prevent from exception usage and damages by missing operation.
*The computer can automatically adjust the acceleration of cardboard cutting according to cardboard specifications and production speed and automatically track the transmission speed of cardboards to keep in step.
*The computer can store up to 999 orders and finish them automatically in sequence or as per the prior condition.The screen shows various kinds of production information.
*Length of cutting cardboard:500-9999mm,precision of cutting cardboard:±1mm

RS Stacker Machine

Technical Parameters
*Sheet Length:2300mm
Structural Features
*Automatically stacking and collecting cardboards;electrical output horizontally.
*Vertically joint cardboards are transmitted by wide-range belt.
*Cardboards shall be moved out by switch when the sheet quantity or height is up to requirement.

Q1.Are you a manufacturer or a trading company?

A:Our shanghai office is mainly doing export.We have our own factory in Wenzhou,Zhejiang Province.

Q2.What is the machine warranty?

A:One year.After the warranty,we still provide technical support to buyer at low cost.

Q3.What is the production time while placing order?

A:Normally about 10-20 days.

Q4.What is the delivery time?

A:15-30days after deposit.

Q5.Can your company handle shipping for customers?

A:Yes,just give us destination sea port or container yard.

Q6.Does the packing strong?

A:Yes.Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions.A full set of maintenance and operation manuals is included.

Q7.How about the machine installation and training?

A:1)We provide training in our factory for free; 2)We can send technicians (engineers) to your factory for installation and training.You shall pay the round trip air fare and accommodations,plus each technician charges USD100/per day.

Q8.Do you have machines in stock?

A:For standard model,we have a large quantity in stock.For special model,we need 20-30 days to produce it for you.

Q9.How can you assure the machines’ quality?

A:Each machine will be test running at least 24 hours before delivery to assure the quality.And during the warranty,we will give spare parts for free if machine has any problem.

Q10.Do you inspect machines or test running before packing?

A:Of course we do.We have QC department to debug the machine before packing.If you want to use specific material to do the test running,you need to pay for the cost of the material.

Q11.What’s the payment term?

A:T/T 30% in advance,the balance shall be paid before delivery.We also accept payment by West Union or L/C at sight.

Q12.Do you accept factory visiting?

A:Warmly welcome for your visiting.

Q13.How many years are you in printing field?

A:The Shanghai company since in 2008,the factory is more than 25years.

Q14.How many clients do you have?

A:We have sold our machines to about 60 countries.We have agents in South Africa,Morocco and Italy.

Tag:

Place of Origin:	China
Brand Name:	PRINTYOUNG
Certification:	CE
Model Number:	PRYWJ100-1800

Minimum Order Quantity:	1 Set
Price:	US 198000 Set
Packaging Details:	Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.
Delivery Time:	45 days
Payment Terms:	L/C, T/T
Supply Ability:	30 Set/Sets per Month

Design Speed:	100 M/min	Economic Speed:	40 ~ 60 M/min For Five-layer Cardboards
Working Width:	500 ~ 1800 Mm	Grade Of Base Paper:	≥ B
Water Rate Of Base Paper:	11% ± 1%	Surface Paper:	150 ~ 200 Gsm
Core Paper:	150 ~ 200 Gsm	Corrugated Paper:	105 ~ 180 Gsm
Quantity Of Steam:	2500 ~ 3200 Kg/h	Max. Pressure:	1.6Mpa
Usual Pressure:	0.98 ~ 1.12 Mpa	Production Line Length:	45 M
Production Line Width:	6 M
