PRY-800A Full Automatic Spot UV Curing Stop Cylinder Silk Screen Printing Pressing Machine

PRY-800A Full Automatic Spot UV Curing Stop Cylinder Silk Screen Printing Pressing Machine
PRY-800A Full Automatic Spot UV Curing Stop Cylinder Silk Screen Printing Pressing Machine
PRY-800A Full Automatic Spot UV Curing Stop Cylinder Silk Screen Printing Pressing Machine PRY-800A Full Automatic Spot UV Curing Stop Cylinder Silk Screen Printing Pressing Machine PRY-800A Full Automatic Spot UV Curing Stop Cylinder Silk Screen Printing Pressing Machine PRY-800A Full Automatic Spot UV Curing Stop Cylinder Silk Screen Printing Pressing Machine
Basic Information
Place of Origin: China
Brand Name: PRINTYOUNG
Certification: CE
Model Number: PRY-800A
Minimum Order Quantity: 1 Set
Price: US 87900 Set
Packaging Details: Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.
Delivery Time: 60 days
Payment Terms: L/C, T/T
Supply Ability: 30 Set/Sets per Month
Contact Now
Max. Paper Size: 800 * 600 Mm Min. Paper Size: 350 * 300 Mm
Max. Printing Size: 800 * 590 Mm Paper Thickness: 108 ~ 400 Gsm
Printing Speed: 1000 ~ 3300 Pcs/h Convey Speed: 60 M/min
Curing Width: 1100 Mm Cool Model: Water Cooling
Max. Pile Height: 700 Mm Pile Speed: 3600 Pcs/h

PRY-800A Full Automatic Spot UV Curing Stop Cylinder Silk Screen Printing Pressing Machine 0

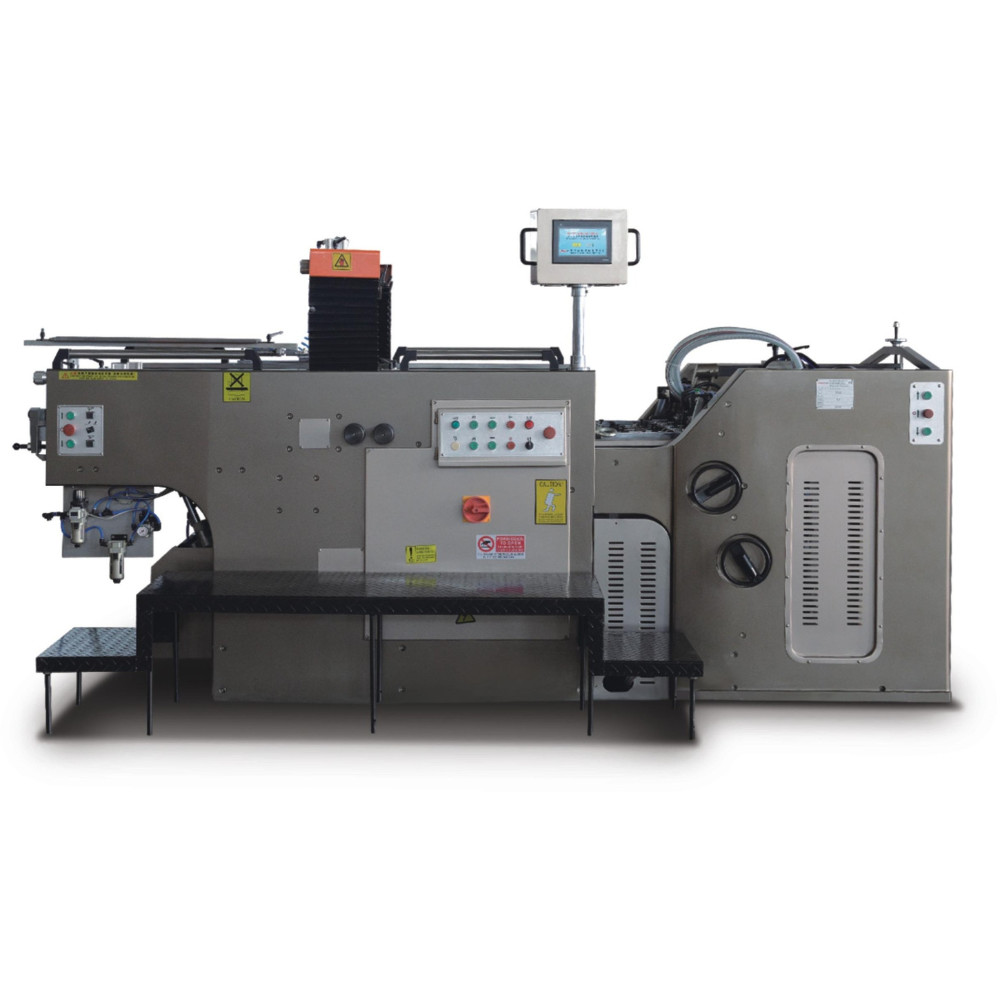

PRY-800A Stop Cylinder Screen Press
PRY-800A Full Automatic Spot UV Curing Stop Cylinder Silk Screen Printing Pressing Machine 1
Features
PRY-A series full automatic stop cylinder screen press adopts the classical stop cylinder technology with the advantages such as:paper located exactly and steadily,high precision,high speed,low noise,high degree automatization and so on,it is suitable for printing on ceramic and glass applique,electron industry (film switch,flexible circuitry, meter panel,mobile telephone),advertisement,packing and printing,brand,textile transfer,special technics etc.
Technical Parameters
PRY-800A Stop Cylinder Screen Press
Model
PRY-800A
Max. Paper Size
800 * 600 mm
Min. Paper Size
350 * 300 mm
Max. Printing Size
800 * 590 mm
Paper Thickness
108 ~ 400 gsm
Border
≤ 10 mm
Printing Speed
1000 ~ 3300 pcs/h
Power
3P 380V 50Hz 8.89kw
Weight

 4000 kgs
Overall Size
4350 * 2580 * 1680 mm
Configuration
Feeder
The original rear pick-up feeder technology taken from the offset press,ensures stable and smooth feeding of various types of substrate.Dependant on the substrate, overlapped (stream) or single sheet (universal) fed can be selected easily.A front pick up feeder is also available and can be used for stable feeding of film and other substrates.
PRY-800A Full Automatic Spot UV Curing Stop Cylinder Silk Screen Printing Pressing Machine 2PRY-800A Full Automatic Spot UV Curing Stop Cylinder Silk Screen Printing Pressing Machine 3
Feed Board
The vacuum absorb is assembled in the bottom of the feed board, matching with the push and press paper construction,insure various materials all can be delivered smoothly.
Cylinder and Registration System
Cylinder stops step automatically to ensure the forehead of the printing stock can be sent accurately to the gripper of cylinder,which is up to extreme high precision;at the same time, gripper of cylinder and pull side-lay both have sensors for supervising if the printing stock is in correct place.The vacuum cylinder with +/- 0.01mm accuracy across the cylinder surface,a large cylinder shaft and specially made high precision bearings ensure the highest quality printing at higher speed.
PRY-800A Full Automatic Spot UV Curing Stop Cylinder Silk Screen Printing Pressing Machine 4PRY-800A Full Automatic Spot UV Curing Stop Cylinder Silk Screen Printing Pressing Machine 5PRY-800A Full Automatic Spot UV Curing Stop Cylinder Silk Screen Printing Pressing Machine 6

Squeegee System

Squeegee and ink return blade are driven by individual cams and a two-step action cam helps reduce the squeegee shock onto the screen mesh.Due to the positive down cam action,the printing pressure is evenly applied to the cylinder continuously, squeegee with the pneumatically pressure kept device,resulting in sharp dot reproduction,the printing graphics is more clearly and the ink layer is more well-proportioned.
PRY-800A Full Automatic Spot UV Curing Stop Cylinder Silk Screen Printing Pressing Machine 7
Frame Circulate Railway
Imported beeline guide and ball bearing,reduce the shake and noisy when the whole machine is working under high speed,insure the stability of printing.
Delivery Board
The delivery board can be overturned up to 90 degree to allow easy access to the screen mesh for cleaning and adjusting the frame,installing the blade; along with the vacuum adsorption, insure collection smoothly.
PRY-800A Full Automatic Spot UV Curing Stop Cylinder Silk Screen Printing Pressing Machine 8PRY-800A Full Automatic Spot UV Curing Stop Cylinder Silk Screen Printing Pressing Machine 9

Screen Frame System

The screen frame rack can be pulled out,which is easy for adjusting the register or feeding, as well as cleaning the cylinder and screen frame;at the same time,it is assembled with device to hold the ink dropped to avoid the ink drops on the cylinder.

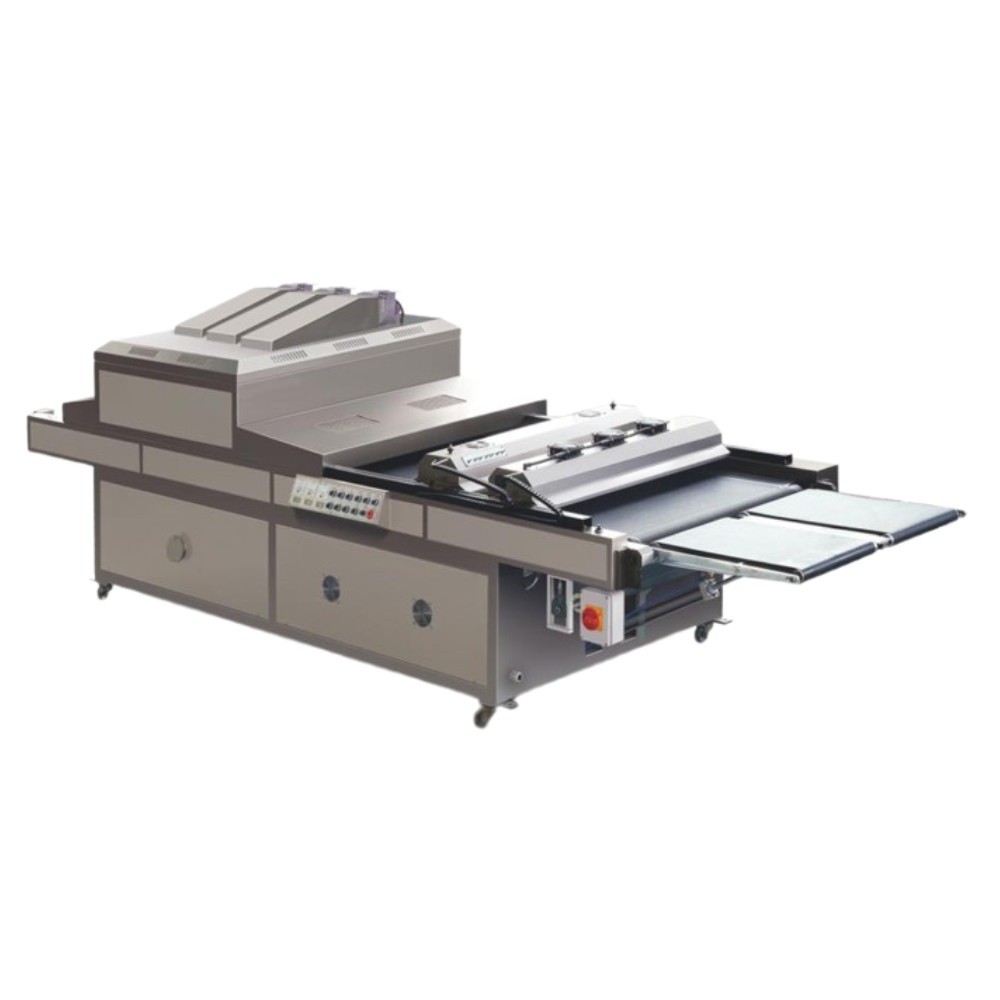

PRY-800UVJW UV Curing Machine (Stepless Adjustable)
PRY-800A Full Automatic Spot UV Curing Stop Cylinder Silk Screen Printing Pressing Machine 10
PRY-800A Full Automatic Spot UV Curing Stop Cylinder Silk Screen Printing Pressing Machine 11
PRY-800A Full Automatic Spot UV Curing Stop Cylinder Silk Screen Printing Pressing Machine 12
Features
1.Three groups of step less regulating light source,independent control,digital instrument real-time indication of the working state and service life.
2.Adopt special aluminum magnesium alloy lampshade,focusing design,high production efficiency.
3.Equipped with a reasonable cooling system,two groups of independent lampshade heat dissipation,the lower part of the adsorption system,to prevent the work chamber temperature is too high,resulting in substrate deformation.
4.The conveyor belt automatic correction system with adsorption system,easy to use,more conducive to the paper conveying;imported Teflon (TEFION) mesh belt,high temperature resistance, friction resistance, stable use to ensure long time.
5.Conveyor frequency step less speed regulation,visual production adjustment,conveying speed,up to 60 meters/min.
The advantages of step less variable power light source compared with common transformer controlled UV light source:
Wide energy range output: the output power of the lamp tube is 30% to 100%,stepless adjustable;
High power conversion rate: about 20% higher than traditional transformer drive UV energy,and can effectively extend the lamp life;
High efficiency,energy saving and environmental protection:effectively reduce the loss and reactive power of traditional transformers,save about 40% of the power consumption compared to the same year;
Comprehensive intelligent protection:more than 20 professional protection alarm mechanism,such as overheating of tube,parameter error of lamp tube,disconnection of lamp tube,etc.;
High intelligent power adaptation:standby settings,no material input,30% power standby; the material is in, within 0.5 seconds automatically to set the power;
The perfect use of safety:avoid the traditional transformer heating and wiring complex caused by security risks.
Technical Parameters
PRY-800UVJW UV Curing Machine
Model
PRY-800UVJW
Convey Speed
60 m/min
UV Lamp Power
9.7kw * 3pcs stepless
Wrinkle Lamp Power
80w * 3pcs
IR Heating for Ink Smooth Power
1.5kw * 3pcs
Curing Width
1100 mm
Convey Motor Power
400 w
Adsorption Fan Power
2.2 kw
Exhuast Fan Power
0.37kw * 3
Small Fan
40w * 13pcs
Total Power
3P 380V 50Hz 95A
Total Weight
1200 kg
Overall Size
(4.2 + 0.75) * 1.91 * 1.78 m
Application
PRY-800UVJW is specially designed for using with automatic screen printing machine,offset machine and other equipment’s.It's widely used for dying,dehumidifying and UV curing etc. in the field of screen printing, printing and dyeing, electroplating,electronic circuit board and so on.

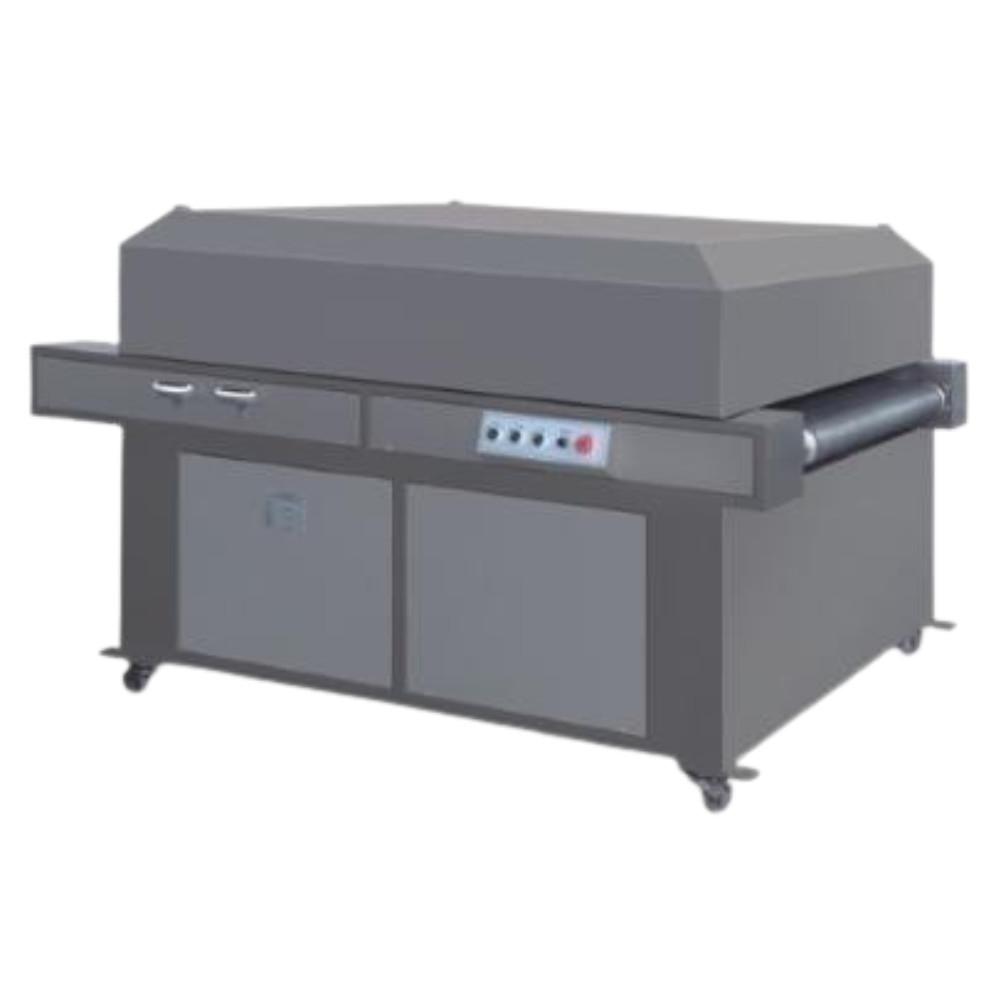

PRY-800SL Cooling Section (Optional)
PRY-800A Full Automatic Spot UV Curing Stop Cylinder Silk Screen Printing Pressing Machine 13
Features
The cooling section is connected with flat conveyor dryer or UV machine,it make the paper out from the dryer or UV machine cooling.The section need connect power independently,it with frequency conversion convey belt,can be used after oven or UV dryer,or use independently.
Technical Parameters
PRY-800SL Cooling Section
Cool Model
Water Cooling
Max. Speed
60 m/min
Powder of Convey Motor
200 W
The Lowest Temperature
15 °C
Cooling Machine Power
3HP 2.2kw Water-cool machine
Fan Power
1.1 kw
Weight
730kg + 170kg
Overall Dimension
2100 * 2400 * 1580 mm

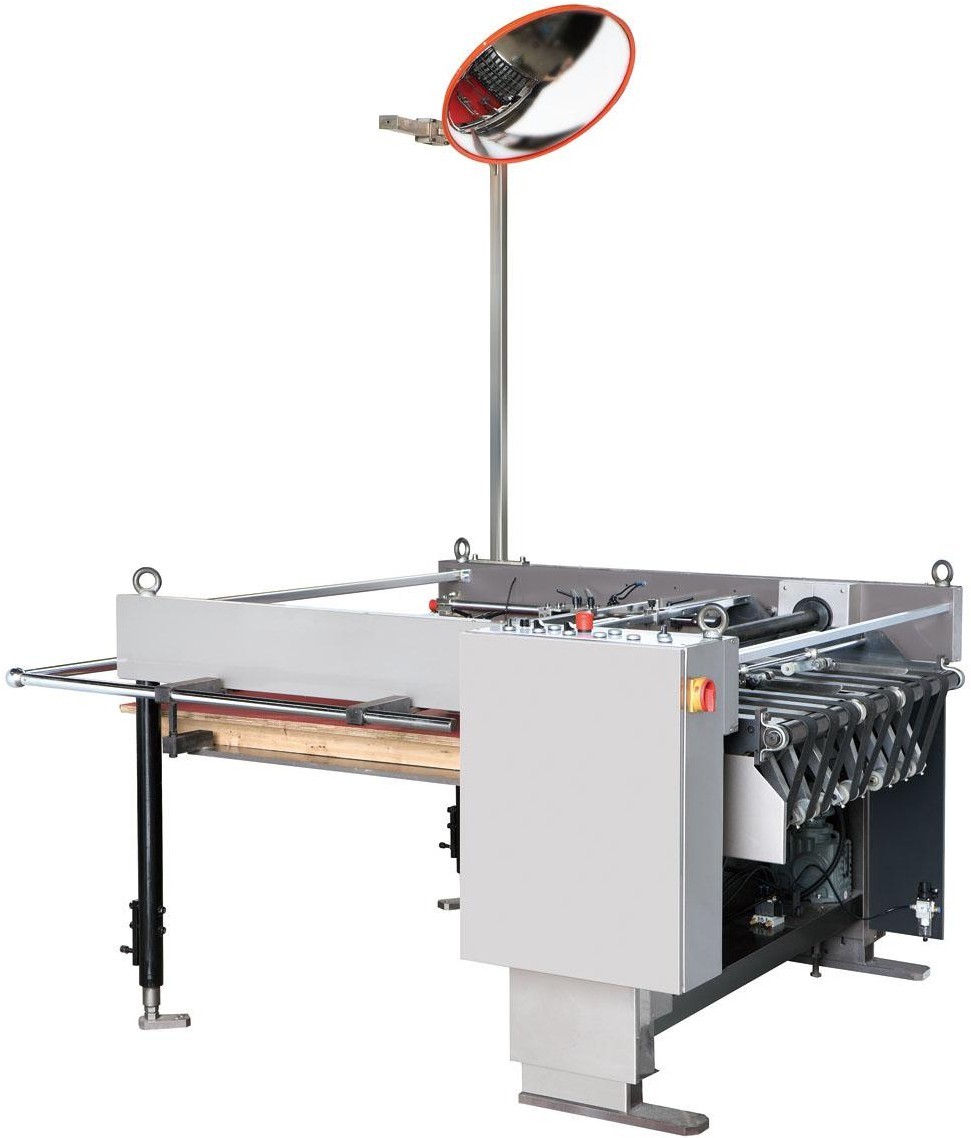

PRY-800S Full Automatic Stacker
PRY-800A Full Automatic Spot UV Curing Stop Cylinder Silk Screen Printing Pressing Machine 14
Model
JB-800S
Max. Paper Size
800 * 600 mm
Min. Paper Size
350 * 270 mm
Max. Pile Height
700 mm
Top Speed
3600 pcs/h
Installed Power
3P 380V 50Hz 0.82kw
Total Weight
550 kg
Overall Size
1500 * 1450 * 1000 mm
Features
PRY-800S full automatic stacker can combine with full-automatic cylinder type screen press and all kinds of dryer together to collect the paper and make them in order automatically.
1.The whole machine is controlled by PLC,collecting printing substrate and making the paper in order automatically.
2.Photo electricity monitoring,two sides of baffles run when the paper come into the plate.
3.Paper conveying system is controlled by inverter with stepless speed regulation and conveyor belt guide the idler wheel to feed the paper.
4.Pneumatic elements control the jogger action,which avoid paper to be broken or other damage.
5.Following all kinds of paper size,paper jogging device can be adjusted from back,left and right easily and conveniently.
6.Induction sensor make the stacking board down automatically and keep paper collect smoothly.
7.Paper stacker has limitation safety mechanism at up and down position to avoid the machine from damaged.
8.Paper jam and paper pile height supervision and make the printing press stop in-line.
9.Connected with the printing part which can control the printing part's
10.Paper counting function.
PRY-800A Full Automatic Spot UV Curing Stop Cylinder Silk Screen Printing Pressing Machine 15
PRY-800A Full Automatic Spot UV Curing Stop Cylinder Silk Screen Printing Pressing Machine 16
PRY-800A Full Automatic Spot UV Curing Stop Cylinder Silk Screen Printing Pressing Machine 17
PRY-800A Full Automatic Spot UV Curing Stop Cylinder Silk Screen Printing Pressing Machine 18
Q1.Are you a manufacturer or a trading company?
A:Our shanghai office is mainly doing export.We have our own factory in Wenzhou,Zhejiang Province.
Q2.What is the machine warranty?
A:One year.After the warranty,we still provide technical support to buyer at low cost.
Q3.What is the production time while placing order?
A:Normally about 10-20 days.
Q4.What is the delivery time?
A:15-30days after deposit.
Q5.Can your company handle shipping for customers?
A:Yes,just give us destination sea port or container yard.
Q6.Does the packing strong?
A:Yes.Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions.A full set of maintenance and operation manuals is included.
Q7.How about the machine installation and training?
A:1)We provide training in our factory for free; 2)We can send technicians (engineers) to your factory for installation and training.You shall pay the round trip air fare and accommodations,plus each technician charges USD100/per day.
Q8.Do you have machines in stock?
A:For standard model,we have a large quantity in stock.For special model,we need 20-30 days to produce it for you.
Q9.How can you assure the machines’ quality?
A:Each machine will be test running at least 24 hours before delivery to assure the quality.And during the warranty,we will give spare parts for free if machine has any problem.
Q10.Do you inspect machines or test running before packing?
A:Of course we do.We have QC department to debug the machine before packing.If you want to use specific material to do the test running,you need to pay for the cost of the material.
Q11.What’s the payment term?
A:T/T 30% in advance,the balance shall be paid before delivery.We also accept payment by West Union or L/C at sight.
Q12.Do you accept factory visiting?
A:Warmly welcome for your visiting.
Q13.How many years are you in printing field?
A:The Shanghai company since in 2008,the factory is more than 25years.
Q14.How many clients do you have?
A:We have sold our machines to about 60 countries.We have agents in South Africa,Morocco and Italy.
