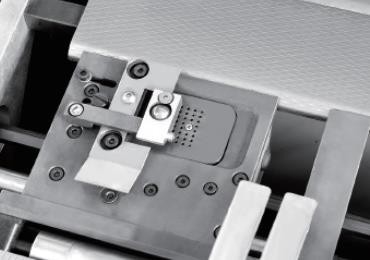

Pneumatical Push&Pull side-lay with vacuum,will not cause the graphic side print damaged or dirty printed side and graphics.
Push&Pull with higher accuracy, long position stroke,fast registration,easy operate.
With sensor,to reduce the waste.
Place of Origin: | China |
---|---|
Brand Name: | PRINTYOUNG |
Certification: | CE |
Model Number: | PRY-145AS |
Minimum Order Quantity: | 1 Set |
Price: | US 240000 Set |
Packaging Details: | Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included. |
Delivery Time: | 60 days |
Payment Terms: | L/C, T/T |
Supply Ability: | 30 Set/Sets per Month |
Max. Sheet Size: | 1460×1060mm | Min. Sheet Size: | 700×460mm |
---|---|---|---|
Max. Printing Size: | 1450×1050mm | Max. Frame Size: | 1720×1450mm |
Max. Paper Pile Height: | 90cm | Sheet Thickness: | 108-420gsm |
Printing Speed: | 400-3000 Sheet/h | Installed Power: | 3P 380V 50Hz 25.83Kw |
Weight: | 6500kg | Dimensions: | 5300×4000×2090mm |
Color & Page: | Single Color | ||
Highlight: | Automatic Servo Control Screen Printing Machines,380V Screen Printing Machines,90cm Stop Cylinder Screen Printer |

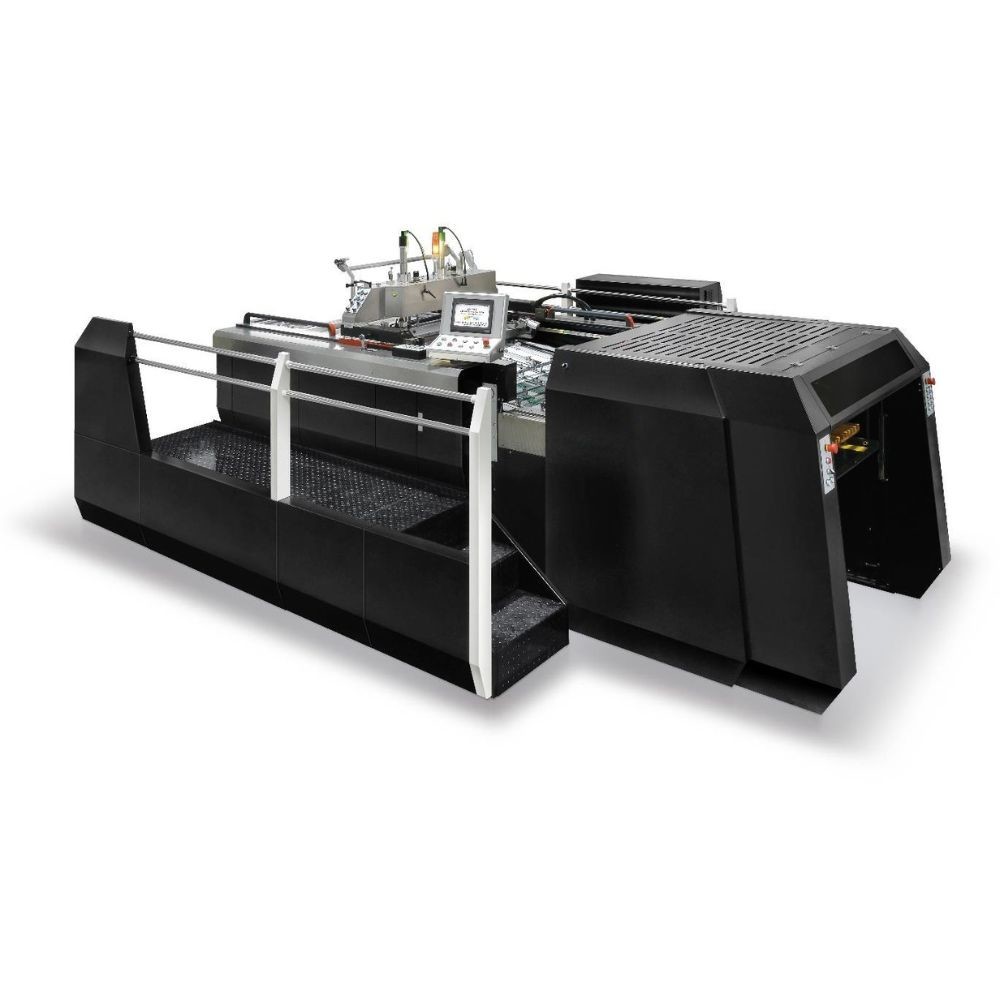

PRY-145AS Screen Printing Machine
|
|
---|---|
Max. Sheet Size
|
1460×1060mm
|
Min. Sheet Size
|
700×460mm
|
Max. Printing Size
|
1450×1050mm
|
Max. Frame Size
|
1720×1450mm
|
Max. Paper Pile Height
|
90mm
|
Sheet Thickness
|
108-420gsm
|
Printing Speed
|
400-3000sheet/h
|
Installed Power
|
3P 380V 50Hz 25.83Kw
|
Weight
|
6500kg
|
Dimensions
|
5300×4000×2090mm
|

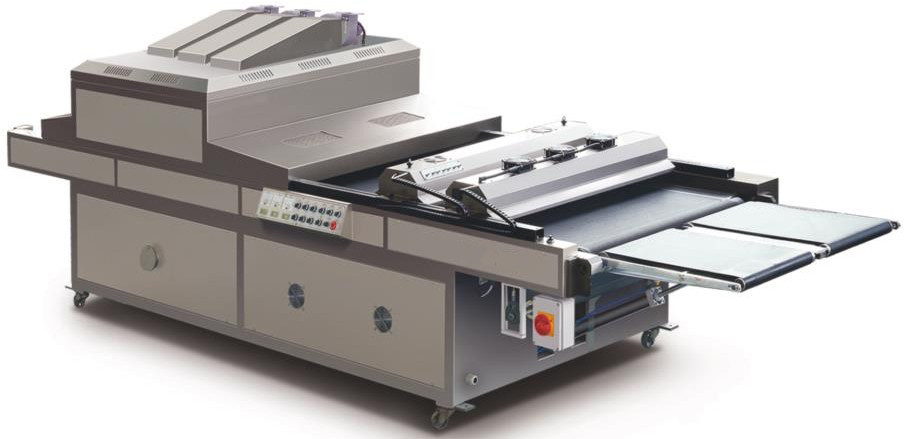

Delivery Speed
|
Max.:60m/min
|
UV Lamp
|
13 KW×3pcs
|
Wrinkle Lamp
|
80W×5pcs
|
IR Lamp(For pre-heating
and assistant flowing)
|
1.2 KW×6pcs
|
Max. Curing Width
|
1500 mm
|
Delivery Motor
|
750 W
|
Adsorption Motor
|
2.2 KW
|
Exhausting Motor
|
0.37 KW ×3
|
Small Exhausting Fan
|
40 W×15pcs
|
Electric Power
|
3P 5wire system 380V 50Hz 100A
|
Weight
|
1550 Kg
|
Size (LxWxH)
|
4.2×2.4×1.95 m
|
Max. Paper Size
|
1460×1060mm
|
Min. Paper Size
|
600×400mm
|
Max. Pile Height
|
90cm
|
Max. Speed
|
3000pcs/h
|
Power
|
3P 380V 50Hz ≈2.0kw
|
Weight
|
980kg
|
Size
|
2.41x2.55x1.82m
|
