Home ProductsPaper Processing MachineryTM-1080A Automatic Waste Paper Stripping Blanking Machine

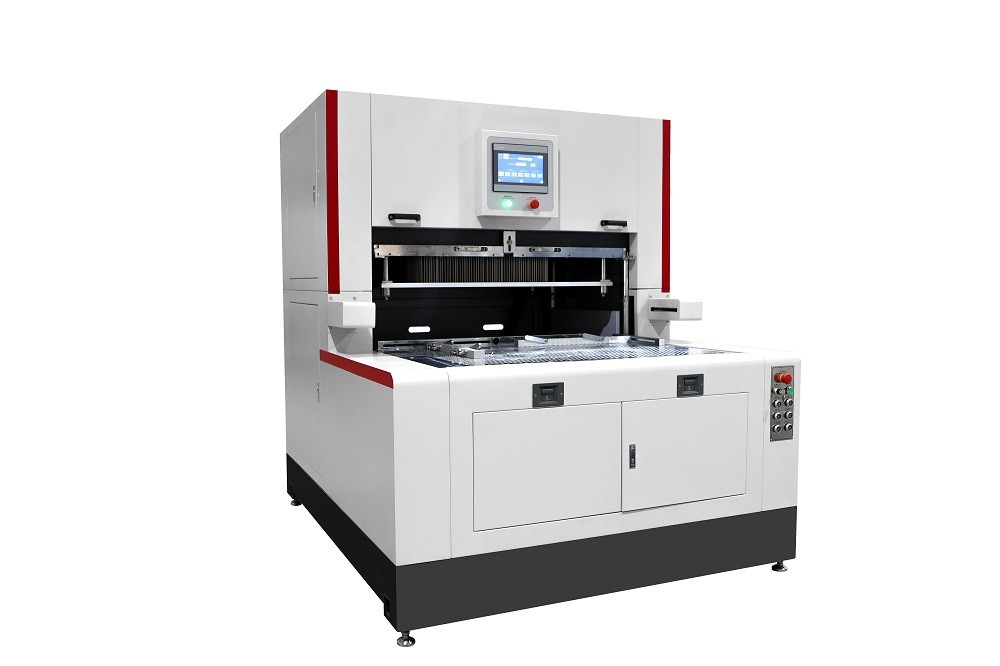

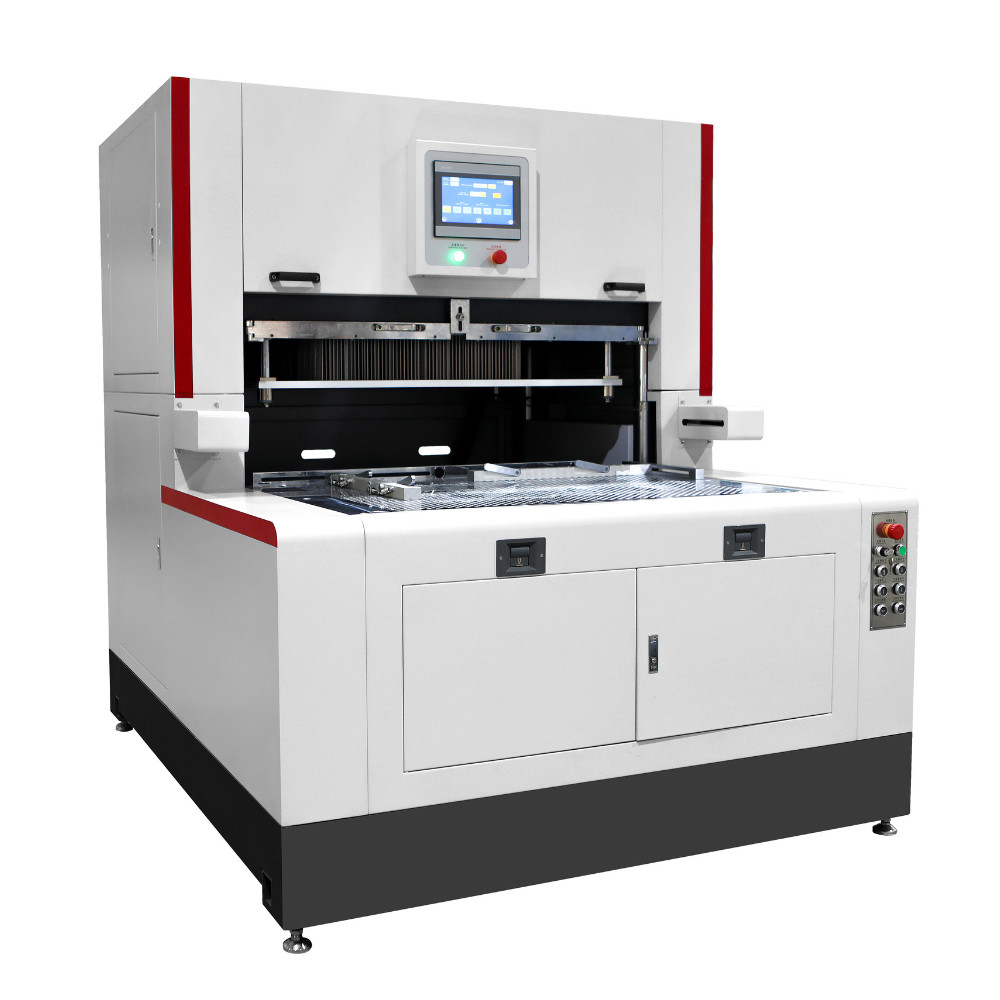

TM-1080A Automatic Waste Paper Stripping Blanking Machine

TM-1080A Automatic Waste Paper Stripping Blanking Machine
TM-1080A Automatic Waste Paper Stripping Blanking Machine
TM-1080A Automatic Waste Paper Stripping Blanking Machine TM-1080A Automatic Waste Paper Stripping Blanking Machine
Basic Information
Place of Origin: China
Brand Name: PRINTYOUNG
Certification: CE
Model Number: TM-1080A
Minimum Order Quantity: 1 Set
Price: US 24500 Set
Packaging Details: Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.
Delivery Time: 30 days
Payment Terms: L/C, T/T
Supply Ability: 30 Set/Sets per Month
Contact Now
Max Sheet Size: 1080 * 780 Mm Max Pile Height: 100 Mm
Min Pile Height: 40 Mm Table Height: 1100 Mm
Min Stripping Size: 80 * 120 Mm Max Stripping Size: 1080 * 780 Mm
Stripping Speed: 5 Times/minute Max Pressure: 100 Bar
Power Voltage / Frequency: 380V / 50Hz Power: 9 Kw
Air Requirement: 4 L/min , 4 ~ 7 Bar Machine Dimensions: 2400 * 1800 * 1950 Mm

TM-1080A Automatic Waste Paper Stripping Blanking Machine 0
TM-1080A Automatic Stripping Blanking Machine
TM-1080A Automatic Waste Paper Stripping Blanking Machine 1
TM-1080A Automatic Waste Paper Stripping Blanking Machine 2
Features
1.Compraring to traditional stripping blanking on die cutting machine which uses gantry frame as the base for installing with stripping mould,our new design doesn’t use mould for stipping and this design is space saving,and convinient for operating.
2.Servo motor and screw ball ensures a precise pile positioning.
3.Adjustable hydraulic system the pressures are centralized adjustable suitable of different materials of different sizes and weights.
4.Stripping needles (sticks) are quick and easy to changing to fit differnent products fromats and patterns by 100% could protect the products away from the marks.
5.Automatic centralized lubrication system max extend the service life of the machine.
6.The operating panel adopts with infrared sensors to avoid safety accident caused by wrong operation.Its also easy and quick to program with memories system on the touch screen.
7.Safety devices and sensors keeping workers away from dangerous.
TM-1080A Automatic Waste Paper Stripping Blanking Machine 3
Technical Parameters
TM-1080A Automatic Stripping Blanking Machine
Model
TM-1080AE
Stacker
Max Sheet Size
1080 * 780 mm
1080 * 780 mm
Max Pile Height
100 mm
1200 mm
Min Pile Height
40 mm
_
Table Height
1100 mm
1200 mm
Min Stripping Size
80 * 120 mm
_
Max Stripping Size
1080 * 780 mm
_
Stripping Speed
5 times/minute
_
Max Pressure
100 bar
_
Power Voltage / Frequency
380V / 50Hz
380V / 50Hz
Power
9 kw
500 w
Air Requirement
4 L/min , 4 ~ 7 bar
_
Machine Dimensions
2400 * 1800 * 1950 mm
1300 * 1300 * 1600 mm
Machine Weight
4 T
0.8 T
Applications
This is the lattest version for stripping process after die cutting,such as tags,labels,paper cups,wine packages,cosmetic packages and so on.It’s saving laborcost,improve the product quality, and increase the production speed.
TM-1080A Automatic Waste Paper Stripping Blanking Machine 4
TM-1080A Automatic Waste Paper Stripping Blanking Machine 5
TM-1080A Automatic Waste Paper Stripping Blanking Machine 6
TM-1080A Automatic Waste Paper Stripping Blanking Machine 7
TM-1080A Automatic Waste Paper Stripping Blanking Machine 8
TM-1080A Automatic Waste Paper Stripping Blanking Machine 9
TM-1080A Automatic Waste Paper Stripping Blanking Machine 10
TM-1080A Automatic Waste Paper Stripping Blanking Machine 11
TM-1080A Automatic Waste Paper Stripping Blanking Machine 12
Q1.Are you a manufacturer or a trading company?
A:Our shanghai office is mainly doing export.We have our own factory in Wenzhou,Zhejiang Province.
Q2.What is the machine warranty?
A:One year.After the warranty,we still provide technical support to buyer at low cost.
Q3.What is the production time while placing order?
A:Normally about 10-20 days.
Q4.What is the delivery time?
A:15-30days after deposit.
Q5.Can your company handle shipping for customers?
A:Yes,just give us destination sea port or container yard.
Q6.Does the packing strong?
A:Yes.Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions.A full set of maintenance and operation manuals is included.
Q7.How about the machine installation and training?
A:1)We provide training in our factory for free; 2)We can send technicians (engineers) to your factory for installation and training.You shall pay the round trip air fare and accommodations,plus each technician charges USD100/per day.
Q8.Do you have machines in stock?
A:For standard model,we have a large quantity in stock.For special model,we need 20-30 days to produce it for you.
Q9.How can you assure the machines’ quality?
A:Each machine will be test running at least 24 hours before delivery to assure the quality.And during the warranty,we will give spare parts for free if machine has any problem.
Q10.Do you inspect machines or test running before packing?
A:Of course we do.We have QC department to debug the machine before packing.If you want to use specific material to do the test running,you need to pay for the cost of the material.
Q11.What’s the payment term?
A:T/T 30% in advance,the balance shall be paid before delivery.We also accept payment by West Union or L/C at sight.
Q12.Do you accept factory visiting?
A:Warmly welcome for your visiting.
Q13.How many years are you in printing field?
A:The Shanghai company since in 2008,the factory is more than 25years.
Q14.How many clients do you have?
A:We have sold our machines to about 60 countries.We have agents in South Africa,Morocco and Italy.
