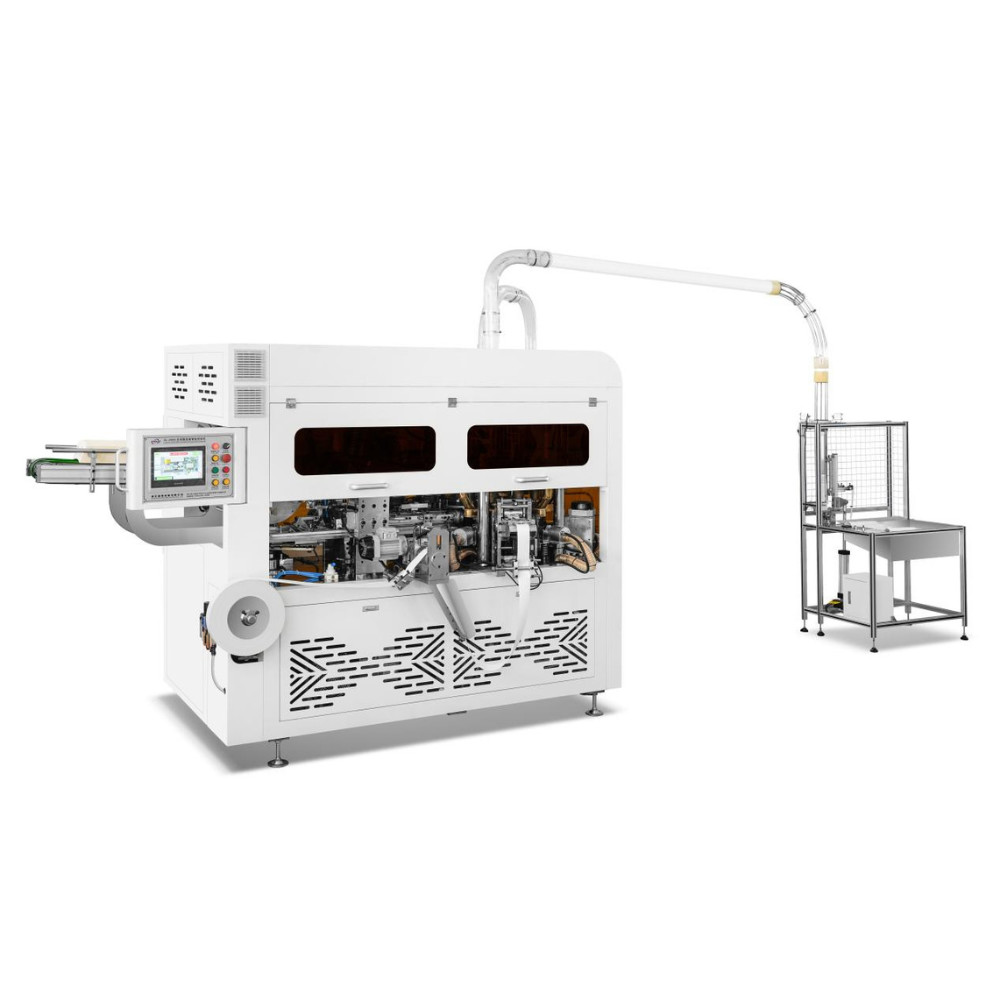

PRY-200S High Speed Automatic Intelligent Disposable Paper Cup Forming Making Machine

PRY-200S High Speed Automatic Intelligent Disposable Paper Cup Forming Making Machine
PRY-200S High Speed Automatic Intelligent Disposable Paper Cup Forming Making Machine
PRY-200S High Speed Automatic Intelligent Disposable Paper Cup Forming Making Machine PRY-200S High Speed Automatic Intelligent Disposable Paper Cup Forming Making Machine
Basic Information
Place of Origin: China
Brand Name: PRINTYOUNG
Certification: CE
Model Number: PRY-200S
Minimum Order Quantity: 1 Set
Price: US 32000 Set
Packaging Details: Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.
Delivery Time: 30 days
Payment Terms: L/C, T/T
Supply Ability: 30 Set/Sets per Month
Contact Now
Weight: 4200 Kg Packing Without Carton: 2800 * 1450 * 2000 Mm
Power Configuration: 380V , 32kw Compressed Air Configuration: 0.6 ~ 0.8 MPa , 0.5 M³/min
Production Capacity: 160 ~ 200 Pcs/min Paper Type: Single PE And Double PE/PLA
Paper Thickness: 190 ~ 320 Gsm Detection Device: Optional
Control Panel: 10 Inches Collection Table: 1000 * 650 * 1600 Mm

PRY-200S High Speed Automatic Intelligent Disposable Paper Cup Forming Making Machine 0
PRY-200S Paper Cup Machine
PRY-200S High Speed Automatic Intelligent Disposable Paper Cup Forming Making Machine 1
PRY-200S High Speed Automatic Intelligent Disposable Paper Cup Forming Making Machine 2PRY-200S High Speed Automatic Intelligent Disposable Paper Cup Forming Making Machine 3
PRY-200S High Speed Automatic Intelligent Disposable Paper Cup Forming Making Machine 4PRY-200S High Speed Automatic Intelligent Disposable Paper Cup Forming Making Machine 5
PRY-200S High Speed Automatic Intelligent Disposable Paper Cup Forming Making Machine 6PRY-200S High Speed Automatic Intelligent Disposable Paper Cup Forming Making Machine 7
PRY-200S High Speed Automatic Intelligent Disposable Paper Cup Forming Making Machine 8PRY-200S High Speed Automatic Intelligent Disposable Paper Cup Forming Making Machine 9
Advantages
The working principle of the paper cup machine is that a main motor drives the whole machine to realize the perfect integration of gear and cam structure.Now the machine uses a single aluminum disk instead of the previous three-disk machine,greatly reducing the failure rate of the machine and reducing the training time for the operators.A 3-16oz odd-even shower film paper cup can be made according to customer request.Is a automatic paper cup molding equipment,through rows of automatic paper,paper device(ensure accurate positioning),ultrasonic or copper welding,mechanical paper transfer,oil injection, bottom,folding,preheating,rolling,cup,unloading continuous process, can stabilize the production of different specifications of paper cup,is our company after comprehensive technical improvement to improve the stability of the paper cup equipment.
Mechanical Behavior
High-speed intelligent servo paper cup machine PRY-200S The intelligent paper cup machine adopts a table layout,isolating the transmission components and molds.The transmission components are under the machine table and the molds are on the table.This layout is easy to clean and maintain.The machine adopts automatic spray lubrication,a new servo transmission structure,removes the old indexing groove wheel structure,improves the stability of the overall transmission structure of the machine, reduces the transmission structure on the original basis,and uses servo control for each part,which can reduce the basic transmission structure and make it easier for operators to master.Ensure the stability and quality of the whole machine.For electrical components,PLC,photoelectric tracking and servo feeding are used to control the operation.The production capacity of this type of machine is as high as 160-200/min,suitable for the production of 6-16 ounces of cold/hot cups.
PRY-200S High Speed Automatic Intelligent Disposable Paper Cup Forming Making Machine 10
Intelligent Control System
1.Multiple models of modules.Guided by simple window prompts,select the model for the setup.
2.Flexible parameter setting.You can backup,restore or restore parameters to factory.You can also manually modify the parameters in detail.
3.Flexible encoder origin setting,automatic direction setting and fault self-checking.The hardware installation of the encoder does not need to consider the position,only need to set the software.
4.Automatically configure the parking space,and quickly drop in less than one lap.After configuration,the machine will automatically calculate the inertia distance of the machine, and the position after deceleration is at least one step faster.
5.The system's key station sensor signals are automatically calculated and identified.The molding failure can be encountered by simply operating the start button,and the system automatically tracks the signal according to the sensor,so that the mold stops quickly in the middle of the two heaters.
6.Stop the automatic removal of the cup.After the machine stops abnormally,the system will automatically remove the heater and bracket position because the heater is burnt out and the adhesive is not firm.
7.Intelligent temperature control of heating system.The temperature is controlled by PLC PID,the user only needs to select the paper manufacturer,weight,single/double PE,the system will automatically set the corresponding target temperature,and the speed of the machine will change when the target temperature is automatically adjusted.Users can also customize target temperature control.
8.(Optional) Vision system defect detection.Automatically identify paper cup shape,internal and bottom defects,and automatically remove them.Unique algorithm,accurate and stable light gray stain recognition.One key to quickly set parameters,and you can also modify each parameter in detail.The system supports internal network monitoring output reports.
9.Hardware monitoring system.PLC output point,relay,contactor,plc and touch screen,plc and computer,plc has extended line real-time monitoring function,and the abnormal alarm in the touch screen prompts the cause of the failure.With detailed hardware and software fault information,users can easily troubleshoot according to the prompts.
Technical Parameters
PRY-200S Paper Cup Machine
Weight
4200 kg
Packing without Carton
2800 * 1450 * 2000 mm
Power Configuration
380V , 32kw
Compressed Air Configuration
0.6 ~ 0.8 MPa , 0.5 m³/min
Production Capacity
160 ~ 200 pcs/min
Paper Type
Single PE and double PE/PLA
Paper Thickness
190 ~ 320 g/m2
Detection Device
Optional
Control Panel
10 inches
Collection Table
1000 * 650 * 1600 mm
PRY-200S High Speed Automatic Intelligent Disposable Paper Cup Forming Making Machine 11
D1 : ф 60 ~ 90 mm ; D2 : ф 45 ~ 65 mm ; H : 60 ~ 138 mm ; h : 5 ~ 12 mm
Sample Pictures
PRY-200S High Speed Automatic Intelligent Disposable Paper Cup Forming Making Machine 12PRY-200S High Speed Automatic Intelligent Disposable Paper Cup Forming Making Machine 13
PRY-200S High Speed Automatic Intelligent Disposable Paper Cup Forming Making Machine 14
PRY-200S High Speed Automatic Intelligent Disposable Paper Cup Forming Making Machine 15
PRY-200S High Speed Automatic Intelligent Disposable Paper Cup Forming Making Machine 16
PRY-200S High Speed Automatic Intelligent Disposable Paper Cup Forming Making Machine 17PRY-200S High Speed Automatic Intelligent Disposable Paper Cup Forming Making Machine 18PRY-200S High Speed Automatic Intelligent Disposable Paper Cup Forming Making Machine 19
PRY-200S High Speed Automatic Intelligent Disposable Paper Cup Forming Making Machine 20
PRY-200S High Speed Automatic Intelligent Disposable Paper Cup Forming Making Machine 21
PRY-200S High Speed Automatic Intelligent Disposable Paper Cup Forming Making Machine 22
PRY-200S High Speed Automatic Intelligent Disposable Paper Cup Forming Making Machine 23
PRY-200S High Speed Automatic Intelligent Disposable Paper Cup Forming Making Machine 24
PRY-200S High Speed Automatic Intelligent Disposable Paper Cup Forming Making Machine 25
Q1.Are you a manufacturer or a trading company?
A:Our shanghai office is mainly doing export.We have our own factory in Wenzhou,Zhejiang Province.
Q2.What is the machine warranty?
A:One year.After the warranty,we still provide technical support to buyer at low cost.
Q3.What is the production time while placing order?
A:Normally about 10-20 days.
Q4.What is the delivery time?
A:15-30days after deposit.
Q5.Can your company handle shipping for customers?
A:Yes,just give us destination sea port or container yard.
Q6.Does the packing strong?
A:Yes.Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions.A full set of maintenance and operation manuals is included.
Q7.How about the machine installation and training?
A:1)We provide training in our factory for free; 2)We can send technicians (engineers) to your factory for installation and training.You shall pay the round trip air fare and accommodations,plus each technician charges USD100/per day.
Q8.Do you have machines in stock?
A:For standard model,we have a large quantity in stock.For special model,we need 20-30 days to produce it for you.
Q9.How can you assure the machines’ quality?
A:Each machine will be test running at least 24 hours before delivery to assure the quality.And during the warranty,we will give spare parts for free if machine has any problem.
Q10.Do you inspect machines or test running before packing?
A:Of course we do.We have QC department to debug the machine before packing.If you want to use specific material to do the test running,you need to pay for the cost of the material.
Q11.What’s the payment term?
A:T/T 30% in advance,the balance shall be paid before delivery.We also accept payment by West Union or L/C at sight.
Q12.Do you accept factory visiting?
A:Warmly welcome for your visiting.
Q13.How many years are you in printing field?
A:The Shanghai company since in 2008,the factory is more than 25years.
Q14.How many clients do you have?
A:We have sold our machines to about 60 countries.We have agents in South Africa,Morocco and Italy.
