SF-280C Steam Heating Automatic Cardboard Single Facer Corrugated Machine

Basic Information
Place of Origin: China
Brand Name: PRINTYOUNG
Certification: CE
Model Number: SF-280C
Minimum Order Quantity: 1 Set
Price: US 13500 Set
Packaging Details: Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.
Delivery Time: 30 days
Payment Terms: L/C, T/T
Supply Ability: 10 Set/Sets per Year
Working Width: 1600 Mm Design Speed: 100 M/min
Working Speed: 40 ~ 60 M/min Temperature Range: 160 ~ 180 ℃
Gas Source: 0.4 ~ 0.9 Mpa Steam Pressure: 0.8 ~ 1.3 Mpa
Corrugated Roll: 280 Mm Glue Roll: 215 Mm
Glue Doctor Roll: 110 Mm Preheater Roll: 320 Mm

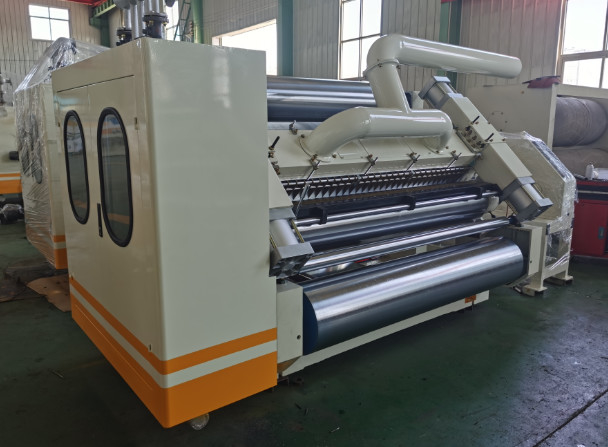

SF-280C Steam Heating Automatic Cardboard Single Facer Corrugated Machine 0
SF-280C Steam Heating Single Facer

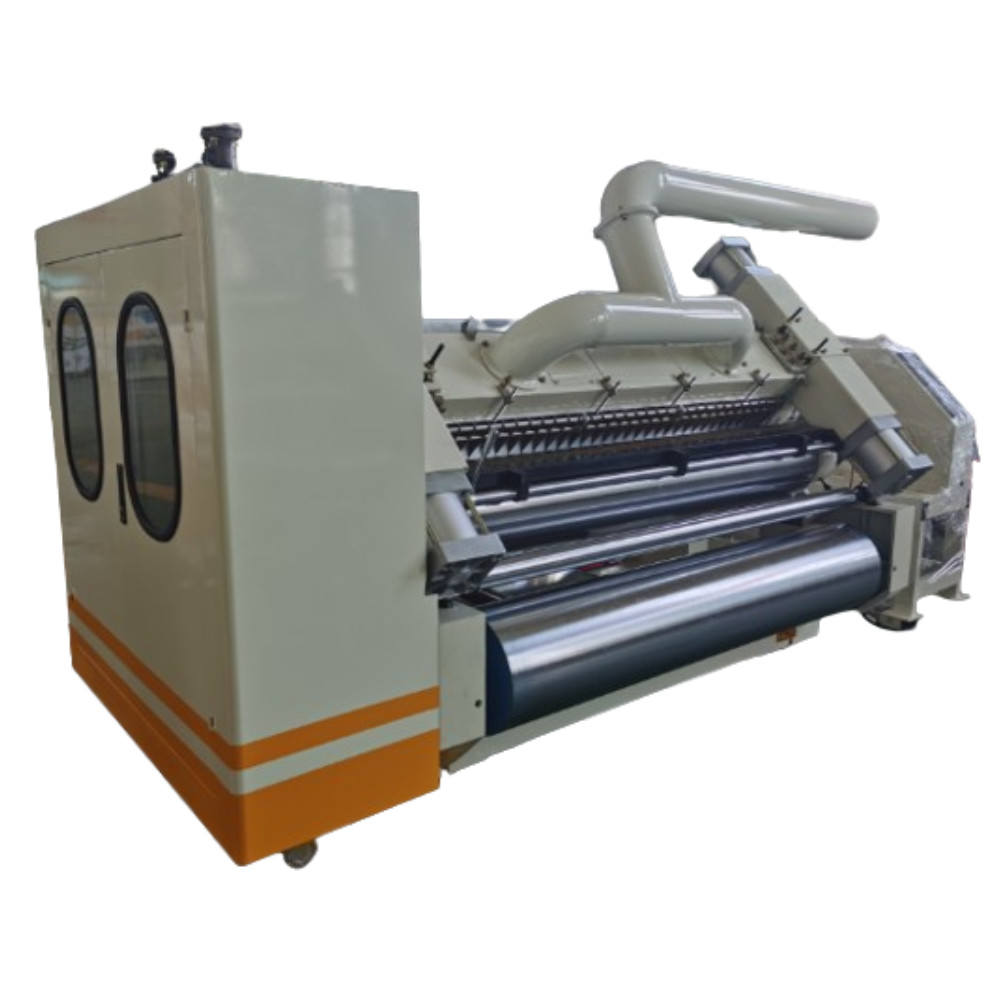

SF-280C Steam Heating Automatic Cardboard Single Facer Corrugated Machine 1
Features
★ The paper guiding method adopts wind adsorption to maintain the stability of the corrugated shape at high speed.
★ The corrugated paper is adsorbed by a fan through a vacuum box within a 180 degree range of the middle corrugated roller to form a negative pressure zone,completing the rolling of the corrugated paper.
★ The width of the lower corrugated roller suction groove should not exceed 2.0-2.5mm, which can reduce the dry paper line marks on single-sided corrugated cardboard.
★ The transmission part adopts universal shaft transmission to isolate the vibration source, making the transmission smoother,more reliable in operation,and more maintainable.
★ The gearbox adopts oil immersion lubrication and closed gear transmission to reduce machine vibration.
★ Adopting cyclic glue supply,pneumatic glue application and reset,with buffering effect.
★ Electric adjustment of adhesive surface width,convenient and fast.
★ The surface of the rubber roller has undergone special mesh carving and chrome plating treatment.
Technical Parameters
SF-280C Steam Heating Single Facer
Working Width
1600 mm
Operation Direction
left or right (determined according to the customer's factory)
Design Speed
100 m/min
Working Speed
40 ~ 60 m/min
Temperature Range
160 ~ 180 ℃
Gas Source
0.4 ~ 0.9 Mpa
Steam Pressure
0.8 ~ 1.3 Mpa
corrugated Roll
280 mm
Glue Roll
215 mm
Glue Doctor Roll
110 mm
Preheater Roll
320 mm
SF-280C Steam Heating Automatic Cardboard Single Facer Corrugated Machine 2
SF-280C Steam Heating Automatic Cardboard Single Facer Corrugated Machine 3
SF-280C Steam Heating Automatic Cardboard Single Facer Corrugated Machine 4
SF-280C Steam Heating Automatic Cardboard Single Facer Corrugated Machine 5
SF-280C Steam Heating Automatic Cardboard Single Facer Corrugated Machine 6
SF-280C Steam Heating Automatic Cardboard Single Facer Corrugated Machine 7
SF-280C Steam Heating Automatic Cardboard Single Facer Corrugated Machine 8
SF-280C Steam Heating Automatic Cardboard Single Facer Corrugated Machine 9
Q1.Are you a manufacturer or a trading company?
A:Our shanghai office is mainly doing export.We have our own factory in Wenzhou,Zhejiang Province.
Q2.What is the machine warranty?
A:One year.After the warranty,we still provide technical support to buyer at low cost.
Q3.What is the production time while placing order?
A:Normally about 10-20 days.
Q4.What is the delivery time?
A:15-30days after deposit.
Q5.Can your company handle shipping for customers?
A:Yes,just give us destination sea port or container yard.
Q6.Does the packing strong?
A:Yes.Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions.A full set of maintenance and operation manuals is included.
Q7.How about the machine installation and training?
A:1)We provide training in our factory for free; 2)We can send technicians (engineers) to your factory for installation and training.You shall pay the round trip air fare and accommodations,plus each technician charges USD100/per day.
Q8.Do you have machines in stock?
A:For standard model,we have a large quantity in stock.For special model,we need 20-30 days to produce it for you.
Q9.How can you assure the machines’ quality?
A:Each machine will be test running at least 24 hours before delivery to assure the quality.And during the warranty,we will give spare parts for free if machine has any problem.
Q10.Do you inspect machines or test running before packing?
A:Of course we do.We have QC department to debug the machine before packing.If you want to use specific material to do the test running,you need to pay for the cost of the material.
Q11.What’s the payment term?
A:T/T 30% in advance,the balance shall be paid before delivery.We also accept payment by West Union or L/C at sight.
Q12.Do you accept factory visiting?
A:Warmly welcome for your visiting.
Q13.How many years are you in printing field?
A:The Shanghai company since in 2008,the factory is more than 25years.
Q14.How many clients do you have?
A:We have sold our machines to about 60 countries.We have agents in South Africa,Morocco and Italy.
